Yamaha NS-10M Manuel utilisateur

YAMAHA

MONITOR SPEAKER SYSTEM

Congratulation on your purchase of a Yamaha NS-10M STUDIO

Monitor Speaker System! The NS-10M STUDIO has been pain-

stakingly designed to offer superior near-field monitoring per-

formance in professional studio applications. This same superb

performance makes the NS-10M STUDIO an unbeatable choice

for home recording and even audio listening.

In order to make the most of the outstanding sound the NS-10M

STUDIO Monitor Speaker System has to offer, we urge you to

read this Owner’s Manual thoroughly.

PRECAUTIONS FEATURES

Make sure that the power to your amplifier is turned OFF

before connecting the speakers.

Do not attempt to drive the speakers at levels above their

rated power capacity. Excessive power can lead to serious

damage.

Be sure to match the polarity of the speaker terminals

(+, –) with the outputs of your amplifier. If the polarity

of the left and right speakers is reversed, proper stereo

imaging will be impossible to achieve and irregular re-

sponse will result.

This speaker system is not provided with grilles over the

woofers. Avoid touching the woofer cone – particularly

the center cap-with fingers or any other object prevent

possible damage.

To achieve optimum performance, use audio-quality

heavy-gauge speaker cable.

Woofer

The 18 cm (7") woofer features a conical, straight cone

formed from a sheet of specially developed paper ma-

terial, achieving precise pistonic motion for accurate,

distortion-free reproduction. The cone weights a mere

3.7 grams, allowing it to respond ideally even with

extremely low input levels. Power linearity is superb

from the lowest to highest input levels.

Tweeter

The 3.5 cm (1-3/8”) tweeter dome is a laminated

soft-dome type incorporating two specially selected

resins. A unique manufacturing technique ensures

perfectly even resin layers and forms the dome and

tangential edge in one piece. The dome and edge unit

weights only 0.6 grams, achieving superb transient re-

sponse with minimum distortion.

Enclosure

Only the finest audio-quality high-density particle board

is used in this sealed bookshelf-type enclosure. A

real-wood exterior with a black finish applied in 7

coatings adds rugged durability and beauty to profes-

sional-quality sound.

Crossover Network

Low-distortion inductors and selected MP capacitors

are combined in a carefully designed layout to ensure

smooth crossover with minimum loss and distortion.

Speaker Terminals

Large screw-type terminals easily accept heavy-gauge

speaker cable for optimum reproduction performance.

CONNECTION

BEFORE MAKING SPEAKER CONNECTIONS, MAKE SURE YOUR POWER AMPLIFIER IS TURNED OFF!

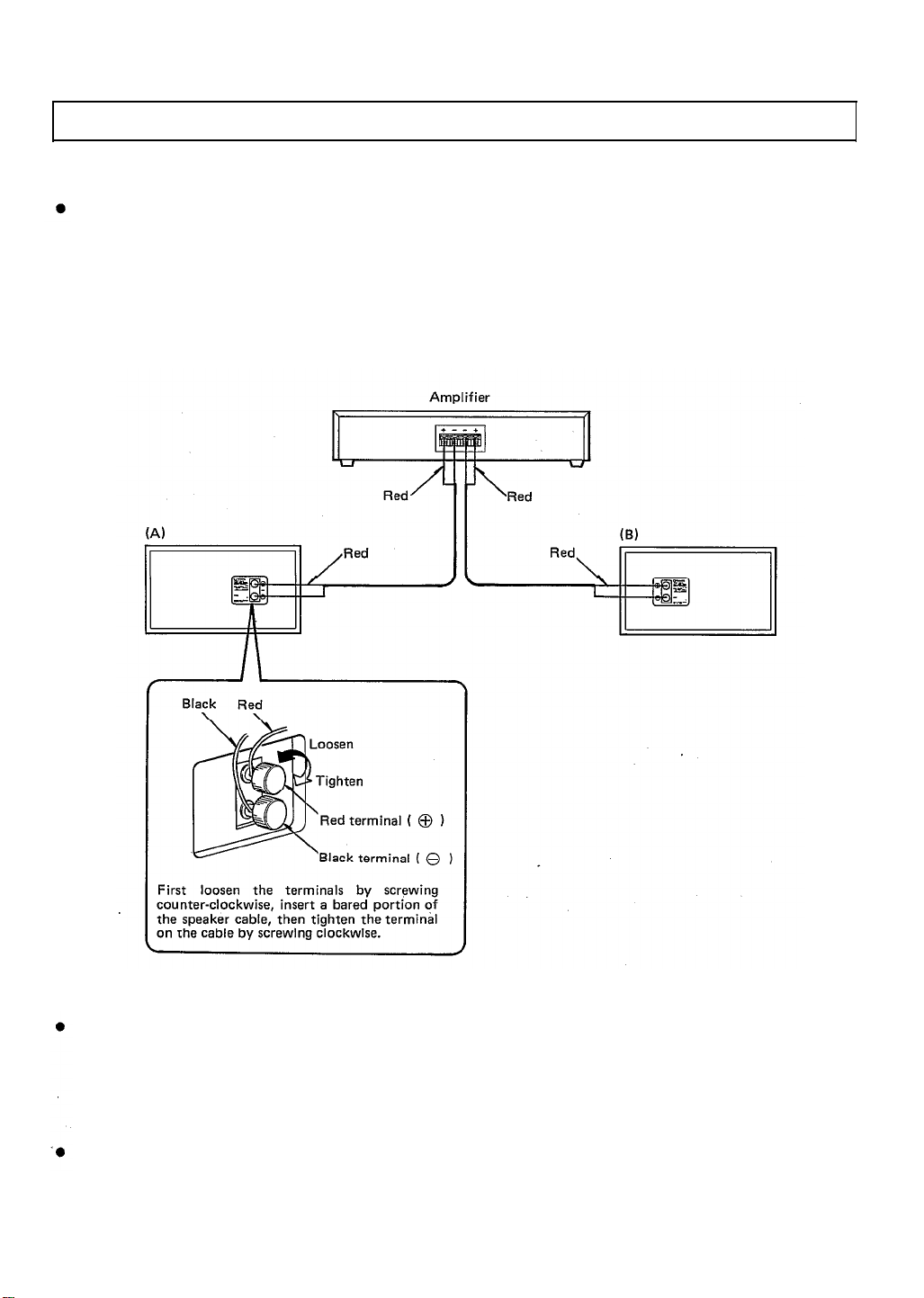

Connecting the Speakers

The terminals on the rear of the left and right speakers must be connected to the corresponding speaker

output terminals on the rear of your power amplifier with appropriate speaker cables. Make sure that the

right speaker is connected to the speaker output terminals on the amplifier marked “R” or “RIGHT”, and

the left speaker is connected to the amplifier output terminals marked “L” or “LEFT.” Also make sure that

the red (+) terminal on each speaker is connected to the (+) output terminal of corresponding pair on

the amplifier, and the black (–) terminal on the speaker is connected to the (–) terminal, on the amplifier.

If the speaker polarities are not properly matched, unstable stereo imaging and distortion will result.

Placement

The NS-10M STUDIO speakers are basically designed for horizontal placement, the speaker marked (A)

in the above illustration corresponding to the right speaker and the (B) to the left. According to your

requirements, however, the positions of the speakers may be reversed or they may be placed vertically

with no effect on reproduction quality. The speakers are marked (A) or (B) to the right of the serial number

on the rear panel label.

Slippage at High Power Levels

Vibration occuring when the speakers are driven at high power levels may cause them to move out of

position. This can be prevented by applying the supplied non-slip sheet to the bottom surface of the speaker

enclosures.

SPECIFICATIONS

Frequency Range 60Hz~20kHz

Power Capacity Program: 60W

Max.: 120W

Nominal Impedance

Sensitivity

Crossover Frequency

Components

8 ohms

90dB SPL (1W, 1m on axis)

2kHz

LF: JA1801 (18 cm cone)

HF: JA0518A (3.5 cm soft dome)

Enclosure

Dimensions (W x H x D) 10.4 liter, sealed bookshelf

381.5mmx215mmx197.5mm

(15” x 8-1/2” x 7-3/4”)

Weight 6.3 kg (13.9 Ibs.) (1 speaker)

Supplied Accessory

Non-slip sheet

*Specifications and external appearance subject to change without notice.

TECHNICAL DATA

(1W, 1m on axis, in anechoic chamber)

FREQUENCY RESPONSE/HARMONIC

IMPEDANCE VS FREQUENCY

DISTORTION

CIRCUIT DIAGRAM

H.F.

JA0518A

L.F.

JA1801

DIMENSION CHART

Units: mm (Inch)

SINCE 1887

YAMAHA

NIPPON GAKKI CO., LTD. HAMAMATSU, JAPAN

SERVICE

The NS-10M STUDIO are supported by Yamaha’s worldwide network of factory

trained and qualified dealer service personnel. In the event of a problem, contact

your nearest Yamaha dealer.

Les enceintes NS-10M STUDIO sont prises en charge par le réseau mondial de

Yamaha avec ses usines et son personnel de service qualifié. En cas de problème,

contactez la concessionnaire Yamaha la plus proche.

Dem NS-10M STUDIO steht das weltweite Yamaha Kundendienstnetz mit quali-

fizierten Technikern zur Verfügung. Im Falle einer Störung sofort den Fachhandel

in lhrer Nähe benachrichtigen.

VD29740-1 BWgV,b Printed in Japan
