Yale Assure Lock YRC256 Caractéristiques techniques
1
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
Retrofitting or modifying this product may impact fire rating, safety features and warranty.
Consult with code specifications to ensure compliance with all codes and ratings.
Before you begin
for step-by-step installation
instructions & to register
your product
DOWNLOAD
THE BILT APP
4" Shown - 5.5" Available
Inside
of Door
Outside
of Door

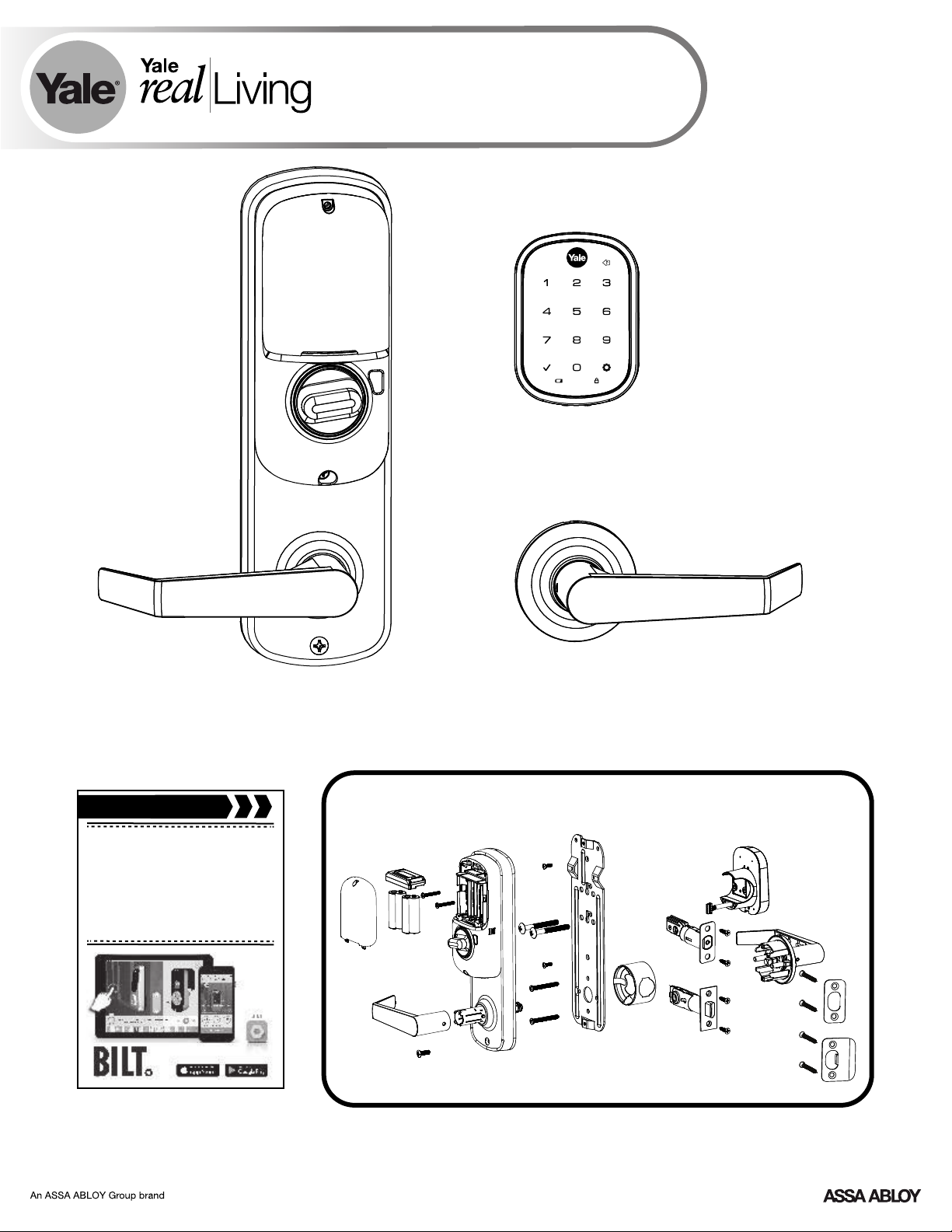

Yale® Assure Lock®
Interconnected Key Free Touchscreen
Installation and Programming Instructions
(YRC256/YRC652)
®
Smart Module
(Optional)
2
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
Before You Begin
1-3/8" (35mm) Min to
1-3/4" (44.5mm) Max
4-1/2"
(114) Min
x1
x2 x8
x2
x2
Smart Module
(Optional)
3/32"
1/8" #2
1/8" 2-1/8"
1
1" x2 Black
M6x44mm
PPHMS
(Standard 1-3/4" - 2")
OR
x2 Gold
M6x36mm
PPHMS
(1-3/8")
Template
Door Thickness
FOLD HERE
Door Edge
Recommended Centerline
36" (91 cm) From Floor.
Backset
5/32"
(3.96mm)
Caution: Copy machines
may change the size of the
template and make it
inaccurate.
263006837 (01-16)
1" (25mm)1" (25mm)
2-1/8" (54mm)
2-1/8" (54mm)
2-3/4" (70mm)
2-3/8" (60mm)
4" (101mm)
5-1/2" (139.7mm)
1" (25mm)
2-1/8" (54mm)
"Backset" is the distance
from the door edge to the
center of the mounting
hole for the lever.
1-3/8"
(35mm)
1-3/4"
(45mm)
Caution: Although a door
can be prepared by an
untrained person, Yale
recommends that
measurements and drilling
be done by a skilled
carpenter or locksmith.
Yale® is a registered trademark of Yale
Security Inc., an ASSA ABLOY Group
company. Copyright © 2016, Yale
Security Inc., an ASSA ABLOY Group
company.
All rights reserved. Reproduction in
whole or in part without the express
written permission of Yale Security Inc.
is prohibited.
www.yalelocks.com
1-800-438-1951
Interconnected
Lockset
An ASSA ABLOY Group brand
2-3/8" (60mm)
3
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
Mark Door Reference Lines
C
L
M
O
E
V
R
E
EXISTING
2-3/8" or 2-3/4"
Backset
Template
Door Thickness
FOLD HERE
Door Edge
Recommended Centerline
36" (91 cm) From Floor.
Backset
5/32"
(3.96mm)
Caution: Copy machines
may change the size of the
template and make it
inaccurate.
263006837 (01-16)
1" (25mm)1" (25mm)
2-1/8" (54mm)
2-1/8" (54mm)
2-3/4" (70mm)
2-3/8" (60mm)
4" (101mm)
5-1/2" (139.7mm)
1" (25mm)
2-1/8" (54mm)
"Backset" is the distance
from the door edge to the
center of the mounting
hole for the lever.
1-3/8"
(35mm)
1-3/4"
(45mm)
Caution: Although a door
can be prepared by an
untrained person, Yale
recommends that
measurements and drilling
be done by a skilled
carpenter or locksmith.
Yale® is a registered trademark of Yale
Security Inc., an ASSA ABLOY Group
company. Copyright © 2016, Yale
Security Inc., an ASSA ABLOY Group
company.
All rights reserved. Reproduction in
whole or in part without the express
written permission of Yale Security Inc.
is prohibited.
www.yalelocks.com
1-800-438-1951
Interconnected
Lockset
An ASSA ABLOY Group brand
2-3/8" (60mm)
4
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
1Preparing Door (if necessary)
!
Drill holes 1/2 way thru
door then complete
from other side to
prevent splitting.
Ø2-1/8" 2-3/8"
or
2-3/4"
Ø1"
4"
or
5.5"
Template
Door Thickness
FOLD HERE
Door Edge
Recommended Centerline
36" (91 cm) From Floor.
Backset
5/32"
(3.96mm)
Caution: Copy machines
may change the size of the
template and make it
inaccurate.
263006837 (01-16)
1" (25mm)1" (25mm)
2-1/8" (54mm)
2-1/8" (54mm)
2-3/4" (70mm)
2-3/8" (60mm)
4" (101mm)
5-1/2" (139.7mm)
1" (25mm)
2-1/8" (54mm)
"Backset" is the distance
from the door edge to the
center of the mounting
hole for the lever.
1-3/8"
(35mm)
1-3/4"
(45mm)
Caution: Although a door
can be prepared by an
untrained person, Yale
recommends that
measurements and drilling
be done by a skilled
carpenter or locksmith.
Yale® is a registered trademark of Yale
Security Inc., an ASSA ABLOY Group
company. Copyright © 2016, Yale
Security Inc., an ASSA ABLOY Group
company.
All rights reserved. Reproduction in
whole or in part without the express
written permission of Yale Security Inc.
is prohibited.
www.yalelocks.com
1-800-438-1951
Interconnected
Lockset
An ASSA ABLOY Group brand
2-3/8" (60mm)
5
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
2Installing Strike Plates
Door Frame
Inside
of Door
Frame
1" Dia. x
1"Deep
1" Dia. x
1/2"Deep
Frame
7-16 / 8-32 x 1" UNCWS
x4

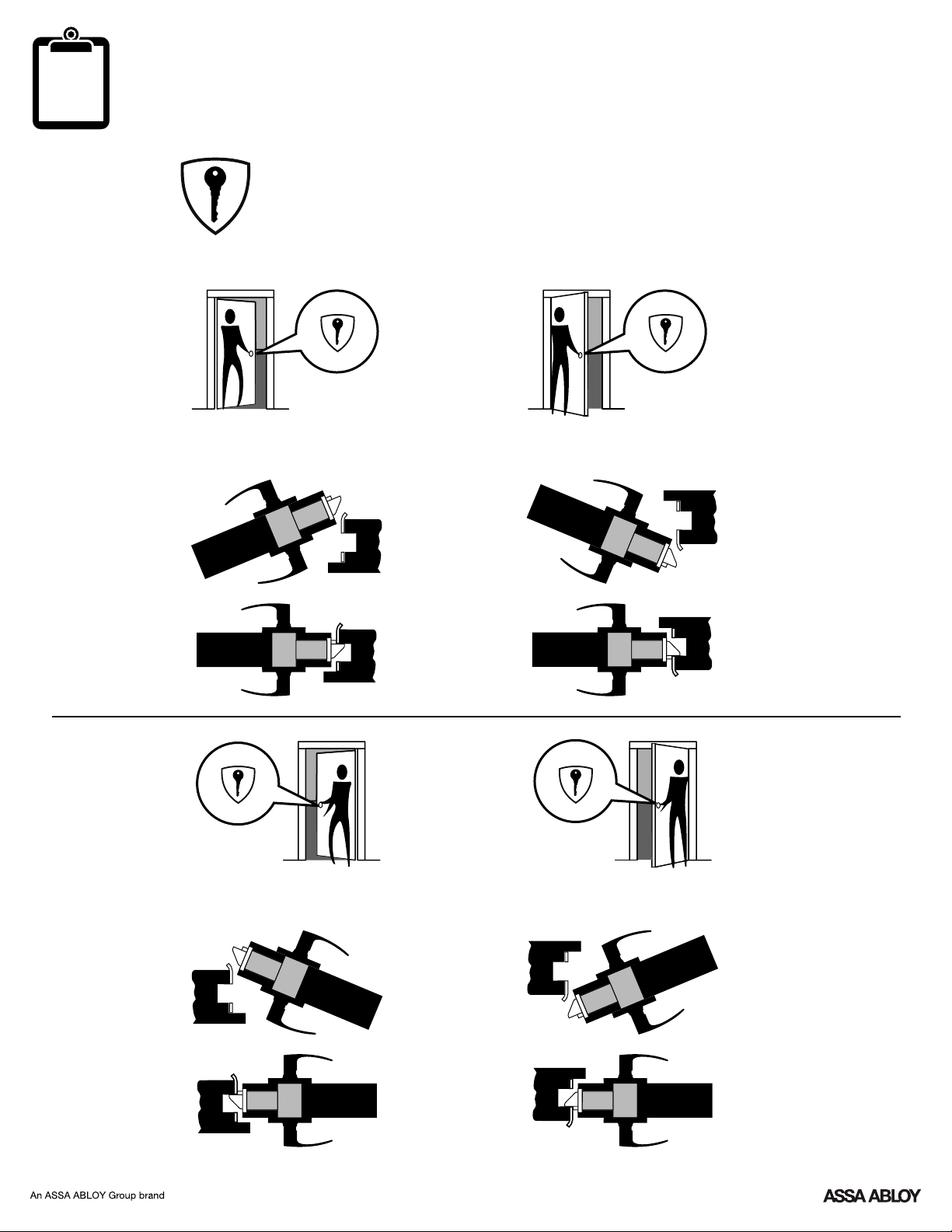

Left Hand “LH”, Hinges Left.
Open Inward.
Left Hand Reverse "LHR", Hinges Left.
Open Outward.
Right Hand "RH", Hinges Right.
Open Inward.
Right Hand Reverse "RHR", Hinges Right.
Open Outward.
The hand of a door is determined from the secure side of the
door. The term "secure" means the side from which you initially
unlock and enter.
Determining Handing
6
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
7
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
3Changing Handing (if necessary)
4-24 x 1/4" PPHMS
4" Left Hand to 4" Right Hand Shown
x2
3
!
DO NOT TAMPER
WITH OR LOOSEN
E-CLIP AND ITS
ASSEMBLY
!
DO NOT LOOSEN
THESE 6 SCREWS
OR REMOVE
COVER
Changing Handing (if necessary)
continued
3
8
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
9
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
Lockset Handing Configurations
4" Left Hand
For 5.5"
For 4"
4" Right Hand
For 5.5"
For 4"
After handing is changed, check that lever and thumbturn rotate freely.
Test Lever and Thumbturn
!
Confirm RH is
visible thru RH hole
as shown for
right hand installation.
!
Confirm LH is
visible thru LH hole
as shown for
left hand installation.
10
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
4Installing Fire Cup
Inside of Door
Fire Cup and a UL marked
Latchbolt must be used to
qualify for UL listing.
!
