Retrofitting or modifying this
product may impact fire rating,
safety features and warranty.
Consult with code specifications to
ensure compliance with all codes
and ratings.

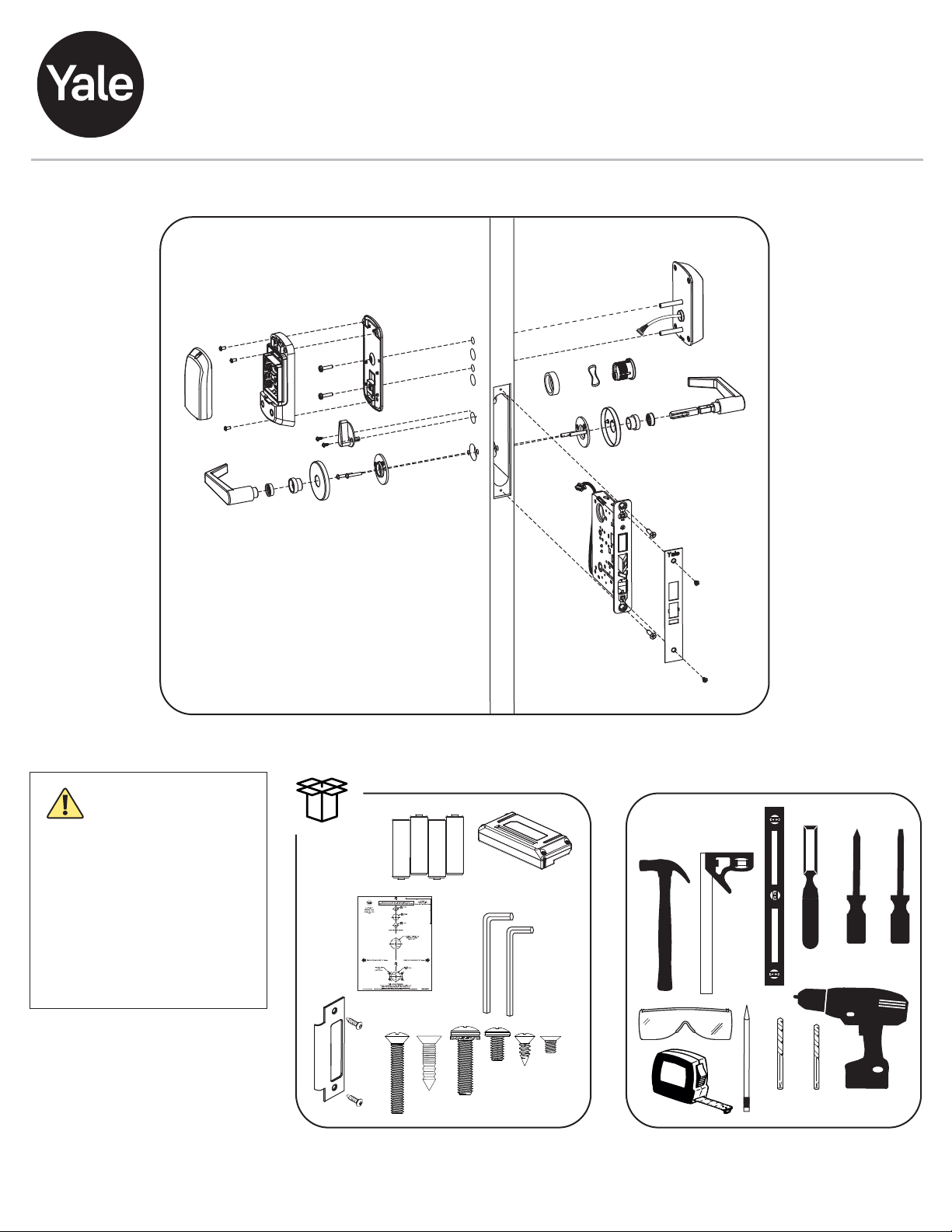

nexTouch™ Keypad Access Sectional Mortise Lock
Touchscreen and Push Button
Installation and Programming Instructions
1/2"3/4"
3/32"
AA
AA
AA
AA
Optional
#3 & #2
1/8"
WARNING
This product can expose
you to lead which is
known to the state of
California to cause cancer
and birth defects or other
reproductiveharm.For
more information go to
www.P65warnings.ca.gov.
08/2018
Tools Needed
80-9086-0030-010 11-21
Part of ASSA ABLOY
Determine Handing
The hand of a door is determined from the secure side of the door. The
term "secure" means the side from which you unlock and enter.
RED Locking Slide
should face the secure
side of door.
Latchbolt -
Beveled edge
must face strike.
(See step 1
to reverse
latchbolt.)
Deadbolt
Key cylinder used for cylinder
option installation. Thumbturn
used when mortise lock is
equipped with deadbolt.
2
80-9086-0030-010 11-21
Part of ASSA ABLOY
Hand Latchbolt & Hubs (If Necessary)
Locking
Slide
1
2
2
2
1
PUSH away from
square hole to create gap.
Check for free movement
of locking slide.
PUSH IN
causing locking slide
to rotate.
3
RED MARK on locking slide
must be on secure side of door!
Continue to
rotate locking
slide from other side
until "set" in position.
Insert flat head
screwdriver to
pry latch head up.
Rotate latch head
to correct orientation.
3
1
80-9086-0030-010 11-21
Part of ASSA ABLOY
4
Prepare Door
Inside of Door
Outside of Door
Drill thru holes 1/2 way
thru door then complete
from other side to
prevent splitting.
Mortise Lock Cable Hole:
Drill only 1/2 way into
door (7/8" depth) then
STOP!
Mortise Key
Cylinder Hole:
Drill only 1/2 way
into door ONLY if
lock is equipped
with cylinder.
Mortise Deadbolt Thumbturn Hole:
Drill only 1/2 way into door ONLY if
lock is equipped with deadbolt.
2
80-9086-0030-010 11-21
Part of ASSA ABLOY
5
x2
#12-24x1" Flat Head Combo Screw
Frame
Optional
Strike Box
Prepare Frame & Install Strike
This prep is standard with
or without deadbolt.
Use #3 Philips head
screwdriver
3
80-9086-0030-010 11-21
Part of ASSA ABLOY
6
Install Mortise Lock
Do not tighten screws
until Step 10.
Make sure mortise pocket
is free from debris.
x2
Inside
of Door
#12-24x1" Flat Head Combo Screw
Mortise Lock
Cable Hole
Use #3
Philips head
screwdriver
4
80-9086-0030-010 11-21
Part of ASSA ABLOY
7
Install Key Cylinder (if applicable)
For Cylinder Option ONLY
Test Operation
It may be necessary to
loosen the cylinder set screw
before installing the cylinder.
Outside of Door
2
1
Then, use #2
Philips head
screwdriver to
tighten cylinder
set screw.
First, tighten cylinder
until snug against
door with the Yale
logo horizontal.
Outside
of Door
1
Use #2
Philips head
screwdriver
HAND TIGHTEN.
Do not use powered
screw driver.
5
80-9086-0030-010 11-21
Part of ASSA ABLOY
8
Adjusting for 1-3/4" to 2-1/4" Door (if necessary)
Use screw pack for thicker door at this step.
Use appropriate fastener lengths to ensure proper installation.
Install Rose Trim - all types
Outside
of Door
Inside
of Door
#8-32x1"
Pan Head Screw
with Thread Locker
(For 1-3/4" Door)
x2
Use #2
Philips head
screwdriver
If provided
If provided
Tighten screws
securely but avoid
overtightening and
warping door.
6
80-9086-0030-010 11-21
Part of ASSA ABLOY
9
Inside
Spindle
Outside Lever
Install Levers
Outside
of Door
1
2
3
Prepare Levers
Inside Lever Correct
Orientation
Pushing levers together,
use hex wrench
to tighten set screw securely
against spindle.
Loosen Inside Spindle
1/2 to 1 turn until
Correct Orientation.
7
8
80-9086-0030-010 11-21
Part of ASSA ABLOY
10
Install Thumbturn (if applicable)
For Deadbolt Option ONLY
#6x3/8" Oval Head Screw
x2 Inside
of Door
Use #2
Philips head
screwdriver
9
Test Operation
80-9086-0030-010 11-21
Part of ASSA ABLOY
Deadbolt retracts and extends
by thumbturn and key. Once
extended, it will also retract
by lever.
Latchbolt retracts and extends
by levers and key.
