Thank you for purchasing da Vinci nano 3D printer. (Hereinafter referred to

as da Vinci nano. )This product is a small and portable 3D printer, you can

use da Vinci nano to take your imagination to a new level and bring any idea

to life.

Before you start printing, please read this manual to learn how to use da

Vinci nano correctly. This manual describes da Vinci nano safety instructions,

operating instructions, maintenance information and application tips. For

the latest information of da Vinci nano 3D printer, you can contact your local

Authorized Distributors or refer to the official website of XYZprinting. (http://

www.xyzprinting.com).

ENG

QUICK GUIDE

HD23FNAX085

XYZmaker is a software that is used to operate the da Vinci nano and prepare 3D models for

printing. Download XYZmaker from http://xyzptr.com/go2nano and install it on your computer.

First time installation requires an Internet connection.

Indicator signals Status Action

Solid green Standby/Ready to print -

Flashing green Receiving data -

Solid red General error Press the button to return to printing status, refer

to instructions in software to fix. *

Flashing red Critical error Refer to instructions in the software to solve the

issue or reboot the Nano. *

Solid orange

Printing -

Pause the print To pause the print, press the button once.

Cancel the print To cancel the print, press and hold the button for

5 seconds.

Flashing orange Paused -

Resume the print To resume the print, press the button once.

Pulsing orange Job complete (printing complete /

printing cancellation complete)

To return to stand-by mode, press the button

once.

12 13 14

Print Technology Fuse Filament Fabrication (FFF) Weight 4.5kg

Dimensions 378*280*355 mm Print Dimension 120*120*120 mm

Print Resolution 0.1-0.4 mm Nozzle Diameter 0.4 mm

Print Material PLA Filament Diameter 1.75 mm

Print Software XYZmaker File Format .3w/ .stl/ .3mf

Operating System Microsoft Windows 7 +

Mac OSX 10.9 + Connectivity USB cord 2.0

1. Top cover 5. Guide tube 9. Front cover handle 13. Power switch

2. Top cover latch 6. Detection head trigger 10. Feed module 14. USB port

3. Print bed 7. Extruder module 11. Filament holder

4. Function button/

Status indicator

8. Hold-open component 12. Power socket

Product Details

Specification

Button and Indicator light

Product Overview

*Please refer to "XYZmaker" software screen to solve the problem.

Unpacking

Accessory Checklist

Note

Printer Setup

1. Quick Guide & Warranty Card

2. Feeding Path Cleaning Wire

3. Nozzle Cleaning Wire x 5

4. Scraper

5. USB Wire

6. Guide Tube

7. Bed Tape x 3

8. Cleaning Brush

9. Feeder

10. Power Adapter

11. Power Cord

12. Bundled Filament

Keep original packaging materials in case you need to send your unit back for repair during the

warranty period.

If other packing materials are used instead, the printer may become damaged during

transportation. In such a situation, XYZprinting reserves the right to charge a repair fee.

Take out the accessories,

top cover and printer.

Remove the styrofoam

packing material on sides

and the plastic bag.

Remove the fixed tape

on front cover sides.

Remove the fixed tape on

the extruder module and

print bed packaging.

Remove the fixed

tape from the printer

bottom and take out the

filament.

06 Remove the fixed tape on

the filament spool holder

and the feed module.

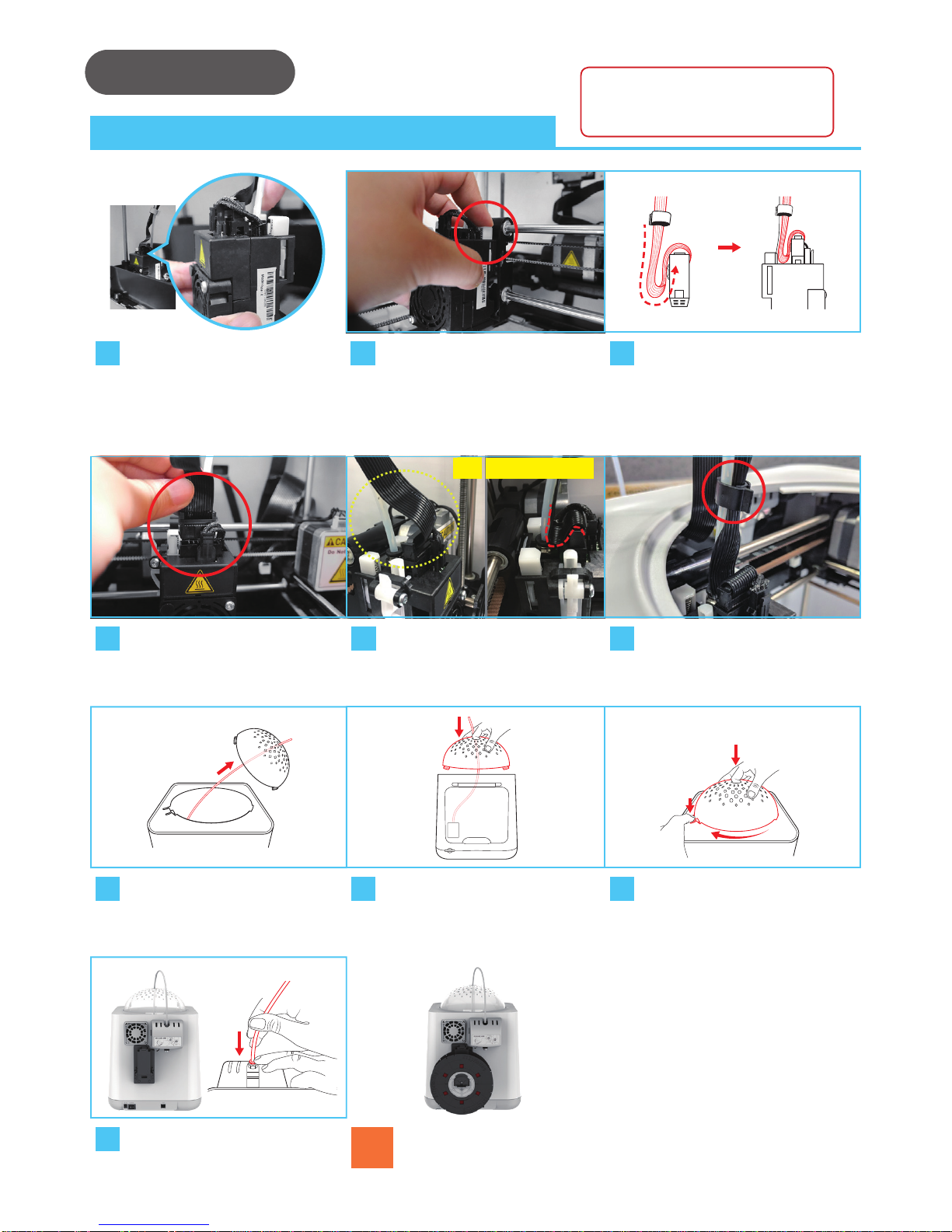

Install the Guide Tube and Extruder Module

Printer Setup WARNING: Hazardous Moving

Parts. Keep Fingers and Other

Body Parts Away.

01 Insert guide tube into the

extruder module port.

Press the white button and

align the extruder module with

the bracket. Once aligned,

release the white button to

connect the extruder module

with the bracket.

04 Connect the flat cable to the

extruder module. (Be sure to

insert the flat cable in the right

direction.

10 Ensure that the guide tube has

been tightly inserted into the

feed module port.

07 Feed the guide tube through

the top cover. 08 09 Direct the bottom locking

catches toward their slots

then press the latch to rotate

clockwise.

Attach the top cover to the

machine.

The flat cable is bending for

printing smoothly purpose,

please do not adjust.

03 Follow the illustration to bend

the flat cable.

06 Use the cramp ring to hold the

filament guide tube and flat

cable. (Place the cramp ring on

the flat cable marker.)

NG Follow this method

Note To load the filament, refer

to the [Software Setup]

section.

Install the sensor chip.

Note the orientation of the

sensor chip on the spool

ring.

Feed both parts of the

spool ring through the

center hole of the spool

and assemble them

together.

04 05

Use a Phillips head

screwdriver to loosen the

securing screws of the

filament spool ring.

Lower the filament spool

holder on the back side of

the printer until horizontal.

Separate the spool ring

from both sides of the

spool.

Place the assembled

filament spool (with the

spool ring) on the spool

holder.

Take out the filament spool

and the sensor chip.

Use a Phillips head

screwdriver to tighten and

secure the spool ring to

complete the installation.

*If you have just unboxed the da Vinci nano, the sensor chip should

already be loaded.

Printer Setup

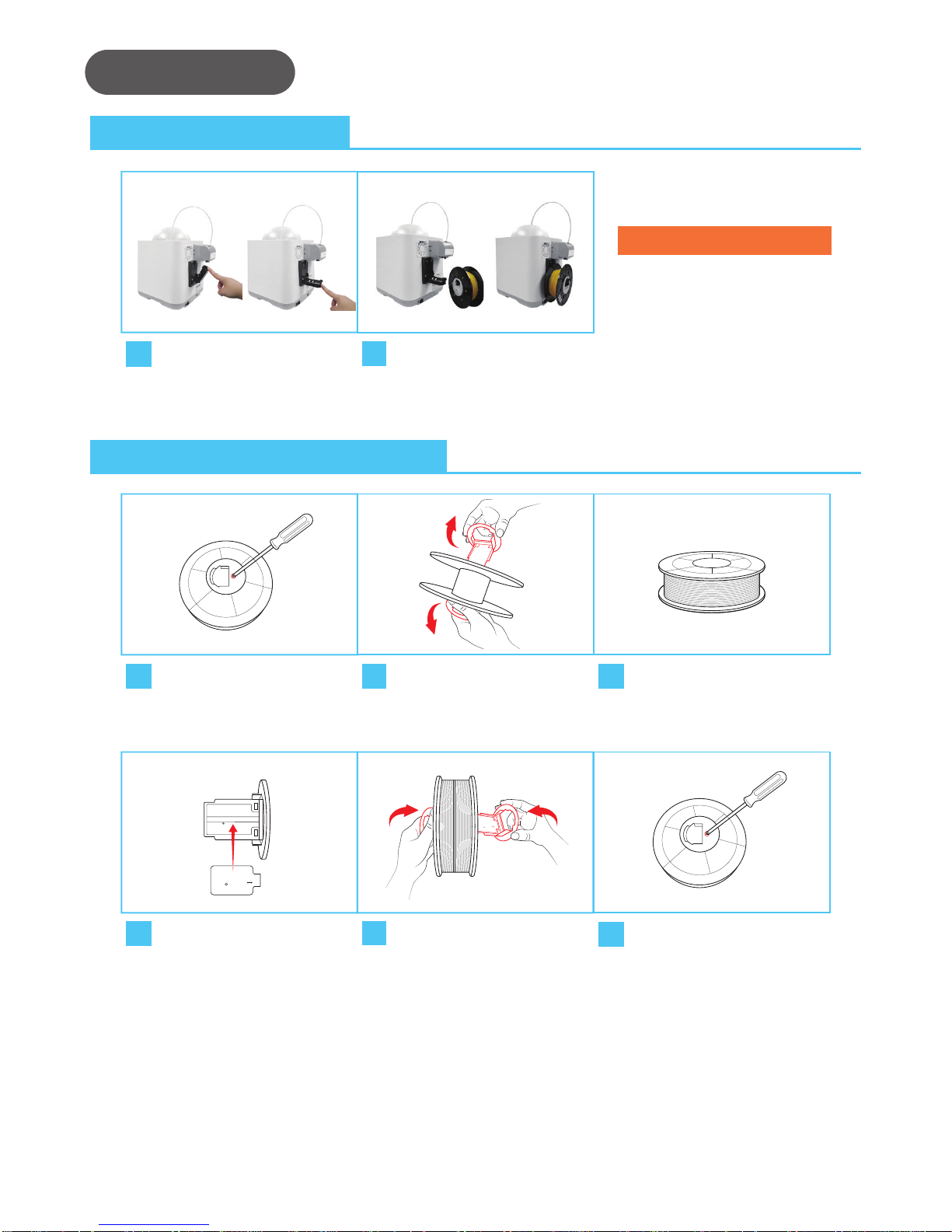

Replace the New Filament Spool

Installing the Filament

Note

•The filament will load better

when the tip of the filament

is cut at a 45° angle.

•When the printer is not in

use, raise the filament spool.

Load Filament Printing

Software Setup

Open up XYZmaker and click

File >Print >da Vinci Printer.

This will display a print screen that lets you set print

settings and prepare your printer.

Follow the on-screen instructions to install the

filament.

Click DASHBOARD then click Filament > Load Filament

Take the tip of the filament and insert it into the

feeding hole. The printer will start to load the filament

automatically.

Click File > Open. Import your favorite 3D files. Click

on the object to adjust the size you need.

When you're done adjusting the print parameters

you need, click PREPARE.

When the object is adjusted, you can start printing.

Click File > Print > da Vinci Printer.

•When the printer starts printing, you can monitor the status by

clicking DASHBOARD.

•The recommended operating temperature is 15℃~ 32℃(59 ℉

~ 90 ℉). If the room temperature is above this, please open the

front cover to maintain print quality.

•After the print is finished, the object may be removed with a

scraper.

•When using different types of filament, we recommend changing

the extruder module.

Note

After preparing, please check if the object is a complete

model. After the confirmation, click PRINT.

＊ For better printing results, we recommend that you calibrate before

printing.

XYZmaker is a software that is used to operate the da

Vinci nano and prepare 3D models for printing. Download

XYZmaker from http://xyzptr.com/go2nano and install it

on your computer.

First time installation requires an Internet connection.

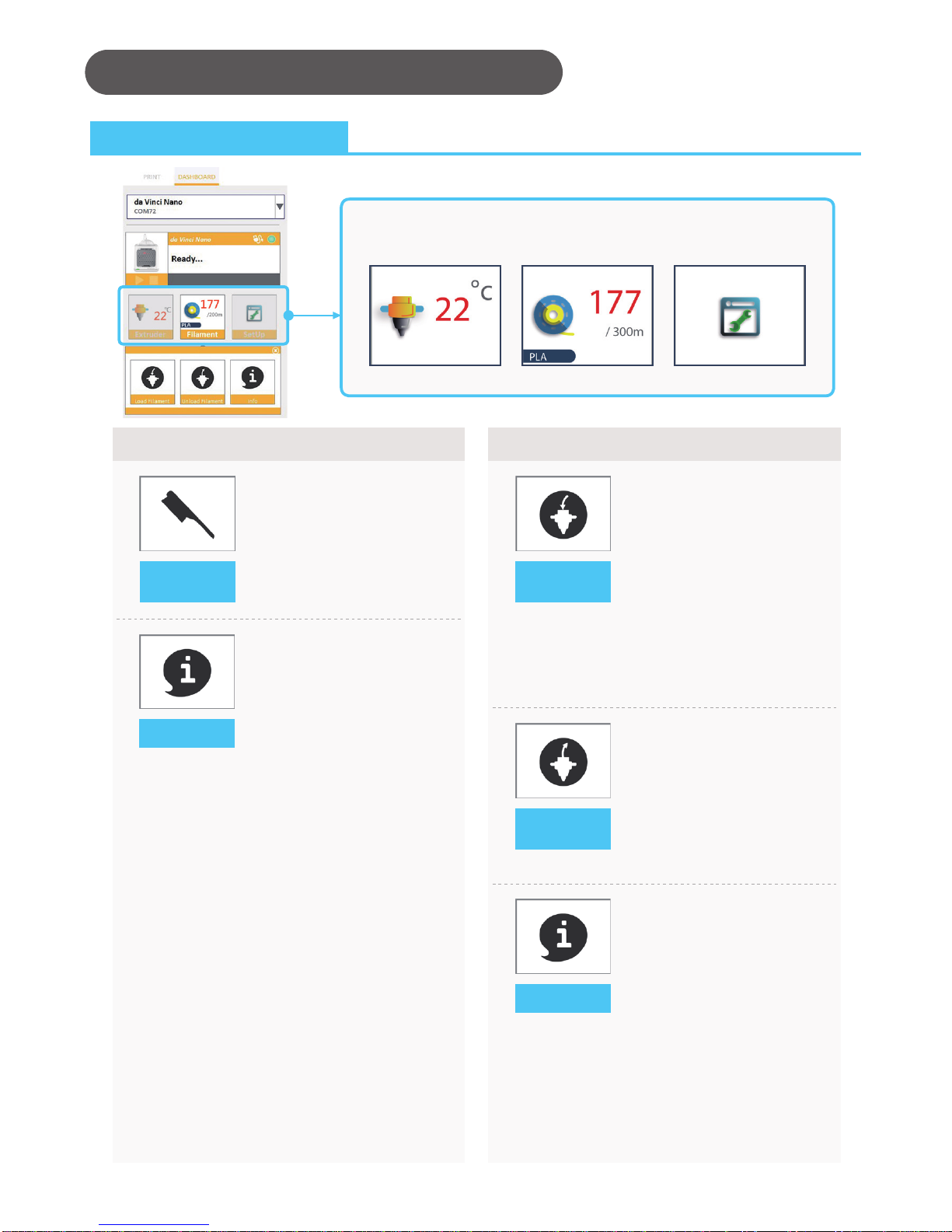

Extruder Filament

Interface Introduction

Once this function is

selected, the nozzle will

heat up automatically and

move the nozzle to a proper

location where you can

easily clear away all residual

plastic on the nozzle.

Clean

Nozzle

The extruder module

information, including

Temperature, Nozzle

Diameter, Total Print Time,

and Serial Number.

Info

Extruder Filament Setting

Software Functional Descriptions

Information related to

filament use.

Please follow the on-screen

instructions.

The extruder module will

automatically move to

the working position. The

nozzle will then heat up

and begin the filament

loading process. After this is

complete, verify that plastic

has been extruded. If not,

please repeat the filament

loading process.

Load

Filament

Please follow the on-screen

instructions.

Unload

Filament

Info

The printing module will

automatically move to the

working position. The nozzle

will then heat up and begin

the filament unloading

process.

Setting

Interface Introduction

Please follow the on-screen

instructions.

Print bed calibration may be

implemented before the printing

process.

Move the extruder module to the

lower left corner of the printing

area. Please refer to the calibrate

instructions provided by the

software.

Z-Offset function will help you to

adjust the printing distance between

the print bed and extruder module.

Each adjustment has a step of 0.05

mm.

Manually adjust the movement of X/Y/Z

Axis for printer maintenance.

Jog Mode

Calibrate Z-Offset

Move extruder module

rightwards and leftwards.

Move extruder module

forwards and backwards.

Move the print axis (Z-AXIS)

upwards and downwards.

Software Functional Descriptions

Others

Automatic horizontal calibration Restore DefaultBuzzer

Info

FW upgrade

Automatic horizontal calibration

may either be ON or OFF.

Default: ON.

The software would automatically

implement horizontal calibration

and compensation accordingly.

Printing speed will be improved if

automatic horizontal calibration

has been switched to OFF.

However, this may affect printing

quality.

Buzzer may either be ON

or OFF. Default: ON.

When the buzzer is

turned on, the printer will

output an audible signal

when a button is pressed,

receiving data, print job

is finished, or issue is

detected.

Click Restore Default

to reset to default

setting.

Please upgrade the latest

firmware version for the best

printing quality of the printer.

Information related to printer

setting.

Note 1. First click on Home Axes.

The extruder module will be

returned to the initial axis

position.

2. You may manually enter

the adjustment value:

Range: 1 to 150; step: 1 mm

•This product is factory tested and adjusted,

we suggest you note the default value for

z-offset before your adjustment.

•Suggested distance between nozzle and

print bed(including bed tape) is 0.3mm.

Note

Step

Tool

Z-offset

Clean the filament feed module

When the printing module has been moved, we

recommend that you use z-offset. This function will

help you to adjust the printing distance between

the print bed and the extruder module.

In order to maintain a good printing quality, it is

recommended that you clean the nozzle after every

25 hours of printing. Please use the Clean Nozzle

function in the software.

After long periods of use, the automatic feed

system may inconsistently extrude filament, due to

a buildup of residual plastic in the feed module. The

printer filament feed module should be cleaned if

this happens or after cleaning the nozzle.

Please switch off the power

before cleaning the filament

feed module.

Print bed calibration

Print bed level will affect the 3D printing quality,

XYZprinting's 3D Printer has been adjusted to the

best condition before leaving the factory. After long

periods of use, the print bed level may change. If

you have print adhesion problems, you may need

to re-level the print bed.

1. Open the feed module cover.

2. Clean the gears by using a gear cleaning

brush.

Cleaning Brush

Clean the nozzle

1. Switch on the power and click

DASHBOARD > Extruder > Clean Nozzle.

2. Please clamp the

nozzle cleaning wire

with needle-nosed

pliers to insert it into

the head of the nozzle

carefully for cleaning.

1. Please unload the filament and clean the

nozzle before using z-offset.

2. Click DASHBOARD > SetUp > Z offset to

start z-offset adjustment.

3. Adjust Z up or Z down to find the proper

distance.

1. Switch on the power and activate the

Calibrate function in XYZmaker.

2. Please follow the on-screen instructions.

Step

Tool Nozzle Cleaning Wire

Feeding Path Cleaning Wire

01 02

Maintenance

3. Lightly press the spring around the feed

hole and remove the filament guide tube

(don't need to remove the heating cable

at the side)

4. Insert the Feeding

Path Cleaning Wire

into the feeding path

all the way down and

“floss” the inside of

the nozzle to pull the

residue out.

5. After cleaning the

feeding path, reinstall

the filament guide

tube and extruder

module.

Error

Code

No.

Software interface Action

0007

0008

Spool 1 Error. Please remove spool and install again.

If errors persists, please contact service center for

support.

Reinstall or replace the filament cartridge.

0011

0014

Heating Error. Please turn off the printer and contact

service center for support.

Check whether the connections are connected properly and

restart as required.

0016

Spool 1 not installed properly. Please reinstall spool

1 ([Unload Filament] then [Load Filament]) on your

printer. If error persists, please contact service center

for further support.

Reinstall the filament cartridge.

0028 Spool 1 can not be found. Please install one. Reload or replace the filament.

0029 There is no filament left in spool 1. Please replace

spool 1 before printing. Replace filament immediately.

0030 Printer motor Error(X-Axis). If error persists, please

contact service center for support.

Check motor/sensor connections. Check sensor position.0031 Printer motor Error(Y-Axis). If error persists, please

contact service center for support.

0032 Printer motor Error(Z-Axis). If errors exist, please

contact service center for support.

0050 Memory error, please contact service center for

support. Reboot the printer.

0051 Flash ram cannot be read/written.

0052 Memory in the extruder cannot be read/written. Replace the nozzle.

0201 Computer and printer connection issues.

Re-connect the computer with the printer. Alternatively,

you may use hot plugging of the USB cable to connect the

computer with the printer.

Troubleshooting

Table des matières

Autres manuels XYZ Printing Imprimante 3D

XYZ Printing

XYZ Printing da Vinci Jr. 1.0 Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci 1.0 Pro 3in1 Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci Mini Series Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci 1.0 Pro Manuel utilisateur

XYZ Printing

XYZ Printing PartPro120 xP Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci Jr. WiFi Pro Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci 1.0 Manuel utilisateur

XYZ Printing

XYZ Printing PartPro200 xTCS Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci 1.0 Pro Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci 1.0 Manuel utilisateur

XYZ Printing

XYZ Printing Nobel 1.0 Manuel utilisateur

XYZ Printing

XYZ Printing 3C10A Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci Jr.1.0 Manuel utilisateur

XYZ Printing

XYZ Printing Nobel Superfine Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci Jr.1.0w Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci 2.0 Duo Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci Jr.1.0w Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci 1.0 Manuel utilisateur

XYZ Printing

XYZ Printing do Vinci nono Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci Super Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci 1.1 Plus Manuel utilisateur

XYZ Printing

XYZ Printing Nobel Superfine Manuel utilisateur

XYZ Printing

XYZ Printing da Vinci Jr 1.0 Pro Manuel utilisateur

XYZ Printing

XYZ Printing Nobel 1.0 Manuel utilisateur

Manuels Imprimante 3D populaires d'autres marques

Ultimaker

Ultimaker S5 Material Station Manuel utilisateur

EcubMaker

EcubMaker TOYDIY Manuel utilisateur

AnyCubic

AnyCubic Kossel Plus Manuel utilisateur

ReDeTec

ReDeTec ProtoCycler Manuel utilisateur

Kywoo3D

Kywoo3D Tycoon IDEX Manuel utilisateur

CraftBot

CraftBot PLUS PRO Manuel utilisateur

3DGence

3DGence INDUSTRY F340 Manuel utilisateur

HP Jet Fusion 4200 Mode d'emploi

Rokit

Rokit AEP Series Manuel utilisateur

AnkerMake

AnkerMake M5 Manuel utilisateur

DIYElectronics

DIYElectronics PRUSA I3 Instructions de montage

Ackuretta

Ackuretta FreeShape 120 Manuel utilisateur

LONGER

LONGER LK5Pro Manuel utilisateur

Stratasys

Stratasys J850 Manuel utilisateur

MakerBot

MakerBot Replicator Manuel utilisateur

Stratasys

Stratasys FDM Vantage Series Manuel utilisateur

ZYYX

ZYYX Pro II Manuel utilisateur

FLASHFORGE 3D PRINTER

FLASHFORGE 3D PRINTER Creator Guide de l'utilisateur

XYZ Printing da Vinci nano Manuel utilisateur

Manuels Imprimante 3D populaires d'autres marques
