Xerox PHASER 7500 Manuel utilisateur

Phaser®7500

olor Printer

Phaser® 7500

Service Manual

Xerox Internal-Use Only

www MK-Electronic de

Chapter

Parts List

In this chapter...

! Serial Number Format

! Using the Parts List

! General Overview

! LPH

! Drive

! NOHAD

! Development

! Transfer

! Fuser

! Xerographic

! Tray 2 - Tray Module (3T) (Option)

! Tray 3/4/5 - Tray Module (3T) (Option)

! Tray Module (1T) (Option)

! Tray 1 (MPT)

! L/H Cover

! Registration

! Exit

! Electrical

! Cover

! ESS

! Xerox Supplies and Accessories

www MK-Electronic de

9-2 Phaser 7500 Printer Service Manual

Parts List

Serial Number Format

Changes to Xerox products are made to accommodate improved components as

they become available. It is important when ordering parts to include the following

information:

• Component's part number

• Product type or model number

• Serial Number of the printer

Note

Not all of the serial number will be used. This is a buffer in case additional

units are built by Fuji Xerox for each model of printer during pre-production.

The serial numbers are only reset to the starting serial number when the ending

serial number is reached. At that time the revision digit will be rolled. Serial

numbers below 10001 are reserved for XOG Final Integration Center (FIC) sites if

reserialization is needed.

The nine-digit serial number has the following format:

■PPPRSSSSS

■PPP = Three digit alphanumeric product code

■R = Single digit numeric revision digit, 0~9. To be rolled when a major

product change occurs and initiated with a change request.

Product Product Code

7500, 110V Engine RXD

7500V, 220V Engine RXE

Production Units (MP Build)

PPP1SSSSS

SSSSS = Five digit numeric serial numberbased on the following table:

Product Starting Serial

Number

Ending Serial

Number

7500_N, 110V Engine 10001 30000

7500_DN, 110V Engine 30001 90000

7500_YDN, 110V Engine (GSA) 90001 99999

7500V_N, 220V Engine 10001 35000

7500V_DN, 220V Engine 35001 99999

www MK-Electronic de

Phaser 7500 Printer Service Manual 9-3

Parts List

Examples

RDX243072: Xerox Serial Number

RDX: Product Code for the 110V Phaser 7500

2= Revision Level

43072 = Serial Number for Phaser 7500

RXE299999: next printer Serial Number RXE335001

RDX: Product Code for the 220V Phaser 7500

Revision Level = 2 next revision level 3

Serial Number for 7500V_DN = 99999 next Serial Number 35001

The serial number labels can be found at two locations of the printer.

Label Placement and Layout Example

The Barcode label is applied inside the Left Door on the right side of the frame.

s7500-479

MANUFACTURED: July, 2009

Xerox S/N RXD 130001

www MK-Electronic de

9-4 Phaser 7500 Printer Service Manual

Parts List

Using the Parts List

•ID No.: The callout number from the exploded part diagram.

•Name/Description: The name of the part to be ordered and the number of

parts supplied per order.

•Part Number: The material part number used to order that specific part.

• Parts identified throughout this manual are referenced PL#.#.#; For example,

PL3.1.10 means the part is item 10 of Parts List 3.1.

• A black triangle preceding a number followed by a parenthetical statement in

an illustrated parts list means the item is a parent assembly, made up of the

individual parts called out in parentheses.

• The notation “with X~Y” following a part name indicates an assembly that is

made up of components X through Y. For example, “1 (with 2~4)” means part

1 consists of part 2, part 3, and part 4.

• An asterisk (*) following a part name indicates the page contains a note about

this part.

• The notation (NS) next to a part indicates that particular part is not spared,

but contained in a kit or major assembly.

• The notation “J1<>J2 and P2” is attached to a wire harness. It indicates that

connector Jack 1 is attached to one end of the wire harness and connector J2

is attached to the other end that is plugged into P2.

Note

Only parts showing part numbers are available for ordering by support. Parts

not showing part numbers are available on the parent assembly.

Abbreviations

Abbreviation Meaning

C C-ring

E E-ring

KL K-clip

S Screw

www MK-Electronic de

Phaser 7500 Printer Service Manual 9-5

Parts List

General Overview

Parts List 1.1 Parts Overview (1 of 5)

s7500-001

Navi 2.1(IOT)

Navi 2.2(IOT)

PL 14.1

PL 13.1 Navi 2.3 (1TM)

Navi 2.4 (3TM)

www MK-Electronic de

9-6 Phaser 7500 Printer Service Manual

Parts List

Parts List 1.2 Parts Overview (2 of 5)

s7500-002

Navi 2.1

PL 6.2

PL 6.1

PL 8.2

PL 8.1

PL 8.2

PL 5.2

PL 7.1

PL 17.1

PL 4.1

PL 2.2

PL 9.3

PL 5.2

PL 9.1

PL 2.1

PL 19.2

PL 5.1

PL 5.2

PL 19.1

PL 15.1

PL 19.2

www MK-Electronic de

Phaser 7500 Printer Service Manual 9-7

Parts List

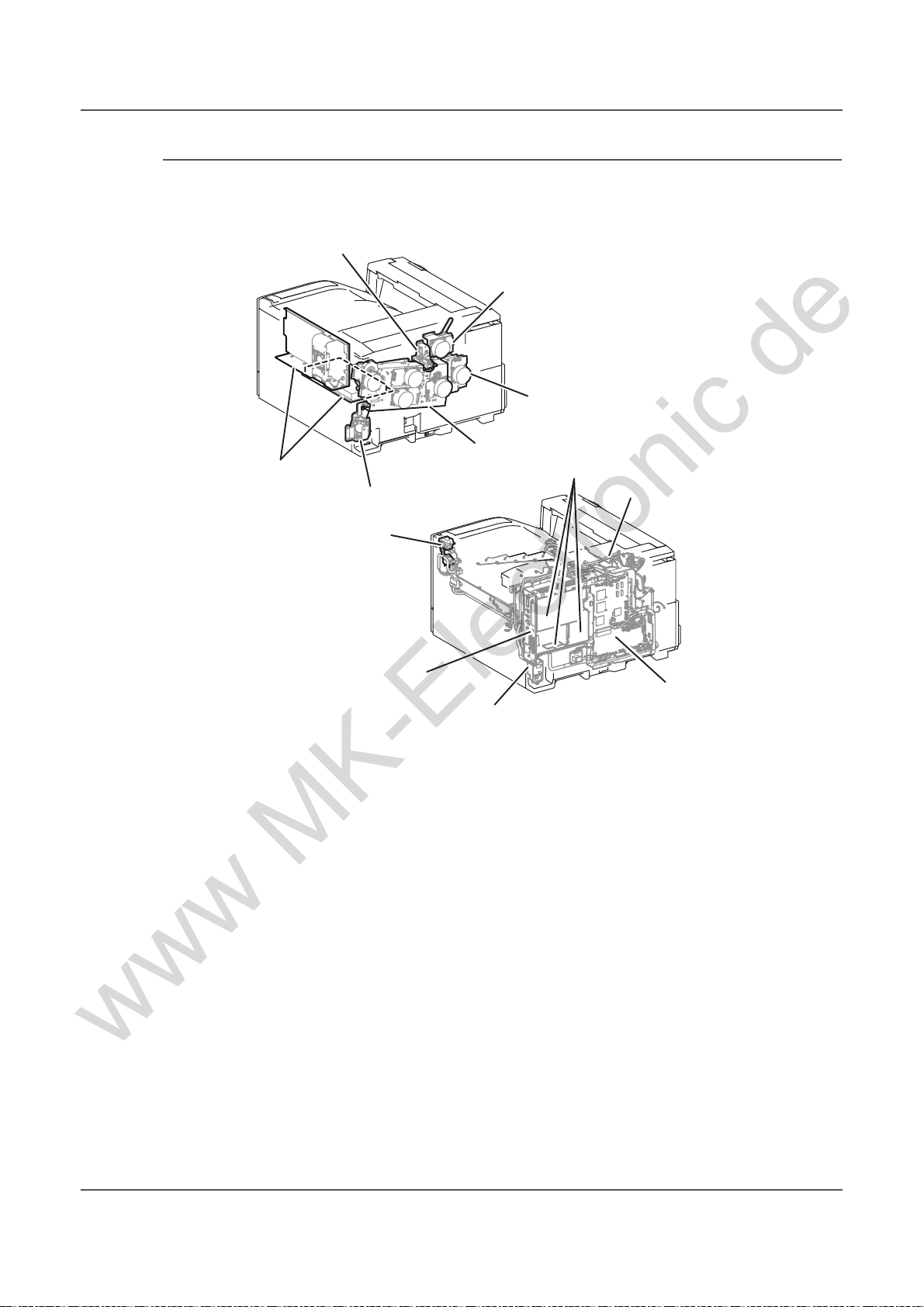

Parts List 1.3 Parts Overview (3 of 5)

s7500-003

PL 18.1

PL 4.2

PL 18.1

PL 18.4

PL 18.2

PL 35.1

PL 35.2

PL 3.3

PL 3.2

PL 3.1

Navi 2.2

www MK-Electronic de

9-8 Phaser 7500 Printer Service Manual

Parts List

Parts List 1.4 Parts Overview (4 of 5)

s7500-004

PL11.7

PL11.1

PL11.7

PL11.6

PL11.1

PL11.5

PL11.6

Navi 2.3

www MK-Electronic de

Phaser 7500 Printer Service Manual 9-9

Parts List

Parts List 1.5 Parts Overview (5 of 5)

s7500-005

PL 10.1

PL 10.11

PL 10.12

PL 10.1

PL 10.13

PL 10.1

PL 10.9

PL 10.13

Navi. 2.4

www MK-Electronic de
