9-2 Phaser 6125/6130 Color Laser Printer Service Manual

Parts List

Serial Number Format

Changes to Xerox products are made to accommodate improved components

as they become available. It is important when ordering parts to include the

following information:

■Component's part number

■Product type or model number

■Serial Number of the printer

The serial number is found on a label located on the left-side frame near the

Fuser. The Front Cover must be opened to locate the Serial Number.

The nine-digit serial number uses the format PPPRSSSSS.

■PPP = Three digit alphanumeric product code

■R = Single digit numeric revision digit, 0-9. To be rolled when the ending

serial number is reached or when a major product change occurs.

■SSSSS = Five digit numeric serial number based on the following table.

The serial numbers are reset only when the ending number is reached or

the revision number is rolled.

Example

HAT253072: Xerox Serial Number

HAT: Product Code for the Phaser 6130, 110V printer

2 = Revision Level

53072 = Serial Number for 6130 N

Product Code Product

HAT 6130, 110 V Engine

HAR 6130V, 220 V Engine

LAN 6125, 110 V Engine

LAL 6125V, 220 V Engine

Product Starting Serial Number Ending Serial Number

6130_N, 110V Engine 30001 79999

6130_WN, 110V Engine 80000 99999

6130V_N, 220V Engine 30001 79999

6130V_WN, 220V Engine 80000 99999

6125_N, 110V Engine 30001 55000

6125_WN, 110V Engine 55001 99999

6125V_N, 220V Engine 30001 60000

6125V_WN, 220V Engine 60001 99999

S/N:HAT030001

MANUFACTURED:January,2007

s6130-226

Phaser 6125/6130 Color Laser Printer Service Manual 9-3

Parts List

Using the Parts List

■ID No.: The callout number from the exploded part diagram.

■Name/Description: The name of the part to be ordered and the number

of parts supplied per order.

■Part Number: The material part number used to order that specific part.

■Parts identified throughout this manual are referenced PL#.#.#; For

example, PL3.1.10 means the part is item 10 of Parts List 3.1.

■A black triangle preceding a number followed by a parenthetical statement

in an illustrated parts list means the item is a parent assembly, made up of

the individual parts called out in parentheses.

■The notation “with X~Y” following a part name indicates an assembly that

is made up of components X through Y. For example, “1 (with 2~4)”

means part 1 consists of part 2, part 3, and part 4.

■An asterisk (*) following a part name indicates the page contains a note

about this part.

■The notation (NS) next to a part indicates that particular part is not

spared, but contained in a kit or major assembly.

■The notation “J1<>J2 and P2” is attached to a wire harness. It indicates

that connector Jack 1 is attached to one end of the wire harness and

connector J2 is attached to the other end that is plugged into P2.

Note

Only parts showing part numbers are available for ordering by support.

Parts not showing part numbers are available on the parent assembly.

Abbreviations

Abbreviation Meaning

CC-ring

EE-ring

KL K-clip

S Screw

9-4 Phaser 6125/6130 Color Laser Printer Service Manual

Parts List

Print Engine Parts

Parts List 1.1 Covers

s6130-038

7 (with 8-16)

(P/J2200-P2900)

(P220)

(J220)

Front

Phaser 6125/6130 Color Laser Printer Service Manual 9-5

Parts List

Parts List 1.1 Covers

ID No. Name/Description Part Number

1 Cover Top 848E20100

2 Tray Ext 050E24201

3 Cover Rear 848E20072

4 Cover Cst 848E20121

5 Cover Window Tnr (Toner Access Door) 848K10661

6 Cover Side R 848E20091

7 Cover Assy Front (with 8-17) 675K61041

8 Latch Front —

9 Plate Latch —

10 Spring Latch Out —

11 Button Latch —

12 Cover Front

13 Guide Belt —

14 Damper Front L —

15 Damper Front S —

16 Cover Harness —

17 Harness Assy A-OP (J2200-P2900) 962K60030

18 Shaft Pivot —

19A

19B Control Panel Assy PDL (6130)

Control Panel Assy GDI (6125) 848K09303

848K16161

20 Cover Side L 848E20081

21 — —

99 Kit Shaft Pivot (with 18 × 2pcs) 675K54050

9-6 Phaser 6125/6130 Color Laser Printer Service Manual

Parts List

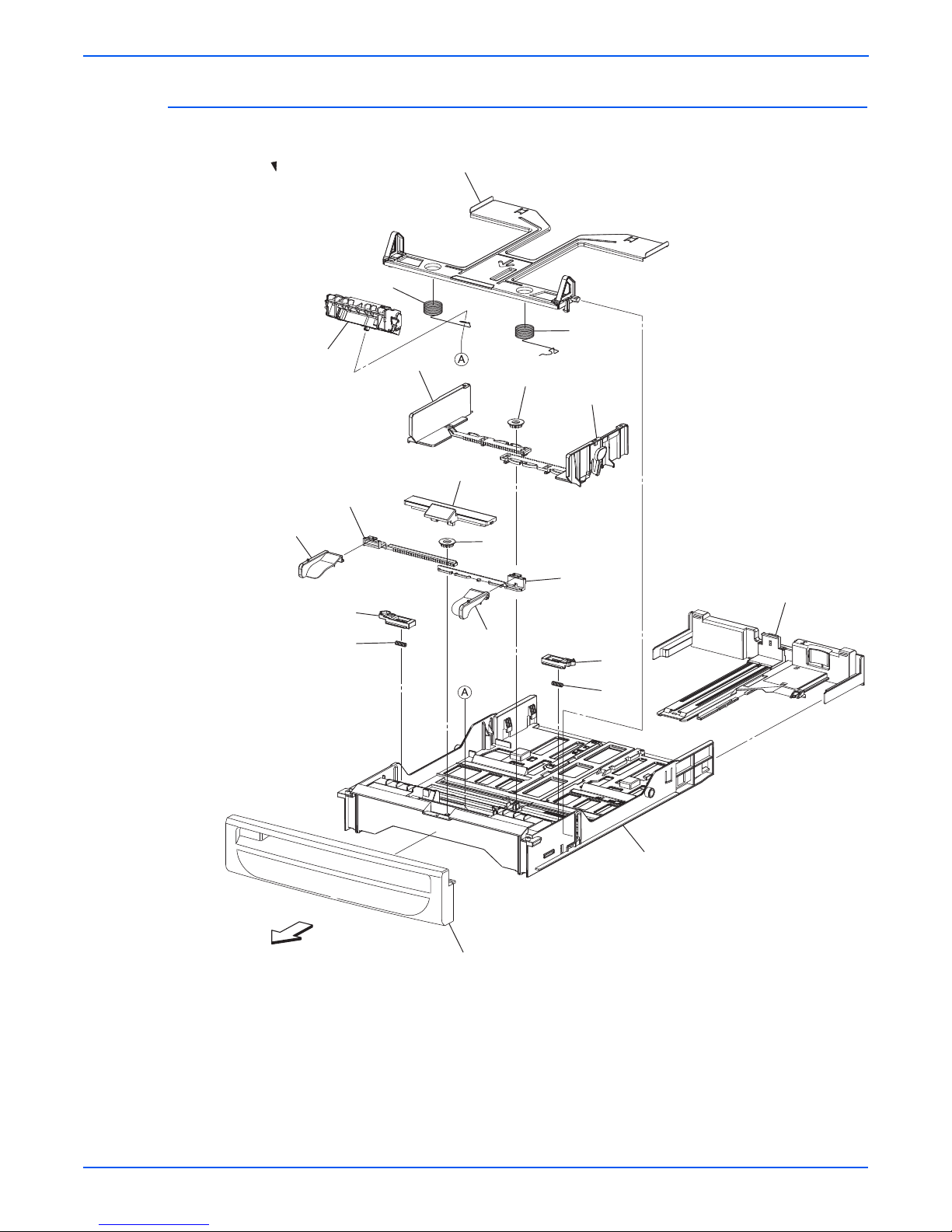

Parts List 2.1 Paper Tray

s6130-039

Front

567

1 (with 2-19)

Phaser 6125/6130 Color Laser Printer Service Manual 9-7

Parts List

Parts List 2.1 Paper Tray

ID No. Name/Description Part Number

1 CASSETTE ASSY 250 (with 2-19) 050K61151

2 PLATE ASSY BOTTOM —

3 SPRING N/F L —

4 SPRING N/F R —

5 SEPARATOR ROLLER ASSEMBLY 019K09470

6 GUIDE SIDE L —

7 GEAR PINION —

8 GUIDE SIDE ASSY R —

9 COVER SSI —

10 GUIDE SIDE SSI L —

11 RACK GUIDE SIDE SSI L —

12 RACK GUIDE SIDE SSI R —

13 GUIDE SIDE SSI R —

14 LATCH BOTTOM L —

15 LATCH BOTTOM R —

16 SPRING LEVER —

17 TRAY ASSY EXTENSION —

18 HOUSING CST 250 —

19 HANDLE CST —

9-8 Phaser 6125/6130 Color Laser Printer Service Manual

Parts List

Parts List 3.1 Paper Feeder (1 of 2)

Front

s6130-040

16 18

14 (with 15,16)

3 (with 4-13,16-18,PL3.2.1,PL8.2.7,PL9.1.6)

[Ref PL3.2.1]

(J231)

(P231)

(J23)

(J234)

(J232)

(J233)

(J28)

(J281)

(J262)

Phaser 6125/6130 Color Laser Printer Service Manual 9-9

Parts List

Parts List 3.1 Paper Feeder (1 of 2)

Item Parts name Part Number

1 CLUTCH ASSY DRV —

2 BEARING REGI —

3 FEEDER ASSY NV (with 4-13,16-18,PL3.2.1,PL8.2.7,PL9.1.6) 059K56390

4 CHASSIS FDR R —

5 FOOT —

6 PLATE EARTH PH —

7 STOPPER CST 003E73341

8 CHASSIS FDR L —

9 SOLENOID FEED MSI —

10 SPRING LEVER —

11 LEVER FEED —

12 SPRING FEED IN —

13 SPRING FEED OUT —

14 GEAR ASSY FEED (with 15,16) —

15 GEAR FEED OUT —

16 GEAR FEED IN —

17 BEARING —

18 HARN ASSY L SIDE (J23,J28-P231,J232,J233,J234,J281) 962K57541

98 KIT SOLENOID FEED (with 9-14) 675K54150

99 KIT CLUTCH ASSY DRV (with 1,2) 675K54230

9-10 Phaser 6125/6130 Color Laser Printer Service Manual

Parts List

Parts List 3.2 Paper Feeder (2 of 2)

s6130-041

Front

1 (with 2-16,20-33)

10 11

14 15

16 17 18 19

(P232)

(P233)

(P234)

Manual Feed

No Paper Sensor

Tray No Paper

Sensor

Registration

Sensor

32 (with 17-19)
