Xerox WorkCentre PE120 Manuel utilisateur

Quick

Start

Guide

ETTING

OUR

RINTER

1.2

CONTENTS

Step 1:

Unpacking ................................................ 1.3

Step 2:

Installing the Toner Cartridge .................. 1.5

Step 3:

Loading Paper .......................................... 1.7

Changing the Size of the Paper in the Paper Tray .. 1.9

Step 4:

Connecting Telephone Line .................... 1.11

Step 5:

Connecting a Printer Cable ..................... 1.12

For Local Printing .............................................1.12

For Network Printing (WorkCentre PE120i only) .......1.14

Step 6:

Turning the Machine On ......................... 1.15

Step 7:

Changing the Display Language ............. 1.16

Step 8:

Installing Xerox Software in Windows ... 1.17

System Requirements ......................................1.17

Installing Xerox Driver CD .................................1.18

Step 9:

Viewing the User’s Guide ....................... 1.19

ETTING

OUR

RINTER

1.3

English

Step 1: Unpacking

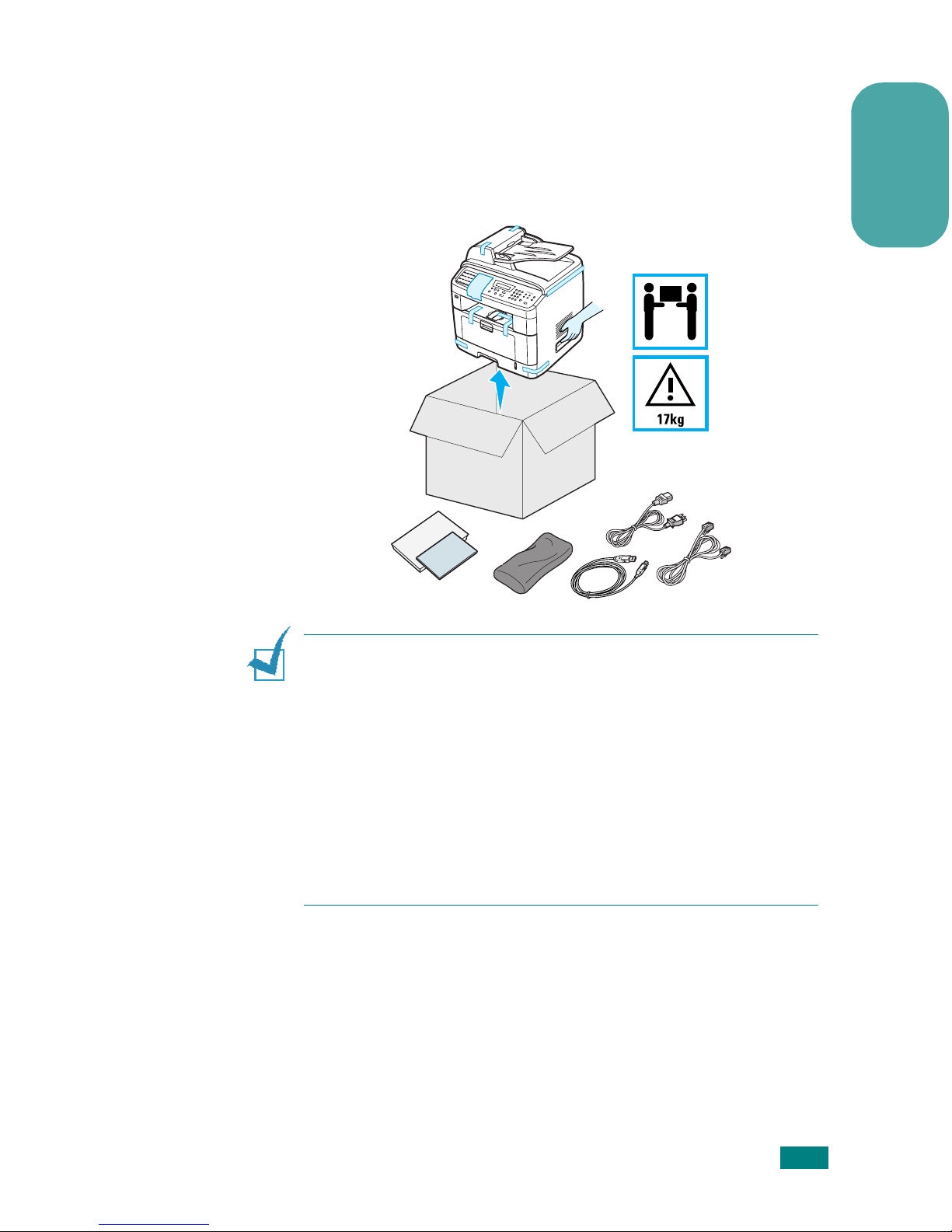

Remove the machine and all accessories from the packing

carton. Make sure that the machine has been packed with

the following items:

OTES

• The appearance of the power cord and the telephone line cord

may differ depending on your country’s specifications.

• The CD-ROMs contains the Xerox printer driver, Scan drivers,

ControlCentre, the User’s Guide, and the Adobe Acrobat Reader

program.

• For the WorkCentre PE120i, the PS Driver CD-ROM is supplied

with your machine.

• You should use the telephone line cord which is supplied with

your machine. If you are replacing it with another vendor’s, it

should be AWG #26 or lower gauge.

• Power cord must be plugged into a grounded power socket.

ETTING

OUR

RINTER

1.4

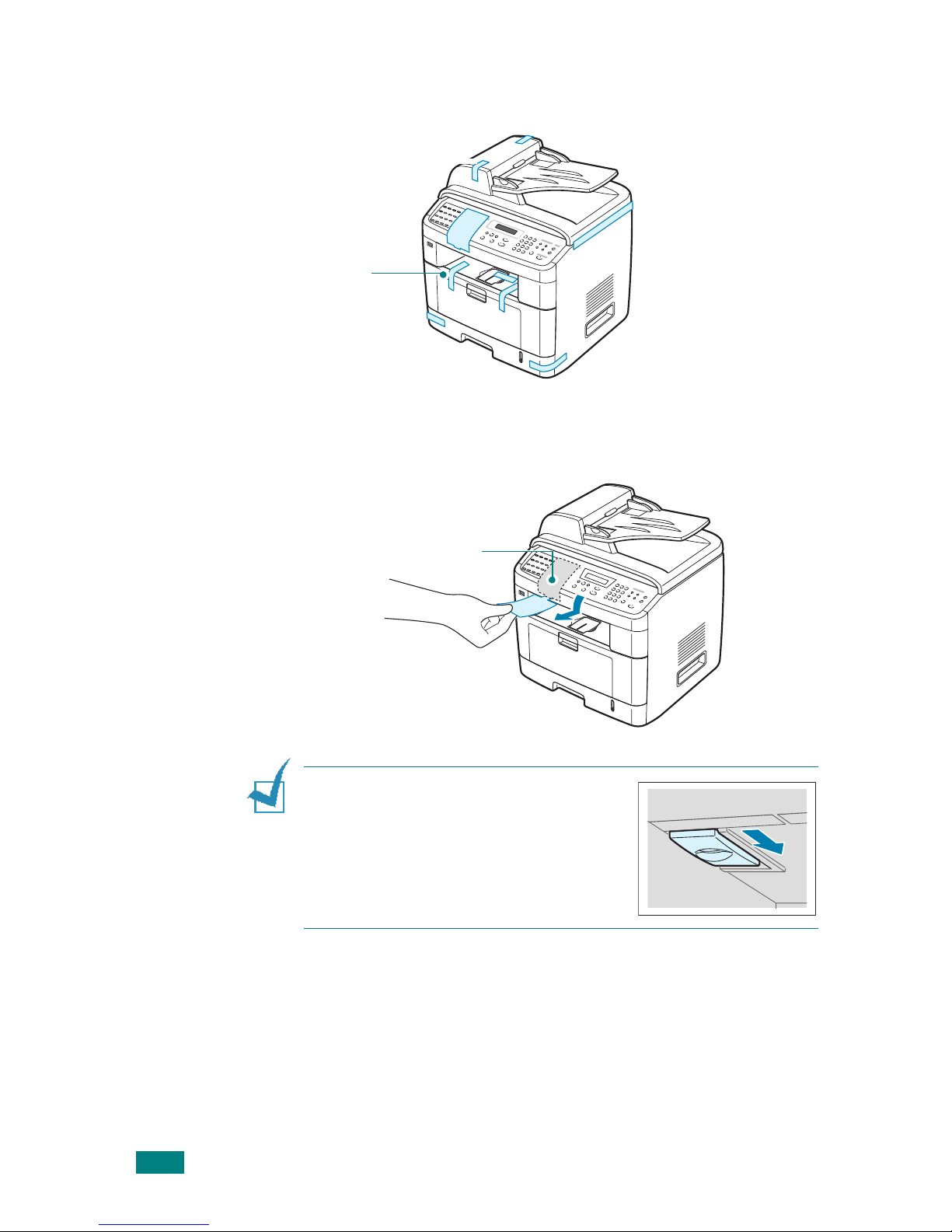

Remove the packing tape from the front, back, and sides of

the machine.

Gently pull the scan lock label until it comes away from the

machine. This will pull the scanner locking switch into the

FORWARD (Unlocked) position automatically.

OTE

: When you are moving the

machine or do not intend to use it for a

long period of time, move the scanner

locking switch BACKWARD to the lock

position, as shown. To scan or copy a

document, the switch must be unlocked.

Ta p e

Scan Lock Label

ETTING

OUR

RINTER

1.5

English

Step 2: Installing the Toner Cartridge

Open the front door.

Remove the starter toner cartridge from its bag. Gently

shake the cartridge 5 or 6 times to distribute the toner.

Thoroughly shaking the cartridge will assure maximum

copies per cartridge.

OTE

:If toner gets on your clothing, wipe it off with a dry cloth

and wash clothing in cold water. Hot water sets toner into fabric.

AUTIONS

• To prevent damage, do not expose the toner cartridge to light for

more than a few minutes. Cover it with a piece of paper, if left

exposed for more than a few minutes.

• Do not touch the green underside of the toner cartridge. Use the

handle on the cartridge to avoid touching this area.

ETTING

OUR

RINTER

1.6

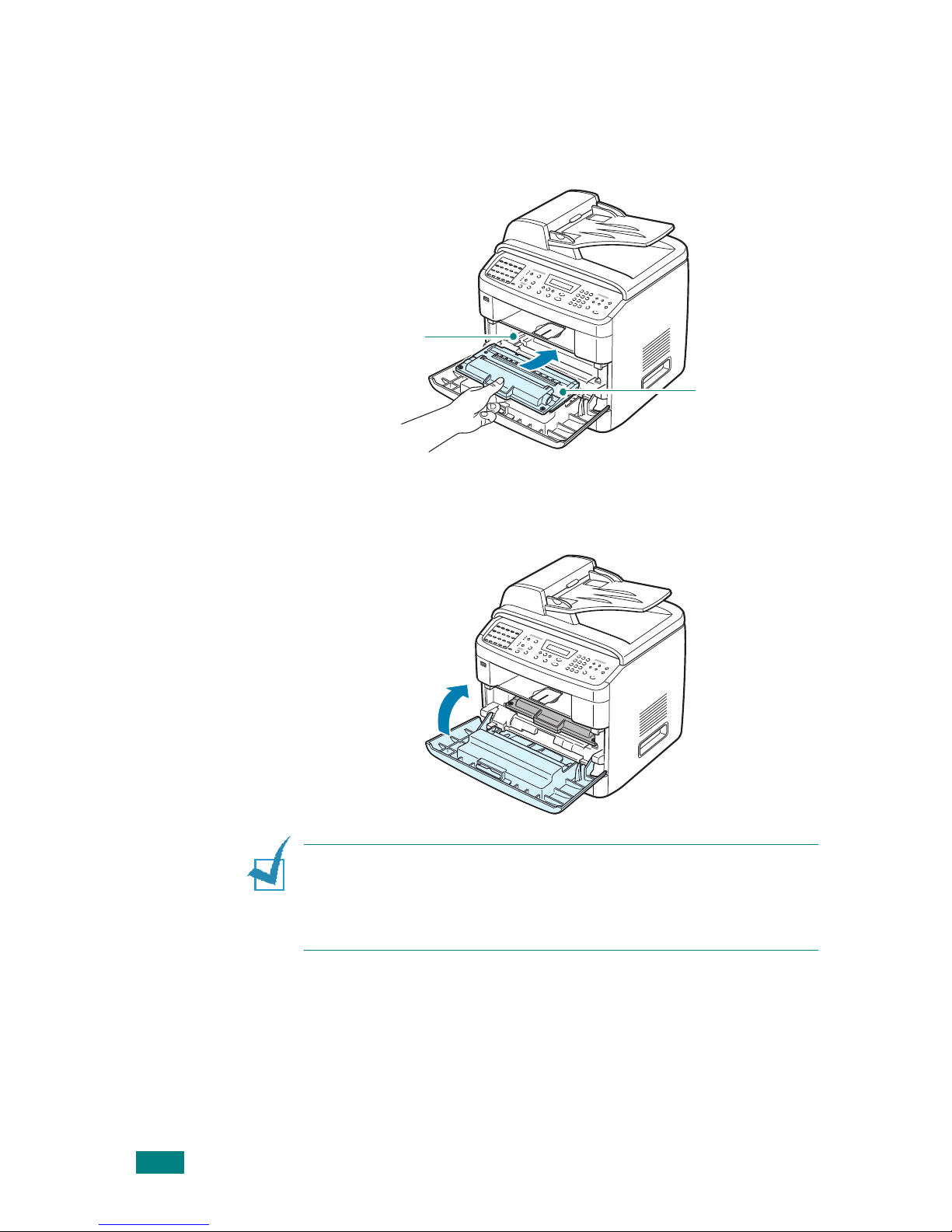

Hold the toner cartridge by the handle. Slowly insert the

cartridge into the opening in the machine. Tabs on the sides

of the cartridge and corresponding grooves within the

machine will guide the cartridge into the correct position

until it locks into place completely.

Close the front door. Make sure that the door is securely

closed.

OTE

:When printing text at 5% coverage, you can expect a toner

cartridge life of approximately 3,500 for the Standard-Capacity

Print Cartridge and 5,000 for the High-Capacity print Cartridge.

(3,500 pages for the toner cartridge that is shipped with the

machine.)

Groove

Tab

ETTING

OUR

RINTER

1.7

English

Step 3: Loading Paper

The paper tray can hold a maximum of 250 sheets of 20 lb (75

g/m

) plain paper.

To load a stack of Letter-sized paper:

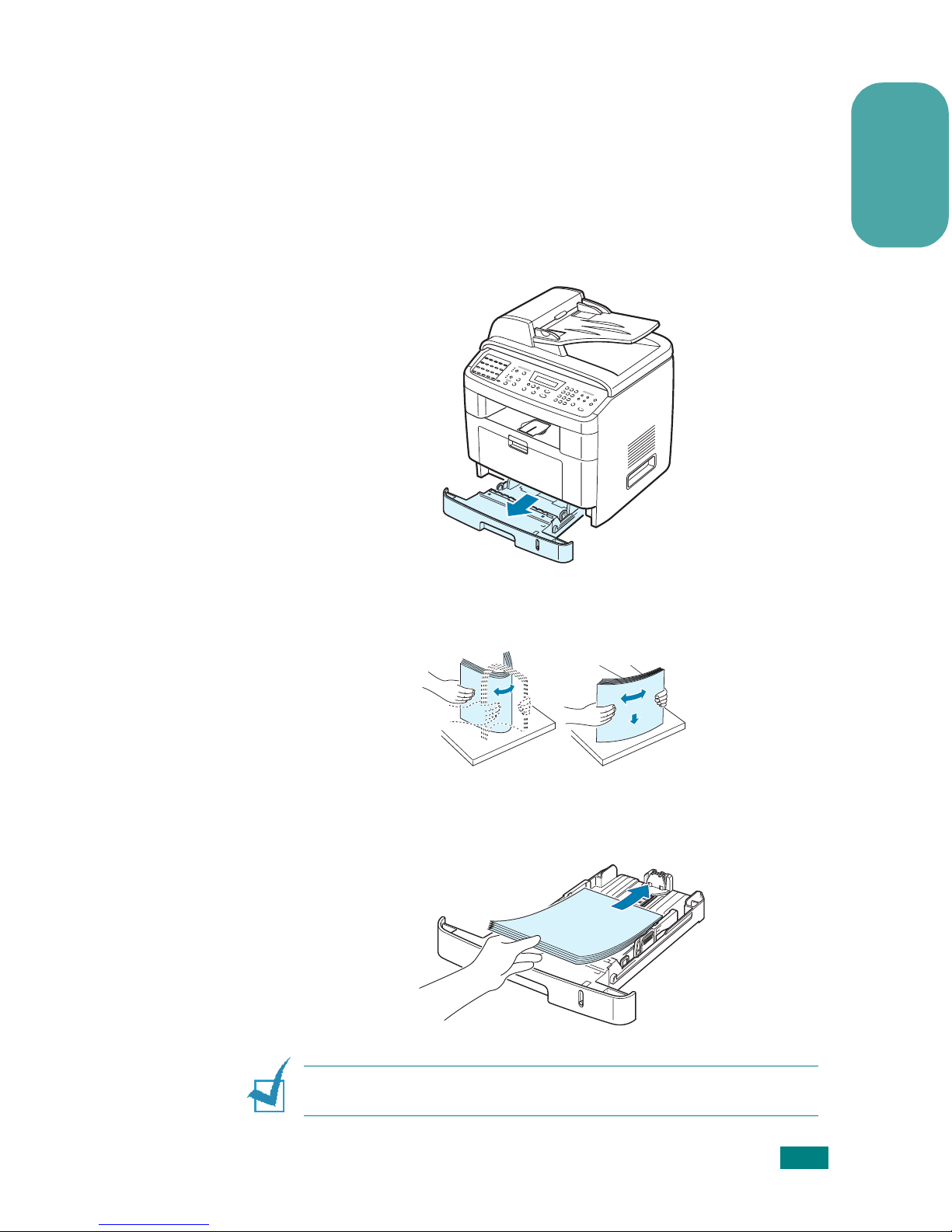

Pull open the paper tray and remove it from the machine.

Fan the edges of the paper stack to separate the pages.

Then tap the stack on a flat surface to even it up.

Insert the paper stack into the paper tray

with the side to

be printed on facing down

OTE

: If you want to load a different sized paper, you need to

adjust the paper guides. For details, see page 1.9.

ETTING

OUR

RINTER

1.8

Pay attention to the paper limit mark on both inside walls of

the tray. Paper overloading may cause paper jams.

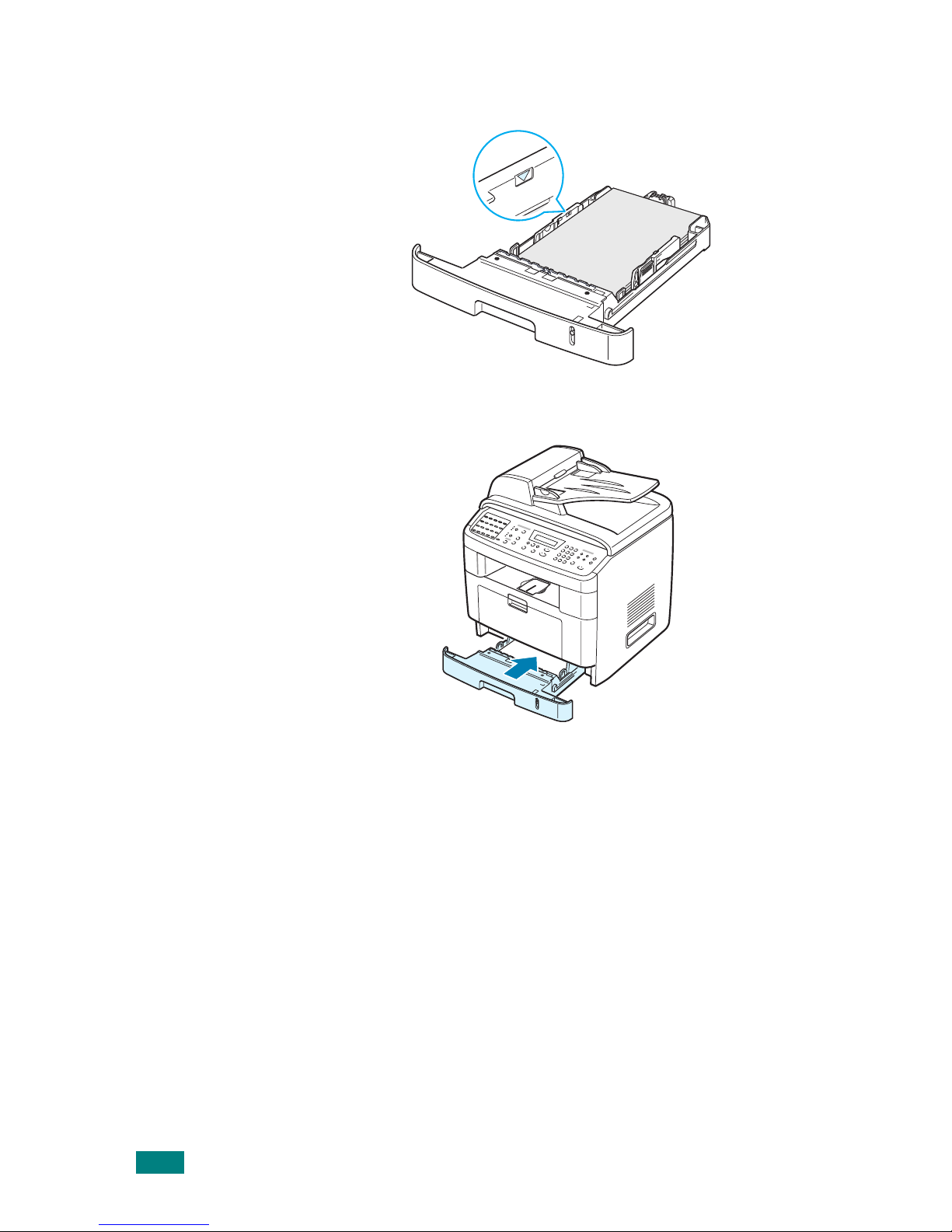

Insert and slide the paper tray back into the machine.

ETTING

OUR

RINTER

1.9

English

Changing the Size of the Paper in the Paper

Tray

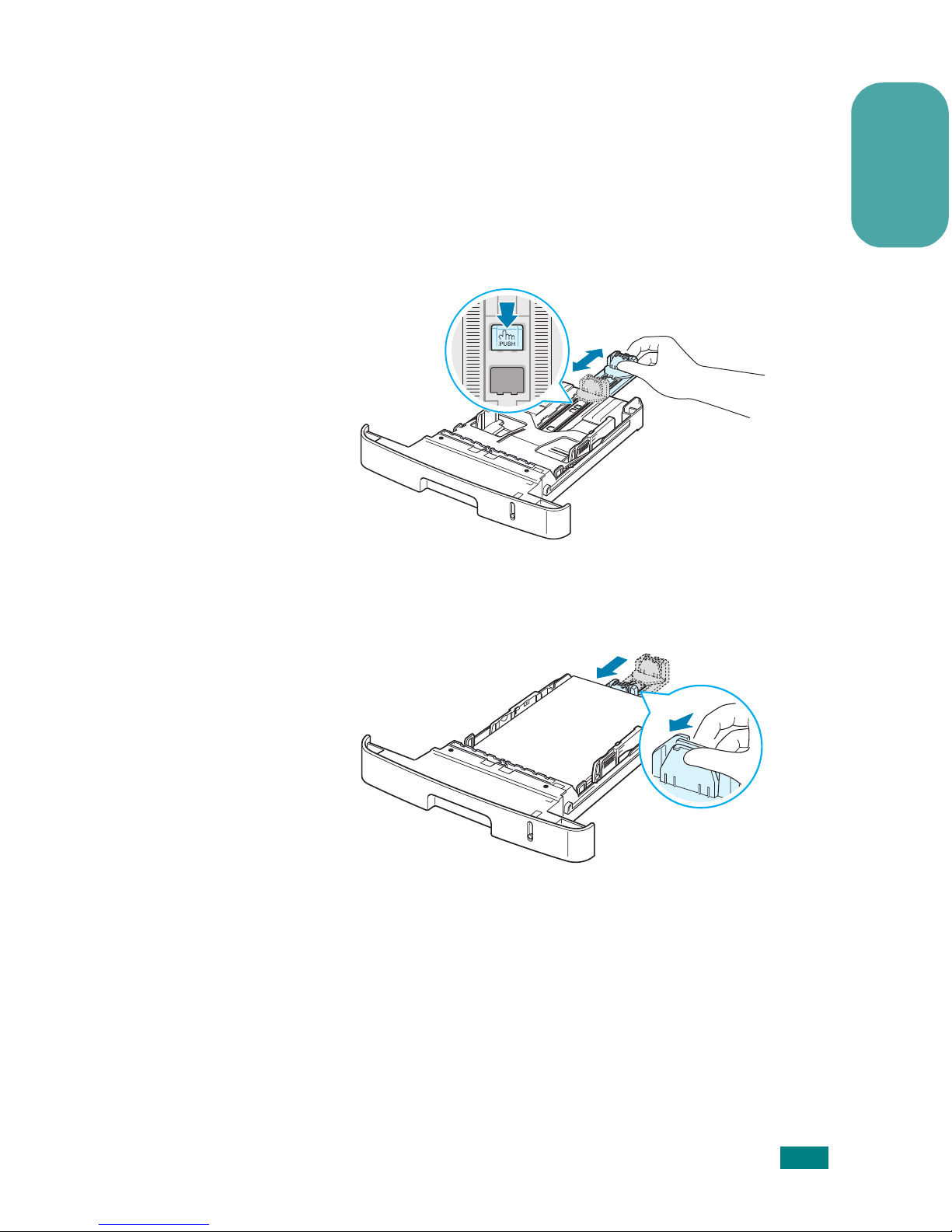

To load longer sizes of paper, such as Legal-sized paper, you

need to adjust the paper guides to extend the paper tray.

After pressing and unlatching the guide lock, slide the paper

length guide out completely to extend the paper tray to its

full length.

After inserting paper into the tray, squeeze the length guide

and slide it until it lightly touches the end of the paper

stack.

ETTING

OUR

RINTER

1.10

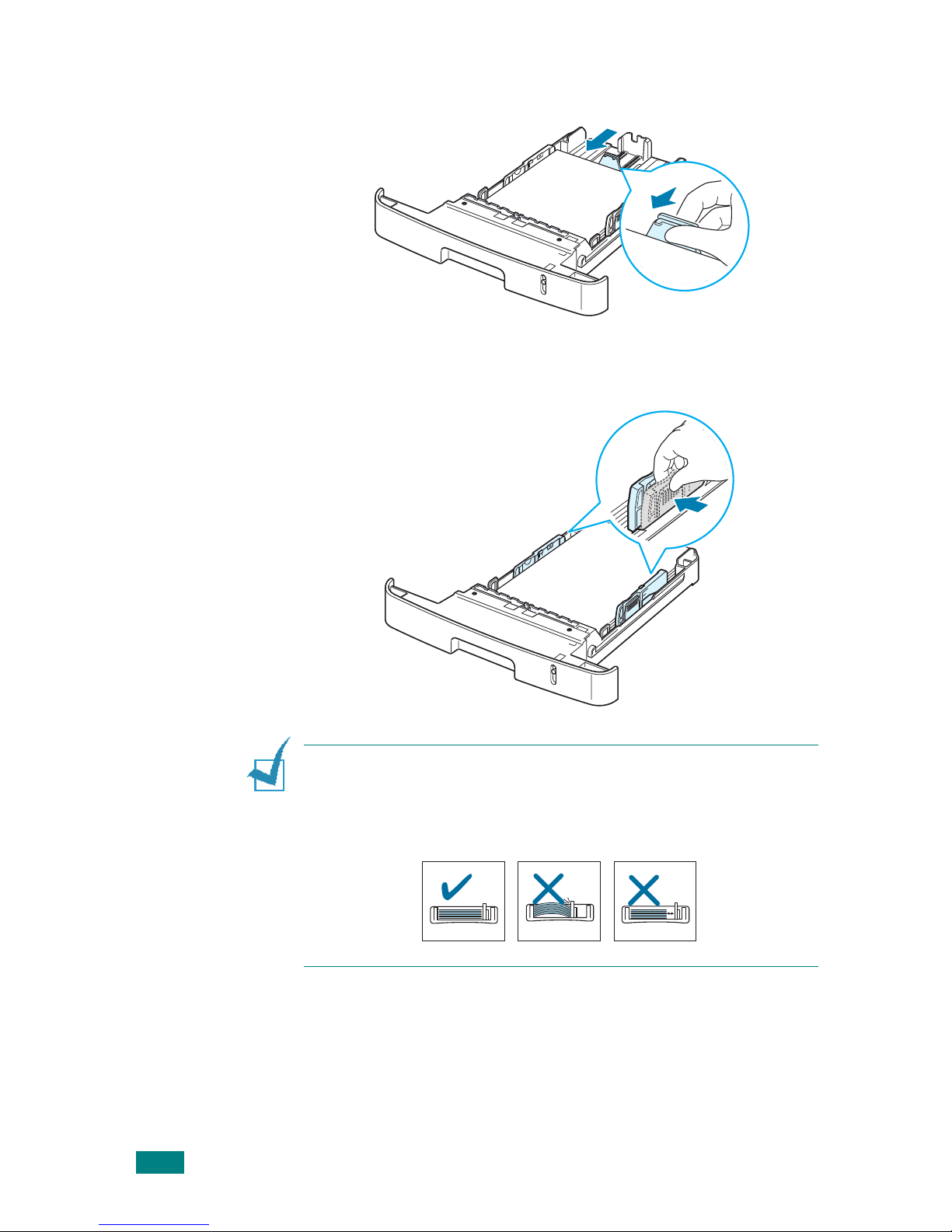

For paper smaller than Letter size, adjust the front paper

length guide so that it lightly touches the paper stack.

Squeeze the width guide, as shown and slide it to the stack

of paper until it lightly touches the side of the stack.

OTES

• Do not push the paper width guide far enough to cause the

materials to warp.

• If you do not adjust the paper width guide, it may cause paper

jams.
