Woodmizer LT28 D17 Mode d’emploi

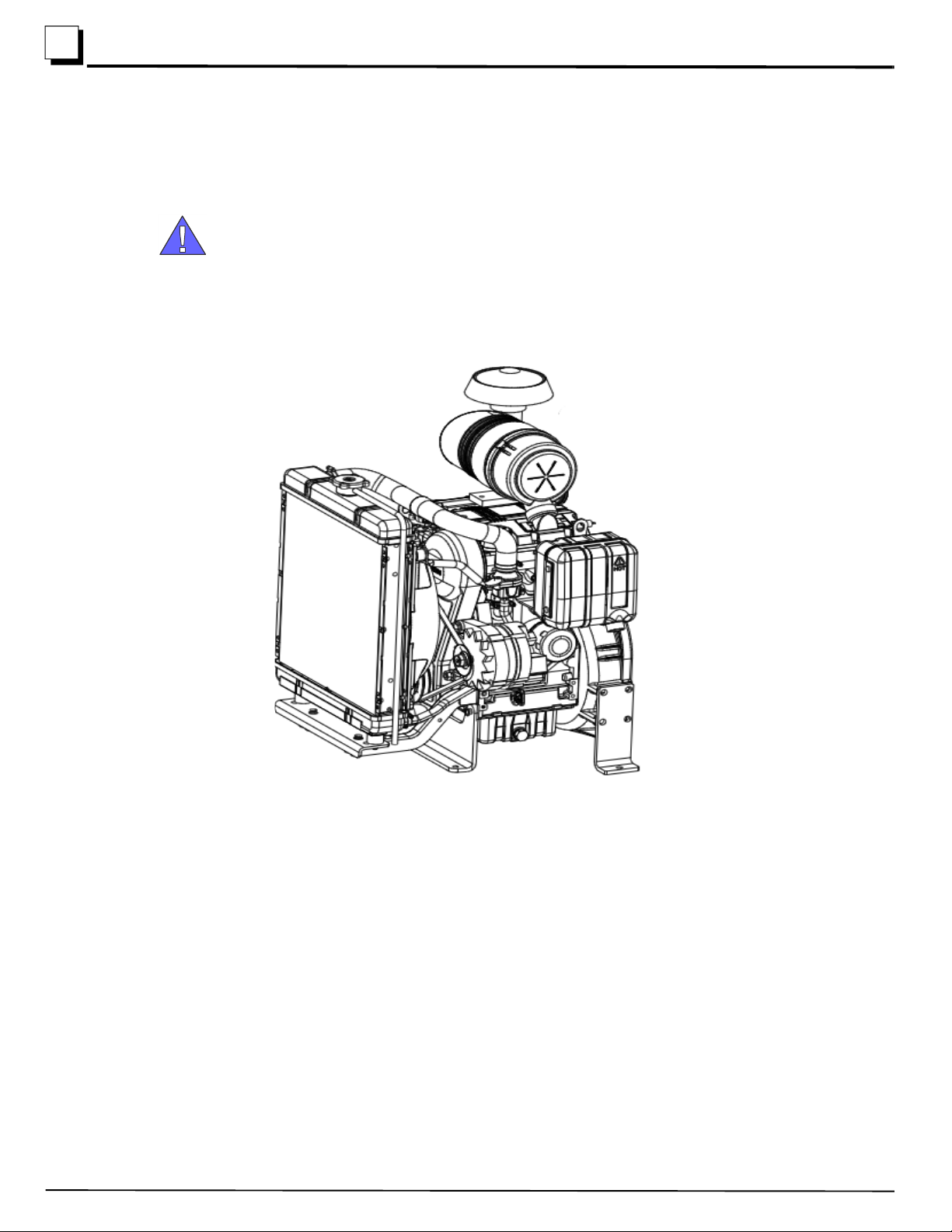

LT28 D17 Engine

Safety, Operation, Maintenance

& Parts Manual

LT28D17 rev. A6.00 - A6.15 only

Safety is our #1 concern! Read and understand

all safety information and instructions before oper-

ating, setting up or maintaining this machine.

October 2009

Form #1633

Active Patents assigned to Wood-Mizer, LLC

Wood-Mizer, LLC has received patents that protect our inventions which are a result of a dedication to

research, innovation, development, and design. Learn more at: woodmizer.com/patents

any photographic, electronic, mechanical or other means or used in any information storage and retrieval system with-

out written permission from

Wood-Mizer, LLC

8180 West 10th Street

Indianapolis, Indiana 46214

California

Proposition 65 Warning

WARNING:

Breathing gas/diesel engine exhaust exposes you to chemicals known to

the State of California to cause cancer and birth defects or other reproductive harm.

Always start and operate the engine in a well-ventilated area.

If in an enclosed area, vent the exhaust to the outside.

Do not modify or tamper with the exhaust system.

Do not idle the engine except as necessary.

For more information go to www.P65warnings.ca.gov.

WARNING:

Drilling, sawing, sanding or machining wood products can expose you to

wood dust, a substance known to the State of California to cause cancer. Avoid inhaling

wood dust or use a dust mask or other safeguards for personal protection.

For more information go to www.P65Warnings.ca.gov/wood.

Table of Contents Section-Page

Table of Contents WMdoc091622 iii

TOC

SECTION 1 ABOUT THIS MANUAL 1-1

SECTION 2 OPERATION 2-1

2.1 Starting The Engine................................................................................2-1

SECTION 3 MAINTENANCE 3-1

3.1 Maintenance ...........................................................................................3-1

3.2 Safety......................................................................................................3-1

3.3 Battery ....................................................................................................3-1

3.4 Fuel Filter ...............................................................................................3-2

SECTION 4 REPLACEMENT PARTS 4-1

4.1 Fuel Tank................................................................................................4-1

5.2 Engine Assembly....................................................................................5-1

6.3 Throttle/Clutch Assembly ......................................................................6-1

1-1 WM doc 9/16/22

SECTION 1 ABOUT THIS MANUAL

This manual is provided as a supplement to the equipment manufacturer’s manuals. This manual provides information specific

to the use of this equipment on the Wood-Mizer® sawmill. Refer to the sawmill operator’s manual and manufacturer's manual

before attempting to operate this equipment.

IMPORTANT! Read the sawmill operator’s manual and engine manufacturer’s man-

ual for instructions and safety precautions before operating this equipment.

The information and instructions given in this manual do not amend or extend the limited warranties for the equipment given at

the time of purchase.

Operation

Starting The Engine 2

Operation WM doc 9/16/22 2-1

SECTION 2 OPERATION

2.1 Starting The Engine

DANGER! Always be sure the blade is disengaged and clear the path of the blade

before starting the engine. Failure to do so will result in serious injury or death.

DANGER! Operate your engine/machine only in well ventilated areas.Exhaust gases

can cause nausea, delirium and potentially death unless adequate ventilation is pres-

ent.

DANGER! Never operate an engine with a fuel or oil leak. The leaking fuel or oil could

potentially come in contact with hot surfaces and ignite into flames.

WARNING! Do not operate engine without proper and operational spark arrester/muf-

fler. Sparks emitted from the engine exhaust could ignite surrounding materials, caus-

ing serious injury or death.

1. See the engine manufacturer’s manual for lubricating oil recommendations for specific temperature ranges.

2. Use #2 or better quality diesel fuel for above freezing starting. Use a #1 quality diesel fuel for below freezing starting.

3. Turn the key switch to the on (#1) position.

4. Turn the key switch to the start (#2) position and release.

ENGINE SHUTOFF

1. Disengage the clutch handle to stop the blade if necessary.

2. Turn the key switch to the off (#0) position.

Maintenance

3-1 WM doc 9/16/22 Maintenance

SECTION 3 MAINTENANCE

3.1 Maintenance

Refer to the manufacturer’s manual for maintenance intervals and procedures unless otherwise instructed in this manual. Fol-

low the manufacturer’s recommendations for dusty conditions.

IMPORTANT! This manual only provides information about additional proce-

dures or procedures to be performed at different time intervals than found in

the manufacturer's manuals. Refer to the manufacturer's manual for complete

maintenance instructions.

WARNING! Clean sawdust from all guards, vents, control boxes, or any

area where sawdust may gather after every shift. Failure to do so may

result in fire, causing death or serious injury.

3.2 Safety

Use caution when performing maintenance or service to the engine.

DANGER! Always be aware of and take proper protective measures against

rotating shafts, pulleys, fans, etc. Always stay a safe distance from rotating

members and make sure that loose clothing or long hair does not engage

rotating members resulting in possible injury.

DANGER! Engine components can become very hot during operation. Avoid

contact with any part of a hot engine. The exhaust components of your engine

are especially hot during and following operation. Contact with hot engine

components can cause serious burns. Therefore, never touch or perform ser-

vice functions on a hot engine. Allow the engine to cool sufficiently before

beginning any service function.

WARNING! Remove the blade before performing any engine service. Failure

to do so may result in serious injury.

WARNING! Always wear proper and necessary safety equipment when per-

forming service functions. Proper safety equipment includes eye protection,

breathing protection, hand protection and foot protection.

3.3 Battery

Check the battery electrolyte level every 50 hours of operation. See manufacturer’s manual for instructions.

DANGER! Batteries expel explosive gases. Keep sparks, flames, burning cig-

arettes, or other ignition sources away at all times. Always wear safety gog-

gles and a face shield when working near batteries. Failure to do so will cause

serious injury.

WARNING! Battery posts, terminals and related accessories contain lead and

lead compounds, chemicals known to the State of California to cause cancer

and reproductive harm. Wash hands after handling.

Maintenance

Fuel Filter 3

Maintenance WM doc 9/16/22 3-2

3.4 Fuel Filter

Replace the fuel filter every 100 hours of operation or as required for engine performance.

Replacement Parts

Fuel Tank

4-1 WM doc 9/16/22 Replacement Parts

SECTION 4 REPLACEMENT PARTS

4.1 Fuel Tank

REF PART # DESCRIPTION COMMENTS QTY.

074829 TRAY ASSEMBLY, LT28/35 FUEL TANK 1

1103810 Weldment, Fuel Tank Tray 1

2103867 Cover, Fuel Tank 1

103928 Tank, 5 Gallon Low Pro Diesel 1

3061257 Cap, Fuel Tank Diesel 080185BE 1

4061255 Fitting, Pick-Up/Tube Diesel 468871A 1

5061250 Grommet, Shut Off 046881 2

6061256 Fitting, Return/tube Diesel 468489 1

7F05006-15 Bolt, 5/16-18 x 1/2” Hex Head Grade 5 4

8F05007-73 Bolt, 3/8-16 x 3” Hex Head Grade 5 3

9F05010-10 Nut, 3/8-16 Hex Nyloc 3

10 F05011-3 Washer, 3/8” Flat SAE 6

11 F05011-13 Washer, 5/16 Split Lock 4

12 F05011-17 Washer, 5/16 SAE Flat 4

R02423-1 Hose, Fuel 3/16" EPA 15G CARB R02423-1 replaced R02423-3

after 2/1/2021 per ECN 37794.

6 Ft

R02423-3 Hose, Fuel 5/16" EPA 15G CARB 6 Ft

R02423-2 Hose, Fuel 1/4" EPA 15G CARB 6 Ft

11 12

280062B

Replacement Parts WM doc 9/16/22 5-1

Replacement Parts

Engine Assembly 5

5.2 Engine Assembly

REF PART # DESCRIPTION COMMENTS QTY.

007333 ENGINE ASSEMBLY, LT15 17HP DIESEL 1

1007332 Engine, 17HP Kohler Diesel Model KDW702 Available in assemblies only. 1

2007401 Filter Assembly, Kohler

#ED0037004550-S

007613 Filter, Kohler Secondary Air

#ED0021751250-S

007408 Filter, Kohler Primary Air

#ED0021751240-S

007614 Motor, Kohler Starter #ED0058402240-S 1

065408 Alternator, Kohler 65A

#ED0011572700-S

065409 Belt, Kohler Fan #ED0024403160-S 1

061187 Filter, Kohler/Lombardini Oil

#ED0021752830-S

061188 Filter, Kohler/Lombardini Fuel

#ED0021752880-S

014557 Switch Kit, Oil Pressure w/Gasket 1

014279 Switch, Diesel Fuel Shut-Off 1

014289 Pump, Diesel Fuel 1

28 29 30

150174-1C

Replacement Parts

Engine Assembly

5-2 WM doc 9/16/22 Replacement Parts

014278 Plug, Diesel Glow 2

3062308 Bracket, Air Filter Mount 1

4F05006-18 Bolt, 5/16-18 x 1 1/4” Hex Head Full Thread 2

5F05011-17 Washer, 5/16” SAE Flat 4

6F05010-20 Nut, 5/16-18 Self-Locking Hex 2

7P09895 Clamp, 2 1/2” Hose 4

8007394 Elbow, 90° x 2” ID Rubber 2

9007395 Tube, 1 3/4” ID x 2” OD x 4” 1

10 007392 Cable, LT15 D18 1

11 007465 Guard Weldment, D18 Radiator 1

12 F05011-11 Washer, 1/4” SAE Flat 6

13 F05011-14 Washer, 1/4” Split Lock 6

14 F05004-219 Bolt, M6 x 1.0 x 16mm Hex Head 6

15 007427 Bracket Weldment, Rear D18 Mount 1

16 F05004-251 Bolt, M12 x 1.75 x 20mm Hex Head Full

Thread

17 F05011-3 Washer, 3/8” SAE Flat 8

18 F05007-123 Bolt, 3/8-16 x 1 1/4” Hex Head Grade 5 4

19 F05010-10 Nut, 3/8-16 Hex Nylon Lock 4

20 007426 Bracket, D18 Front Mount 1

21 F05006-27 Bolt, 5/16-18 x 1” Hex Head Grade 5 2

22 F05010-58 Nut, 5/16-18 Hex Nylon Lock 2

23 014024 Shaft, Diesel Engine Drive 1

24 F05011-88 Washer, 10mm Split Lock 8

25 F81003-11 Bolt, M10-1.5 x 24mm Hex Head Grade 8.8 8

26 047742 Sheave, 3V5.6 x 2-SH 1

27 007338 Bushing, SH - 1 9/16” 1

28 007336 Guard Weldment, Motor Pulley 1

29 007344 Cover, Engine Pulley Guard 1

30 F05005-134 Bolt, 1/4-20 x 3/4” Hex w/Conical Washer

Head

31 065163 Fitting, M18 x 3/8” NPT Adaptor 1

32 P10082 Hose, 3/8” NPT x 9 5/8” Rubber 1

33 P04332 Fitting, 3/8” Galvonized Pipe Cap 1

34 047751 BELT, 2/3VFL900 DRIVE 1

35 048237 SUPPORT WELDMENT, DRIVE BELT 1

36 F05007-118 BOLT, 3/8-16 X 3/4” HEX HEAD GRADE 5 1

074947 panel, front D17 yanmar 1

REF PART # DESCRIPTION COMMENTS QTY.

37 F05010-19 NUT, 3/8-16 SELF-LOCKING HEX 1

007402 Rain cap d17 1
