Woodmizer LT28 D17 Mode d’emploi

WARNING! Read and understand this

manual before using this machine.

LT28 D17 Engine

Safety, Operation, Maintenance

& Parts Manual

007333 D17 Kohler/Lombardini rev. D

Safety is our #1 concern!

October 2009

Form #1633

Used with

LT28D17 rev. A6.07 - A6.17

LT28D18 rev. A6.00 - A6.06

Designation changed from D18 to D17 per

ECN 19807 on 11/122013 to more accurately

describe the power.

Active Patents assigned to Wood-Mizer, LLC

Wood-Mizer, LLC has received patents that protect our inventions which are a result of a dedication to

research, innovation, development, and design. Learn more at: woodmizer.com/patents

photographic, electronic, mechanical or other means or used in any information storage and retrieval system without

written permission from

Wood-Mizer, LLC

8180 West 10th Street

Indianapolis, Indiana 46214

Table of Contents Section-Page

Table of Contents WM doc 1/3/24 iii

SECTION 1 OPERATION AND MAINTENANCE

1.1 Starting The Engine ............................................................................... 1-1

1.2 Safety ..................................................................................................... 1-1

1.3 Battery.................................................................................................... 1-2

1.4 Fuel Filter............................................................................................... 1-2

SECTION 2

SECTION 3 REPLACEMENT PARTS

2.1 Fuel Tank Rev. A6.13+......................................................................... 2-1

2.2 Fuel Tank Rev. A6.06 - A6.12 ............................................................2-2

3.3 Engine Assembly ................................................................................... 3-1

3.4 Throttle/Clutch Assembly...................................................................... 3-3

Operation and Maintenance

Starting The Engine

1-1 WM doc 1/3/24 Operation and Maintenance

ABOUT THIS MANUAL

This manual is provided as a supplement to the equipment manufacturer’s manuals. This manual provides information spe-

cific to the use of this equipment on the Wood-Mizer® sawmill. Refer to the sawmill operator’s manual and manufacturer's

manual before attempting to operate this equipment.

NOTICE Read the sawmill operator’s manual and engine manufacturer’s manual for instructions

and safety precautions before operating this equipment.

The information and instructions given in this manual do not amend or extend the limited warranties for the equipment

given at the time of purchase.

SECTION 1 OPERATION AND MAINTENANCE

1.1 Starting The Engine

DANGER! Always be sure the blade is disengaged and clear the path of the blade before starting

the engine. Failure to do so will result in serious injury or death.

DANGER! Operate your engine/machine only in well ventilated areas.Exhaust gases can cause

nausea, delirium and potentially death unless adequate ventilation is present.

DANGER! Never operate an engine with a fuel or oil leak. The leaking fuel or oil could potentially

come in contact with hot surfaces and ignite into flames.

WARNING! Do not operate engine without proper and operational spark arrester/muffler. Sparks

emitted from the engine exhaust could ignite surrounding materials, causing serious injury or

death.

CAUTION! EPA Compliant Gas Tanks Only: Always relieve all fuel pressure inside the tank prior

to filling or connecting fuel fittings. Failure to do so may result in fuel spillage.

CAUTION! EPA Compliant Gas Tanks Only: Disconnect the fuel tank when not in use, or engine

flooding or fuel spillage may result

1. See the engine manufacturer’s manual for lubricating oil recommendations for specific temperature ranges.

2. Use #2 or better quality diesel fuel for above freezing starting. Use a #1 quality diesel fuel for below freezing starting.

3. Turn the key switch to the on (#1) position.

4. Turn the key switch to the start (#2) position and release.

ENGINE SHUTOFF

1. Disengage the clutch handle to stop the blade if necessary.

2. Turn the key switch to the off (#0) position.

Refer to the manufacturer’s manual for maintenance intervals and procedures unless otherwise instructed in this manual.

Follow the manufacturer’s recommendations for dusty conditions.

NOTICE This manual only provides information about additional procedures or procedures to be

performed at different time intervals than found in the manufacturer's manuals. Refer to the man-

ufacturer's manual for complete maintenance instructions.

1.2 Safety

Use caution when performing maintenance or service to the engine.

Maintenance

Battery 1

Maintenance WM doc 1/3/24 1-2

DANGER! Always be aware of and take proper protective measures against rotating shafts, pul-

leys, fans, etc.

Always stay a safe distance from rotating members and make sure that loose clothing or long

hair does not engage rotating members.

Never touch or perform service functions on a hot engine.

WARNING! Remove the blade before performing any engine service. Failure to do so may result

in serious injury.

Wear proper (eye, breathing, hand, and foot) safety equipment when performing service func-

tions.

Clean sawdust from all guards, vents, control boxes, or any area where sawdust may

gather after every shift. Failure to do so may result in fire, causing death or serious

injury.

1.3 Battery

Check the battery electrolyte level every 50 hours of operation. See manufacturer’s manual for instructions.

DANGER! Batteries expel explosive gases.

Keep sparks, flames, burning cigarettes, or other ignition sources away at all times.

Wear a face shield when working on batteries.

WARNING! Battery posts, terminals and related accessories contain lead and lead compounds.

Wash hands after handling.

1.4 Fuel Filter

Replace the fuel filter every 100 hours of operation or as required for engine performance.

SECTION 1

Replacement Parts

Fuel Tank Rev. A6.13+

2-1 WM doc 1/3/24 Replacement Parts

SECTION 2 REPLACEMENT PARTS

2.1 Fuel Tank Rev. A6.13+

REF PART # DESCRIPTION COMMENTS QTY.

074829 TRAY ASSEMBLY, LT28/35 FUEL TANK 1

1103810 Weldment, Fuel Tank Tray 1

2103867 Cover, Fuel Tank 1

103928 Tank, 5 Gallon Low Pro Diesel 1

3061257 Cap, Fuel Tank Diesel 080185BE 1

4061255 Fitting, Pick-Up/Tube Diesel 468871A 1

5061250 Grommet, Shut Off 046881 2

6061256 Fitting, Return/tube Diesel 468489 1

7F05006-15 Bolt, 5/16-18 x 1/2” Hex Head Grade 5 4

8F05007-73 Bolt, 3/8-16 x 3” Hex Head Grade 5 3

9F05010-10 Nut, 3/8-16 Hex Nyloc 3

10 F05011-3 Washer, 3/8” Flat SAE 6

11 F05011-13 Washer, 5/16 Split Lock 4

12 F05011-17 Washer, 5/16 SAE Flat 4

R02423-1 Hose, Fuel 3/16" EPA 15G CARB R02423-1 replaced R02423-3

after 2/1/2021 per ECN 37794.

6 Ft

R02423-3 Hose, Fuel 5/16" EPA 15G CARB 6 Ft

R02423-2 Hose, Fuel 1/4" EPA 15G CARB 6 Ft

280062B

Replacement Parts WM doc 1/3/24 2-2

Replacement Parts

Fuel Tank Rev. A6.06 - A6.12 2

2.2 Fuel Tank Rev. A6.06 - A6.12

REF PART # DESCRIPTION COMMENTS QTY.

038580 TRAY ASSEMBLY, LT28 DIESEL CAN Rev. A6.06 - A6.12 only 1

A12132 Tank Assembly, 5-Gallon Diesel Fuel 1

1P12166 Tank, 5-Gallon Diesel Fuel Available in assemblies only. 1

2P12172 Pickup, 9" Fuel 2

3P09683 Cap, 3 or 5-Gallon Fuel Tank 1

4P12175 Fitting, 1/4" NPT Plastic Female Disconnect 1

5P12176 Fitting, 1/4" NPT Plastic Male Disconnect 1

6015582 Fitting, Female Quick Disconnect Barb 1

7015583 Fitting, 1/4” NPT Male Quick Disconnect 1

8P642 Hose, 1/4” ID Fuel 5.5 Ft

9016338 Hose, 5/16” Fuel Line 8 Ft

10 P649 Clamp, 7/32 - 1/2 Hose 4

11 048600 Tray Weldment, LT28 Fuel 1

12 F05005-34 Bolt, 1/4-20 X 1” Carriage 2

13 F05010-21 Nut, 1/4-20 Swaged 2

14 P11258 Strap, 24 Rubber W/Hooks 2

15 F05007-29 Bolt, 3/8-16 x 2 3/4” Hex Head 2

16 F05011-3 Washer, 3/8” SAE Flat 2

17 F05010-10 Nut, 3/8-16 Hex Nylon Lock 2

10 10

280047-1C

Replacement Parts

Engine Assembly

3-1 WM doc 1/3/24 Replacement Parts

3.3 Engine Assembly

REF PART # DESCRIPTION COMMENTS QTY.

007333 ENGINE ASSEMBLY, LT15 17HP DIESEL 1

1007332 Engine, 17HP Kohler Diesel Model KDW702 Available in assemblies only. 1

2007401 Filter Assembly, Kohler

#ED0037004550-S

007613 Filter, Kohler Secondary Air

#ED0021751250-S

007408 Filter, Kohler Primary Air

#ED0021751240-S

007614 Motor, Kohler Starter #ED0058402240-S 1

065408 Alternator, Kohler 65A

#ED0011572700-S

065409 Belt, Kohler Fan #ED0024403160-S 1

061187 Filter, Kohler/Lombardini Oil

#ED0021752830-S

061188 Filter, Kohler/Lombardini Fuel

#ED0021752880-S

014557 Switch Kit, Oil Pressure w/Gasket 1

014279 Switch, Diesel Fuel Shut-Off 1

014289 Pump, Diesel Fuel 1

28 29

150174-1C

Replacement Parts WM doc 1/3/24 3-2

Replacement Parts

Engine Assembly 3

014278 Plug, Diesel Glow 2

3062308 Bracket, Air Filter Mount 1

4F05006-18 Bolt, 5/16-18 x 1 1/4” Hex Head Full Thread 2

5F05011-17 Washer, 5/16” SAE Flat 4

6F05010-20 Nut, 5/16-18 Self-Locking Hex 2

7P09895 Clamp, 2 1/2” Hose 4

8007394 Elbow, 90° x 2” ID Rubber 2

9007395 Tube, 1 3/4” ID x 2” OD x 4” 1

10 007392 Cable, LT15 D18 1

11 007465 Guard Weldment, D18 Radiator 1

12 F05011-11 Washer, 1/4” SAE Flat 6

13 F05011-14 Washer, 1/4” Split Lock 6

14 F05004-219 Bolt, M6 x 1.0 x 16mm Hex Head 6

15 007427 Bracket Weldment, Rear D18 Mount 1

16 F05004-251 Bolt, M12 x 1.75 x 20mm Hex Head Full

Thread

17 F05011-3 Washer, 3/8” SAE Flat 8

18 F05007-123 Bolt, 3/8-16 x 1 1/4” Hex Head Grade 5 4

19 F05010-10 Nut, 3/8-16 Hex Nylon Lock 4

20 007426 Bracket, D18 Front Mount 1

21 F05006-27 Bolt, 5/16-18 x 1” Hex Head Grade 5 2

22 F05010-58 Nut, 5/16-18 Hex Nylon Lock 2

23 014024 Shaft, Diesel Engine Drive 1

24 F05011-88 Washer, 10mm Split Lock 8

25 F81003-11 Bolt, M10-1.5 x 24mm Hex Head Grade 8.8 8

26 047742 Sheave, 3V5.6 x 2-SH 1

27 007338 Bushing, SH - 1 9/16” 1

28 007336 Guard Weldment, Motor Pulley 1

29 007344 Cover, Engine Pulley Guard 1

30 F05005-134 Bolt, 1/4-20 x 3/4” Hex w/Conical Washer

Head

31 065163 Fitting, M18 x 3/8” NPT Adaptor 1

32 P10082 Hose, 3/8” NPT x 9 5/8” Rubber 1

33 P04332 Fitting, 3/8” Galvonized Pipe Cap 1

34 047751 BELT, 2/3VFL900 DRIVE 1

35 048237 SUPPORT WELDMENT, DRIVE BELT 1

36 F05007-118 BOLT, 3/8-16 X 3/4” HEX HEAD GRADE 5 1

37 F05010-19 NUT, 3/8-16 SELF-LOCKING HEX 1

38 007402 RAIN CAP D17 1

074947 PANEL, FRONT D17 YANMAR 1

REF PART # DESCRIPTION COMMENTS QTY.

Replacement Parts

Throttle/Clutch Assembly

3-3 WM doc 1/3/24 Replacement Parts

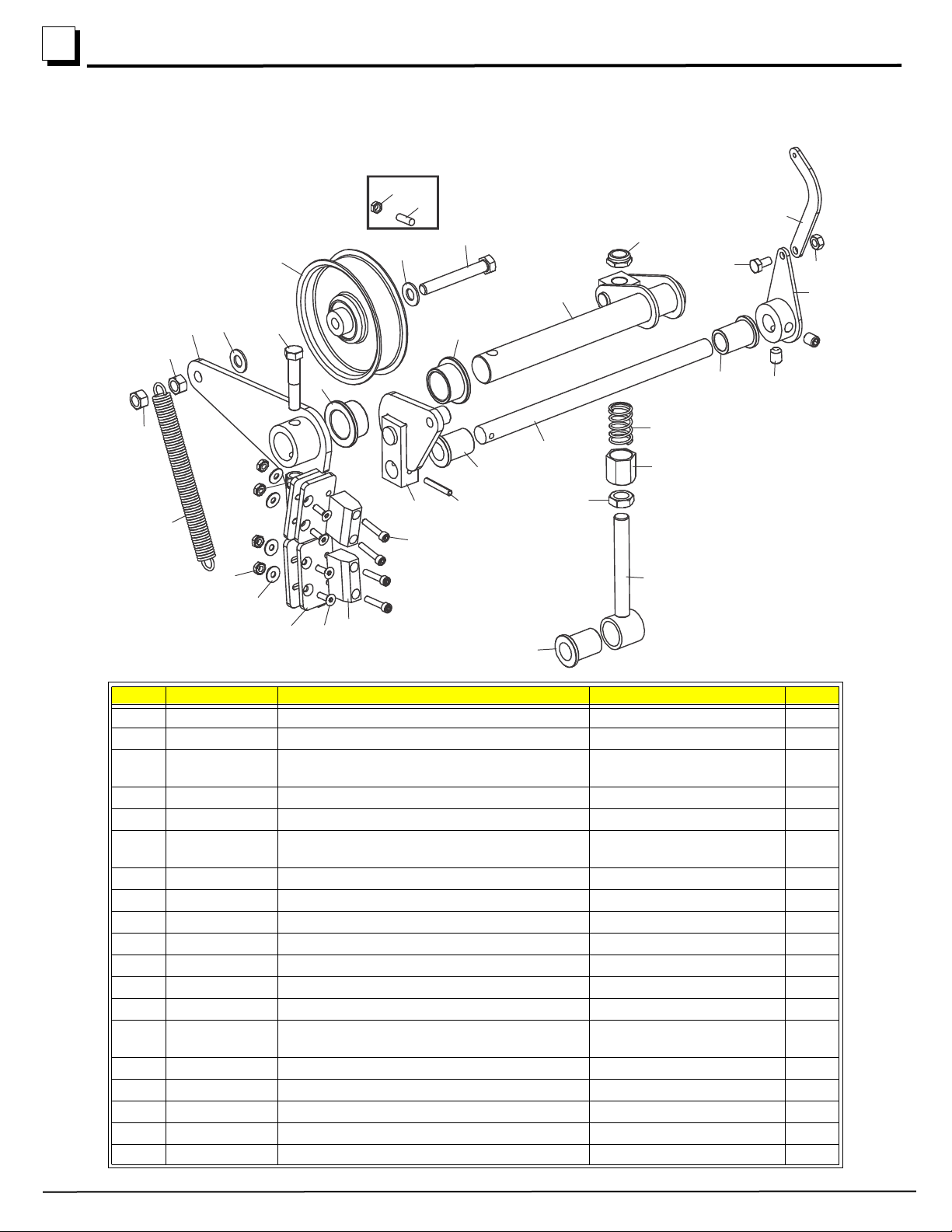

3.4 Throttle/Clutch Assembly

REF PART # DESCRIPTION COMMENTS QTY.

1065574 BLOCK WELDMENT, LINKAGE CLUTCH/BRAKE 1

2F05012-16 PIN, 3/16” X 1 1/4” ROLL 1

3016486 BUSHING, 5/8” ID X 7/8” OD X 1 1/4” LONG FL

BRONZE

4049340 SHAFT, LT28 THROTTLE 1

5034815 ACTUATOR WELDMENT, THROTTLE LT15D&G 1

6F05007-68 SCREW, 3/8-16 X 3/8” SOCKET HEAD CUP PT

SET

7034818 LINKAGE, THROTTLE LT15D&G 1

8F05005-15 BOLT, 1/4-20 X 1/2” HEX HEAD 1

9F05010-21 NUT, 1/4-20 SWAGED 1

10 P737 BUSHING, 1” X 1 1/4” X 3/4” FLANGED BRONZE 2

11 034608 PIVOT WELDMENT, CLUTCH/BRAKE 1

034605 LINKAGE ASSEMBLY, W/BEARING 1

12 034604 Boss Weldment, Clutch/Brake Linkage 1

13 016486 Bushing, 5/8” ID x 7/8” OD x 1 1/4” Long

Flanged Bronze

038778 NUT ASSEMBLY, 1/2-13 SPRING LOCKING 1

14 F05010-31 Nut, 1/2-13 Hex Jam 1

15 038777 Nut, 1/2-13 Spring Lock 1

16 046975 Spring, .72” OD x .576” ID x 1.25L Compression 1

17 F05010-127 Nut, 1/2-13 Half Nylon Lock 1

18 19

30 29

280059-2D

Autres manuels pour LT28 D17

Table des matières

Autres manuels woodmizer Moteur

woodmizer

woodmizer D10 Mode d’emploi

woodmizer

woodmizer D34 Mode d’emploi

woodmizer

woodmizer D35 Series Mode d’emploi

woodmizer

woodmizer G26 Mode d’emploi

woodmizer

woodmizer D24 Mode d’emploi

woodmizer

woodmizer G13 Mode d’emploi

woodmizer

woodmizer D19 Mode d’emploi

woodmizer

woodmizer D42 Mode d’emploi

woodmizer

woodmizer D17 Mode d’emploi

woodmizer

woodmizer D10 Mode d’emploi

woodmizer

woodmizer LT70 Series Mode d’emploi

woodmizer

woodmizer LT40 MH Series Mode d’emploi

woodmizer

woodmizer G13 Mode d’emploi

woodmizer

woodmizer G18 Mode d’emploi

woodmizer

woodmizer LT28 D19 Mode d’emploi

woodmizer

woodmizer D42 Mode d’emploi

woodmizer

woodmizer D42 Mode d’emploi

woodmizer

woodmizer D35 Series Mode d’emploi

woodmizer

woodmizer E10SP Mode d’emploi

woodmizer

woodmizer LT28 D17 Mode d’emploi

woodmizer

woodmizer D42 Mode d’emploi

woodmizer

woodmizer E10 Mode d’emploi

woodmizer

woodmizer D17 Mode d’emploi

woodmizer

woodmizer LT30 Mode d’emploi

Manuels Moteur populaires d'autres marques

Rotax

Rotax 125 senior MAX evo Manuel utilisateur

Kohler

Kohler K361 Manuel utilisateur

MTD

MTD OHV Series Manuel utilisateur

Kohler

Kohler COMMAND CH18-745 Manuel utilisateur

Mercury

Mercury D4.2L D-Tronic Manuel utilisateur

Selve

Selve SE Plus-RC Series Manuel utilisateur

Perkins

Perkins 1206E-E66TA Manuel utilisateur

Skov

Skov DA 174 Manuel

Rossi

Rossi TX11 Series Manuel utilisateur

Siemens

Siemens SIMOTICS T-1FW3 Feuille d'instructions

AL-KO

AL-KO PRO 350 Manuel utilisateur

MTU

MTU 12 V 4000 Lx4 Manuel utilisateur

Nanni

Nanni N3.30 Manuel d'instructions

Nanni

Nanni N5.160 CR2 Manuel utilisateur

KSB

KSB SuPreme Series Instructions d'installation

Hiwin

Hiwin EM1 Series Manuel utilisateur

Rotax

Rotax 912 i series Mode d'emploi

Siemens

Siemens SIMOTICS XP 1MB1 Manuel utilisateur
