Wolf CSO30PM/S/PH Manuel utilisateur

CONVECTION STEAM OVEN

USE AND CARE GUIDE

CLEANING, MAINTENANCE, AND MORE

2 | Wolf Customer Care 800.222.7820

CONVECTION STEAM OVEN

Customer Care

The model and serial number are printed on the enclosed

product registration card. Both numbers are also listed on

the product rating plate. Refer to page 5 for rating plate

location. For warranty purposes, you will also need the date

of installation and name of your authorized Wolf dealer.

Record this information below for future reference.

SERVICE INFORMATION

Model Number

Serial Number

Date of Installation

Certied Service Name

Certied Service Number

Authorized Dealer

Dealer Number

If your product ever needs attention, be sure to use a

Wolf Factory Certied Service provider recommended

by our Customer Care Center, or select one from our list

of providers available at wolfappliance.com/locator. All

Factory Certied Service providers are carefully selected

and thoroughly trained by us.

Important Note

To ensure this product is installed and operated as safely

and efciently as possible, take note of the following types

of highlighted information throughout this guide:

IMPORTANT NOTE highlights information that is especially

important.

CAUTION indicates a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

IMPORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specied.

Contents

4Safety Precautions

6Convection Steam Oven Features

7Convection Steam Oven Operation

16 Care Recommendations

17 Troubleshooting

19 Wolf Warranty

wolfappliance.com | 3

SAFETY PRECAUTIONS

This oven was built to achieve recognized standards

in technology and safety regulations and is designed

for use in the home for preparing food. It is not

intended for use by persons with reduced physical,

sensory, or mental capabilities or lack of experience

and knowledge, unless supervised or unless they

have been given instruction concerning the use of

the appliance by a person responsible for their safety.

Proper use is essential to avoid damage or accidents.

Installation and connection to power supply must be

performed by a qualied electrician in accordance

with provided installation instructions.

Before rst use, ll the water tank and perform related

duties as outlined in the Prior to Use section.

Please retain this guide for future reference. If you

sell the appliance or pass it on to a third party, ensure

these instructions accompany the appliance with the

instructions on installation.

WARNING

PROPOSITION 65 FOR CALIFORNIA RESIDENTS

Cancer and Reproductive Harm—

www.P65Warnings.ca.gov

4 | Wolf Customer Care 800.222.7820

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety

precautions should always be followed including the

following:

•Read all instructions.

•Do not touch hot surfaces. Use handles or knobs.

•To protect against electrical shock, do not immerse

cord or plug in water or other liquid.

•Close supervision is necessary when any appliance

is used by or near children.

•Unplug the appliance from outlet when not in use

and before cleaning. Allow the appliance to cool

before putting on or taking off parts.

•Do not operate any appliance with a damaged cord

or plug or after the appliance malfunctions or has

been damaged in any manner. Return appliance

to the nearest Factory Certied Service facility for

examination, repair, or adjustment.

SAFETY PRECAUTIONS

•The use of accessory attachments not recom-

mended by the appliance manufacturer may cause

injuries.

•Do not use outdoors.

•Do not let the cord hang over the edge of the table

or counter or touch hot surfaces.

•Do not place on or near a hot gas or electric burner

or in a heated oven.

•Extreme caution must be used when moving an

appliance containing hot oil or other hot liquids.

•Always attach plug to appliance rst, then plug

the cord into the wall outlet. To disconnect, turn all

controls off and then remove the plug from the wall

outlet.

•Do not use the appliance for other than intended

use.

•Save these instructions.

wolfappliance.com | 5

Getting Started

We know you are eager to start cooking, but before you

do, please take some time to read this use and care guide.

Whether you are an occasional cook or an expert chef, it

will be to your benet to familiarize yourself with the safety

practices, features, operation, and care recommendations of

your Wolf Convection Steam Oven.

To ensure the best results, review cooking modes and

special features on page 11.

RETRACTABLE HANDLE MODELS

For models with a retractable handle, the handle will extend

automatically when the control panel is activated and

retract when the unit is turned off and has cooled below

175°F (80°C).

CAUTION

Do not open or close the retractable handle manually.

CONVECTION STEAM OVEN FEATURES

Convection Steam Oven Features

FEATURES

1Product Rating Plate

2Control Panel

3Control Panel Display

4Adjustable Oven Racks

5Convection Fan

6Temperature Probe Receptacle

7Halogen Lighting

8Water Tank Access Door

Convection Steam Oven (CSO30TE/S/TH shown)

6 | Wolf Customer Care 800.222.7820

OVEN OPERATION

Control Panel

Use the control panel to set cooking modes and access all

the features of the convection steam oven for exceptional

results. The control panel will become inactive after 15 min-

utes of inactivity. Touch any control to activate the display.

User Settings

The user settings allow the user to select preferences as

listed in the chart below.

SETTING

Set Language

Adjust Display

Set Clock

Congure Notications

Descale Appliance

Set Water Hardness

Set Loudness

Set Assistance Functions

Congure Temperature

Set Childproof Lock

Display Appliance Info

Demo Mode

Check Connection

Restore Factory Settings

Setting user settings:

1With the oven on, touch SETTINGS.

2Use the arrows to select the desired setting.

3Touch ENTER.

4Follow the instructions on the display.

5Touch ENTER.

Control panel

wolfappliance.com | 7

OVEN OPERATION

Oven Operation

COOKING MODES

Select Cooking Mode:

1Touch QUICK START.

2Use the arrows to select the desired cooking mode.

3Touch ENTER.

4Review the information on the display.

5Touch ENTER.

The unit will start 20 seconds after the last key touch. To

start the mode immediately, use the arrows to select Start

Operation, then touch ENTER.

OPTIONS

Set Temperature:

1Use the arrows to select the desired temperature.

2Touch ENTER.

Set Duration:

The oven heats immediately and turns off after the specied

duration. The oven light illuminates three minutes prior to

the end time.

If the temperature probe is used, the probe overrides the

switch-off time and turns the oven off when set temperature

is reached.

1Use the arrows to select the desired cooking duration.

2Touch ENTER.

Set End:

The set end feature automatically turns the oven on and off

at specied times. The oven remains idle until the desired

start time and turns off at the desired switch-off time. The

clock must be set to the correct time for delayed start to

function properly.

If the temperature probe is used, the probe overrides the

switch-off time and turns the oven off when set temperature

is reached. If the probe temperature is not reached before

the switch-off time, it will not extend operating time.

1Use the arrows to select the desired end time.

2Touch ENTER.

Set Food Probe Temp:

1Use the arrows to select the desired probe temperature.

2Touch ENTER.

8 | Wolf Customer Care 800.222.7820

Oven Operation

Prior to use, use the test strip provided to determine the

water hardness. The oven defaults to hard water. Refer to

User Settings on page 6 to adjust water hardness.

Follow the steps below to ensure all residual oil from the

manufacturing process has been removed.

Prior to Use:

1Clean the oven thoroughly with hot water and a mild

detergent.

2Rinse and dry with a soft cloth.

3Turn on cooking ventilation. Some smoke and odor is

normal.

4Fill and install the water tank.

5Select Convection Steam and adjust the temperature to

410°F (210°C). Heat the oven (empty) for 30 minutes.

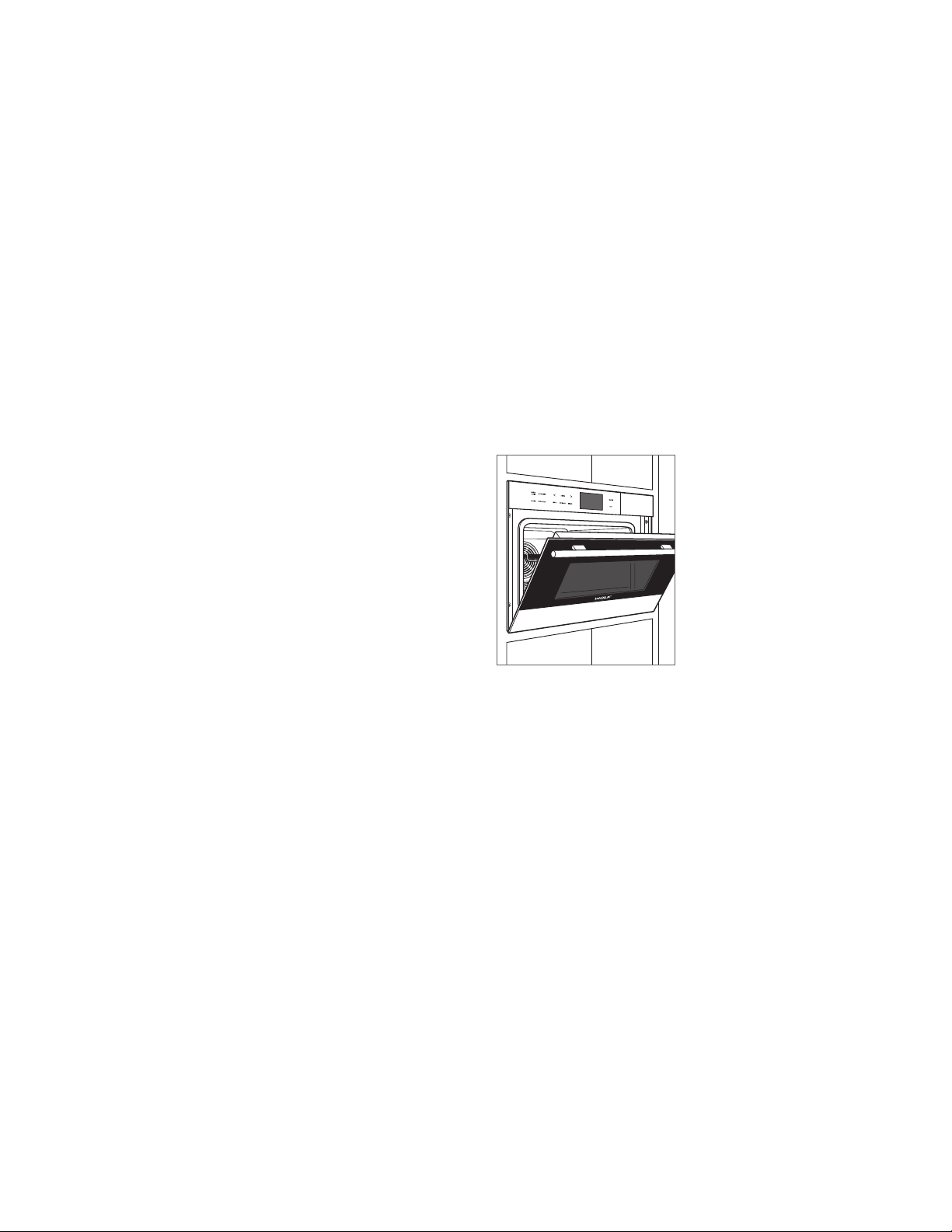

Door at-rest position

OVEN OPERATION

After Each Use:

1Touch OFF or POWER. For modes using steam, do not

remove the water tank until “WATER IS BEING PUMPED

OFF” no longer appears on the display.

2Open the door to the at-rest position and allow to cool.

Refer to the illustration below.

3Once cool, wipe the interior dry.

4Close the door.

wolfappliance.com | 9

TIMER

The timer can be set for a maximum of 9 hours and 59 min-

utes. Once the timer is set, the countdown appears on the

display. The timer is independent from the oven. Setting the

timer does not affect operating time or switch-off time.

Setting Timer:

1Touch TIMER.

2Use the arrows to set the desired duration.

3Touch ENTER.

To adjust the timer, use the arrows to adjust the duration. To

cancel the timer, use the left arrow to decrease the duration

to 0, then touch ENTER.

OVEN OPERATION

Oven Operation

WATER TANK

IMPORTANT NOTE: The unit needs minerals in the water

to operate. Do not use demineralized, ltered, or distilled

water. Use fresh, cold tap water. For a whole house water

ltration system, use bottled drinking water.

Touch WATER to remove the water tank.

The water tank holds enough water for 11/2hours of con-

tinuous steam, typically enough for 4–5 cooking sessions.

Use fresh, cold tap water. Do not use demineralized, ltered,

or distilled water.

When the oven is turned off, water is pumped back into the

tank once the water temperature is below 175°F (80°C). If the

tank needs to be lled during cooking, limit the amount of

water to less than two cups to prevent overow when water

is pumped back into the tank.

10 | Wolf Customer Care 800.222.7820

Oven Operation

TEMPERATURE PROBE

Use only the black temperature probe shipped with this

appliance. Refer to the illustration below. The temperature

probe measures the internal temperature of food while

cooking. It can be used with all cooking modes except Sous

Vide and More Gourmet. When the temperature probe is

installed, the actual probe temperature will be displayed.

CAUTION

Use only the probe shipped with this oven. Do not use

a probe from any other appliance.

Temperature probe

OVEN OPERATION

Setting controls:

1Place the probe in the thickest part of the food.

2Place the food in the oven and insert the connector into

the receptacle. Refer to the illustration below.

3Select the desired cooking mode.

4Touch ENTER.

5Use the arrows to select Set Food Probe Temperature.

6Touch ENTER.

7Use the arrows to select the desired probe temperature.

8Touch ENTER.

The probe temperature set point appears on the display

above the icon. To adjust the probe temperature, select

Set Food Probe Temp, use the arrows to select the desired

temperature, then touch ENTER.

CAUTION

The probe and probe receptacle will be very hot.

Handle with care.

Probe receptacle

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Wolf Four

Wolf

Wolf M Series Mode d’emploi

Wolf

Wolf e Series Manuel utilisateur

Wolf

Wolf L Series SO30U Instructions d'utilisation

Wolf

Wolf M Series Manuel utilisateur

Wolf

Wolf ICBCSO24TESTH Manuel utilisateur

Wolf

Wolf 48" (1219) Dual Fuel Ranges Instructions d'utilisation

Wolf

Wolf SO30CM/S Manuel utilisateur

Wolf

Wolf IG15/S Manuel utilisateur

Wolf

Wolf 24 E Series Manuel utilisateur

Wolf

Wolf WGCO100S Manuel utilisateur

Wolf

Wolf M Series Manuel utilisateur

Wolf

Wolf E Series Manuel utilisateur

Wolf

Wolf Wall Oven-2 Series Manuel d'utilisation

Wolf

Wolf M Series Manuel utilisateur

Wolf

Wolf DF48650G/S/P Manuel utilisateur

Wolf

Wolf ICBSO24TE Manuel utilisateur

Wolf

Wolf ICBSO30-2U/S Manuel du propriétaire

Wolf

Wolf DO30F/S L Series Manuel utilisateur

Wolf

Wolf e Series Manuel utilisateur

Wolf

Wolf e Series Manuel utilisateur

Wolf

Wolf e Series Manuel utilisateur

Wolf

Wolf SO36U Instructions d'utilisation

Wolf

Wolf MWD24-2U/S Manuel utilisateur

Wolf

Wolf L Series Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
