Windster WS-69TB42 Manuel utilisateur

User’s Manual

WS-69TB30 / WS-69TB36 (22”)

WS-69TB42 / WS-69TB48 (22”)

WS-69TS30 / WS-69TS36 (18”)

WS-69TS42 / WS-69TS48 (18”)

Please read this operation manual thoroughly before

using your range hood. Store it in a safe location for

when you need to reference it in the future.

NOTE: PLEASE INSPECT HOOD

IMMEDIATELY UPON RECEIVING.

CLAIM OF DAMAGE AFTER 7 DAYS

OF DELIVERY WILL BE DENIED.

This unit

is designed for indoor

residential use only. DO NOT USE

OVER A WOOD GRILL OR MOUNT

IN OUTDOOR ENVIRONMENT.

LINER SERIES

TABLE OF CONTENTS

Table of Contents

Safety Information .............................................................. 2 –3

Content Checklist ..................................................................... 4

Measurements ........................................................................... 5

Preparation ............................................................................... 6

Installation ................................................................................. 7

Installation Diagram .................................................................. 8

Operation & Features ....................................................... 9 –11

Cleaning & Maintenance ......................................................... 12

Troubleshooting ...................................................................... 13

Parts List / Replacement ........................................................ 14

Warranty / Contact Us .................................................... 15 –16

SAFETY INFORMATION

TO REDUCE THE RISK OF A FIRE, ELECTRICAL SHOCK,

AND/OR INJURY OBSERVE THE FOLLOWING:

xUnit is intended for indoor residential use only. If you should have questions,

contact the manufacturer at the address or telephone number listed in the

warranty.

xIn case the unit should need to be cleaned or repaired, switch power off at

service panel and lock service disconnecting means to prevent power from

being switched on accidentally. When the service disconnecting means cannot

be locked, securely fasten a prominent warning device, such as a tag, to the

service panel.

xInstallation work and electrical wiring must be done by a qualified technician in

accordance with all applicable codes and standards, including fire-rated

construction.

xSufficient air is needed for proper combustion and exhausting of gases

through the flue (chimney) of fuel burning equipment to prevent back drafting.

Follow the heating equipment manufacturer’s guideline and safety standards

such as those published by the National Fire Protection Association (NFPA),

and the American Society of Heating, Refrigeration and Air Conditioning

Engineers (ASHRAE), and the local code authorities.

xBecause the unit is made of stainless steel, it may contain sharp edges. Be

careful to avoid cuts and abrasions by wearing protective gloves during

installation and cleaning.

xBefore you begin to cut or drill into the wall, verify that there is no electrical

wiring or any other hidden electrical components.

xDucted fans must always be vented to the outdoors.

xThe unit must be properly grounded and installed at the recommended height

before beginning operation.

xTo reduce the risk of fire, use only metal ductwork.

CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT

USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS

AND VAPORS

SAFETY INFORMATION

TO REDUCE THE RISK OF FIRE, OR ELECTRIC SHOCK, DO NOT

USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

xRegardless of heat level, never leave any surface materials unattended while

operating an open flame.

xAlways turn hood ON when cooking at high heat or when flambéing food (i.e.

Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).

xDepending on amount of usage, clean ventilating fans and filters frequently.

Grease should not be allowed to accumulate on fan or filter. For instructions

on the how to clean, see maintenance page.

xNever leave surface units unattended at high settings. Boil-overs may cause

smoking and greasy spillovers may ignite as result. Heat oils slowly on low or

medium settings.

xUse proper pan size. Always use cookware appropriate for the size of the

surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE

EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE

FOLLOWING:

xSMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then

turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not

go out immediately, EVACUATE AND CALL 911.

xNEVER PICK UP A FLAMING PAN —Doing so may result in serious burns

and possibly spread the fire.

xDO NOT USE WATER –Grease fire must be extinguished before further

action may be taken. Using water will agitate the grease and may cause a

violent steam explosion.

xUse a Fire Extinguisher ONLY if:

You know you have a Class ABC extinguisher, and you already know

how to operate it.

The fire is small and contained in the area where it started.

The fire department is being called.

You are able to safely control the fire with your back to an open exit. *

Based on “Kitchen Fire safety Tips” published by NFPA.

CONTENT CHECKLIST

1. CONTENTS INCLUDED

a. (1) 120V, 60Hz, 4A WS-69 series (30”/36”/42”/48”) hood assembly

b. (1) User’s manual

c. (2) 35W GU10 Halogen lights

d. (1) 6” to 7” conversion collar(30”/36”)

(1) 8”conversion collar (42”/48”)

e. (2) Baffle filters w/ handles & (2) stainless steel filler (30”/36”)

f. (3) Baffle filters w/ handles & (2) stainless steel filler (42”/48”)

g. (1) 1-3/4” x 3/4” Rectangular Light Fixture removal tool

h. (11) 1/8”-3 x 10/32” side lip screws

i. (2) Orange WireGard Screw-On Connectors

j. (3) side lip panels

2. CONTENTS NOT INCLUDED

a. WS-69CFMR (CFM reducer)

b. 6” / 7” Aluminum or metal piping

c. (2) 8W GU10 LED lights (36”/36”) (optional)

(4) 8W GU10 LED lights (42”/48”) (optional)

d. Installation Mount Screw Packet

*(6) 7/32”-15 x 1-1/4” truss head sharp point recommended screws

3. TOOLS REQUIRED (NOT INCLUDED)

a. Safety gloves

b. Safety glasses

c. Electric drill w/ starter bit

d. Utility knife

e. Philips screwdriver

f. Spirit level

g. Measuring tape

h. Writing instrument (pen, marker, pencil)

i. Aluminum tape

MEASUREMENTS

PREPARATION

1. BEFORE YOU START

**DO NOT INSTALL IF DAMAGED**

**RETURN OR EXCHANGE WILL BE DENIED IF INSTALLED**

a. Be sure you have all the content of your purchase and required tools for

this installation.

b. Installation may take at least 1 to 2 hours from start to finish.

c. Plan to use as few elbows or turns as possible for more efficient air flow.

d. Collar size may need to be increased if utilizing a long duct run.

e. At least 12” of vertical duct is required before any turn.

f. Do not try to install this unit by yourself, SERIOUS INJURY MAY OCCUR.

g. At least two people are needed for installation.

h. Hiring a certified installer and electrician is recommended.

i. Cold weather installation will require make-up air or a CFM reducer.

Check with your local building codes for more detail.

2. LOCATION

a. Determine the exact location you want to install the range hood.

b. Depending on the height of your ceiling, distance between cooktop and

range hood should be between 27”-33”.

c. Range hood should be mounted at stated measurements to ensure

performance and lifespan of electrical components.

d. Correctly measure the dimension needed to install the unit.

3. HOOD LINER

a. Inspect for any sign of defect or damage. (i.e. scratches, dents, loose

seams, etc.)

b. Power up the unit to make sure it is working properly.

c. Remove the baffle filters and unscrew the fillers.

d. Remove the protective file on the baffle filters and fillers.

Use Fig. 1a and 1b on page 5 for measurements

INSTALLATION

1. DUCTED INSTALLATION

**DO NOT INSTALL CLOSER THAN 29” ABOVE COOKING SURFACE**

a. Make sure all preparation steps are completed.

b. Determine where you would like to mount the hood.

c. Lift the unit up flush against the wall.

d. Be sure the unit is leveled and parallel.

e. Using the screws and washers provided, tightly secure the unit against

the wall and the cabinet frame.

NOTE: Install additional screws through the back of the unit if necessary.

f. Use the conversion collar for 7” ducting. (OPTIONAL)

g. Connect 6” or 7” ducting to the collar of the hood.

h. Finish off by sealing the connection point with aluminum tape.

2. COLD WEATHER INSTALLATION (OPTIONAL)

NOTE: WS-69CFMR is only compatible with 6” top round outlet

a. Check with your local building codes to see if a CFM reducer is an

acceptable alternative to make-up air.

b. Remove the WS-69CFMR (CFM Reducer) and inspect for any sign of

defect or damage. (i.e. Cracks, broken/defective sections)

c. AFTER COMPLETING Step A –E of Section 1 DUCTED

INSTALLATION (Top round outlet)

d. Place the CFM reducer onto the outlet of the unit and seal the connection

point with aluminum tape. (Be sure it is secured with no opening or gaps)

e. Connect a 6” ducting to the collar of the CFM reducer.

f. Finish off by sealing other connection points with aluminum tape.

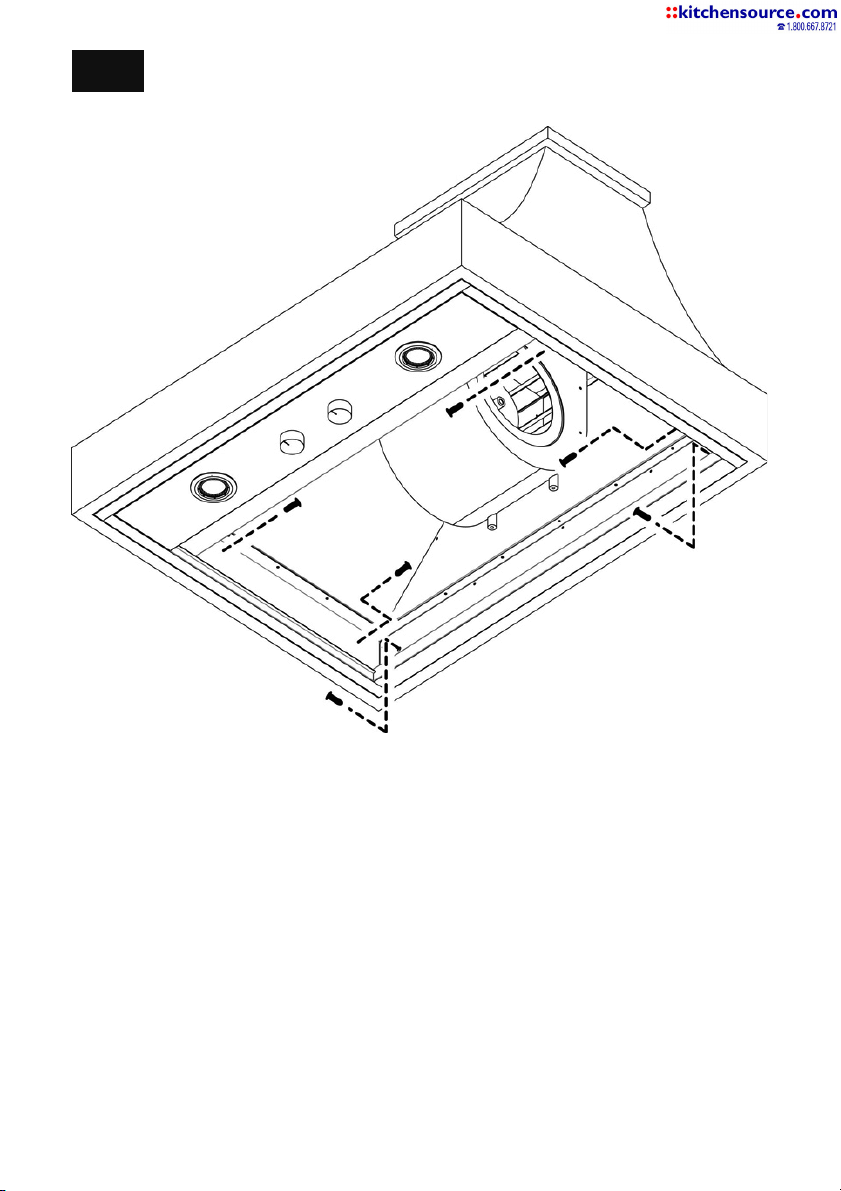

Installation diagram available on next page

INSTALLATION DIAGRAM

OPERATION & FEATURES

1. EASY ACCESS KNOB CONTROL

a. Knob 1 –Light ON / OFF

b. Knob 2 –Speed

i. 1 –Low speed

ii. 2 –Medium speed

iii. 3 –High speed

2. BAFFLE FILTERS

a. (2) 14-3/8” x 12-3/4” baffle filters and (2) fillers (30” / 36”)

b. (3) 14-3/8” x 12-3/4” baffle filters and (2) fillers (42” / 48”)

3. REMOVING THE BAFFLE FILTERS

1Slide the baffle filter into the hood.

2Push the baffle filter upward.

3Slide the baffle filter toward you.

4Pull the end of the baffle filter downward.

5Fit into place.

4. REPLACING LIGHT SET

Electrical Shock Hazard

*Warning: To avoid electrical shock, replacement GU10 bulbs MUST

contain UL or CSA certification.

*NOTE: BE SURE THE LIGHTS ARE NOT HOT*

a. Use max 35 W/JDR16, GU10 twist and lock base lamp

b. Locate metal rectangular piece included in package.

c. Place metal piece against outer light ring and unscrew counter clock wise.

d. Outer light ring should drop down along with the light bulb.

e. Slightly pull the light away from the ring.

f. Move light to left or right side of the ring.

g. Twist light bulb counter clock wise to release from socket.

h. Replace light bulb.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Windster hotte de ventilation

Windster

Windster H-L Instructions de montage

Windster

Windster RA-76 Series Manuel utilisateur

Windster

Windster WS-96TB30SS Manuel utilisateur

Windster

Windster WS-62N Series Manuel utilisateur

Windster

Windster LINER WS-69TB30 Manuel utilisateur

Windster

Windster WS-38 Series Manuel utilisateur

Windster

Windster RA-2290 Manuel utilisateur

Windster

Windster WS-38U30SS Manuel utilisateur

Windster

Windster WS-28TB30SS Manuel utilisateur

Windster

Windster RA-2390 Manuel utilisateur

Windster

Windster WS-28TB30SS Manuel utilisateur

Windster

Windster WS-208L30SS Manuel utilisateur

Windster

Windster WS-50E30SS Manuel utilisateur

Windster

Windster RA-1430C Manuel utilisateur

Windster

Windster RA34LU30SS Manuel utilisateur

Windster

Windster WS-6730SS Manuel utilisateur

Windster

Windster H Manuel utilisateur

Windster

Windster WS-63TB36SS ISLAND SERIES Manuel utilisateur

Windster

Windster WSC-4630SS Manuel utilisateur

Windster

Windster RA-60TB30SS Manuel utilisateur

Windster

Windster RA-7636SS Manuel utilisateur

Windster

Windster WS-5830SS Manuel utilisateur

Windster

Windster ISLAND Series Manuel utilisateur

Windster

Windster WS-4836SS Manuel utilisateur

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Miele

Miele DA 1255 Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Miele

Miele DA 6708 D Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur
