Windster RA-7730SS Manuel utilisateur

RA-7730SS RA-7736SS

RA-7742SS RA-7748SS

For residential and indoor use only.

WINDSTER recommends that all kitchen range hood

be installed by a certified installer.

Limited Warranty P.15-P.16

27” 35”

27”-35”

If the hood is mounted too low, it may caused heat damaged and fire hazard.

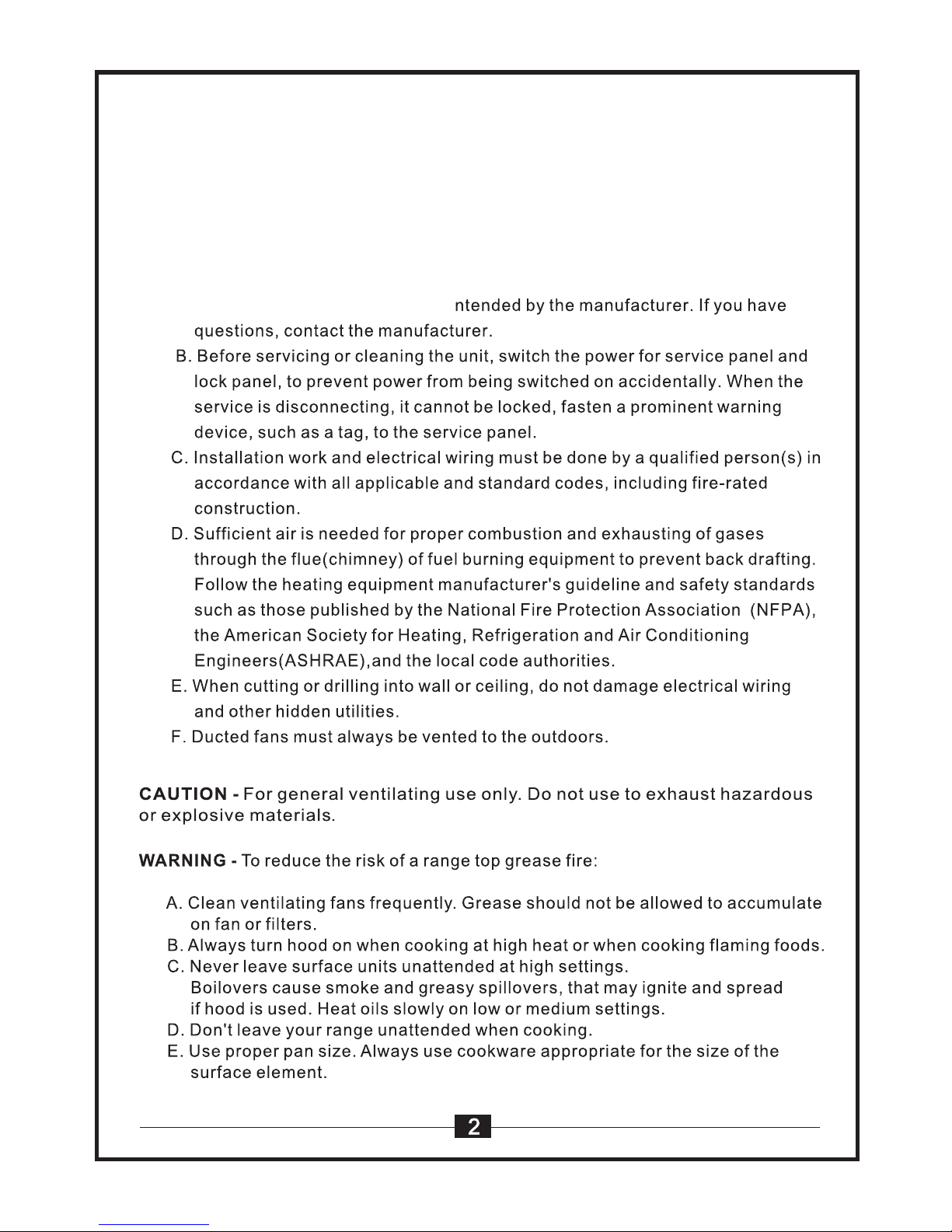

A. Use this unit only in the manner i

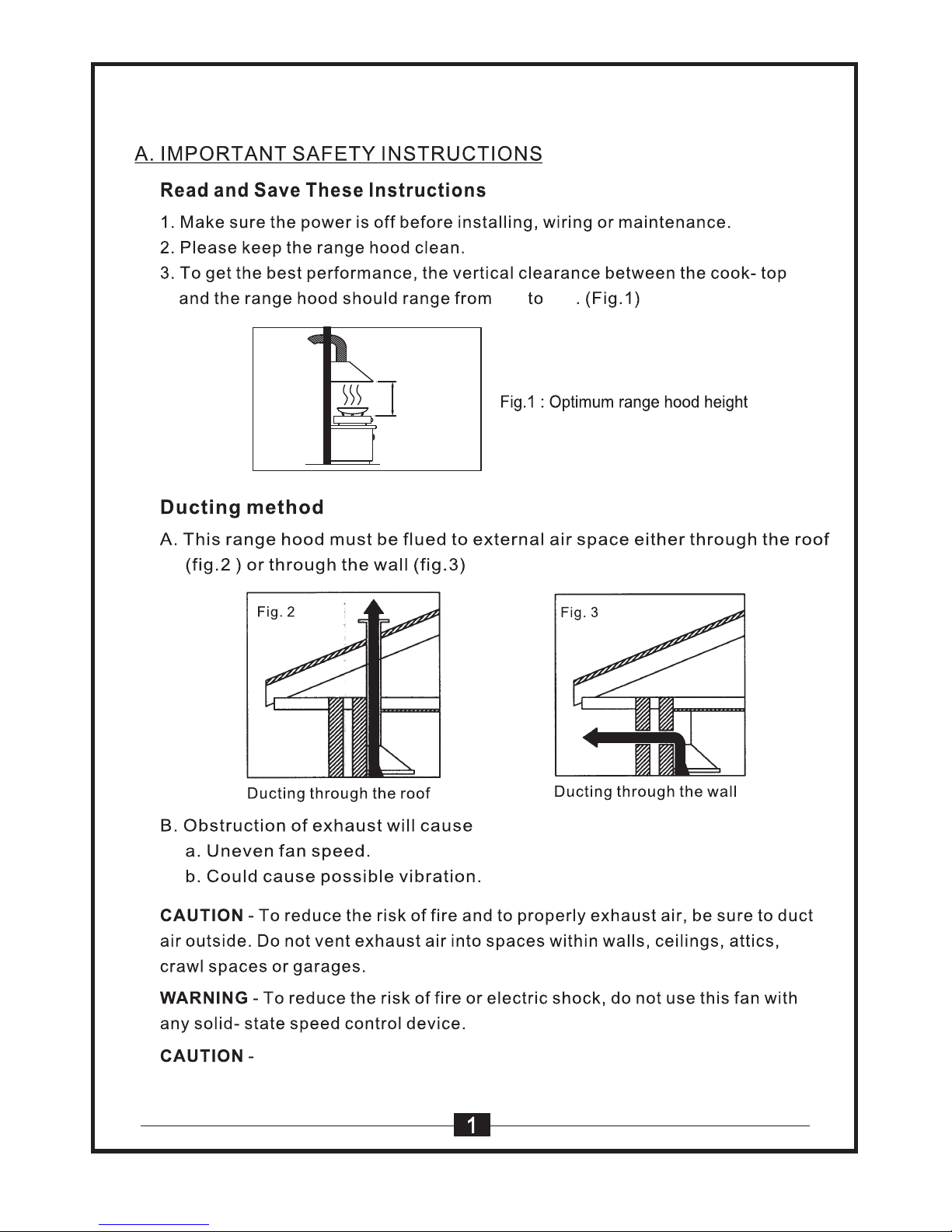

IMPORTANT SAFETY INSTRUCTIONS

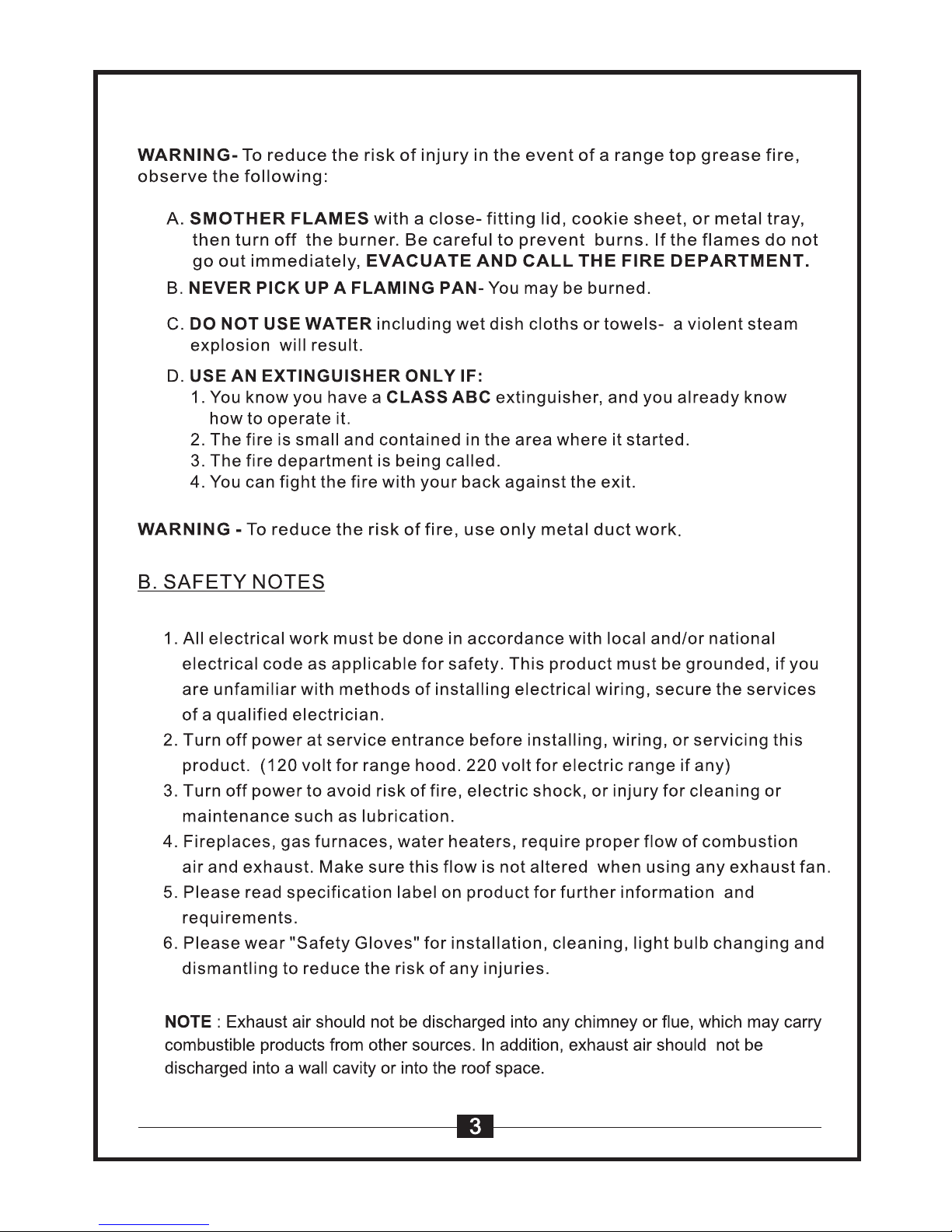

WARNING – To reduce the risk of fire, electric shock, or injury to persons, observe

the following:

DO NOT spray any liquid form cleaner on hood surface including lights and control

switch. To clean the range hood, spray liquid form cleaner directly onto cleaning

cloth for hood cleaning.

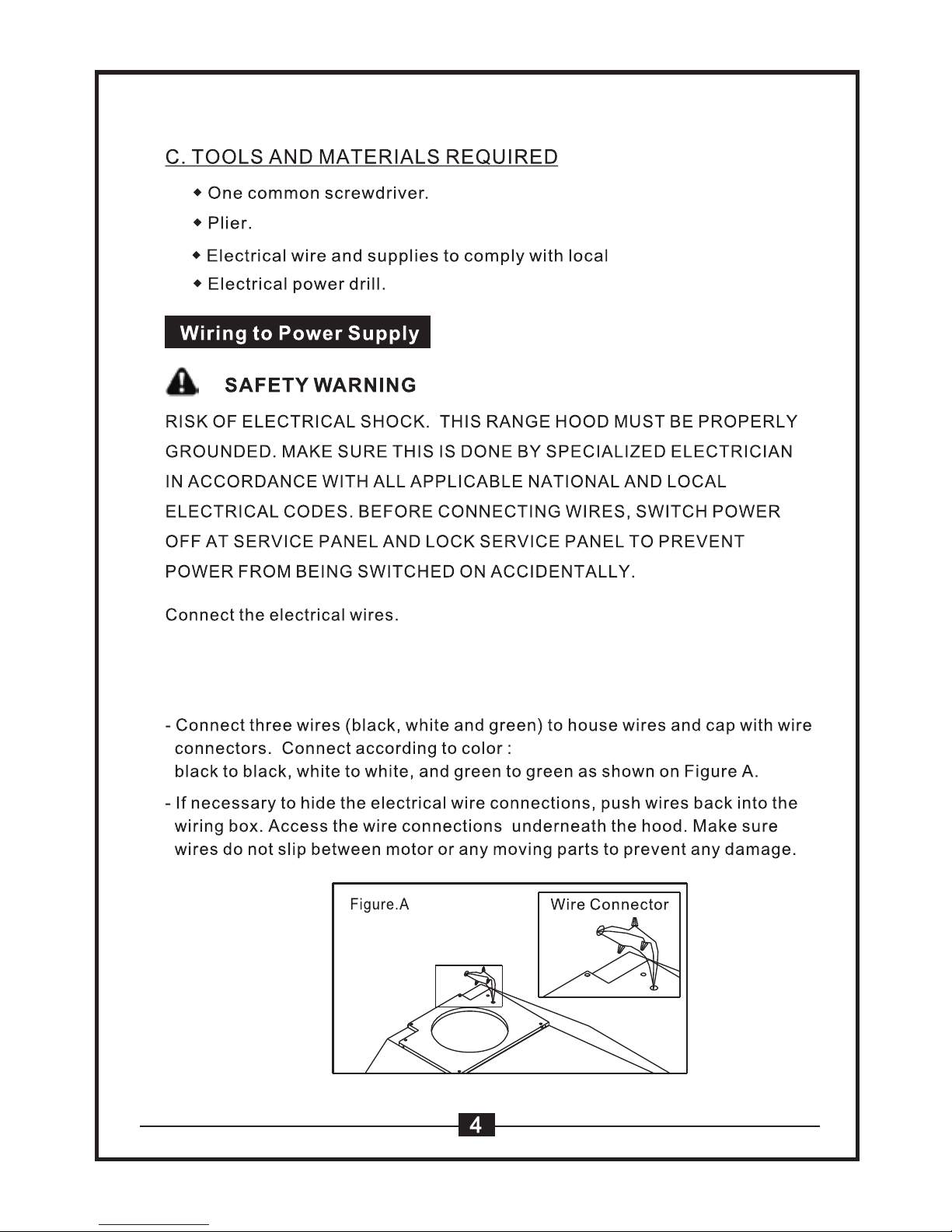

- All electrial work have to be done by certified electrician.

- This range hood requires a 120V/60Hz electrical supply and must meet local required

safety code(s).

code(s).

Duct cover and extension duct cover fitment may vary depend on the mounting height of the

range hood.

Installation and Maintenance must be carried out by qualified installer

Ensure the mounted range hood is level when installed for optimum performance.

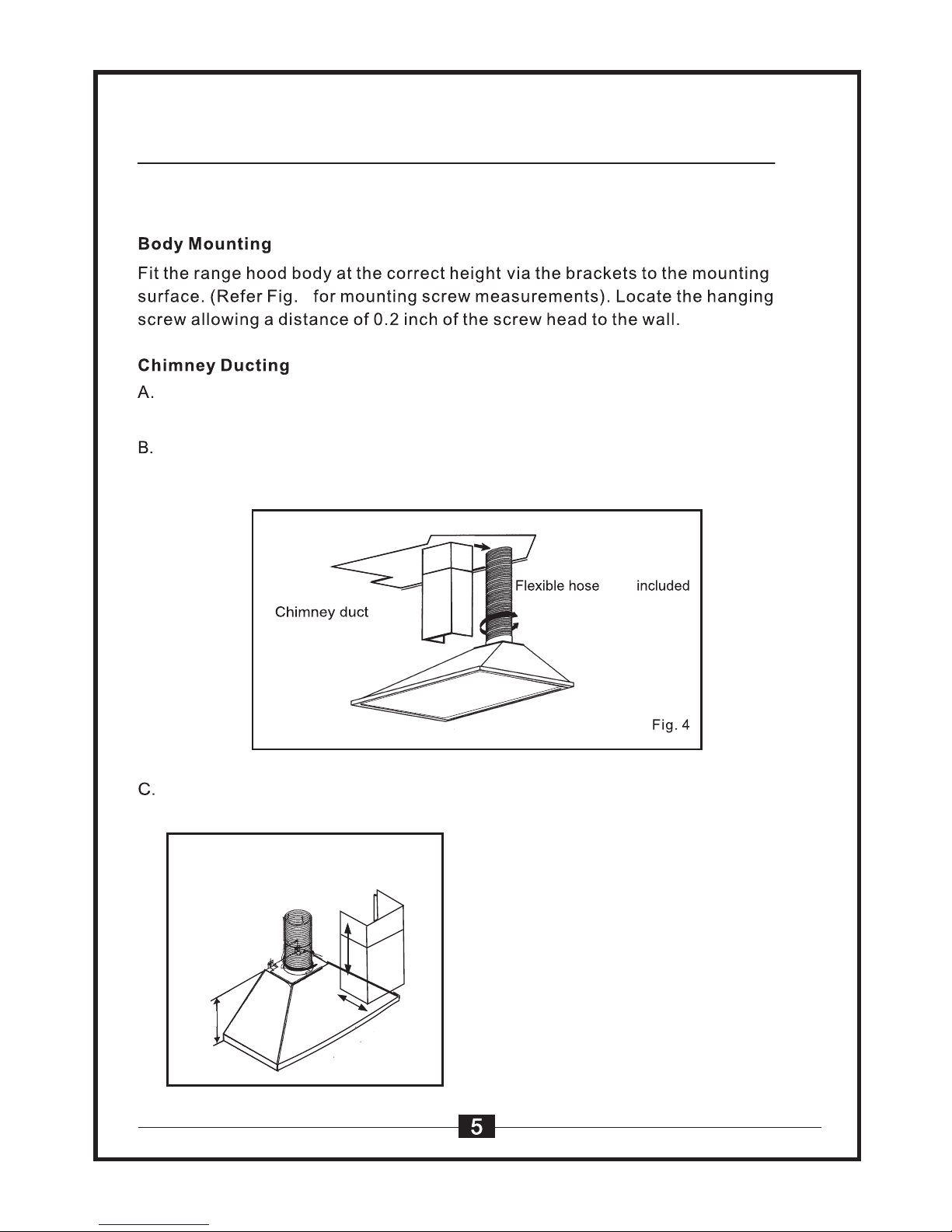

(Fig.4)

To fit the duct to the top of the chimney, slide the bottom lip under the black plastic

plate and then lock into place with the 4 screws provided(Fig. 5)

Install the Upper Mounting Bracket and then adjust the duct to the required height.

11-3/4"

Fig. 5

NOT

The chimney duct can be adjust to

desired height.

Fig. 6 Fig. 7

Fig. 10

Fig. 9Fig. 8

Fig. 11

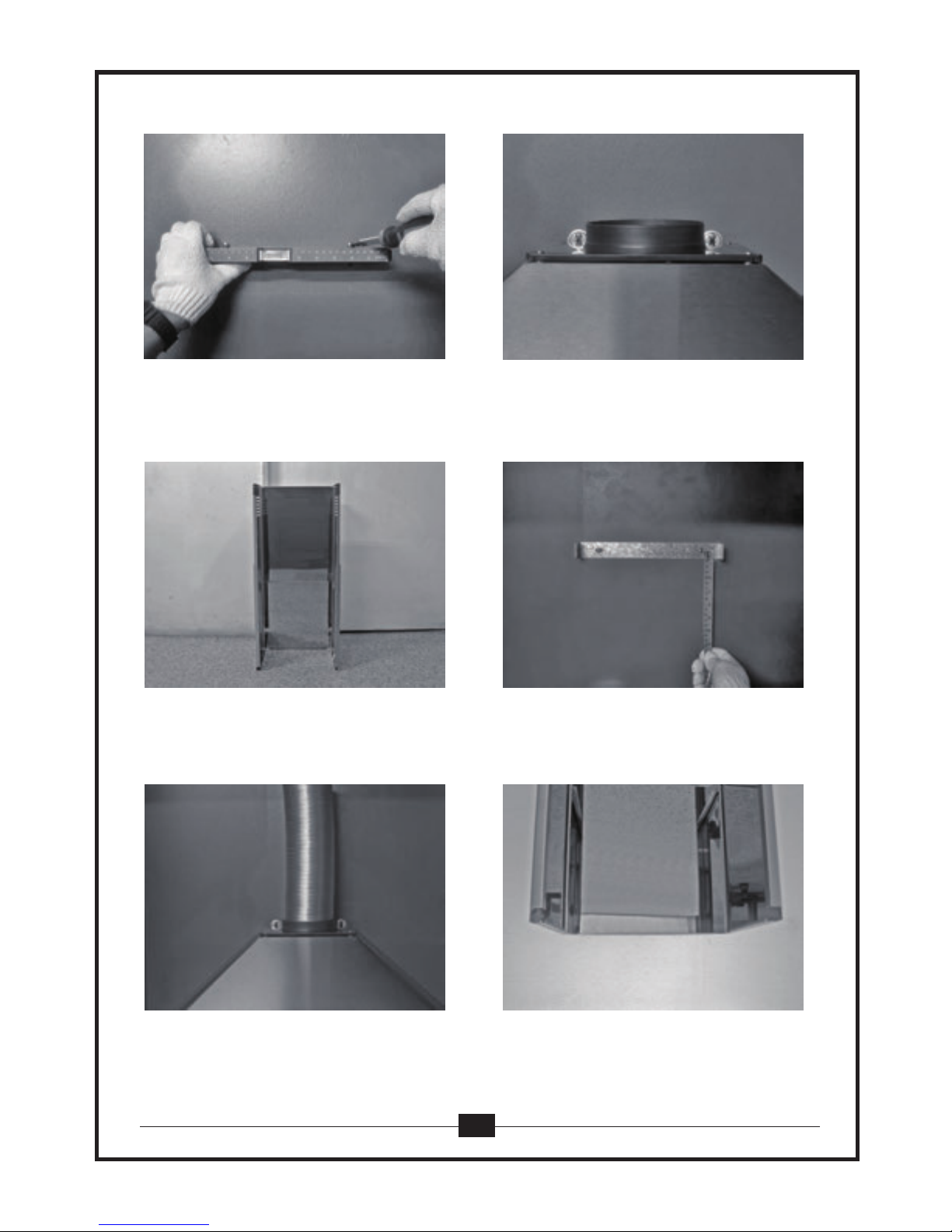

Use a level to balance out both sides to

ensure the hood will be properly mounted.

Mount the unit onto the wall with correct

wall screws. (Note different types of walls

require different types of screws)

Prepare and extend the duct cover to your

desired height for mounting.

Measure and balance the duct cover

bracket at the desired height.

Install the aluminum flex hose to the outlet

of the hood. (Flex hose not included)

Duct cover will come with “teeth” to be

installed into the slot on the hood.

Fig. 12

Fig. 14

Fig. 15

Fig. 16 Fig. 17

Fig. 13

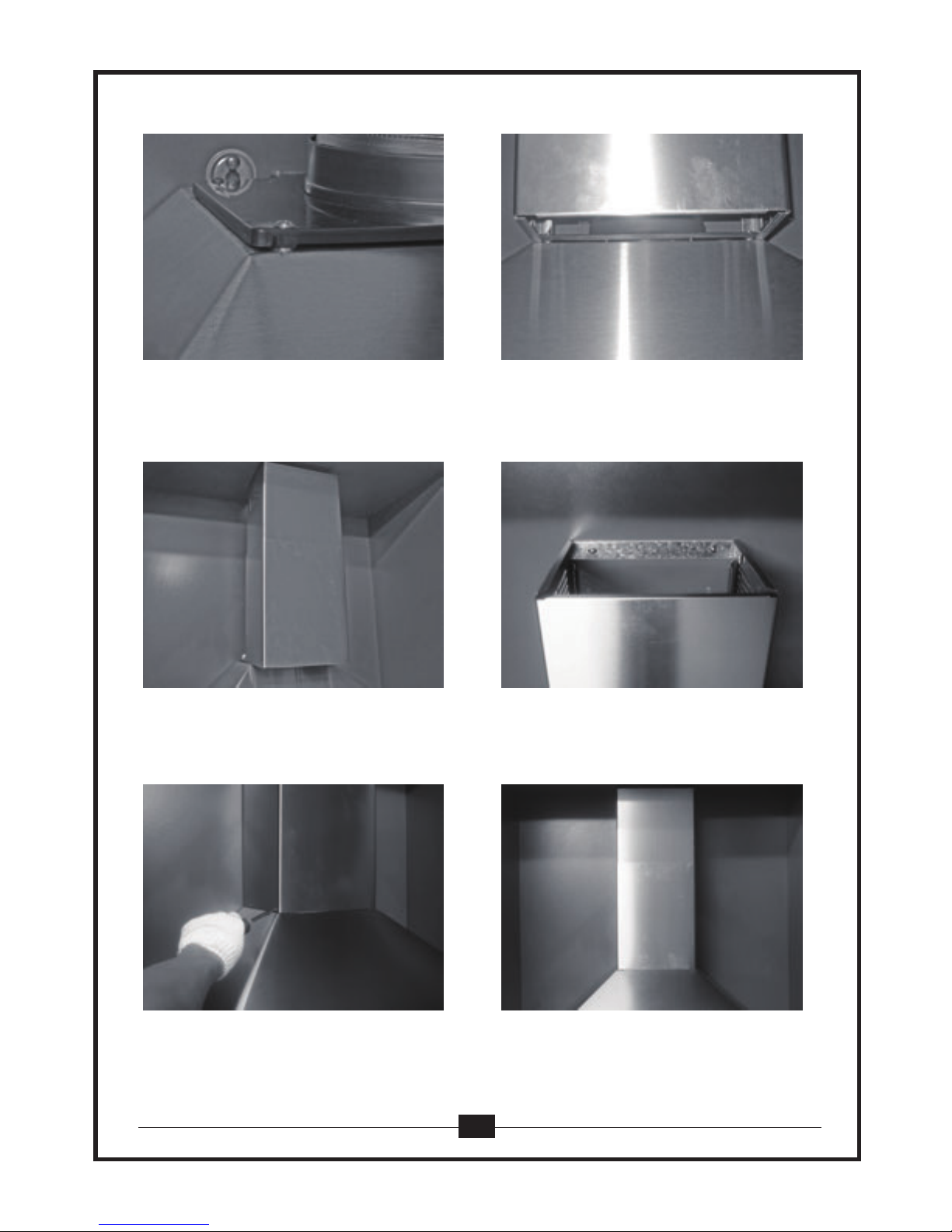

Evenly slide duct cover into the slot of the

Black plastic plate. Correctly align the duct cover into black

plastic plate.

hood.

Attach duct cover to duct cover bracket

and screw in the screws provided.

Screw in the screws into the bottom duct

cover to the hood.

Completed photo of how the finished

installation should look like.

Fig. 18

Fig. 23

Fig. 23 Measure and balance the

recirculation exhaust and line it up

with the exhaust opening in the duct

cover.

Fig. 24

Fig. 24 Install aluminum flex hose in

between the recirculation exhaust and

the outlet of the hood.(Flex hose not

included)

Fig. 26

Fig. 26 Install covering the white

plastic grill and rotate

counter-clockwise. Installation

complete when it is secured.

Fig. 25

Fig. 25 Remove grease filters (baffle

or aluminum) to expose the motor.

Fig. 19

Fig. 22

Fig. 20

Fig. 21

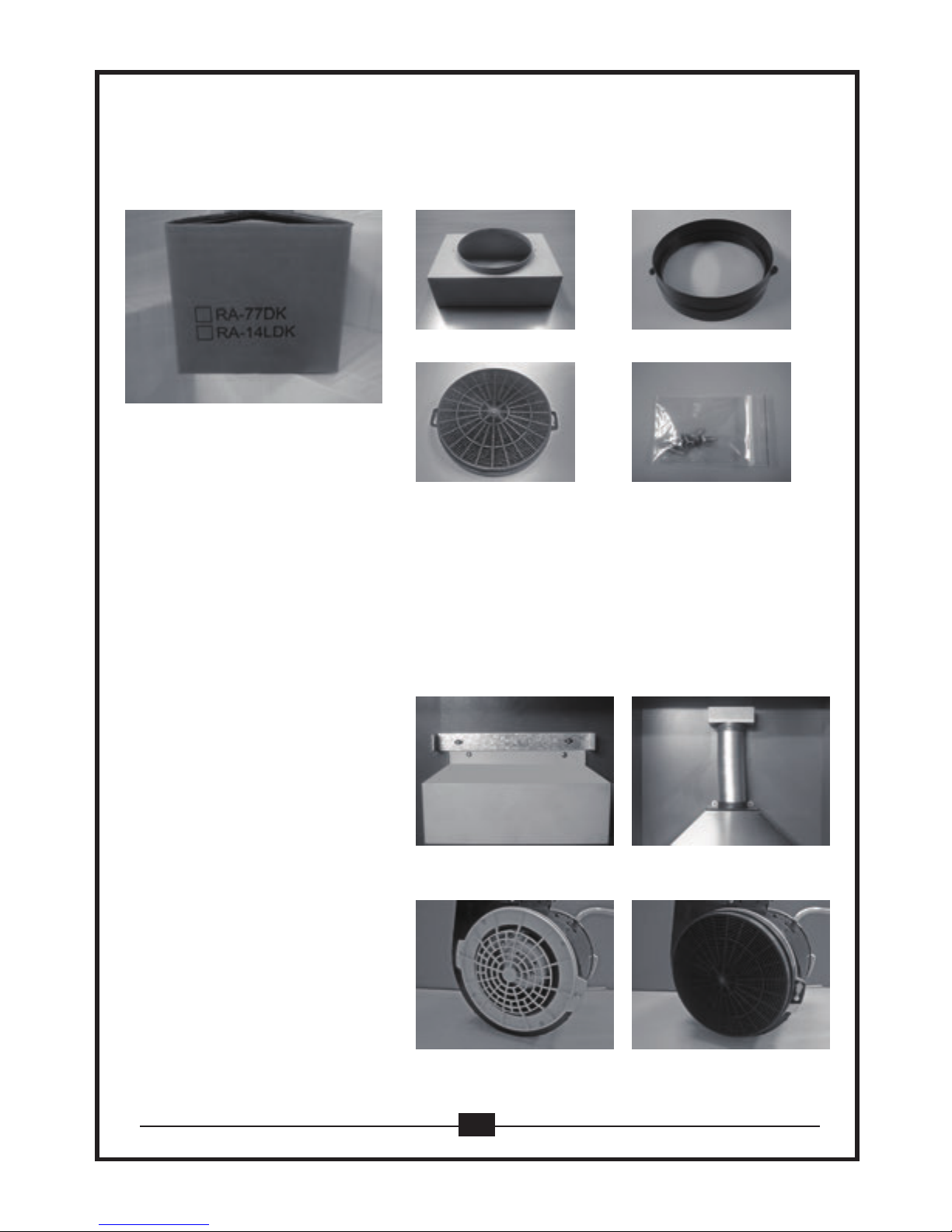

All figures below are for optional ductless installation. The

steps will continue after Figure 9 above.

Figure 18 (Ductless kit box photo)

–Remove the content from box.

Kit will include:

Fig. 19 - (1) Recirculation exhaust

Fig. 20 - (1) Round collar

Fig. 21 - (2) Charcoal filter

Fig. 22 - (6) Screws
