Wilo-Connect module BMS

4257831 • Ed.02/2023-10

en Installation and operating instructions

Connect module BMS

https://qr.wilo.com/1680

Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10 3

Table of Contents

1 General information ..........................................4

1.1 About these instructions..........................4

1.2 Copyright ....................................................4

1.3 Subject to change......................................4

2 Safety ..................................................................4

2.1 Identification of safety instructions .......4

2.2 Personnel qualifications ...........................5

2.3 Danger in the event of non‑observance

of the safety instructions .........................6

2.4 Operator responsibilities ..........................6

2.5 Safety instructions for inspection and in-

stallation work ...........................................7

2.6 Unauthorised modification and manufac-

ture of spare parts .....................................7

2.7 Improper use...............................................8

3 Transport and storage.......................................8

3.1 Scope of delivery .......................................8

3.2 Transport inspection.................................8

4 Intended use.......................................................8

4.1 Compatibility of the firmware .................9

5 Product information ..........................................9

5.1 Type key......................................................9

5.2 Technical data............................................9

6 Description and function ............................... 10

6.1 Analogue input 0-10V ...........................11

6.2 Digital input..............................................12

6.3 Digital output (changeover contact relay)

....................................................................12

6.4 Other functions........................................13

7 Installation and electrical connection .......... 13

7.1 Installation................................................14

7.2 Electrical connection...............................15

8 Commissioning/ Functional test................... 17

8.1 Settings.....................................................17

8.2 Settings for pumps without suitable dis-

play ............................................................23

9 Maintenance.................................................... 23

10 Faults, causes and remedies .......................... 23

11 Spare parts....................................................... 24

12 Disposal............................................................ 24

12.1 Information on the collection of used

electrical and electronic products ........ 24

4 Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10

1 General information

1.1 About these instructions

These instructions form part of the product. Compliance with the instructions is essential for correct hand-

ling and use:

•Read the instructions carefully before all activities.

•Keep the instructions in an accessible place at all times.

•Observe all product specifications.

•Observe the markings on the product.

The language of the original operating instructions is German. All other languages of these instructions are

translations of the original operating instructions.

1.2 Copyright

The reproduction, distribution and utilisation of this document in addition to communication of its contents

to others without express consent is prohibited. Offenders will be held liable for payment of damages. All

rights reserved.

1.3 Subject to change

Wilo shall reserve the right to change the listed data without notice and shall not be liable for technical inac-

curacies and/or omissions. The illustrations used may differ from the original and are intended as an exem-

plary representation of the product.

2 Safety

These operating instructions contain basic information which must

be adhered to during installation and operation. For this reason, these

installation and operating instructions must, without fail, be read by

the service technician and the responsible qualified personnel/oper-

ator before installation and commissioning.

Not only must the general safety instructions listed under this main

"Safety" section be adhered to, but also the special safety instruc-

tions that are marked by danger symbols and included under the fol-

lowing main sections.

2.1 Identification of safety instructions

These installation and operating instructions set out safety instruc-

tions for preventing personal injury and damage to property, which

are displayed in different ways:

Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10 5

•Safety instructions relating to personal injury start with a signal

word and are preceded by a corresponding symbol.

•Safety instructions relating to property damage start with a signal

word and are displayed without a symbol.

Signal words

•DANGER!

Failure to follow the instructions will result in serious injury or

death!

•Warning!

Failure to follow instructions can lead to (serious) injury!

•Caution!

Failure to follow instructions can lead to property damage and pos-

sible total loss.

•Notice!

Useful information on handling the product

Symbols

These instructions use the following symbols:

General danger symbol

Danger of electric voltage

Warning – hot surfaces

Danger for electrostatic sensitive components (ESD)

Notices

2.2 Personnel qualifications

Staff must:

•be instructed about locally applicable regulations governing acci-

dent prevention,

6 Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10

•have read and understood the installation and operating instruc-

tions.

Personnel must have the following qualifications:

•Electrical work: a qualified electrician must carry out the electrical

work.

•The product must be operated by persons who have been instruc-

ted on how the complete system functions.

•Maintenance work: The technician must be familiar with the use of

operating fluids and their disposal.

Definition of “qualified electrician”

A qualified electrician is a person with appropriate technical educa-

tion, knowledge and experience who can identify and prevent elec-

trical hazards.

2.3 Danger in the event of non‑observance of the safety in-

structions

Non-observance of the safety instructions can result in risk of injury

to persons and damage to product/unit. Non-observance of the

safety instructions will render any claims for damages null and void. In

particular, non-observance can, for example, result in the following

risks:

•Danger to persons due to electrical, mechanical and bacteriological

factors

•Damage to the environment due to leakage of hazardous materials

•Damage to property

•Failure of important product/unit functions

•Failure of required maintenance and repair procedures

2.4 Operator responsibilities

The operator must:

•Provide the installation and operating instructions in a language

which the personnel can understand.

Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10 7

•Make sure that personnel are suitably trained for the specified

work.

•Verify the area of responsibility and individual responsibilities of

personnel.

•Train personnel with regard to the system operating principles.

•Eliminate any risk from electrical current.

•Ensure compliance with the regulations for accident prevention.

This device can be used by children from 8years of age as well as

people with reduced physical, sensory or mental capacities or lack of

experience and knowledge if they are supervised or instructed on the

safe use of the device and they understand the dangers that can oc-

cur. Children are not allowed to play with the device. Cleaning and

user maintenance must not be carried out by children without super-

vision.

2.5 Safety instructions for inspection and installation work

The operator must ensure that all inspection and installation work is

carried out by authorised and qualified personnel who are also suffi-

ciently informed from their own detailed study of the installation and

operating instructions.

Work on the product/unit may only be carried out when the system is

at a standstill. The procedure described in the installation and operat-

ing instructions for shutting down the product/unit must be strictly

observed.

Immediately after completing work, all safety and protective devices

must be put back in position and/or recommissioned.

2.6 Unauthorised modification and manufacture of spare parts

Unauthorised modification and manufacture of spare parts will impair

the safety of the product/personnel and void the manufacturer’s de-

clarations regarding safety.

8 Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10

•Only carry out modifications to the product following consultation

with the manufacturer.

•Only use original spare parts and accessories authorised by the

manufacturer.

The use of other parts will absolve the manufacturer of liability for

any consequences arising therefrom.

2.7 Improper use

The operational reliability of the supplied product is only guaranteed

if used as intended and in accordance with section4 of the installa-

tion and operating instructions. The limit values must on no account

fall under or exceed those values specified in the catalogue/data

sheet.

3 Transport and storage

3.1 Scope of delivery

•Wilo-Connect module BMS

•Installation and operating instructions

3.2 Transport inspection

Check delivery immediately for damage and completeness. Where necessary make a complaint immediately.

CAUTION

Damage due to incorrect handling during transport and storage!

Protect the product from moisture, frost and mechanical damage during transport and tem-

porary storage.

Protect the product against temperatures outside the range of -30°C to +70°C.

Only store in original packaging.

4 Intended use

•The Wilo-Connect module BMS is designed for external control and operating status signalling of Wilo

pumps.

•The Wilo-Connect module BMS is not designed for safety-related deactivation of the pump.

Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10 9

DANGER

Risk of fatal electrical shock!

If used improperly, there is danger of death due to electric shock!

• Never use the control inputs for safety functions.

• Never install the module in non-compatible devices.

4.1 Compatibility of the firmware

The module’s full range of functions is only guaranteed for pumps with Wilo-Connectivity Interface:

Pump Comments

Wilo-Stratos PICO

Wilo-Stratos PICO plus

with Wilo-Connectivity Interface (model from 2022)

Wilo-Stratos PICO-Z with Wilo-Connectivity Interface (model from 2023)

NOTICE

When the module is installed, the software version of the module can be called up via the

“SW version” menu and is shown on the pump display.

For compatibility with products not listed above, see

www.wilo.de/automation (German), www.wilo.com/automation (English).

5 Product information

5.1 Type key

Example: Wilo-Connect module BMS

Connect module Function interface

BMS = for Building Management Systems

5.2 Technical data

Technical data

General data

Ambient temperature -10°C to +60°C

Storage temperature -30°C to +70°C

Protection class IP55

Module mating cycles Max.50

Terminal cross-section Max. 1.5mm² (solid or finely stranded without end

sleeves)

Electric circuit SELV, galvanically isolated

10 Installation and operating instructions • Wilo-Connect module BMS • Ed.02/2023-10

Technical data

SSM/SBM interface relay output

Cable length 200m (max.)

Version Potential-free

Safety in accordance with EN60335 Mains voltage up to 230V *)

Voltage range 5…250VAC

12…30VDC

Current load AC: 5A max. AC1

DC: 5A max. DC1

Digital input (configurable)

Interface For potential-free contact, or 24VDC input voltage

Cable length 200m (max.)

Version SELV, isolated

No-load voltage Min. 3.3V

Dielectric strength Max. 30VDC

Loop current Approx. 3.3mA

Analogue input 0-10

Version*SELV, isolated

Cable length 200m (max.)

Input resistance > 10kOhm

Voltage range 0…10V

Accuracy 5% absolute

Dielectric strength Max. 24VDC

*) When connecting to IT networks (Isolé Terre electrical system), always make sure that the voltage

between the live wires (L1-L2, L2-L3, L3-L1) does not exceed 230V. In case of fault (earth fault), the

voltage between the live wire and PE must not exceed 230V.

6 Description and function

The Wilo-Connect module BMS adds communication interfaces for controlling and reporting operating states

to the pump.

The module is connected to the pump via the Wilo-Connectivity Interface (slot for external modules).

NOTICE

Observe the installation and operating instructions of the respective pump!

Autres manuels pour BM-S

Table des matières

Autres manuels Wilo Unité de contrôle

Wilo

Wilo Wilo-Star-Z 20/1 Manuel utilisateur

Wilo

Wilo Wilo-Control SC-Booster Series Manuel utilisateur

Wilo

Wilo ER 1 Manuel utilisateur

Wilo

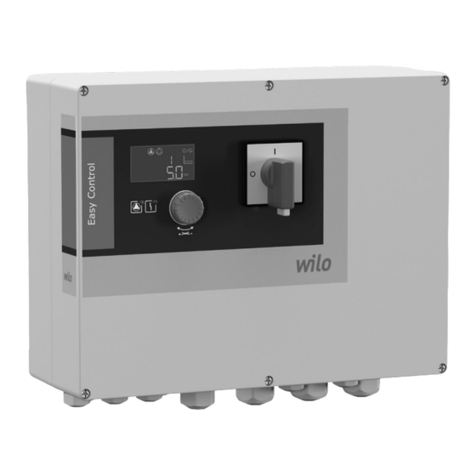

Wilo Control EC-Fire Manuel utilisateur

Wilo

Wilo Stratos PLR Manuel utilisateur

Wilo

Wilo Easy Control MS-L 1x4kW Manuel utilisateur

Wilo

Wilo Control SC-L Manuel utilisateur

Wilo

Wilo IF-Modul Stratos PLR Manuel utilisateur

Wilo

Wilo Wilo-Control EC-Drain PD1 Manuel utilisateur

Wilo

Wilo Wilo-VR-System Manuel utilisateur

Wilo

Wilo Wilo-CC-System Manuel utilisateur

Wilo

Wilo Control MS-L Series Manuel utilisateur

Wilo

Wilo RS485 Manuel utilisateur

Wilo

Wilo RexaBloc RE Manuel utilisateur

Wilo

Wilo IF-Module Stratos Manuel utilisateur

Wilo

Wilo PLR Manuel utilisateur

Wilo

Wilo IF-Modul Stratos CAN Manuel utilisateur

Wilo

Wilo Control EC-L1 Series Manuel utilisateur

Wilo

Wilo CAN Manuel utilisateur

Wilo

Wilo Stratos Smart IF module Manuel utilisateur

Wilo

Wilo VeroLine-IP-E Manuel utilisateur

Wilo

Wilo JetValve Manuel utilisateur

Wilo

Wilo Yonos MAXO Series Manuel utilisateur

Wilo

Wilo Smart Connect Module BT Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
