Wildgame R12i20-7 Manuel utilisateur

Infrared Digital Scouting Camera

User’s Manual Model # R12i20-7

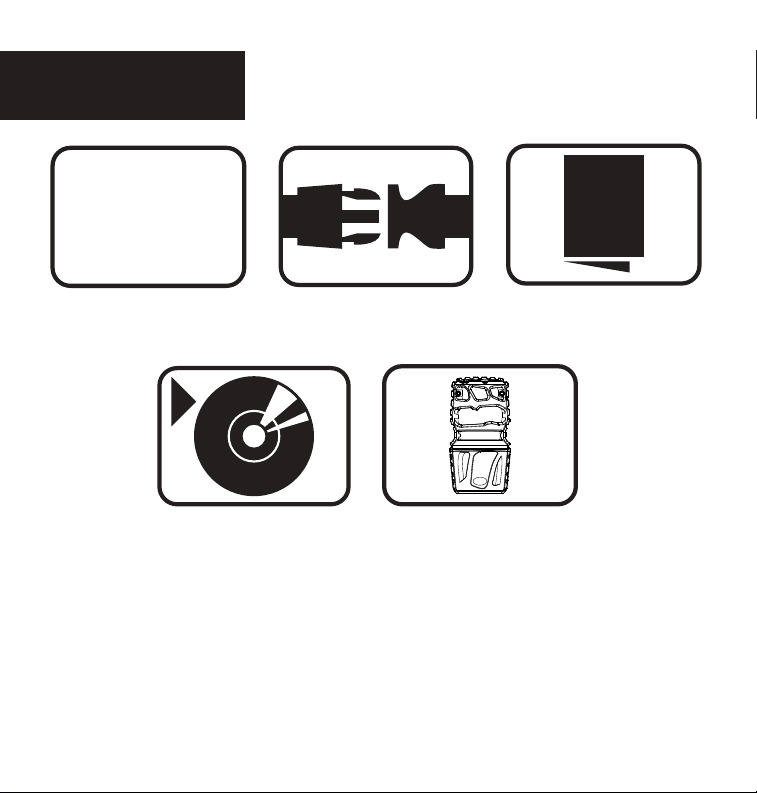

Includes

Adjustable Strap

Flextime Player

Software

Camera Unit

NOTE: Flextime Player Software is optional. Flextime files can

be played by using most media players

page 1

User ManualT-Post Support

RESOLUTION

FLASH

FLASH RANGE

SENSOR

SENSOR RANGE

IMAGE FORMAT

MEMORY

IMAGE RESOLUTION

POWER SUPPLY

ONBOARD POWER

HOUSING

MOUNTING

MAX: 12 MP Still

36 High Intensity Infrared LED’s

up to 80 feet

Passive Infrared Sensor (PIR) Motion and Heat

up to 60 feet

JPEG - Digital Stills/ AVI-Digital Video

up to 32GB SD Card (not included and required)

Class 4 and above recommended

High (12 MP)

Medium (8 MP)

Low (5 MP)

8 AA batteries (not included and required)

Alkaline recommended

Built in capacitor to retain Date and Time

Weather resistant with rubber gaskets

Adjustable Strap and custom T-Post mounting

bracket system - included

Note: Battery life will vary depending on camera settings as well as environmental

conditions. Camera settings such as shorter delay periods or even using

Flextime mode are examples of settings that can reduce overall battery life.

Environmental conditions such as extreme cold can also influence battery life.

page 2

Features

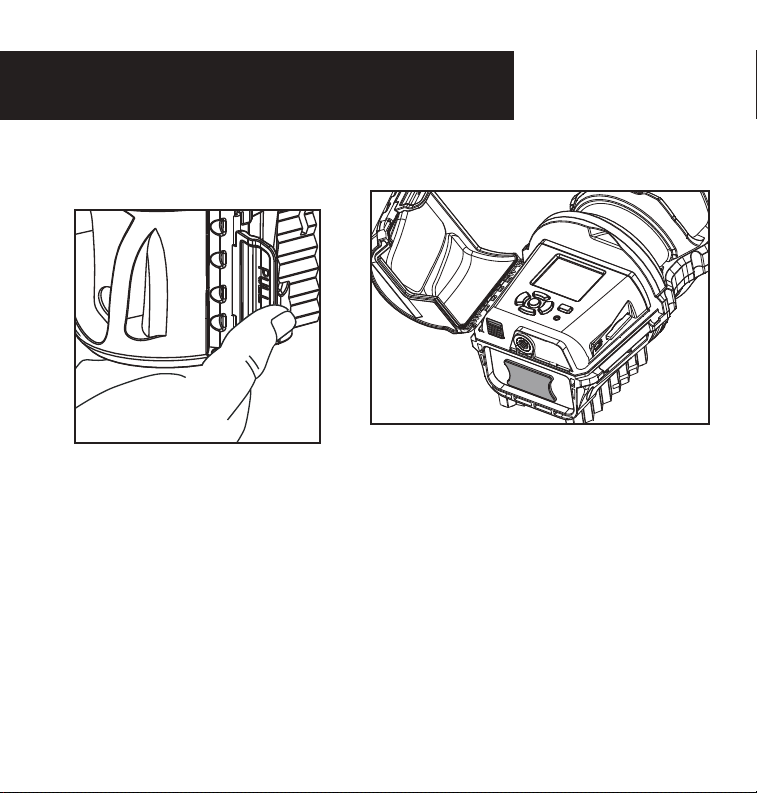

Installing Batteries

1. Open the door on the right of

the camera and PULL the tab

towards you. 2. With the camera facing up, open the

compartment door.

page 3

Push the battery latch up to unlock. At the

same time grab the battery compartment out.

BATTERY

UNLOCK

page 4

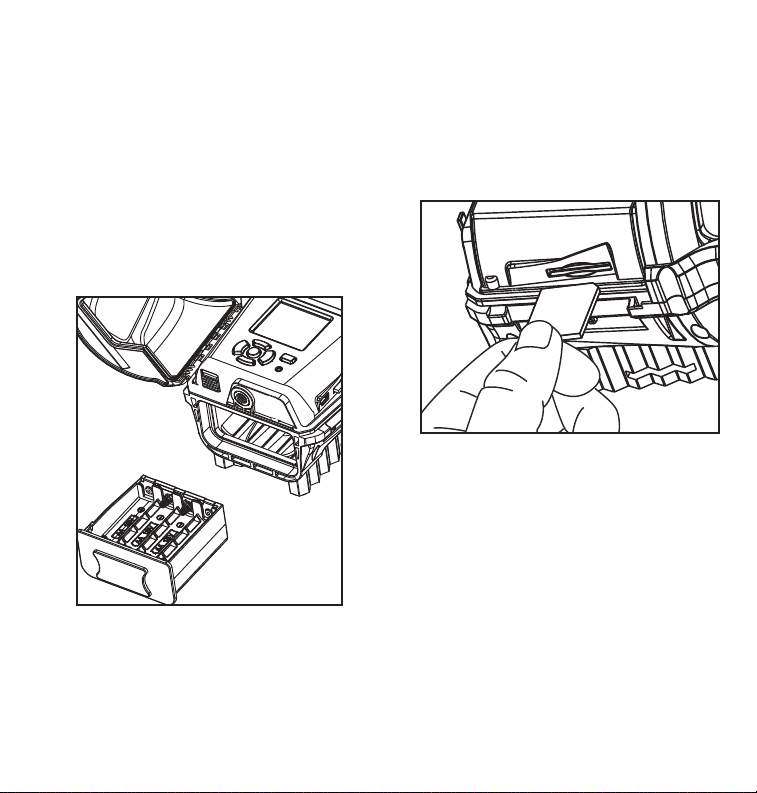

3. Make sure to insert the AA-cell

batteries based on the direction

labeled on the inside of each com-

partment. Match minus “-” sign

with the marked negative on the

battery and the plus “+” sign with

the marked plus sign on the battery.

4. Load SD memory card (up to 32GB not

included) into the SD CARD slot with the

connectors facing down.

IMPORTANT:

Make sure the camera is powered off before

removing or installing an SD card.

If you are using an SD card from other cam-

eras, please make sure to format the SD card in

your computer prior to use in your camera. New

cards are ok to use straight from the package.

Once the batteries are in the

appropriate spot, return battery

compartment.

page 5

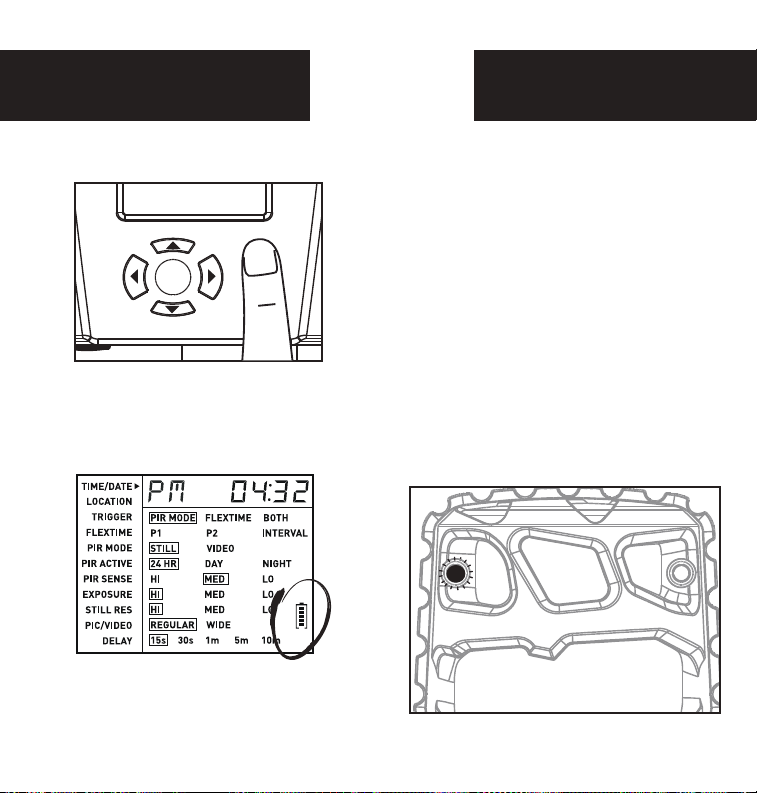

Power On Test Mode

1. To turn the unit ON press and re-

lease the power button.

2. Check the battery level icon

to ensure the batteries just

installed contain the proper

charge level. If so, you are ok to

proceed with camera use.

NOTE: LCD cycle through camera in-

formation. Time > PIR picture number

> Flextime number > Remaining pic-

tures > Temperature

1. LCD Ready Mode: The camera will

automatically enter Ready Mode if a

button is not pressed for greater than

30 seconds. The status lights will il-

luminate for a total of 2 minutes.

2. PIR LED Status Light: During the

first 2 minutes of Ready Mode, the

red light will illuminate when a PIR

event is triggered. The red light will

blink for 2-3 seconds when photo

is taken during this first 2 min-

utes. After 2 minutes all indicator

lights will turn off until a button is

pressed.

RESET

POWER

page 6

Power Save Setting Time

1. After 30 seconds without any buttons

being pushed, the LCD will turn off

and camera enters into Power Save

or Ready Mode.

2.The LCD screen can be awakened by

pressing the Power button briefly.

Note: The LCD will not “wake up”

when camera is writing to memory.

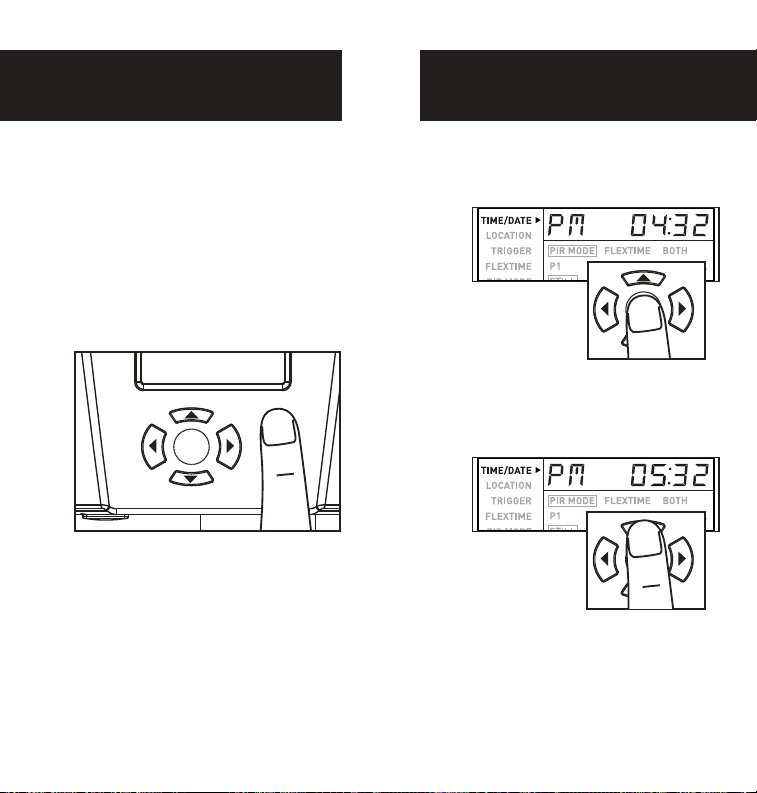

1. To change date and time, start by

pressing and release the OK but-

ton to set the hour.

2.Press the up or down navigation

button to go up or down in se-

quence.

3.When the hour is set, repeat

steps 1 and 2 to set the minutes.

RESET

POWER

RESET

POWER

RESET

POWER

page 7

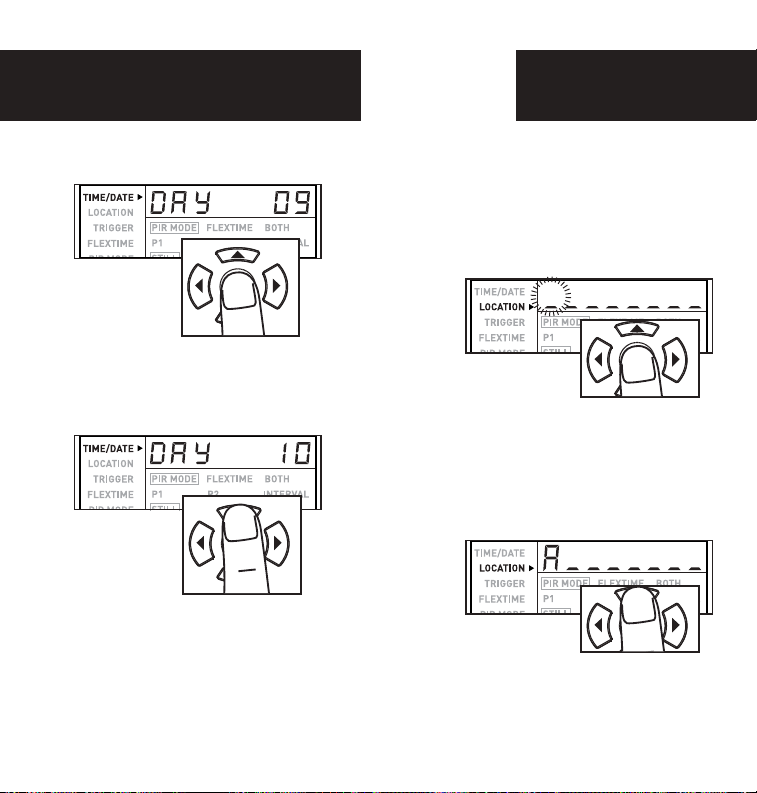

Setting Date Location

1. Press the OK button after setting

the minute to change the Day.

2.Press the up or down navigation

button to go up or down in se-

quence.

3.When the DAY is set, repeat steps

1 and 2 to set the Month and Year.

1. Press the OK button while LOCA-

TION is selected. The first charac-

ter will be blinking.

2.Press the UP or DOWN naviga-

tion button to go up or down in

sequence. Press the OK button or

the Left and Right navigation but-

ton when the character shown is

what you want and move to the

next character.

3.Repeat steps 1 and 2 to set the rest

of the characters. Press the right

navigation button to skip spaces

and save the location name.

Save the location of the area the camera was

installed. This is for your reference and is op-

tional. If you do not wish to name your location

skip to the next step.

RESET

POWER

RESET

POWER

RESET

POWER

RESET

POWER

page 8

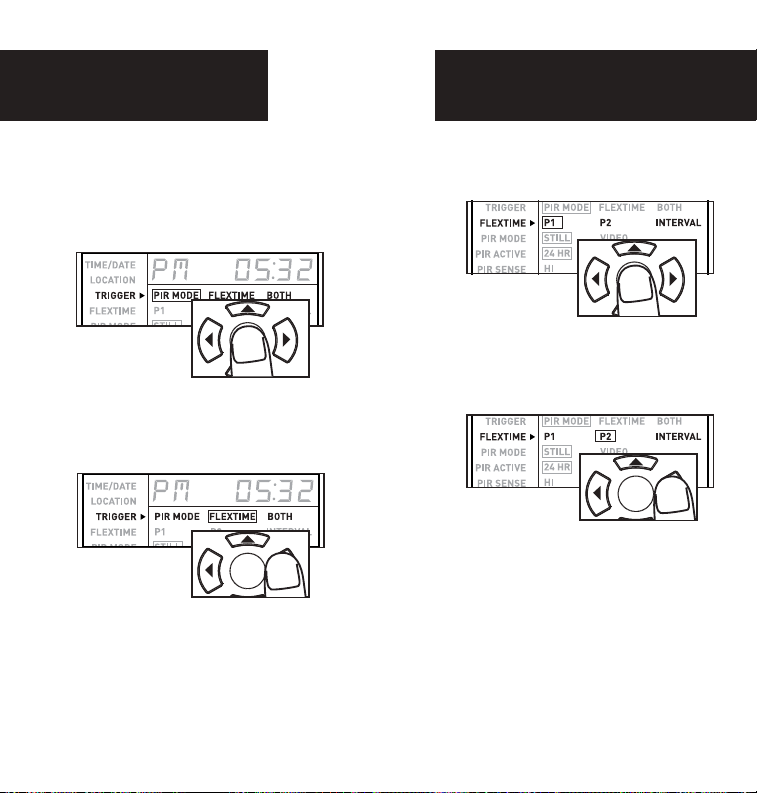

Location Trigger Flextime

1. Press the OK button while Trigger

is selected. The highlighted option

will be blinking.

2.Press the left or right naviga-

tion button to move to different

options. Press the OK button to

save the setting.

TRIGGER:

PIR MODE: Takes a photo only when the PIR

sensor is triggered.

FLEXTIME(Time Lapse): Takes time lapse images

at set intervals during the key movement pe-

riods of the day, depending on your Flextime

settings.

BOTH: Both PIR and Flextime are active.

This setting allows you to choose the mode in

which the camera will be capturing images. 1. Press the OK button while Flex-

time is selected. The highlighted

option will be blinking.

2.Press the left or right naviga-

tion button to move to different

options. Press the OK button to

save the setting.

The Interval setting is set by the Delay Set-

ting on the camera with a 1 minute minimum

Flextime delay. See chart on the next page for

Flextime options.

NOTE: Camera needs at least 48 hours in the

field to acclimate to the environment for Flex-

time to function properly.

Reminder: Only use “Flextime” and “Both”

modes if you are wanting to use time lapse

technology. These modes can reduce battery

life versus the standard “PIR” mode.

RESET

POWER

RESET

POWER

RESET

POWER

RESET

POWER

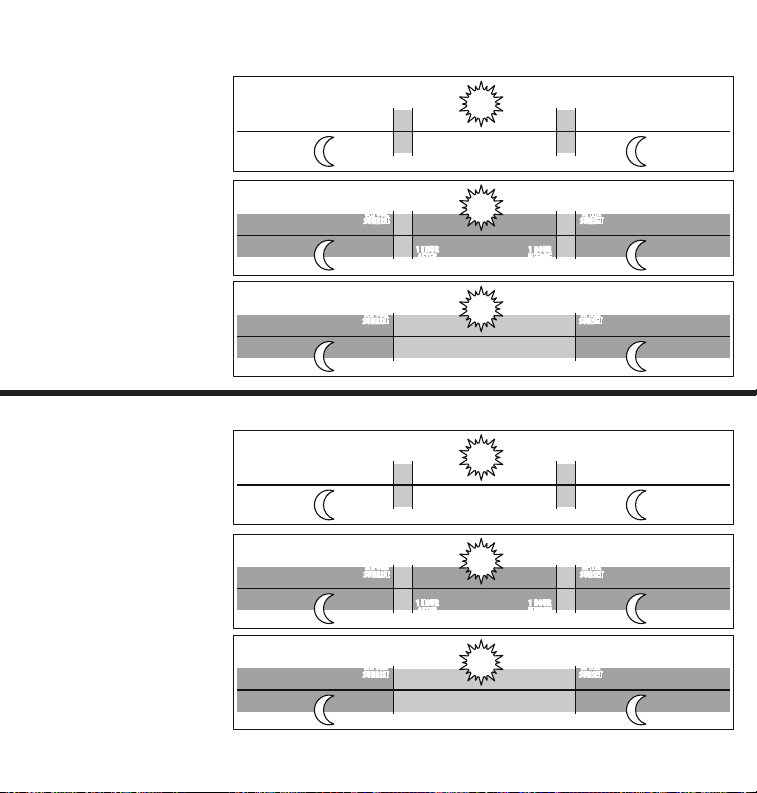

Flextime period:

1. 15 min before Sunrise

to 1 hour after Sunrise.

2. 1 hour before Sunset to

15 min after Sunset

Flextime period:

1. 15 min before Sunrise

to 1 hour after Sunrise.

2. 1 hour before Sunset to

15 min after Sunset

Flextime period:

1. 15 min before Sunrise

to 15 min after Sunset

FLEXTIME selected

INTERVAL

Camera is inactive before and after Flextime periods.

INACTIVE

15 MINUTES

BEFORE

SUNRISE FLEX

TIME

1 HOUR

AFTER

SUNRISE

INACTIVE

1 HOUR

BEFORE

SUNSET

FLEX

TIME

15 MINUTES

AFTER

SUNSET

INACTIVE

Flextime is active twice a day.

Camera is in PIR mode before and after Flextime periods. Flextime is active twice a day.

PIR

15 MINUTES

BEFORE

SUNRISE FLEX

TIME

1 HOUR

AFTER

SUNRISE

PIR 1 HOUR

BEFORE

SUNSET

FLEX

TIME

15 MINUTES

AFTER

SUNSET

PIR

15 MINUTES

BEFORE

SUNRISE

FLEXTIME

15 MINUTES

AFTER

SUNSET

PIR

Camera is in PIR mode before and after Flextime periods. Flextime is active during daytime.

Flextime + PIR period:

1. 15 min before Sunrise

to 1 hour after Sunrise.

2. 1 hour before Sunset to

15 min after Sunset

Flextime + PIR period:

1. 15 min before Sunrise

to 1 hour after Sunrise.

2. 1 hour before Sunset to

15 min after Sunset

Flextime + PIR period:

1. 15 min before Sunrise

to 15 min after Sunset

BOTH selected

INTERVAL

Camera is inactive before and after Flextime + PIR periods.

INACTIVE

15 MINUTES

BEFORE

SUNRISE FLEX

TIME

1 HOUR

AFTER

SUNRISE

INACTIVE

1 HOUR

BEFORE

SUNSET

FLEX

TIME

15 MINUTES

AFTER

SUNSET

INACTIVE

Flextime + PIR is active twice a day.

Camera is in PIR mode before and after Flextime + PIR periods. Flextime + PIR is active twice a day.

PIR

15 MINUTES

BEFORE

SUNRISE FLEX

TIME

1 HOUR

AFTER

SUNRISE

PIR 1 HOUR

BEFORE

SUNSET

FLEX

TIME

15 MINUTES

AFTER

SUNSET

PIR

15 MINUTES

BEFORE

SUNRISE

FLEXTIME & PIR

15 MINUTES

AFTER

SUNSET

PIR

Camera is in PIR mode before and after Flextime + PIR periods. Flextime + PIR is active during daytime.

PIR PIR

page 9
