Invisible IR Digital Scouting Camera
User’s Manual Model # SC20B20-7
page 2
NOTE: FlexTime™ Player Software is optional. Most media
players can play FlexTime™ files.
Includes
User Manual
Flextime™ Player
Software
Camera Unit
Adjustable Strap
page 3
RESOLUTION
FLASH
FLASH RANGE
SENSOR
SENSOR RANGE
IMAGE FORMAT
MEMORY
USB
IMAGE RESOLUTION
POWER SUPPLY
BATTERY LIFE
ONBOARD POWER
HOUSING
MOUNTING
MAX: 20 MP
42 pc High Intensity Invisible IR LED’s
up to 100 feet
Passive Infrared Sensor (PIR) Motion and Heat
up to 60 feet
JPEG - Digital Stills/ AVI-Digital Video
up to 32GB SD Card (not included and required)
Class 6 and above recommended
5-PIN Micro USB style - (not included)
High (20 MP)
Medium (10 MP)
Low (5 MP)
8 AA batteries (not included and required)
Alkaline recommended
Estimated up to 1 Year or 30,000 photos
Built in capacitor to retain Date and Time
Weather resistant with rubber gaskets
Adjustable Strap (included)
Features
NOTE: Battery life varies. Some camera settings such as shorter delay periods or
FlexTime™ mode may reduce overall battery life. Environmental conditions such as
extreme cold can also influence battery life.
page 4
1. Locate the battery compartment by
lifting the latch on the right to open the
camera like a book. Inside the camera,
you’ll see the display screen and controls
on the left, and the battery compartment
on the right.
4. Once all 8 batteries are installed, press
firmly on the door until both notches
snap back into place.
Installing Batteries
2. Use two fingers to press the notches
at the top of the battery compartment
door. The door should come loose,
revealing the battery tray.
NOTE: This product requires 8 AA batteries, which are not included.
3. Insert all 8 AA batteries by matching
the +/- in the compartments with the
same +/- on the batteries.
page 5
1. With the camera door open, locate
the SD card compartment below the
screen and controls. 3. Press the SD card into the slot until you
hear a quiet click.
Installing SD Card
2. Load the SD card with the label fac-
ing up, and the side with the grooves
inserted first.
NOTE: This product requires an SD card to store images. The SD card is not provided.
BEFORE INSTALLING: If you are using an SD card from another camera, you must format the SD card in your
computer prior to installing it in this camera. If you are using a new card, it may go directly into this camera
without any formatting.
IMPORTANT: The camera should always be powered
off before removing or inserting the SD card.
page 6
1.To turn the camera ON, press
and release the POWER button
located below the right corner of
the screen.
2.Check the battery level to ensure the
batteries are properly charged. If so,
you are ready to proceed with camera
use.
Power On
1.
2.
To turn the camera OFF, the screen
should be “awake.” To wake up
the screen, press and release the
POWER button.
Press and hold the POWER button
until the screen turns off.
Power Off
RESET
POWER
OK
RESET
POWER
OK
RESET
POWER
OK
ALL DAYDUSK/DAWN
page 7
1. If no buttons are pressed for 30 sec-
onds after turning the power on, the
screen will turn off and enter Power
Save Mode while the camera will
enter Ready Mode.
2.
3.
4.
During the first 2 minutes of Ready
Mode, a red light will illuminate
when a PIR event is triggered. The
red light will blink for 2-3 seconds
while a photo/video is taken.
After 2 minutes, all indicator lights
will turn off until a button is pressed.
The camera will continue to operate.
To awaken the screen from Power
Save mode, briefly press the power
button.
NOTE: The screen will not “wake up” if
the camera is writing to memory, and the
camera will not take a photo if the screen
is on.
Power Save/Ready Mode
RESET
POWER
OK
page 8
1. To change the date and/or time, use the UP/DOWN arrows to scroll to TIME/DATE and
press OK.
2.This will prompt you to select the proper value for each item in this order: 1) hour; 2)
minute; 3) day; 4) month; 5) year. Use the UP/DOWN arrows to select the proper value
for each item. Click OK once the proper value is displayed to move onto the next item.
3.Once you have selected the proper value for the final item (year), click OK to save all
the information and return to the main menu.
Date/Time
RESET
POWER
OK
RESET
POWER
OK
RESET
POWER
OK
ALL DAYDUSK/DAWN
DAY 02
ALL DAYDUSK/DAWN
DAY 03
page 9
Location
1. To name your location, use the UP/DOWN arrows to scroll to LOCATION on the left
menu bar and press OK.
2. You can use up to 8 letters and/or numbers to name your location. Press the UP/
DOWN arrows to select each letter/number. Press the LEFT/RIGHT arrows to move
between each blank.
3. When you have your location set, press OK until you return to the main menu naviga-
tion. (If you are leaving any blanks, this may take several clicks.)
You have the option to save the location where this camera is installed. If you do not wish to use this func-
tion, please proceed to the next step.
RESET
POWER
OK
RESET
POWER
OK
RESET
POWER
OK
ALL DAYDUSK/DAWN
______ __
ALL DAYDUSK/DAWN
A_____ __
page 10

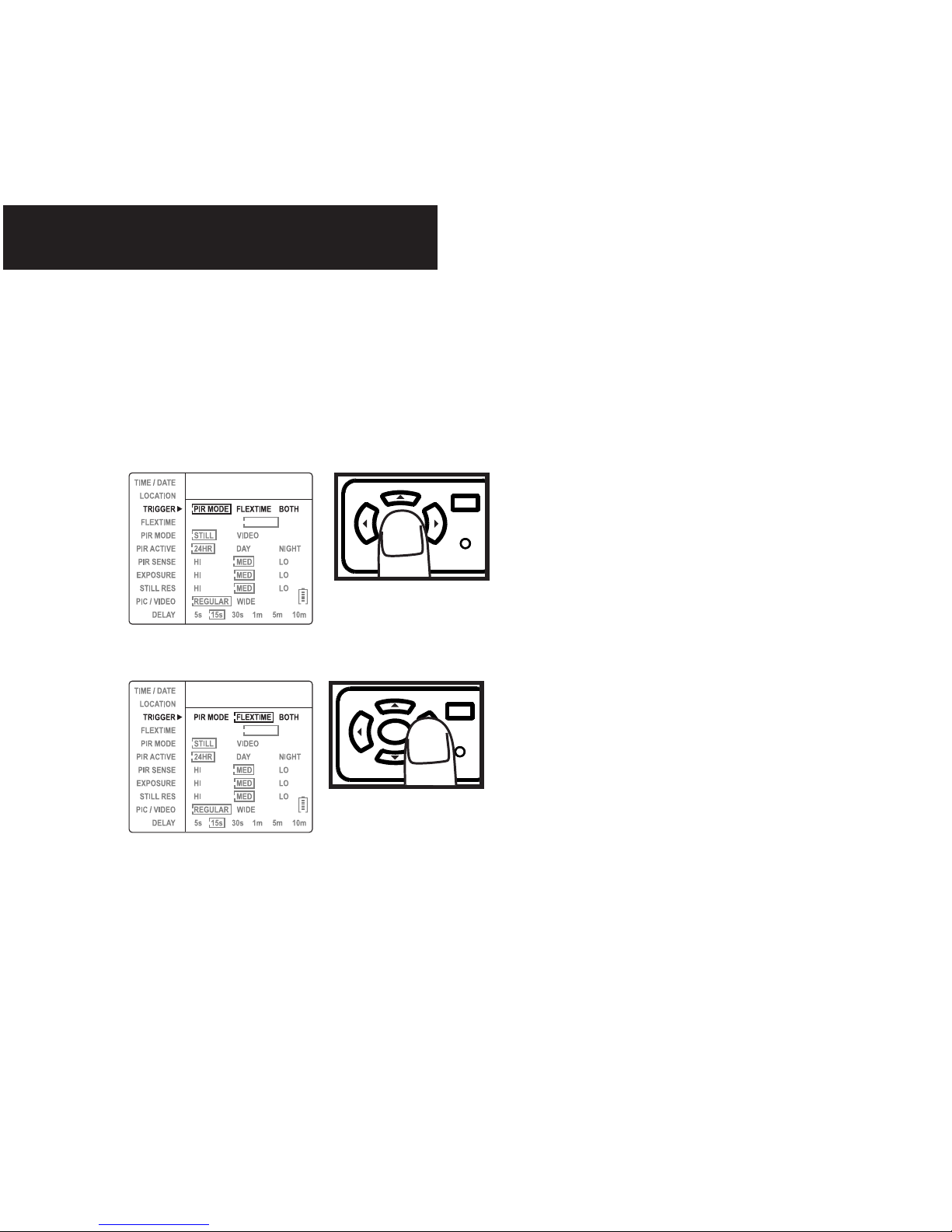

Trigger
1. To select a trigger setting, use the UP/DOWN arrows to scroll to TRIGGER on the
left menu bar and press OK.
2.Use the LEFT/RIGHT arrows to scroll to your preferred trigger mode and press OK.
PIR: Takes a photo only when the PIR sensor is triggered by motion or heat
FLEXTIME: Takes time lapse images at set intervals during key movement periods of the day
BOTH: Uses the PIR sensor and FlexTime™ modes simultaneously
This setting allows you to choose the mode in which the camera will capture images. There
are three modes.
3. Each of these modes comes with additional setting options. If you select PIR
MODE, you will be directed to the PIR MODE menu; if you select FLEXTIME, you
will be directed to the FLEXTIME menu; if you select BOTH, you will first be
directed to FLEXTIME then to PIR MODE.
RESET
POWER
OK
RESET
POWER
OK
ALL DAYDUSK/DAWN
AM 09:00
ALL DAYDUSK/DAWN
AM 09:00
