Wildgame C8B5-7 Manuel utilisateur

Invisible Infrared Digital

Cellular Scouting Camera

User’s Manual Model # C8B5-7

Includes

USB Cable 2 - Bungee Cords User Manual

Flextime Player

Software

Camera Unit Antenna

NOTE: Flextime Player Software is optional. Flextime files can be played by

using most media players

page 1

SIM card

RESOLUTION

FLASH

FLASH RANGE

SENSOR

SENSOR RANGE

IMAGE FORMAT

MEMORY

USB

IMAGE RESOLUTION

POWER SUPPLY

AUXILIARY POWER

ONBOARD POWER

HOUSING

MOUNTING

CELLULAR TYPE

SIM CARD

MAX: 8 MP

60 High Intensity Invisible IR LED’s

up to 70 feet

Passive Infrared Sensor (PIR) Motion and Heat

up to 60 feet

JPEG - Digital Still / AVI - Digital Video

up to 32GB SD Card (not included and required)

Class 4 and above recommended

5-PIN Mini USB style - included

High (8MP)

Medium (6MP)

Low (4MP)

4 D batteries (not included and required)

Alkaline recommended

External power port

Capacitor to retain Time and Settings

Weather resistant with rubber gaskets

2 Bungee cords - included

2G(GSM) and 3G(WCDMA), CDMA and CDMA2000 not supported

Mini-SIM (2FF) required

Note: Battery life will vary depending on camera settings as well as environ-

mental conditions. Camera settings such as shorter delay periods or even us-

ing Flextime mode are examples of settings that can reduce overall battery life.

Environmental conditions such as extreme cold can also influence battery life.

page 2

Features

Cell Mode can be activated only when the camera is set in PIR mode/im-

age. If the camera is set to Video or Flextime, the Cell mode will be disabled.

Setup

page 3

1. With the camera facing up, open the

battery compartment at the bottom

of the camera by turning them to

the left.

2. With the bottom of the camera

towards you, load 2 D batteries with

the positive ends towards you in

each chamber.

NOTE:

Do not mix old and new batteries. Do not mix alkaline,

standard (carbon-zinc) or rechargable (ni-cad, ni-mh,

etc.) batteries.

3. Close battery compartment cover

by turning them to the right.

4. Open the door at the bottom of the

camera by unlatching the locking

tabs.

page 4

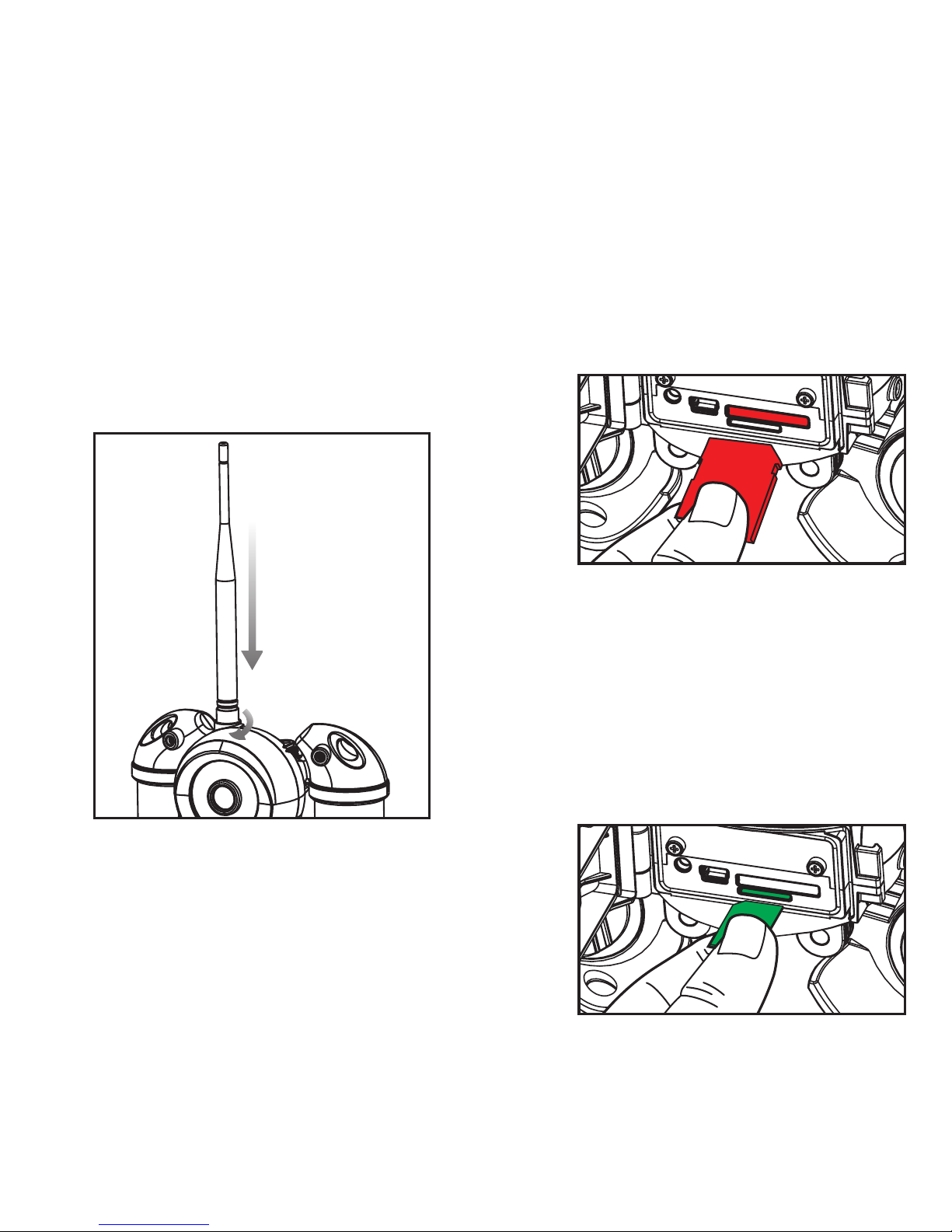

5. To attach the antenna, place the

bottom of the antenna into the screw

hole at the top of the camera. Then

turn the antenna clockwise until it

is secure. Do not over tighten.

6. Load SD memory card (up to 32GB

not included) into the SD card slot

with the connectors facing down.

7. Load Mini-SIM (2FF) card into the

SIM card slot with the connectors

facing down.

IMPORTANT:

Make sure the camera is powered off before removing or

installing an SD card.

If you are using an SD card from other cameras, please

make sure to format the SD card in your computer prior

to use in your camera. New cards are ok to use straight

from the package.

Power On

page 5

1. To turn the unit ON, press and

release the power button.

2. Check the battery level icon to

ensure the batteries just installed

contain the proper charge level.

If so, you are ok to proceed with

camera use.

Note:

When Powered on or Woken up, the camera takes 5-10

seconds to check SIM card and/or Network settings. The

buttons are locked during this period.

Test Mode

1. LCD Ready Mode: The camera will

automatically enter Ready Mode if

a button is not pressed for greater

than 30 seconds. The status lights

will illuminate for a total of 2

minutes.

2. PIR LED Status Light: During the

first 2 minutes of Ready Mode, the

red light will illuminate when a PIR

event is triggered. The red light will

blink for 2-3 seconds when photo

is taken during this first 2 minutes.

After 2 minutes all indicator

lights will turn off until a button is

pressed.

page 6

Power Save

1. After 30 seconds without any

buttons being pushed, the LCD will

turn off and camera enters into

Power Save or Ready Mode.

2. The LCD screen can be awakened by

pressing the Power button briefly.

Note: The LCD will not “wake up” when

camera is writing to memory.

Date/Time

1. To change Date & Time, enter MENU

and press the UP,DN,L or R buttons

to navigate to the DATE & TIME icon

and press OK.

2. Press the UP or DN navigation

button to go up or down in sequence.

Press L or R to move to the next

digit.

3. When the Time & Date are set, press

OK to save and press OK again to go

back to the MENU.

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

DATE & TIME

__:_ _

__/__/__

TIME/D ATE

MONTH DAYY EAR

BACK

11 01 12

200

__:_ _

__/__/ _ _

TIME/D ATE

MONTH DAYY EAR

BACK

11 01 1 2

20 0

Location

page 7

1. To change Location, enter MENU

and press the UP,DN,L or R buttons

to navigate to the LOCATION icon

and press OK.

2. Press the UP or DN navigation

button to go up or down in sequence.

Press L or R to move to the next

digit.

Image Type:Still

1. To change Image Type, enter MENU

and press the UP,DN,L or R buttons

to navigate to the Image Type icon

and press OK.

2. Press the L, R button to select

STILL and press OK. Then select the

Resolution and press OK. Select the

Exposure and press OK. Then select

the aspect and press OK.

When the Location is set, press OK

to save and press OK again to go

back to the MENU.

Save the location of the area the camera

was installed. This is for your reference

and is optional. If you do not wish to

name your location skip to the next step.

When the Image Type is set, press

OK to save and press OK again to go

back to the MENU.

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITYFLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

LOCATION

BACK

LO CA TION

________

BACK

LO CA TION

__ _ _____

AB C D

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITYFLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

IMAGE TYPE

BACK

STILL VIDE O

HI ME DL OW

REGULA R WIDE ANGLE

RESO LU TION

HI ME DL OW EXP C ONTRO L

IM AG E TY PE

BACK

STILL VIDE O

HI ME DL OW

REGULA R WIDE ANGLE

RESO LU TION

HI ME DL OW EXP C ONTRO L

IM AG E TY PE

page 8

Image Type:Video

1. To change Image Type, enter MENU

and press the UP,DN,L or R buttons

to navigate to the Image Type icon

and press OK.

2. Press the L, R button to select

VIDEO and press OK. Then select

the Resolution and press OK. Then

select the length and press OK.

Trigger

1. To change Trigger, enter MENU and

press the UP,DN,L or R buttons to

navigate to the Trigger icon and

press OK.

2. Press the L, R button to select

Trigger Mode. Then select the OK

to save. If PIR is selected press OK

again to go back to the MENU.

TRIGGER:

PIR MODE: Takes a photo or video only when the

PIR sensor is triggered.

FLEXTIME (Time Lapse): Takes time lapse images

at set intervals during the key movement periods

of the day, depending on your Flextime settings.

BOTH: Both PIR and Flextime are active.

When the Image Type is set, press

OK to save and press OK again to go

back to the MENU.

This setting allows you to choose the

mode in which the camera will be

capturing images.

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

IMAGE TYPE

BACK

STILL VIDE O

HD REGULAR

15 s 30 s1 m2 m VIDEO LENGT H

IM AG E TY PE

BACK

STILL VIDE O

HD REGULA R

15 s 30 s1 m2 m VIDEO LENGT H

IM AG E TY PE

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITY FLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

TRIGGER

BACK

PIRFlexTime BOTH

TRIGGER

PIR Sensitivity

page 9

1. To change PIR Sensitivity, enter

MENU and press the UP,DN,L or

R buttons to navigate to the PIR

Sensitivity icon and press OK.

2. Press the L, R button to select the

sensitivity and press OK to save.

Then press OK again to go back to

the MENU.

Image Type:Still

1. To change the Active Time, enter

MENU and press the UP,DN,L or

R buttons to navigate to the Active

Time icon and press OK.

2. Press the L, R button to select the

active time and press OK to save.

Then press OK again to go back to

the MENU.

PIR SENSE:

HI: The PIR detects the smallest movement.

MED: (Default) The PIR detects most

common size movements.

LOW: The PIR detects only larger

movements.

PIR ACTIVE:

24 HR: The PIR can be active at all times.

DAY: The PIR can be active in daylight hours

only.

NIGHT: The PIR can be active in nighttime

hours only.

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITYFLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

PIR SENSITIVITY

BACK

HI ME D LO W

PIR SENSITIVIT Y

BACK

ACTIVE TIME

LOCATION TRIGGER

DELAY

PIR SENSITIVITYFLEXTIME

™

DATE & TIME

PLAY BACK

IMAGE TYPE

VIEW ASSIST

ACTIVE TIME

BACK

24 H R DAY NIGH T

AC TIVE T IM E

Table des matières

Autres manuels Wildgame Caméra de repérage

Wildgame

Wildgame FZ12 Manuel utilisateur

Wildgame

Wildgame KP10B8-7 Manuel utilisateur

Wildgame

Wildgame Scrapeline Manuel utilisateur

Wildgame

Wildgame C8B5 Manuel utilisateur

Wildgame

Wildgame Razor Manuel utilisateur

Wildgame

Wildgame Prizm Manuel utilisateur

Wildgame

Wildgame r12i20 Manuel utilisateur

Wildgame

Wildgame N2E Manuel utilisateur

Wildgame

Wildgame Insite Air Manuel utilisateur

Wildgame

Wildgame L20B20-7 Manuel utilisateur

Wildgame

Wildgame XC18i20-8 Manuel utilisateur

Wildgame

Wildgame WRAITH Manuel utilisateur

Wildgame

Wildgame DRT Extreme Manuel utilisateur

Wildgame

Wildgame Innovations Terra 8 Manuel utilisateur

Wildgame

Wildgame t5i20 Manuel utilisateur

Wildgame

Wildgame TITAN Manuel utilisateur

Wildgame

Wildgame SC20B20-7 Manuel utilisateur

Wildgame

Wildgame Titan Extreme Manuel utilisateur

Wildgame

Wildgame Shadow Manuel utilisateur

Wildgame

Wildgame Rival Manuel utilisateur

Wildgame

Wildgame DRT Manuel utilisateur

Wildgame

Wildgame KICKER Manuel utilisateur

Wildgame

Wildgame SC20i20-7 Manuel utilisateur

Wildgame

Wildgame Innovations Mirage Manuel utilisateur

Manuels Caméra de repérage populaires d'autres marques

Nestbox

Nestbox C13 Manuel utilisateur

Wildview

Wildview STC-TGL1 Manuel utilisateur

Stealth Cam

Stealth Cam CORE STC-Z3IRTL Manuel utilisateur

Suntek

Suntek HC-800M Manuel utilisateur

Spypoint

Spypoint G4 Manuel utilisateur

Duramaxx

Duramaxx 10029765 Manuel utilisateur

Brecom

Brecom C2400 Manuel utilisateur

BlazeVideo

BlazeVideo A280W Manuel utilisateur

Bestok

Bestok 5210GM Manuel utilisateur

GardePro

GardePro X60P Manuel utilisateur

Delta-Opti

Delta-Opti HC-SG880MK-18MHD Manuel utilisateur

PNI

PNI HUNTING 280C Manuel utilisateur

Muddy

Muddy Pro-Cam 14 Manuel utilisateur

Bresser

Bresser 3310006 Manuel utilisateur

Recon Outdoors

Recon Outdoors HS410 Manuel utilisateur

Braun

Braun 57660 Manuel utilisateur

Spypoint

Spypoint FLEX Manuel utilisateur

Hieha

Hieha WiFi900Pro Instructions de montage
