WIKA TC84 Manuel utilisateur

Operating instructions

Betriebsanleitung

Mode d'emploi

Manual de instrucciones

Sapphire-design thermocouple for high-temperature measurements

Model TC84

Saphir-Design-Thermoelement für Hochtemperaturmessungen

Typ TC84

Thermocouple version Saphir pour la mesure de hautes

températures, type TC84

Termopar diseñado en zafiro para mediciones de alta temperatura

Modelo TC84

Model TC84

14274725.02 08/2018 EN/DE/FR/ES

WIKA operating instructions model TC84

Operating instructions model TC84

Page

3 - 20

Betriebsanleitung Typ TC84

Seite

21 - 38

Mode d‘emploi type TC84

Page

39 - 56

Manual de instrucciones modelo TC84

Página

57 - 73

WIKA®is a registered trademark in various countries.

WIKA®ist eine geschützte Marke in verschiedenen Ländern.

Prior to starting any work, read the operating instructions!

Keep for later use!

Vor Beginn aller Arbeiten Betriebsanleitung lesen!

Zum späteren Gebrauch aufbewahren!

Lire le mode d‘emploi avant de commencer toute opération !

A conserver pour une utilisation ultérieure !

¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!

¡Guardar el manual para una eventual consulta!

Contents

14274725.02 08/2018 EN/DE/FR/ES

WIKA operating instructions model TC84 3

1. General information 4

2. Design and function 5

3. Safety 7

4. Transport, packaging and storage 10

5. Commissioning, operation 11

6. Faults 14

7. Maintenance and cleaning 16

8. Dismounting, return and disposal 17

9. Specifications 19

1. General information

14274725.02 08/2018 EN/DE/FR/ES

WIKA operating instructions model TC844

1. General information

■

The instrument described in the operating instructions has been manufactured

using state-of-the-art technology. All components are subject to stringent quality and

environmental criteria during production. Our management systems are certified to

ISO 9001 and ISO 14001.

■

These operating instructions contain important information on handling the instrument.

Working safely requires that all safety instructions and work instructions are observed.

■

The operating instructions are part of the product and must be kept in the immediate

vicinity of the instrument and readily accessible to skilled personnel at any time. Pass

the operating instructions on to the next operator or owner of the instrument.

■

Observe the relevant local accident-prevention regulations and general safety

regulations for the instrument's range of use.

■

Skilled personnel must have carefully read and understood the operating instructions

prior to beginning any work.

■

The general terms and conditions contained in the sales documentation shall apply.

■

Subject to technical modifications.

■

Further information:

- Internet address: www.wika.de / www.wika.com

- Application consultant: Tel.: +49 9372 132-0

Fax: +49 9372 132-406

info@wika.de

2. Design and function

14274725.02 08/2018 EN/DE/FR/ES

WIKA operating instructions model TC84 5

2. Design and function

2.1 Overview

Solid-machined connection housing

Process flange

Metal support tube

Ceramic outer protection tube

2.2 Description

This thermocouple is used for temperature measurement in industrial applications.This

high-temperature thermocouple with a gas-tight sapphire protection tube has been

specifically developed for use in gas reactors.Through the monocrystalline structure, the

sapphire protects the precious metal of the thermocouple from poisonous toxic media in

the aggressive atmosphere of the gasification reactor.

For the connection side, the thermometer is fitted with a case.The case design contains

the connection terminals.

This document describes standard versions of instruments. For applications in hazardous

areas special instrument designs are required.

For further information for operation in hazardous areas, see the additional information for the

corresponding ignition protection type (separate document).









2. Design and function

14274725.02 08/2018 EN/DE/FR/ES

WIKA operating instructions model TC846

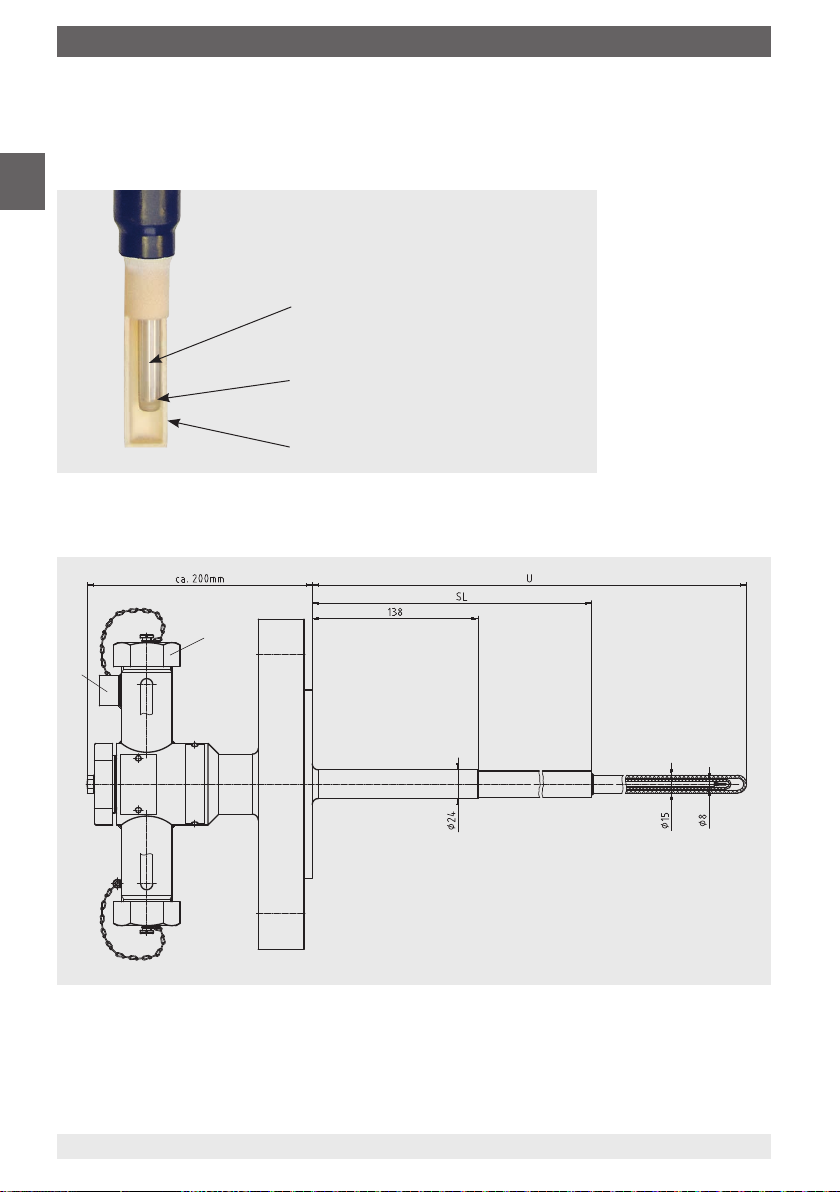

Measuring point ungrounded

The model TC84 sapphire-design thermocouple consists of a precious metal

thermocouple, a sapphire or ceramic inner tube and a ceramic external protection tube.

This external protection tube is fixed into the metal support tube.

2.3 Dimensions in mm

2.4 Scope of delivery

Cross-check scope of delivery with delivery note.

Thermocouple measuring point

Ceramic outer protection tube

Measuring insert with sapphire

protection tube

Legend:

U Insertion length

SL Support tube length

Sealing cap

Cable outlet





3. Safety

14274725.02 08/2018 EN/DE/FR/ES

WIKA operating instructions model TC84 7

3. Safety

3.1 Explanation of symbols

WARNING!

... indicates a potentially dangerous situation that can result in serious injury

or death, if not avoided.

CAUTION!

... indicates a potentially dangerous situation that can result in light injuries or

damage to property or the environment, if not avoided.

WARNING!

... indicates a potentially dangerous situation that can result in burns, caused

by hot surfaces or liquids, if not avoided.

Information

... points out useful tips, recommendations and information for efficient and

trouble-free operation.

3.2 Intended use

The model TC84 sapphire-design thermocouple, with gas-tight sapphire protection tube,

described here is suitable for temperature measurement in critical industrial applications

such as gasification or GtL reactors and is suitable for direct installation into the process.

Due to its monocrystalline structure, the sapphire protection tube extends the life of the

thermocouple's precious metal by 3 times, in comparison to purely ceramic protection

tube materials. As a result of the pressure-tight, hermetically sealed junctions between the

sapphire and metal protection tube, and also a multifold sealing system in the connection

housing, toxic gases are prevented from being able to escape from the reactor.

Neither repairs nor structural modifications are permitted, and any would void the

guarantee and the respective certification. The manufacturer shall not be responsible for

constructional modifications after delivery of the instruments.

The instrument has been designed and built solely for the intended use described here,

and may only be used accordingly.

The technical specifications contained in these operating instructions must be observed.

The manufacturer shall not be liable for claims of any type based on operation contrary to

the intended use.

3. Safety

14274725.02 08/2018 EN/DE/FR/ES

WIKA operating instructions model TC848

3.3 Responsibility of the operator

The system operator is responsible for selecting the thermometer or protection tube, and

for the selection of their materials, so as to guarantee their safe operation within the plant

or machine.When preparing a quote, WIKA can only give recommendations which are

based on our experience in similar applications.

The safety instructions within these operating instructions, as well as the safety, accident

prevention and environmental protection regulations for the application area must be

maintained.

The operator is obliged to maintain the product label in a legible condition.

3.4 Personnel qualification

WARNING!

Risk of injury should qualification be insufficient

Improper handling can result in considerable injury and damage to

equipment.

▶

The activities described in these operating instructions may only be

carried out by skilled electrical personnel who have the qualifications

described below.

Skilled electrical personnel

Skilled electrical personnel are understood to be personnel who, based on their technical

training, know-how and experience as well as their knowledge of country-specific

regulations, current standards and directives, are capable of carrying out work on

electrical systems and independently recognising and avoiding potential hazards.The

skilled electrical personnel have been specifically trained for the work environment they

are working in and know the relevant standards and regulations.The skilled electrical

personnel must comply with current legal accident prevention regulations.

Operating personnel

The personnel trained by the operator are understood to be personnel who, based on their

education, knowledge and experience, are capable of carrying out the work described and

independently recognising potential hazards.

Special operating conditions require further appropriate knowledge, e.g. of aggressive

media.

3. Safety

14274725.02 08/2018 EN/DE/FR/ES

WIKA operating instructions model TC84 9

3.5 Personal protective equipment

The personal protective equipment is designed to protect the skilled personnel from

hazards that could impair their safety or health during work. When carrying out the various

tasks on and with the instrument, the skilled personnel must wear personal protective

equipment (e.g. gas detector, harness, etc.).

Follow the instructions displayed in the work area regarding personal protective

equipment!

The requisite personal protective equipment must be provided by the operating company.

3.6 Labelling, safety marks

Product label (example)

Model

Serial number

Information on version (measuring element, measuring range...)

Year of manufacture

Before mounting and commissioning the instrument, ensure you

read the operating instructions!

TC84

1 x Type K / 1 / . 0 ... 1260 °C

IEC 60584

Made in Germany

2015

11012345

D-63911 Klingenberg

 





4. Transport, packaging and storage

14274725.02 08/2018 EN/DE/FR/ES

WIKA operating instructions model TC8410

4. Transport, packaging and storage

4.1 Transport

Check the instrument for any damage that may have been caused by transport.

Obvious damage must be reported immediately.

CAUTION!

Damage through improper transport

With improper transport, a high level of damage to property can occur.

▶

When unloading packed goods upon delivery as well as during internal

transport, proceed carefully and observe the symbols on the packaging.

▶

With internal transport, observe the instructions in chapter 4.2 “Packaging

and storage”.

If the instrument is transported from a cold into a warm environment, the formation of

condensation may result in instrument malfunction. Before putting it back into operation,

wait for the instrument temperature and the room temperature to equalise.

4.2 Packaging and storage

Do not remove packaging until just before mounting.

Store the Styrofoam packaging as well as the protective transport tube of the probe for any

return transport (repair option).

To unpack the TC84 thermocouple, follow chapter 5.1 “Unpacking the thermocouple and

dismounting the protective transport tube”.

Permissible conditions at the place of storage:

Storage temperature: -40 ... +80 °C [-40 ... +176 °F]

Avoid exposure to the following factors:

■

Direct sunlight or proximity to hot objects

■

Mechanical vibration, mechanical shock (putting it down hard)

■

Soot, vapour, dust and corrosive gases

■

Hazardous environments, flammable atmospheres

Store the instrument in its original packaging in a location that fulfils the conditions listed

above. If the original packaging is not available, pack and store the instrument as described

below:

1. Place the instrument, along with shock-absorbent material, in the packaging.

2. If stored for a prolonged period of time (more than 30 days), place a bag containing a

desiccant inside the packaging.

Autres manuels pour TC84

Table des matières

Langues :

Autres manuels WIKA Instrument de mesure

WIKA

WIKA NETRIS 3 Manuel utilisateur

WIKA

WIKA CPH6400 Manuel utilisateur

WIKA

WIKA GDM-100-T Manuel utilisateur

WIKA

WIKA PG43SA-S Manuel utilisateur

WIKA

WIKA A-AI-1 Manuel utilisateur

WIKA

WIKA PG81 Manuel utilisateur

WIKA

WIKA 1500 Series Manuel utilisateur

WIKA

WIKA Delta-plus Manuel utilisateur

WIKA

WIKA 5 Manuel utilisateur

WIKA

WIKA 3 Series Manuel utilisateur

WIKA

WIKA CPH62I0-S1 Manuel utilisateur

WIKA

WIKA 2 Series Manuel utilisateur

WIKA

WIKA 5 Manuel utilisateur

WIKA

WIKA 712.15.100 Manuel utilisateur

WIKA

WIKA 632.50.100 Manuel utilisateur

WIKA

WIKA PGW23.100.11 Manuel utilisateur

WIKA

WIKA CPG1200 Manuel utilisateur

WIKA

WIKA 700.01 Manuel utilisateur

WIKA

WIKA CTD9300 Series Manuel utilisateur

WIKA

WIKA FLC-608 Manuel utilisateur

WIKA

WIKA SENSeOR AMS01 Manuel utilisateur

WIKA

WIKA CEP3000 Manuel utilisateur

WIKA

WIKA intelliTHERM TGT70 Manuel utilisateur

WIKA

WIKA CPH6300-S1 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
