WIKA NETRIS 3 Manuel utilisateur

Operating instructions

Betriebsanleitung

WIKA-Radio unit with LoRaWAN®for WIKA measuring instruments

For applications in hazardous areas, model NETRIS®3

WIKA-Funkeinheit mit LoRaWAN®for WIKA measuring instruments

For applications in hazardous areas, Typ NETRIS®3

Model NETRIS®3

14521664.02 03/2023 EN/DE

WIKA operating instructions, model NETRIS®3

WIKA®is a registered trademark in various countries.

Prior to starting any work, read the operating instructions!

Keep for later use!

Vor Beginn aller Arbeiten Betriebsanleitung lesen!

Zum späteren Gebrauch aufbewahren!

Operating instructions, model NETRIS®3 Page 4 - 33

Betriebsanleitung Typ NETRIS®3 Seite 34 -

3WIKA operating instructions, model NETRIS®3

14521664.02 03/2023 EN/DE

Contents

1. General information 4

2. Design and function 5

2.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Description . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 Functional principle . . . . . . . . . . . . . . . . . . . . 5

2.4 Connection to IIoT platform . . . . . . . . . . . . . . . . . 6

2.5 LoRaWAN®specification . . . . . . . . . . . . . . . . . . 6

2.6 Scope of delivery . . . . . . . . . . . . . . . . . . . . . 7

2.7 Product pass . . . . . . . . . . . . . . . . . . . . . . 7

3. Safety 8

3.1 Explanation of symbols . . . . . . . . . . . . . . . . . . . 8

3.2 Intended use . . . . . . . . . . . . . . . . . . . . . . 9

3.3 Improper use . . . . . . . . . . . . . . . . . . . . . . 9

3.4 Responsibility of the operator . . . . . . . . . . . . . . . . . 10

3.5 Personnel qualification . . . . . . . . . . . . . . . . . . . 10

3.6 Labelling, safety marks . . . . . . . . . . . . . . . . . . .11

3.7 Ex marking . . . . . . . . . . . . . . . . . . . . . . . 12

3.8 Special conditions for safe use (X conditions) . . . . . . . . . . . 12

3.9 ATEX information . . . . . . . . . . . . . . . . . . . . .12

3.10 Data transmission security . . . . . . . . . . . . . . . . . 13

4. Transport, packaging and storage 13

4.1 Transport. . . . . . . . . . . . . . . . . . . . . . . . 13

4.2 Packaging and storage . . . . . . . . . . . . . . . . . . .14

5. Commissioning, operation 14

5.1 Mechanical mounting . . . . . . . . . . . . . . . . . . . 15

5.2 Mounting the radio unit . . . . . . . . . . . . . . . . . . .16

5.3 Activating NETRIS®3 (active mode) . . . . . . . . . . . . . . 19

5.4 Deactivating NETRIS®3 (storage mode) . . . . . . . . . . . . .20

5.5 Manual initiation of a LoRaWAN®transmission. . . . . . . . . . . 21

5.6 Battery life . . . . . . . . . . . . . . . . . . . . . . . 21

5.7 Registration . . . . . . . . . . . . . . . . . . . . . . . 21

6. Faults 22

7. Maintenance and cleaning 23

7.1 Maintenance . . . . . . . . . . . . . . . . . . . . . . 23

7.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . .23

8. Dismounting, return and disposal 24

8.1 Dismounting . . . . . . . . . . . . . . . . . . . . . . 24

8.2 Return. . . . . . . . . . . . . . . . . . . . . . . . . 25

8.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . .25

9. Specifications 26

4WIKA operating instructions, model WIKA NETRIS®3

14521664.02 03/2023 EN/DE

1. General information

■The instrument described in the operating instructions has been manufactured

using state-of-the-art technology. All components are subject to stringent quality and

environmental criteria during production. Our management systems are certified in

accordance with ISO 9001 and ISO 14001.

■These operating instructions contain important information on handling the instrument.

Working safely requires that all safety instructions and work instructions are observed.

■Observe the relevant local accident prevention regulations and general safety

regulations for the instrument's range of use.

■The operating instructions are part of the product and must be kept in the immediate

vicinity of the instrument and readily accessible to skilled personnel at any time. Pass

the operating instructions on to the next operator or owner of the instrument.

■Skilled personnel must have carefully read and understood the operating instructions

prior to beginning any work.

■The general terms and conditions contained in the sales documentation shall apply.

■Subject to technical modifications.

■Further information:

- Internet address: www.wika.de / www.wika.com

- Relevant data sheet: AC 40.03

- Additional documentation: “Special documentation” of the particular WIKA

measuring instrument on www.wika.de

- Contact Tel.: +49 9372 132-0

info@wika.de

Supplementary documentation:

▶Please follow all the documentation included in delivery.

Before commissioning the instrument, the operating instructions for the

WIKA measuring instrument must also be observed!

▶Model PGU23.100 and PGU26.100, article number 14520946

▶Model TGU73 article number 14602074

▶Model TRU article number 14604950

▶Model FLRU article number 14609053

▶Model PEU-2x article number 14602071

5WIKA operating instructions, model NETRIS®3

14521664.02 03/2023 EN/DE

2. Design and function

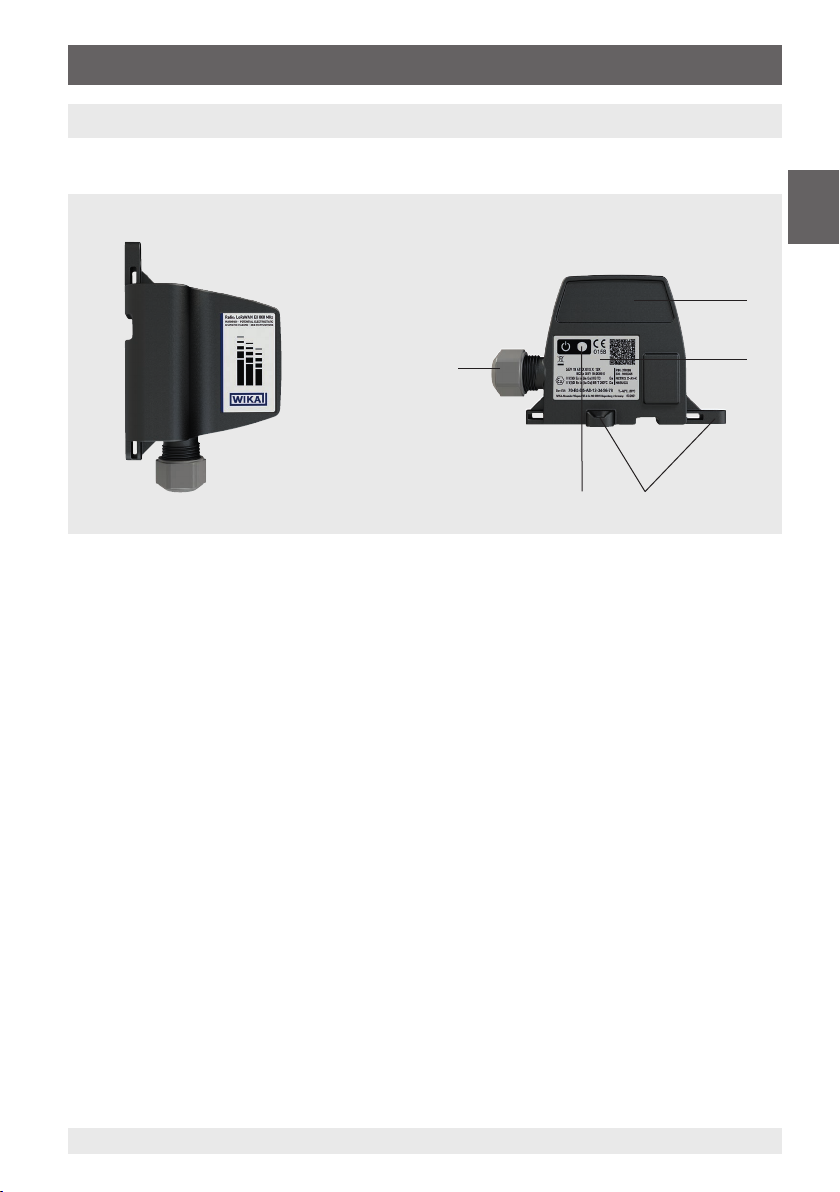

2.1 Overview

Cable gland Fixing holes

Internal antenna Status LED

Product label

2.2 Description

The NETRIS®3 transmits data over long distances by means of innovative LPWAN®

technology (“Low-Power Wide-Area Network”). It is therefore possible to carry out

installations inside buildings, in cellars or in underground tanks without any problems.

The transmission of the measured values to the IIoT platform is carried out at a preset

sending interval.The measurement and sending intervals, and also the alarm limits,

for particular measured values can be configured over the LoRaWAN®protocol. A

configuration can be carried out via the cloud.

2.3 Functional principle

The measuring signal is transmitted digitally from the WIKA measuring instrument via a

cable to the NETRIS®3 and wirelessly via the antenna of the radio module to a gateway.

The NETRIS®3 uses the LoRaWAN®radio standard, class A, which is designed for

energy-saving operation.

This means that communication with a suitable gateway mainly consists of uplinks

(messages originating from the measuring instrument). An uplink always occurs in regular,

preset cycles (transmission rate).The measuring rate can be defined independently of the











2. Design and function

6WIKA operating instructions, model WIKA NETRIS®3

14521664.02 03/2023 EN/DE

transmission rate. If an alarm limit is exceeded or dropped below during a measuring cycle,

a data transfer is carried out immediately, regardless of the set transmission rate.

After a successful uplink, two time-limited windows can be used for the downlink (message

to the measuring instrument).This enables bidirectional communication and the receipt of

network control commands. If this possibility is not used, the end device can only receive

data after a new uplink.

→ For details, see website: https://lora-alliance.org

Typical uplinks:

■Measured values: depending on the particular measuring instrument

■Process alarms: can be set accordingly

■Technical alarm: reflects the status of the instrument as well as the quality and reliability

of the measurement.

■The alarm of the radio unit: based on the overall condition of the system. If this alarm

occurs, the occurrence of a process alarm and also the cyclic measured values must be

looked into

■Notifications for fault diagnosis

■Configuration ID (for the identification of changes in the measuring and sending rate)

Typical downlink:

Configuration change (e.g. measuring rate, sending rate, alarm parameter etc.).

The WIKA radio unit automatically detects, in the case of messages to be confirmed (e.g.

alarms), that the transmission packet has not arrived and transmits it again with changed

transmission properties (spreading factors) until the receipt is confirmed by the system.

Higher spreading factors lead to an increased range, a longer sending time

and also an increased energy consumption of the radio device.

2.4 Connection to IIoT platform

The instrument is connected to a LoRaWAN®gateway and the measured values are

transmitted to the IIoT infrastructure at freely configurable intervals. For instrument-specific

registration data for the LoRaWAN®network, see quick start guide (included in delivery).

2.5 LoRaWAN®specification

For the data transmission NETRIS®3 uses LoRaWAN®version 1.0.3.

2. Design and function

7WIKA operating instructions, model NETRIS®3

14521664.02 03/2023 EN/DE

2.6 Scope of delivery

WIKA radio unit:

■WIKA radio unit, model NETRIS®3

■Quick start guide

■Operating instructions

Mounting kit:

■Activation magnet

■1 x long screw for wall mounting

■1 x wall plug for wall mounting

■2 x short screws, only for fixing to the rear case wall of the pressure gauge

■2 x cable ties for pipes, up to a max. of 80 mm [3.15 in] diameter

Cross-check scope of delivery with delivery note.

2.7 Product pass

The product pass can be accessed on the product details page of the WIKA website

or via the QR code on the product label directly via the associated WIKA serial number

application.

Web application Product page

2. Design and function

8WIKA operating instructions, model WIKA NETRIS®3

14521664.02 03/2023 EN/DE

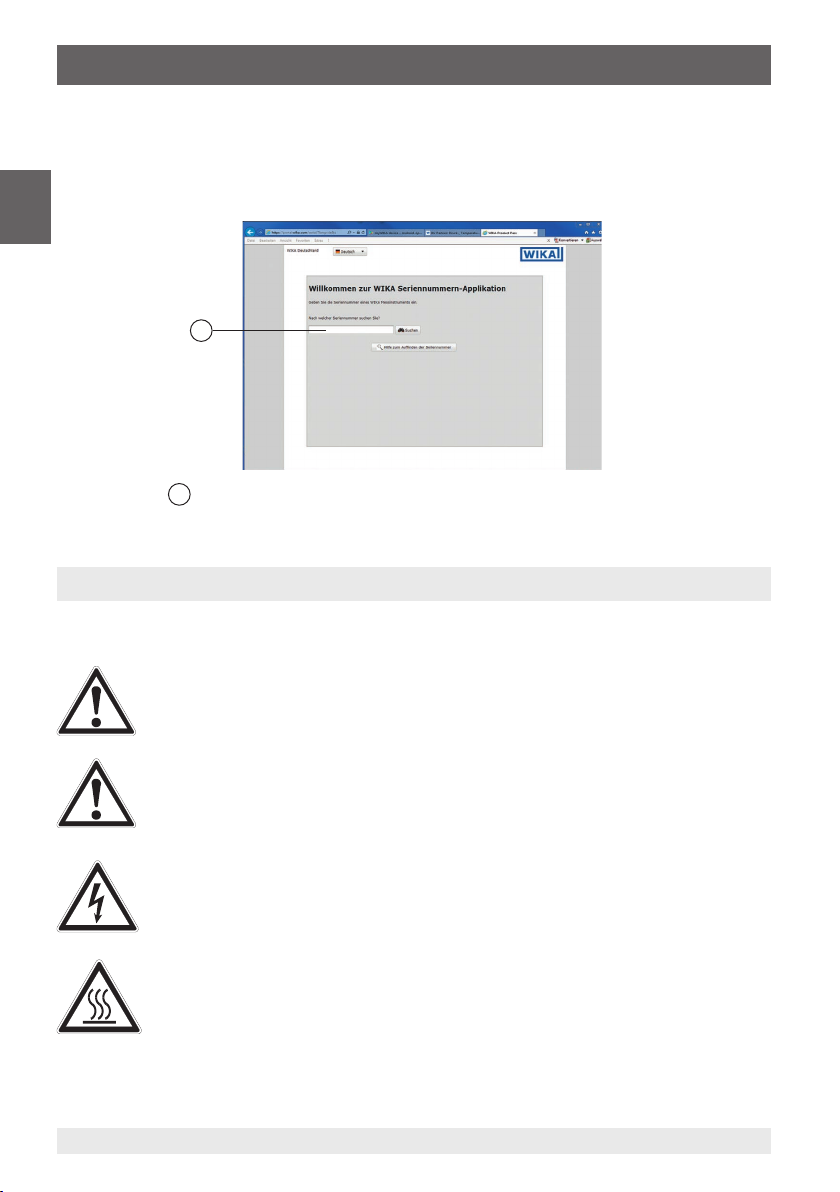

WIKA - intelligent serial number

The “WIKA - intelligent serial number” and the corresponding serial number application

is the central tool in which all the required information on the specific instrument can be

found.

After entering 1the intelligent serial number into the web application, all instrument-

specific details on the manufactured version are displayed.

3. Safety

3.1 Explanation of symbols

WARNING!

... indicates a potentially dangerous situation that can result in serious injury or

death, if not avoided.

CAUTION!

... indicates a potentially dangerous situation that can result in light injuries or

damage to property or the environment, if not avoided.

DANGER!

... identifies hazards caused by electrical power. Should the safety instructions

not be observed, there is a risk of serious or fatal injury.

WARNING!

... indicates a potentially dangerous situation that can result in burns, caused

by hot surfaces or liquids, if not avoided.

2. Design and function / 3. Safety

9WIKA operating instructions, model NETRIS®3

14521664.02 03/2023 EN/DE

DANGER!

... indicates a potentially dangerous situation in the hazardous area that can

result in serious injury or death, if not avoided.

Information

... points out useful tips, recommendations and information for efficient and

trouble-free operation.

3.2 Intended use

The model NETRIS®3 is a radio unit that transmits data of a sensor or measuring

instrument and is used for condition-oriented and preventive or corrective maintenance in

industrial applications.

The instrument can be used wherever centralised, web-based remote monitoring is

required in Ex-protected areas.

The remote monitoring of the process pressure via radio transmission is only suitable for

non-critical and non-safety-relevant applications.

The LoRaWAN®signal may only be used for mobile applications to a limited

extend.This applies particularly to high spreading factors.

The remote monitoring of the measuring location is achieved over a

web-based platform.

Only use the instrument in applications that lie within its technical performance limits.

The instrument has been designed and built solely for the intended use described here,

and may only be used accordingly.The manufacturer shall not be liable for claims of any

type based on operation contrary to the intended use.

3.3 Improper use

WARNING!

Changes to the instrument

Changes to the instrument can lead to hazardous situations and injuries.

▶Refrain from unauthorised modifications or changes to the instrument.

▶The instrument must only be used for the usage described here.

3. Safety

10 WIKA operating instructions, model WIKA NETRIS®3

14521664.02 03/2023 EN/DE

WARNING!

Injuries through improper use

Improper use of the instrument can lead to hazardous situations and injuries.

▶Refrain from unauthorised modifications to the instrument.

The remote monitoring function must not be used for control purposes,

as it cannot be guaranteed that data packets won't be lost during radio

transmission.

Any use beyond or different to the intended use is considered as improper use.

3.4 Responsibility of the operator

The instrument is used in the industrial sector.The operator is therefore responsible for

legal obligations regarding safety at work.

The operator is obliged to maintain the product label in a legible condition.

To ensure safe working on the instrument, the operating company must ensure

■that suitable first-aid equipment is available and aid is provided whenever required.

■that the operating personnel are regularly instructed in all topics regarding safety at

work, first aid and environmental protection and know the operating instructions and in

particular, the safety instructions contained therein.

■that the instrument is suitable for the particular application in accordance with its

intended use.

■that personal protective equipment is available.

With increased requirements for technical cleanliness, suitability for the

application must be checked by the operator before commissioning.

3.5 Personnel qualification

WARNING!

Risk of injury should qualification be insufficient

Improper handling can result in considerable injury and damage to property.

▶The activities described in these operating instructions may only be carried

out by skilled personnel who have the qualifications described below.

3. Safety

Autres manuels pour NETRIS 3

Table des matières

Langues :

Autres manuels WIKA Instrument de mesure

WIKA

WIKA PG43SA-S Manuel d'installation

WIKA

WIKA GA11 Manuel utilisateur

WIKA

WIKA 230.15 Manuel utilisateur

WIKA

WIKA 632.50 Manuel utilisateur

WIKA

WIKA air2guide A2G-05 Manuel utilisateur

WIKA

WIKA 732.14.100 per ATEX Manuel utilisateur

WIKA

WIKA CTD9300 Series Manuel utilisateur

WIKA

WIKA 232.30.100 Mode d'emploi

WIKA

WIKA TC80 Manuel utilisateur

WIKA

WIKA mensor 9250 Manuel utilisateur

WIKA

WIKA TC82 Mode d'emploi

WIKA

WIKA intelliTHERM TGT70 Manuel utilisateur

WIKA

WIKA PG23CP Manuel utilisateur

WIKA

WIKA DG-10 Manuel utilisateur

WIKA

WIKA mensor CPG2400 Manuel utilisateur

WIKA

WIKA GDM-100 Manuel utilisateur

WIKA

WIKA GDM-100-T Manuel utilisateur

WIKA

WIKA GDM-63 Manuel utilisateur

WIKA

WIKA 212.20.100 Manuel utilisateur

WIKA

WIKA RTD Manuel utilisateur

WIKA

WIKA 700.01.080 Manuel utilisateur

WIKA

WIKA CPH6200 Manuel utilisateur

WIKA

WIKA SENSeOR AMS01 Manuel utilisateur

WIKA

WIKA 1500 Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
