WiebeTech RTX100-SJ Manuel utilisateur

RTX100-SJ User’s Manual - 1 -

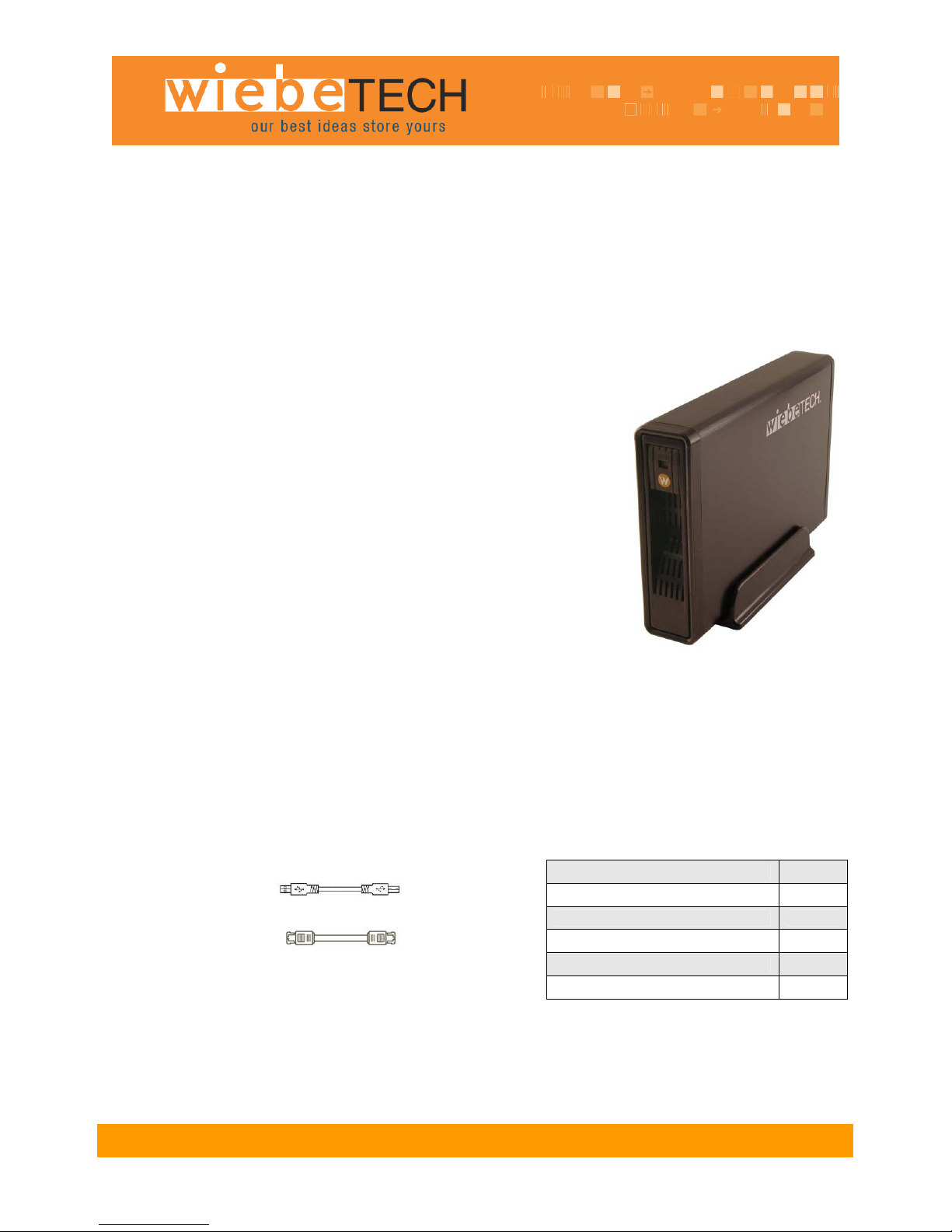

RTX100-SJ™

USER’S MANUAL

Revised October 19, 2007

Features

•TrayFree™ technology! RTX-100-SJ doesn’t force you to install your

hard drives into trays. Simply slide in a SATA drive and shut the

door.

•The specially-designed SATA drive interface is built to withstand

thousands of drive insertions.

•Fast eSATA connection, plus USB 2.0 for wide compatibility.

•Sturdy aluminum case provides excellent heat dissipation and

rugged durability.

•Fanless design for silent operation.

•Built-in lock to keep your drives secure.

Before Installation

1. Check the accessories with your RTX100-SJ. Please contact WiebeTech if any parts are missing

or damaged. The box should contain the following items:

Accessories Quantity

RTX100-SJ unit 1

eSATA cable 1

USB cable 1

AC adapter & power cord 1

Tool for lock 1

Manual and Warranty Information (on CD)

USB cable

eSATA cable

WiebeTech LLC

RTX100-SJ User’s Manual - 2 -

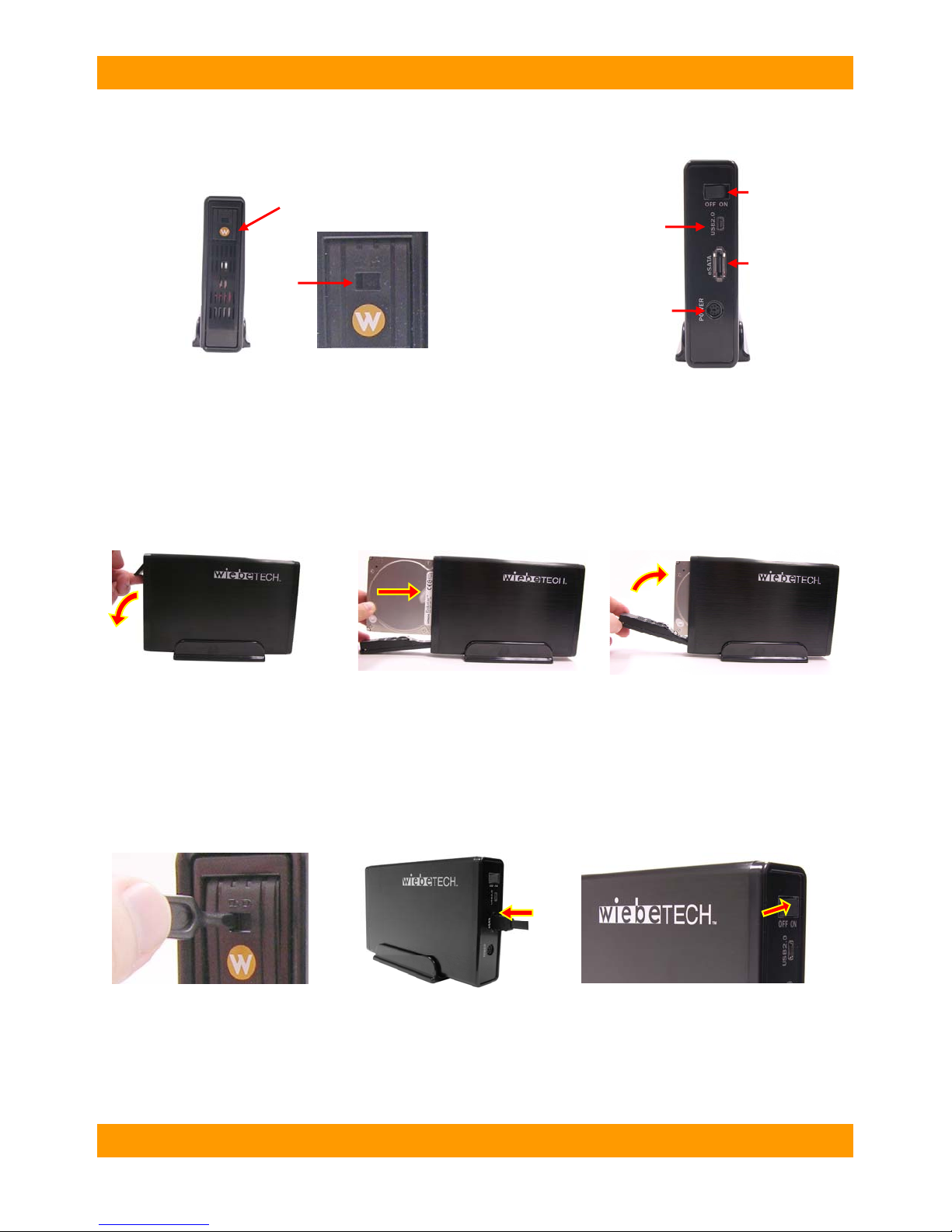

2. Take a moment to familiarize yourself with the parts of the RTX100-SJ™.

This will help you to better understand the remaining instructions.

USB Port

Power Connection

Port

eSATA Port

Power Switch

Ejection Handle

Front View

Lock

Rear View

Hardware Setup

1. Install your hard drive. RTX100-SJ features TrayFree™ technology, so installing a hard drive

couldn’t be easier! Simply pull the ejection handle to open the door, slide a SATA drive inside, and shut

the door behind it.

Place RTX100-SJ vertically on its stand.

Pull the ejection handle to open the door.

Slide in a SATA drive. The label on the

drive should be on the same side as the

white WiebeTech logo on the RTX.

Shut the door until you hear it click.

2. Plug in the data cable and power cord. The RTX100-SJ can connect to your computer in one of

two ways. Cables for both data connection types are included for your convenience. Plug the power

adapter cable into a grounded electrical outlet.

For extra security, switch the ejection

handle to the lock position.

Connect the data and power cables. Turn it on.

Your RTX100-SJ is now ready to use! Turn on the power switch on the back of the unit. If your drive is

already formatted, you can begin using it right away. New hard drives will need to be formatted before

they can be used.

WiebeTech LLC

RTX100-SJ User’s Manual - 3 -

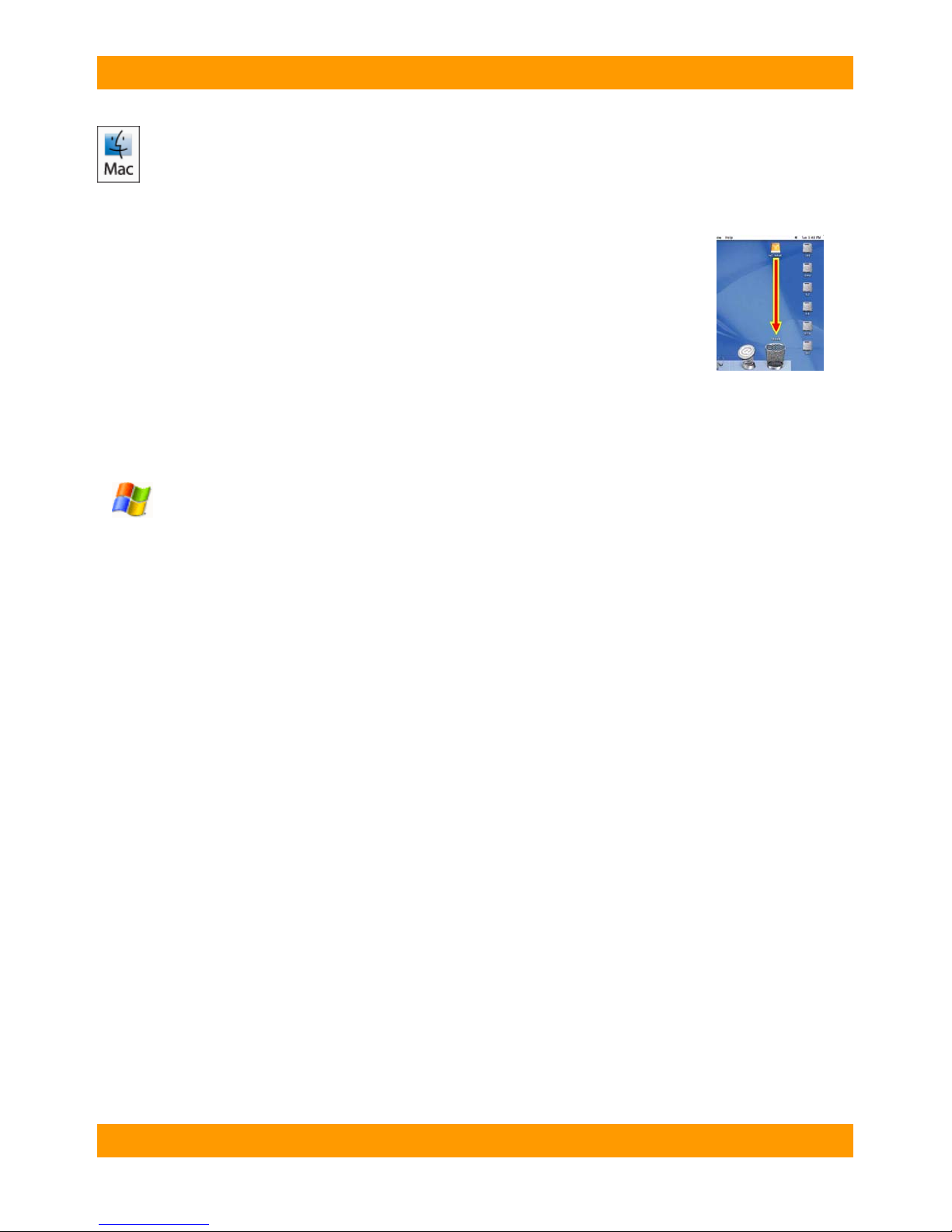

Usage with Macintosh Computers

Compatibility

The RTX100-SJ is compatible with Mac OS 10.2.6 or later. No drivers are needed.

Mounting and Ejecting Volumes

When you connect the unit to the Mac for the first time and turn on the power, you’ll

probably see a message saying that the disk is unreadable. This is because you

must format the volume before using it. The easiest way to do this is to use Mac OS

X’s Disk Utility. If you plan to use the unit on both Macs and PCs, select “MS DOS

File System” as the format type. If you only plan to use the unit on Macs, then select

“Mac OS Extended”. After the volume is formatted, an icon representing the drive

volume will appear (“mount”) on the desktop. You can now use the volume just like an internal hard drive.

Eject the volume before powering down the unit by dragging the volume’s icon to the trash bin, or by

selecting the volume then pressing Command-E. Shutting down the unit without first ejecting the volume

can result in data loss.

Usage with Windows Computers

Compatibility

The RTX100-SJ is compatible with Windows XP and Vista. No drivers are needed.

Formatting Volumes

Before you can use your RTX100-SJ, you must first format the drives into a volume. Use Disk

Management, which you can find by right-clicking on My Computer then selecting Manage. Select NTFS

for the format type. If you wish to format FAT-32 for cross-platform compatibility, you will need to use a

third-party utility to do so. Windows XP will not create FAT-32 volumes larger than 32GB.

After the volume is formatted, an icon representing the drive volume will appear in My Computer. You

can now use the volume just like an internal hard drive.

Ejecting Volumes

If the RTX is connected to your computer via USB, always eject the device by clicking the taskbar “eject”

icon before turning off power or unplugging the data cable. Failing to do so could result in data corruption

on the drive. When connecting via eSATA, you will not be able to eject in this way. However, it is

possible to disable the device using Device Manager. Whether or not you choose to disable the device in

this way, always make sure the drives are not being accessed before shutting off the RTX100-SJ to avoid

data loss.

Warnings and Notices

•If your drive is inserted incorrectly it may cause damage to the internal connections. Be sure to only insert 3.5″

SATA drives and to insert them properly. The top of the drive should go in on the same side as the white

WiebeTech logo on the RTX.

•Do not eject the drive while it is being accessed. Data loss could result.

WiebeTech LLC

RTX100-SJ User’s Manual - 4 -

•RTX100-SJ is made of aluminum to help with cooling. Although RTX100-SJ can be used laying flat, we

recommend that you position it vertically on its stand to aid heat dissipation. 1000GB+ drives get hotter than

smaller capacity drives, so the usage of additional external cooling (such as a fan) is recommended.

•Do not move RTX100-SJ while the drive has power.

•Although a drive can be accessed without locking the ejection handle, locking is recommended to keep from

accidentally ejecting a drive while in use. Use caution when pulling on the ejection handle so that if it is locked

you do not break the handle.

Technical Specifications

Product name/code: RTX100-SJ

Host Interfaces: eSATA, USB2

Data Interface Speeds: eSATA 3.0GHz: up to 300MB/sec

USB 2.0: up to 480 Mbps

Drive Types Supported: 3.5” SATA1 or SATA2 hard drives

TrayFree™ Technology: Yes

LED: Power/HDD Activity

Operating System

Requirements:

Windows XP, Server 2003, Vista

Mac OS X 10.2.6 or later

Linux distributions using Kernel version 2.4 or above (USB only)

Operating Temperature: 50 – 85° Fahrenheit (10 – 30° Celsius)

Operating Humidity: 5% to 95%, noncondensing

Power Switch: 2 position: On / Off

Power Supply: Input: 100-240VAC

Output: +12/+5 V, +2/+2 A

Certifications: CE/FCC, ROHS

External Material: Aluminum alloy case

Shipping Weights: 3lbs

Dimensions: 140mm H x 207mm L x 58mm W

Warranty: 1-year limited warranty. See warranty statement for details and limitations.

WiebeTech offers free phone support for 90 days after purchase (1-866-744-

8722). After 90 days, email support is available at support@wiebetech.com.

RTX100-SJ & TrayFree are trademarks of WiebeTech LLC. Other marks are the property of their respective owners.

FCC Compliance Statement: “This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.”

Tested to comply

with FCC standards

FOR HOME OR OFFICE USE

In the event that you experience Radio Frequency Interference, you should take the following steps to resolve the problem:

1) Ensure that your unit is plugged into a grounded electrical outlet.

2) Use a data cable with RFI reducing ferrites on each end.

3) Use a power supply with an RFI reducing ferrite approximately 5 inches from the DC plug.

If you have any questions or problems, please contact [email protected] for technical support. If you are

interested in purchasing more WiebeTech products, check our website or contact [email protected]. We

appreciate being able to serve you!
