Whispbar K905W Manuel utilisateur

K905W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 8 x 1 x 8 x 8

x 1 x 16 x 8 x 16

x 8 x 8

Revision No: 3C 1

Fitting Kit K905W

MAX kgs (lbs)

W/P WHD

LDV

V80 Maxus, 5dr Van 11-+ EU 100 kgs (220 lbs) 100 kgs (220 lbs)

V80 Maxus, 5dr Van 11-+ CN 100 kgs (220 lbs) 100 kgs (220 lbs)

V80 SWB Low Roof, 5dr Van 11-+ NZ 100 kgs (220 lbs) 100 kgs (220 lbs)

V80 SWB Low Roof, 5dr Van 14-+ AU 100 kgs (220 lbs) 100 kgs (220 lbs)

Fitting Kit K905W

V80 Maxus, 5dr Van 11-+ (EU)

V80 Maxus, 5dr Van 11-+ (CN)

V80 SWB Low Roof, 5dr Van 11-+ (NZ)

V80 SWB Low Roof, 5dr Van 14-+ (AU)

A B C 1 2 3

150mm 890mm 1630mm 1290mm 1290mm 1290mm

5 7/8ths" 35 1/16ths" 64 3/16ths" 50 13/16ths" 50 13/16ths" 50 13/16ths"

150mm 890mm 1630mm 1290mm 1290mm 1290mm

5 7/8ths" 35 1/16ths" 64 3/16ths" 50 13/16ths" 50 13/16ths" 50 13/16ths"

150mm 890mm 1630mm 1290mm 1290mm 1290mm

5 7/8ths" 35 1/16ths" 64 3/16ths" 50 13/16ths" 50 13/16ths" 50 13/16ths"

150mm 890mm 1630mm 1290mm 1290mm 1290mm

5 7/8ths" 35 1/16ths" 64 3/16ths" 50 13/16ths" 50 13/16ths" 50 13/16ths"

1290mm

50 13/16ths"

1290mm

50 13/16ths"

1290mm

50 13/16ths"

1290mm

50 13/16ths"

2370mm

93 2/8ths"

2370mm

93 2/8ths"

2370mm

93 2/8ths"

2370mm

93 2/8ths"

Fitting Kit EN

K905W

Items you will require:

●Tape measure

Pen

Hammer

Cordless drill

Depth stop

Vacuum cleaner

Rust inhibitor

Small paint brush

Neutral cure silicon sealant

Rivet gun

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

Fitting Kit EN

K905W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

Fitting Kit EN

K905W

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Permanent Mount Fitment

●Apply masking tape to vehicle roof in all

positions.

Fitting Kit EN

K905W

●Place mounting block into position as

shown.

●Repeat for all positions.

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●Place crossbar on vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Make sure there is no interference between

what you intend to carry with aerials,

sunroof or tailgate.

●Mark as shown.

●Lightly mark position of outside holes of the

mounting block in the roof channel.

Fitting Kit EN

K905W

●CAUTION: Maximum depth 7mm.

Use 7mm drillstop over supplied 4.9mm

drill bit.

Drill two outside holes at marked positions.

●Take care not to drill too deep.

●Remove tape.

●Vacuum and clean swarf from channel.

●Treat holes to prevent corrosion.

Fitting Kit EN

K905W

●Apply neutral cure silicon sealant in and

around drilled holes.

●Install rivets through permanent mount

blocks.

●Rivet into place.

WARNING: Do not use countersunk screws as an

alternative fixing method to the rivets supplied with

this kit.

Fitting Kit EN

K905W

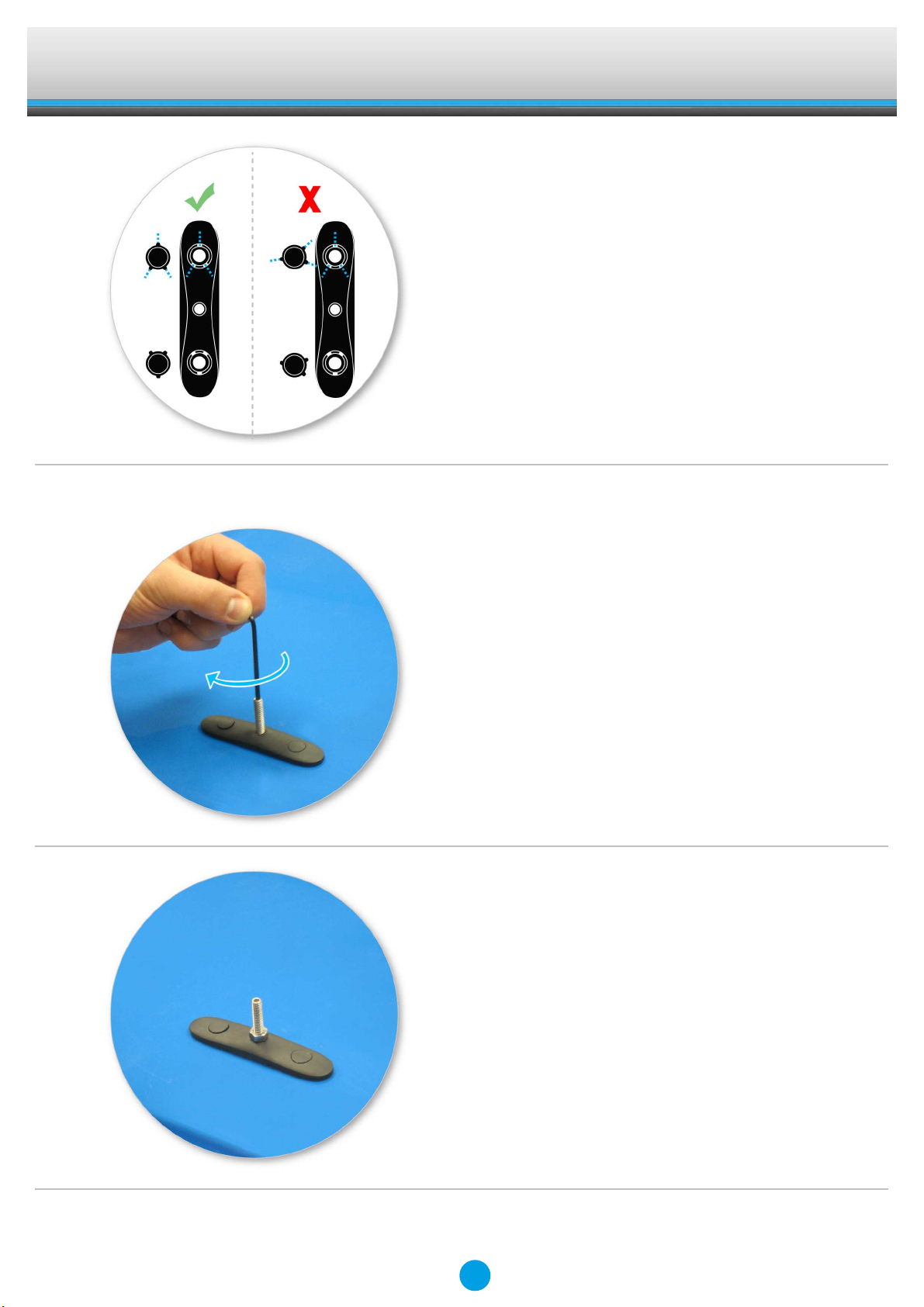

●Assemble as shown.

Fitment

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all positions.

●Fit nut to grubscrew.
