Whispbar K694W Manuel utilisateur

K694W

Fitting Kit

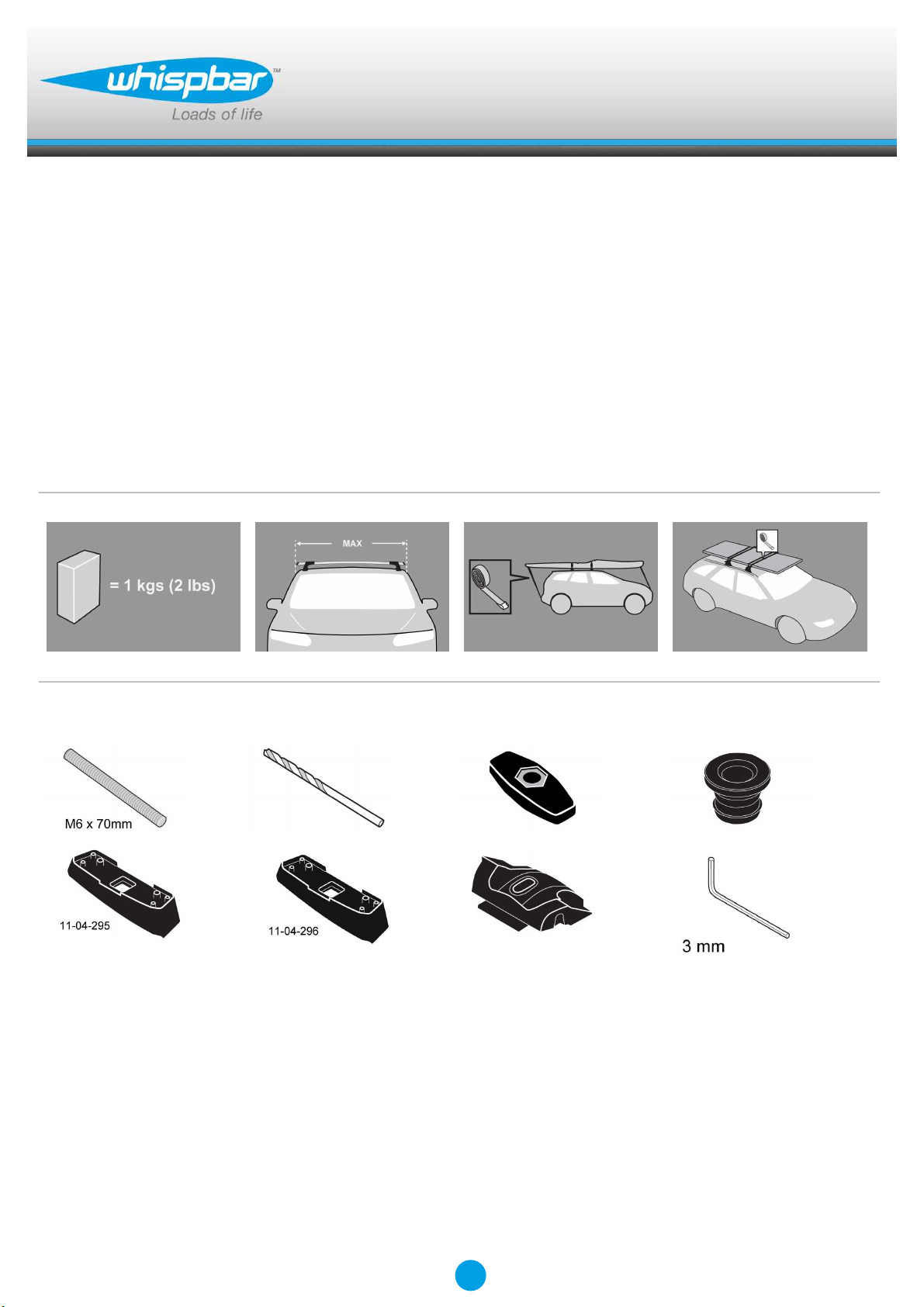

EN Fitting Instructions for Basic Carrier

x 4 x 1 x 4 x 4

x 2 x 2 x 4 x 1

Revision No: 5E 1

Fitting Kit K694W

MAX kgs (lbs)

W/P WHD

Mazda

2 , 5dr Hatch 15-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

2 , 5dr Hatch 15-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)

2 , 5dr Hatch 15-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)

3 , 4dr Sedan 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

3 , 4dr Sedan 14-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

3 , 4dr Sedan 14-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

3 , 4dr Sedan 14-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

6 , 4dr Sedan 12-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

6 , 4dr Sedan 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

6 , 4dr Sedan 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

6 , 4dr Sedan 12-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K694W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K694W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Attaches to factory-fitted mounting points

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

Fitting Kit EN

K694W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K694W

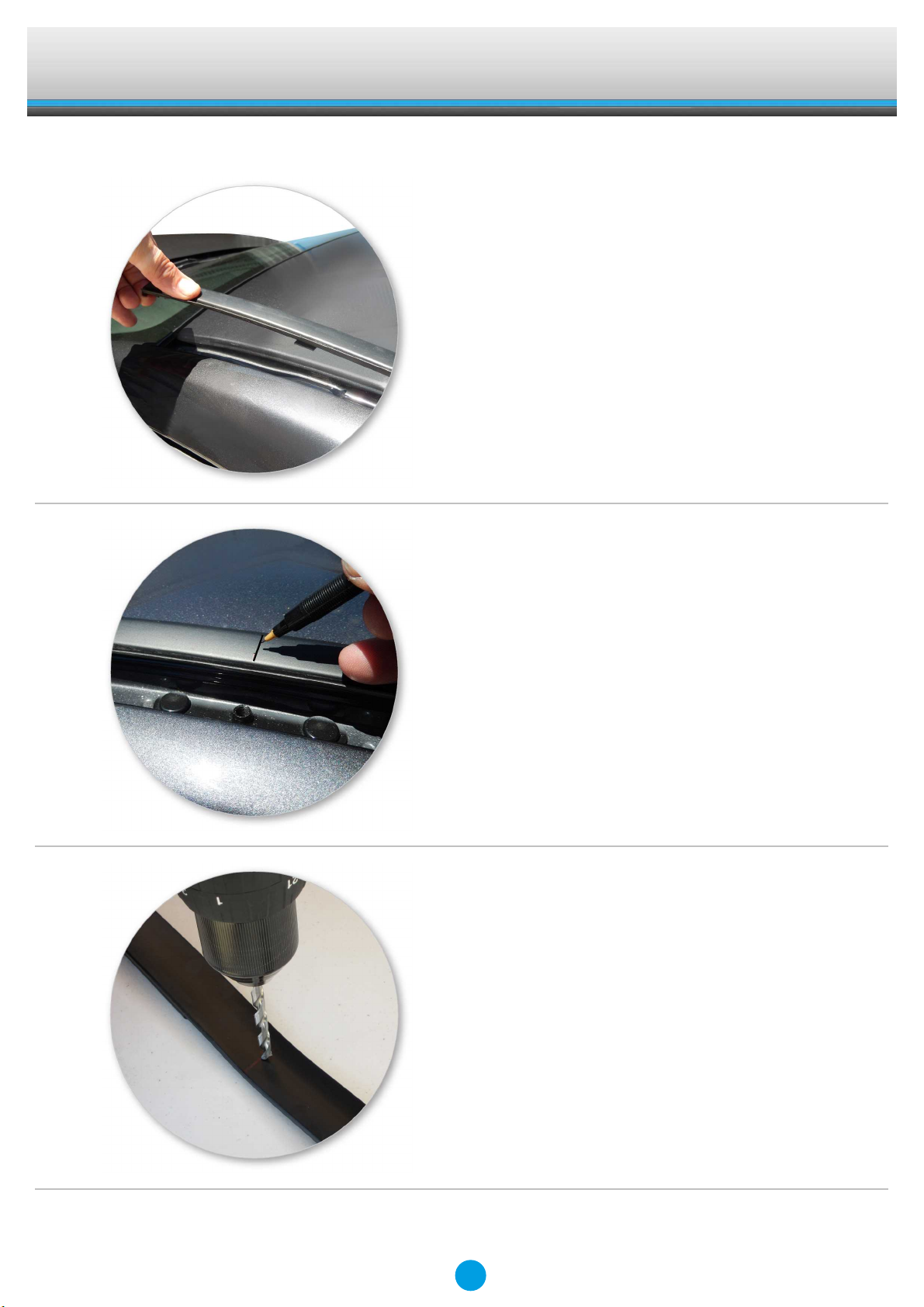

Fitment

●Lift and pull ditch moulding back towards

you and remove from the vehicle.

●Mark a reference point for the front and

rear mounting points with a pen as shown.

●Use drill bit supplied, to drill holes in

marked positions.

Fitting Kit EN

K694W

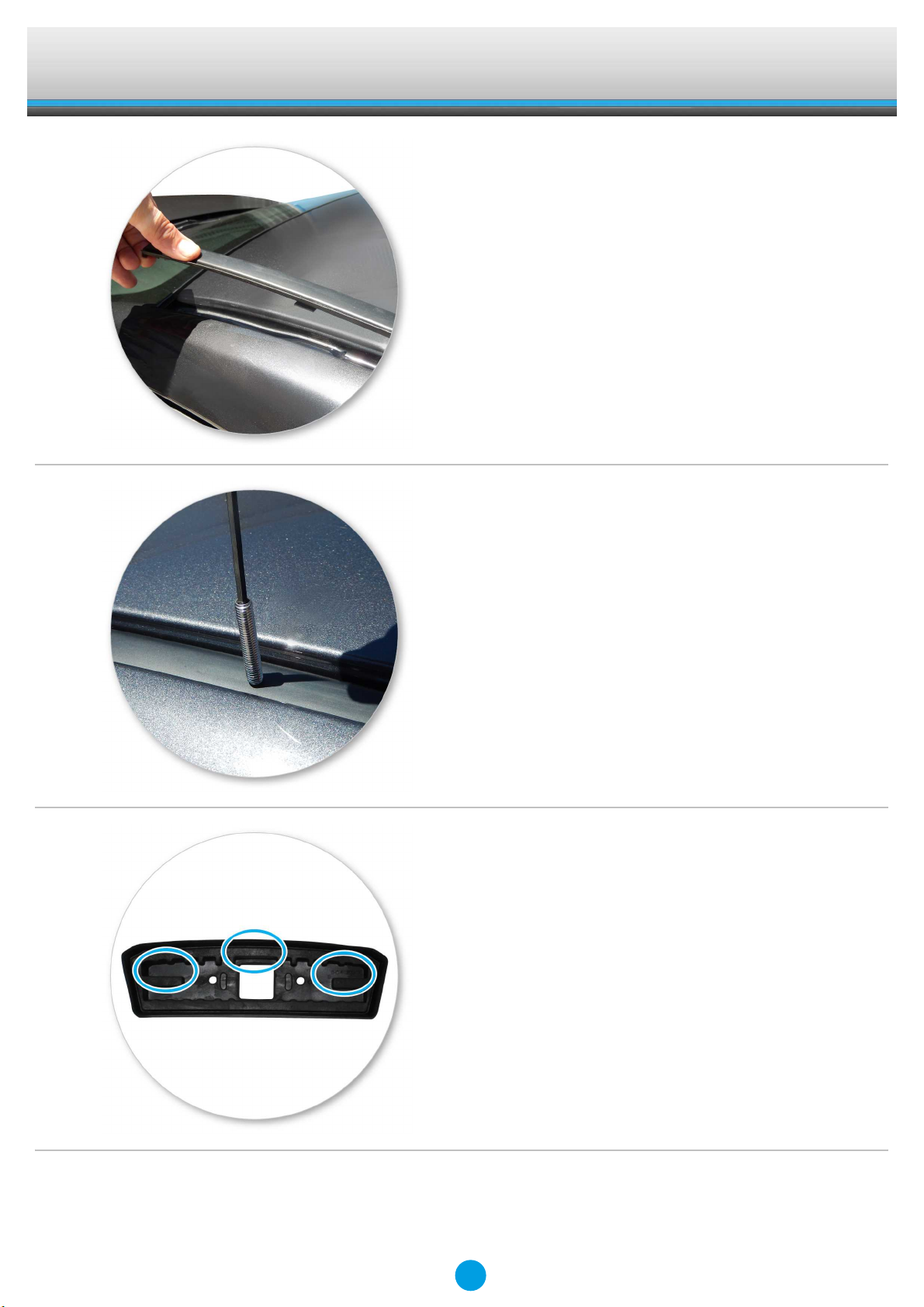

●Re-install rubber ditch mould back into roof

channel and click into place.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

●Refer to the underside of the pad for the

part number.

Fitting Kit EN

K694W

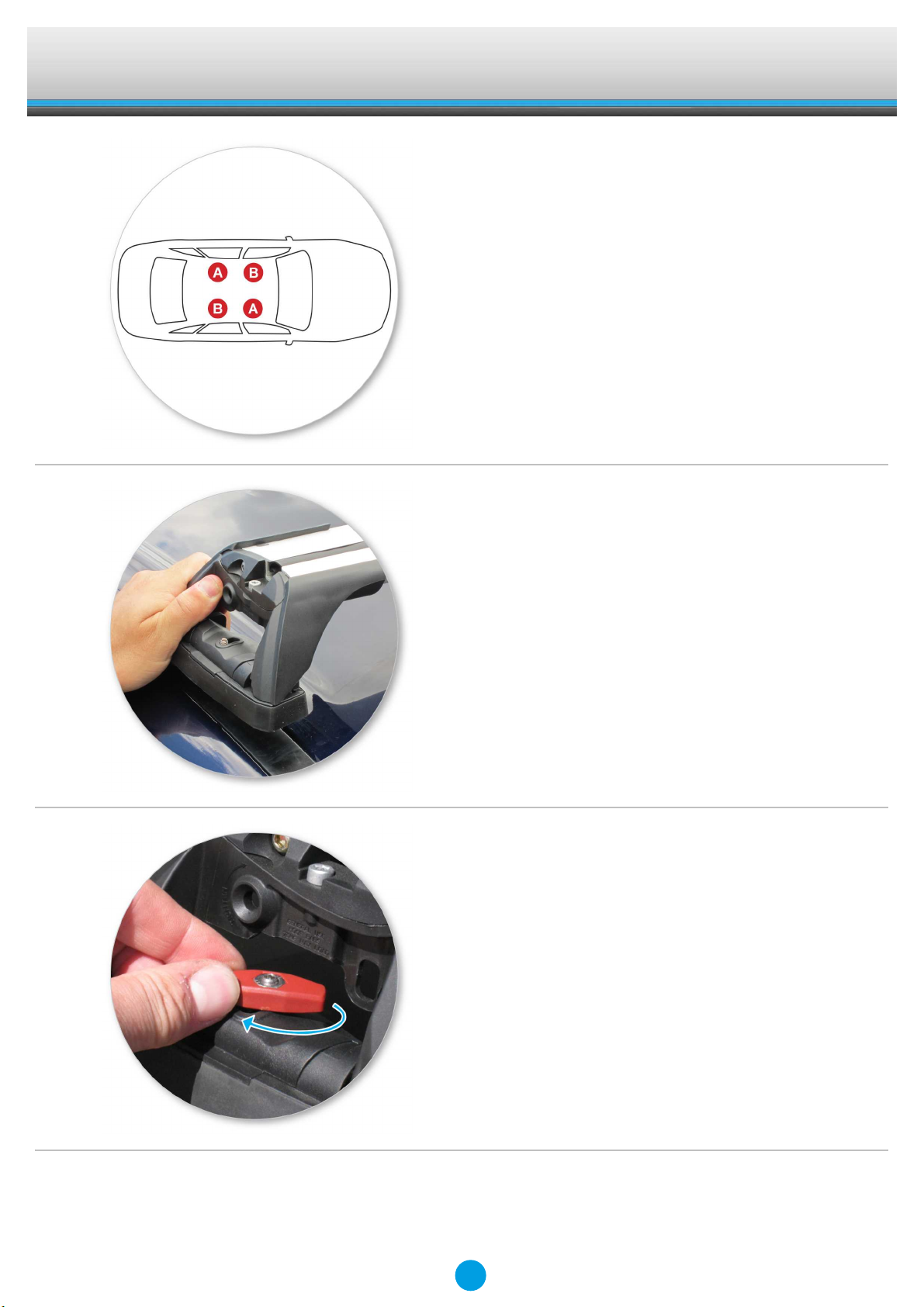

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 295A

B = 296A

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

●Repeat for all four positions.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

Fitting Kit EN

K694W

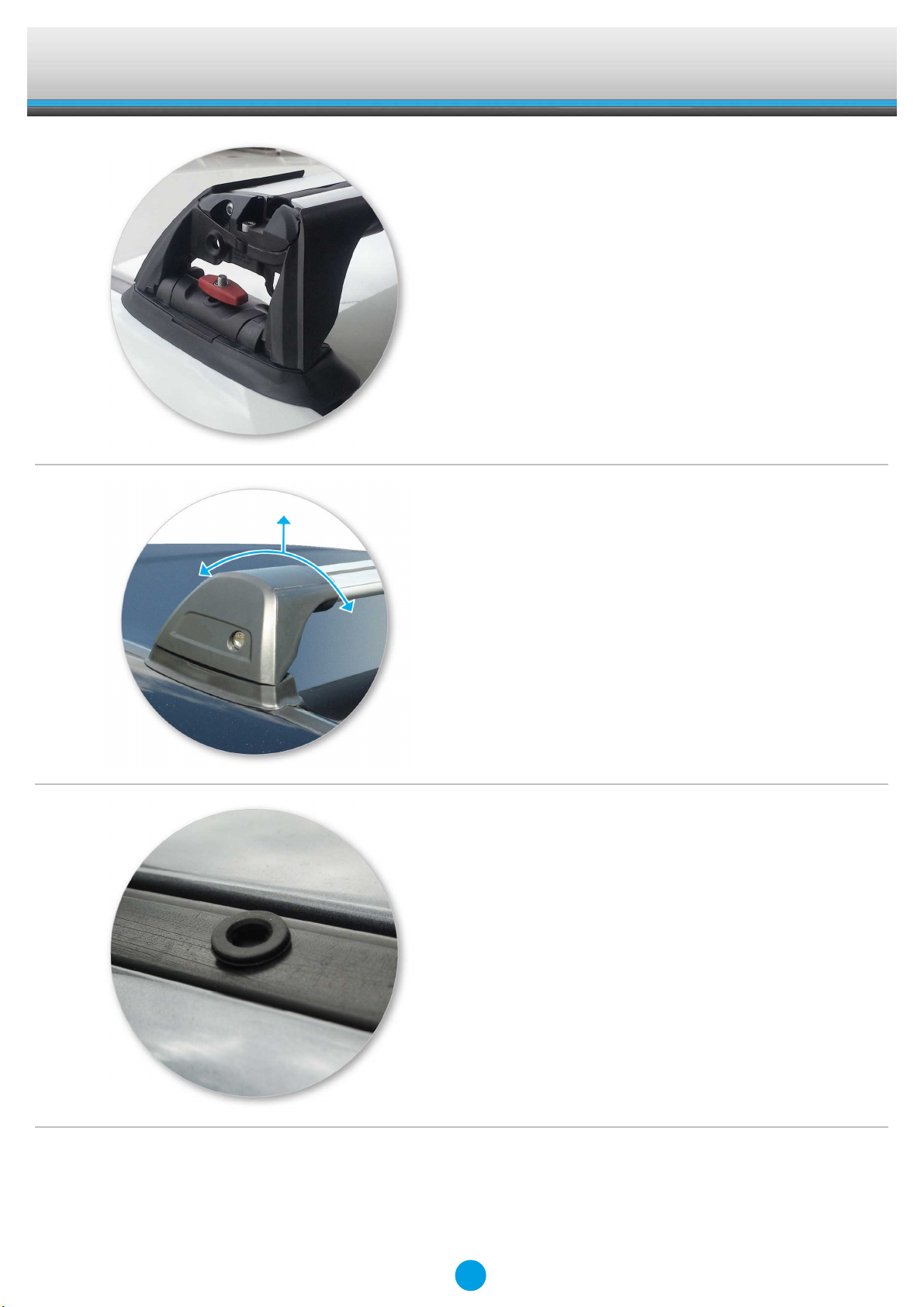

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

●If crossbars are removed, please install the

rubber plugs into the ditch moulding.

Fitting Kit EN

K694W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
