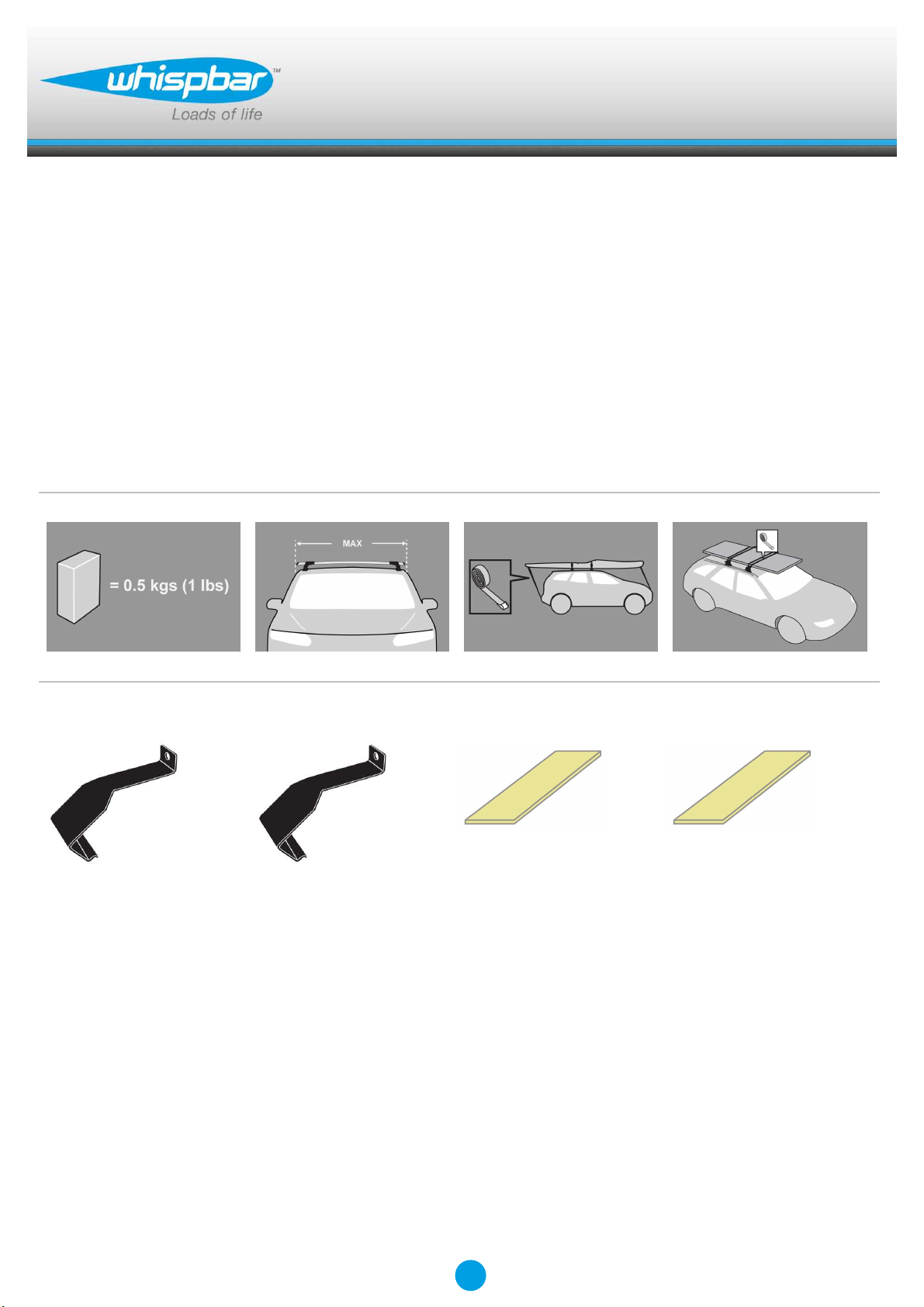

Whispbar K193W Manuel utilisateur

K193W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 2 x 2

Revision No: 4D 1

Fitting Kit K193W

MAX kgs (lbs)

W/P WHD

Holden

Caprice, 4dr Sedan 06-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Caprice, 4dr Sedan 06-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Commodore VE, 2dr Ute Oct 07-13 NZ 25 kgs (55 lbs) 25 kgs (55 lbs)

Commodore VE, 2dr Ute Sep 07-13 AU 25 kgs (55 lbs) 25 kgs (55 lbs)

Commodore VF, 2dr Ute 13-+ AU 25 kgs (55 lbs) 25 kgs (55 lbs)

Commodore VF, 2dr Ute 13-+ NZ 25 kgs (55 lbs) 25 kgs (55 lbs)

Statesman WM, 4dr Sedan 06-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Statesman WM, 4dr Sedan 06-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K193W

A B C 1 2 3

Caprice, 4dr Sedan 06-+ (AU) -280mm 420mm - 934mm 915mm -

-11" 16 9/16ths" - 36 3/4ths" 36" -

Caprice, 4dr Sedan 06-+ (NZ) -280mm 420mm - 934mm 915mm -

-11" 16 9/16ths" - 36 3/4ths" 36" -

Commodore VE, 2dr Ute Oct 07-13 (NZ) -280mm - - 950mm - -

-11" - - 37 3/8ths" - -

Commodore VE, 2dr Ute Sep 07-13 (AU) -280mm - - 950mm - -

-11" - - 37 3/8ths" - -

Commodore VF, 2dr Ute 13-+ (AU) -280mm - - 950mm - -

-11" - - 37 3/8ths" - -

Commodore VF, 2dr Ute 13-+ (NZ) -280mm - - 950mm - -

-11" - - 37 3/8ths" - -

Statesman WM, 4dr Sedan 06-+ (NZ) -280mm 420mm - 955mm 928mm -

-11" 16 9/16ths" - 37 5/8ths" 36 9/16ths" -

Statesman WM, 4dr Sedan 06-+ (AU) -280mm 420mm - 955mm 928mm -

-11" 16 9/16ths" - 37 5/8ths" 36 9/16ths" -

Fitting Kit EN

K193W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K193W

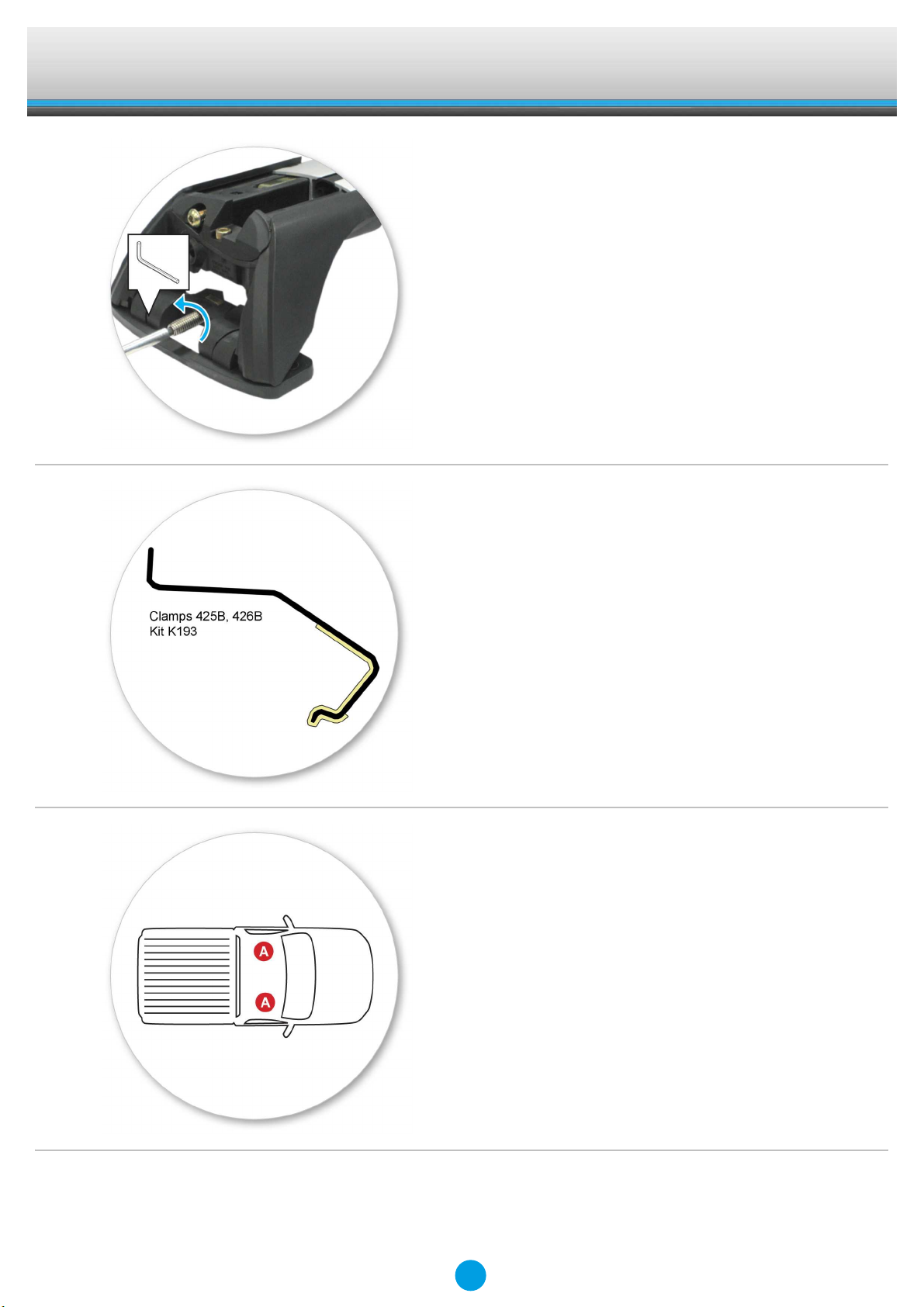

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K193W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●This setup is applicable for one crossbar

only.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 425B

Fitting Kit EN

K193W

●This setup is applicable for two crossbars

only.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 425B

B = 426B

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

Fitting Kit EN

K193W

●Fit rubber pad (supplied with crossbar) to

foot.

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the front of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K193W

●Clamps over body trim.

●A= Clamp

B= Roof line

C= Body trim

D= Protective strip

●Press adjusting screw to adjust the leg

positions on the crossbar.

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

Fitting Kit EN

K193W

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers
