Whispbar K707W Manuel utilisateur

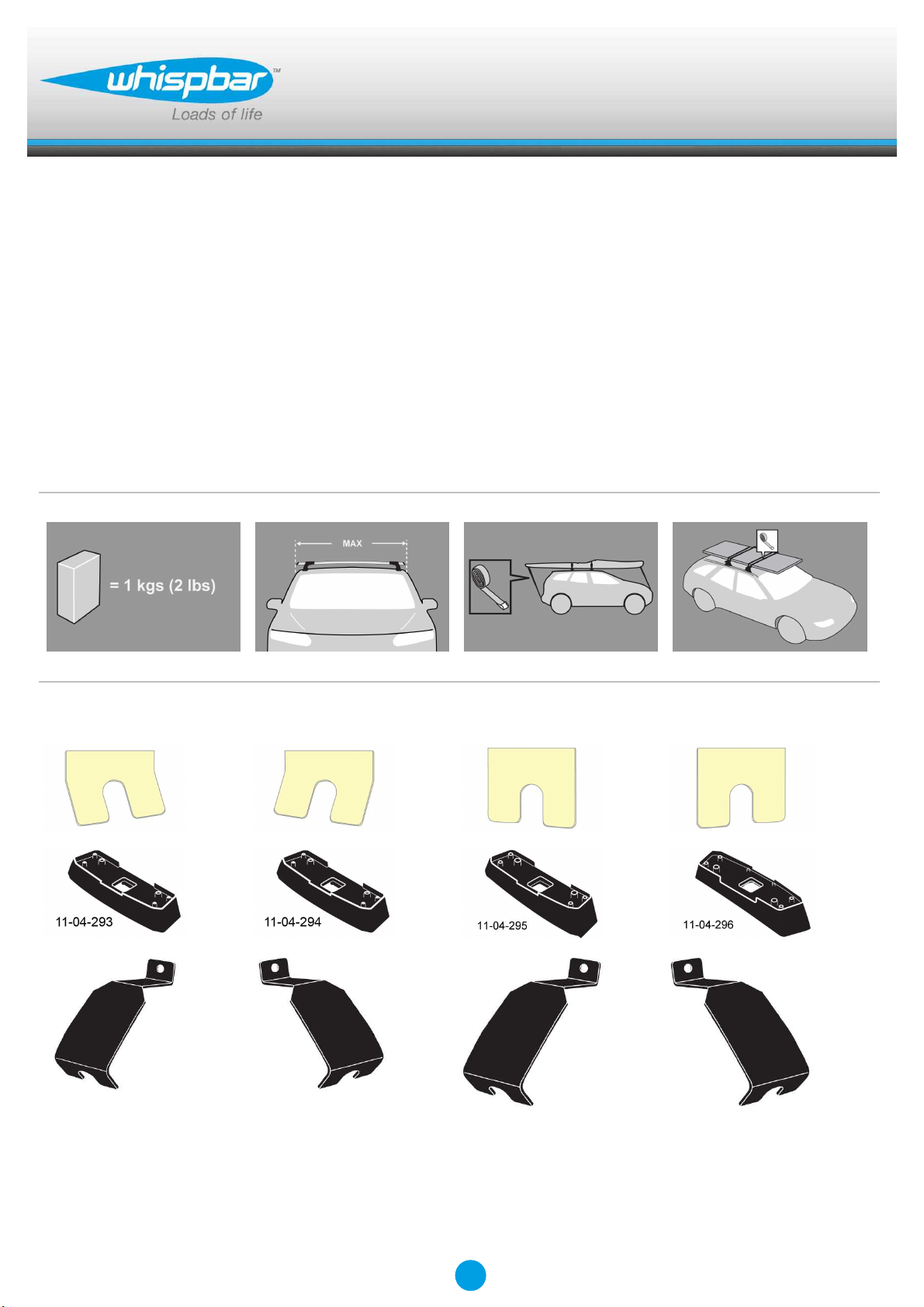

K707W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 1 x 1 x 1 x 1

Revision No: 2A 1

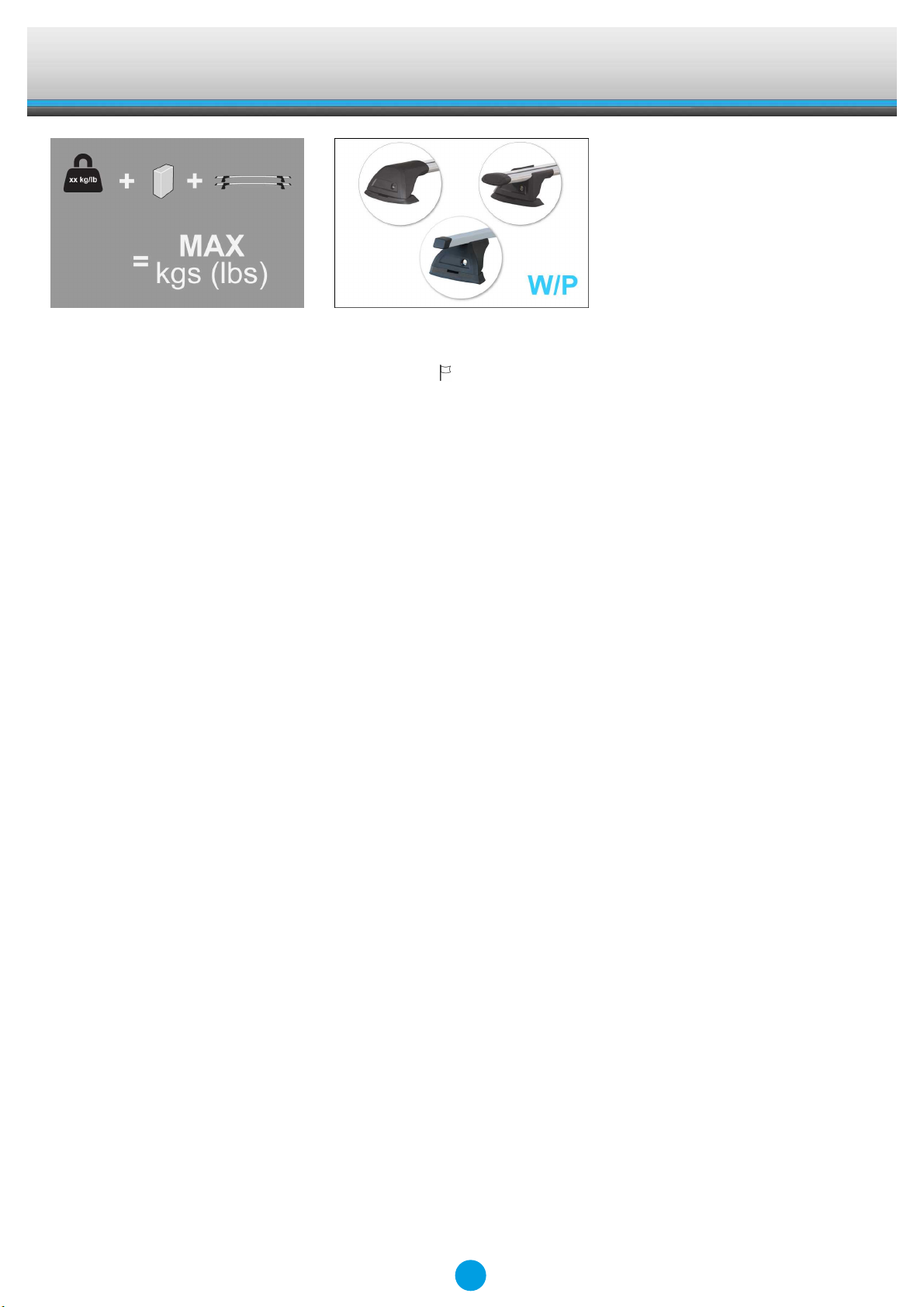

Fitting Kit K707W

MAX kgs (lbs)

W/P WHD

Audi

A7 , 5dr Liftback 11-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

A7 , 5dr Liftback 11-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)

A7 , 5dr Liftback 11-+ ZA 50 kgs (110 lbs) 50 kgs (110 lbs)

A7 , 5dr Liftback 11-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)

A7 , 5dr Liftback 11-+ US 50 kgs (110 lbs) 50 kgs (110 lbs)

Fitting Kit EN

K707W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K707W

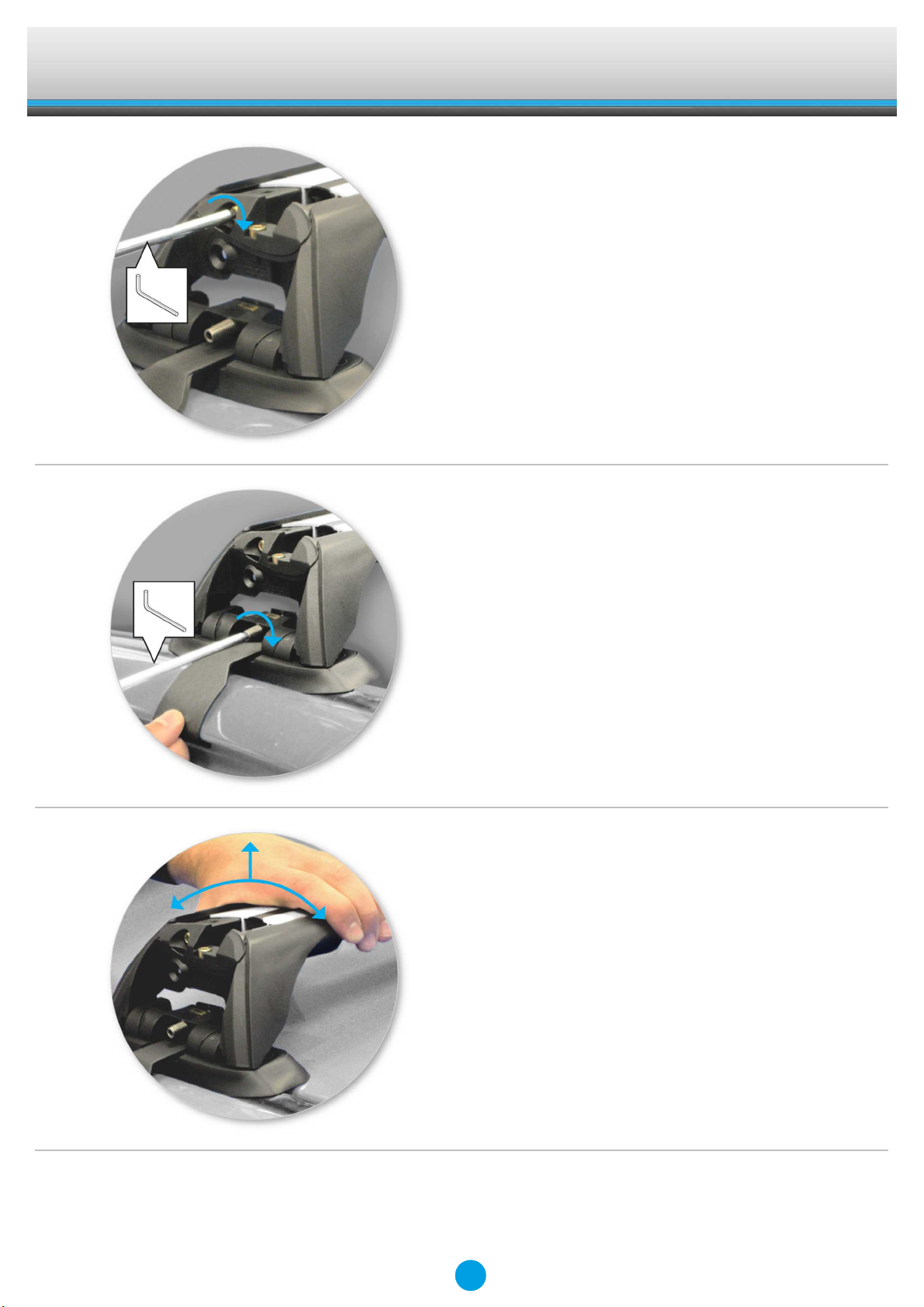

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K707W

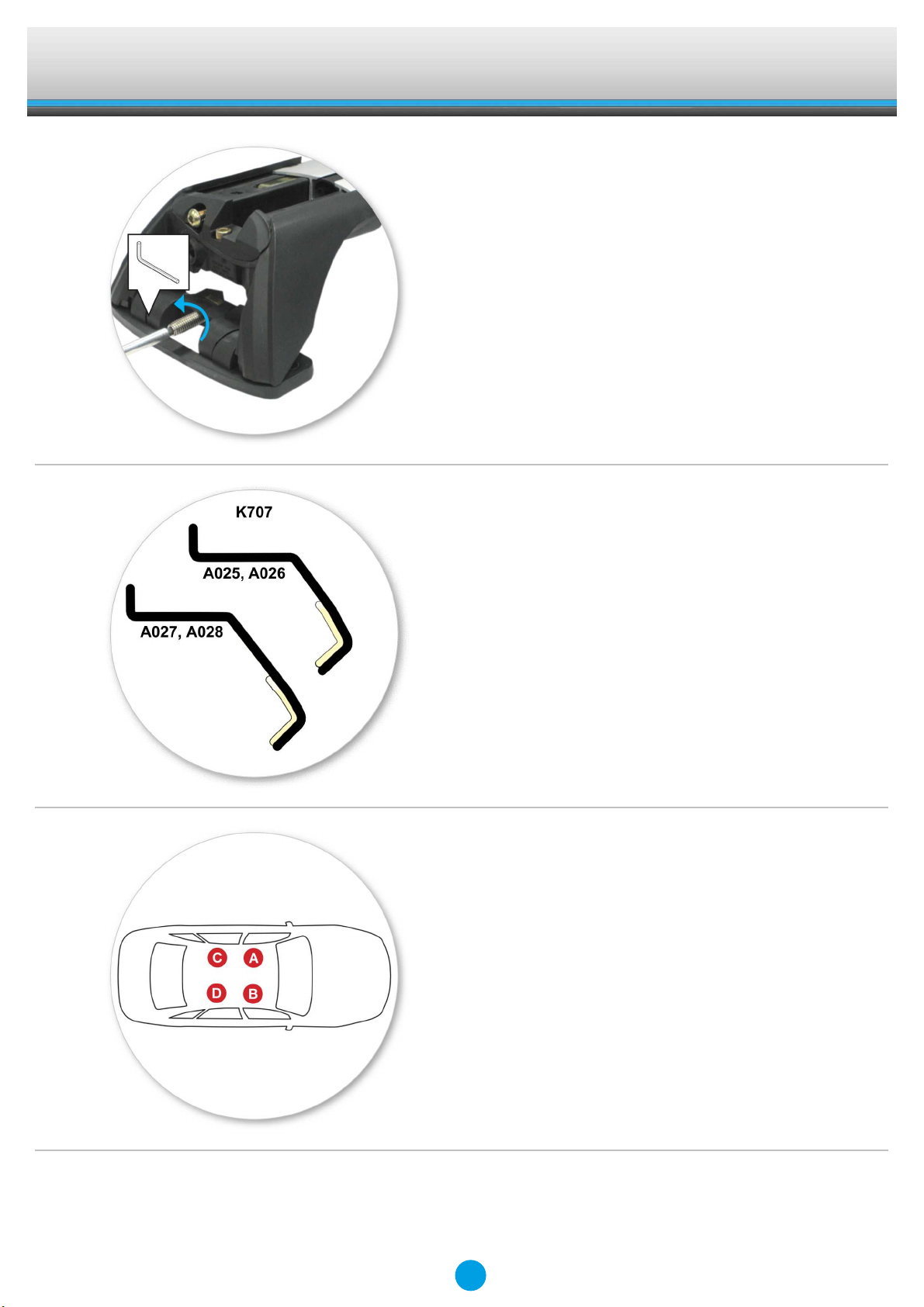

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = A025

B = A026

C = A027

D = A028

Fitting Kit EN

K707W

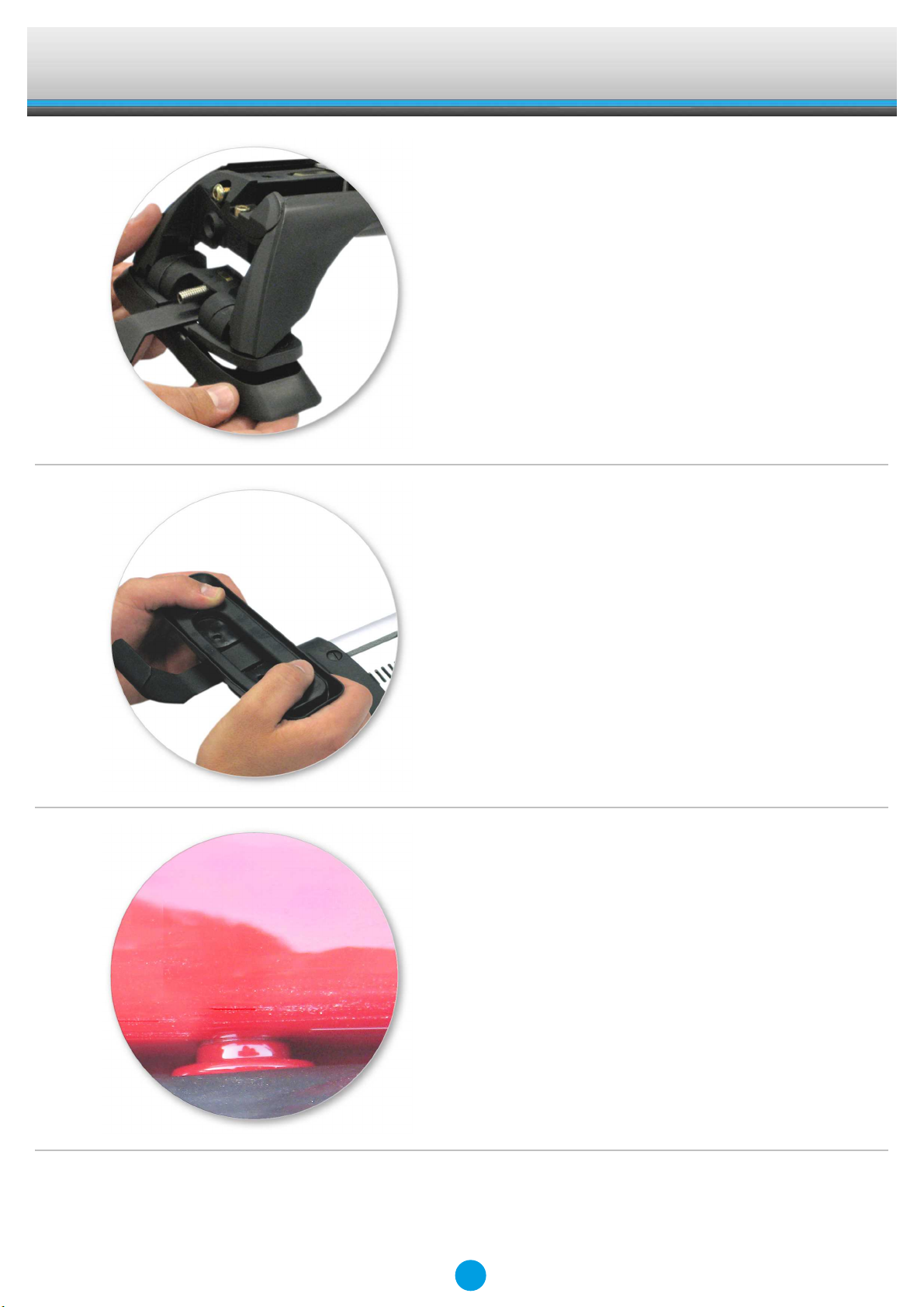

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 293A

B = 294A

C = 295A

D = 296A

Fitting Kit EN

K707W

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●Clamps onto anchor points under rubber

door frame mouldings

Fitting Kit EN

K707W

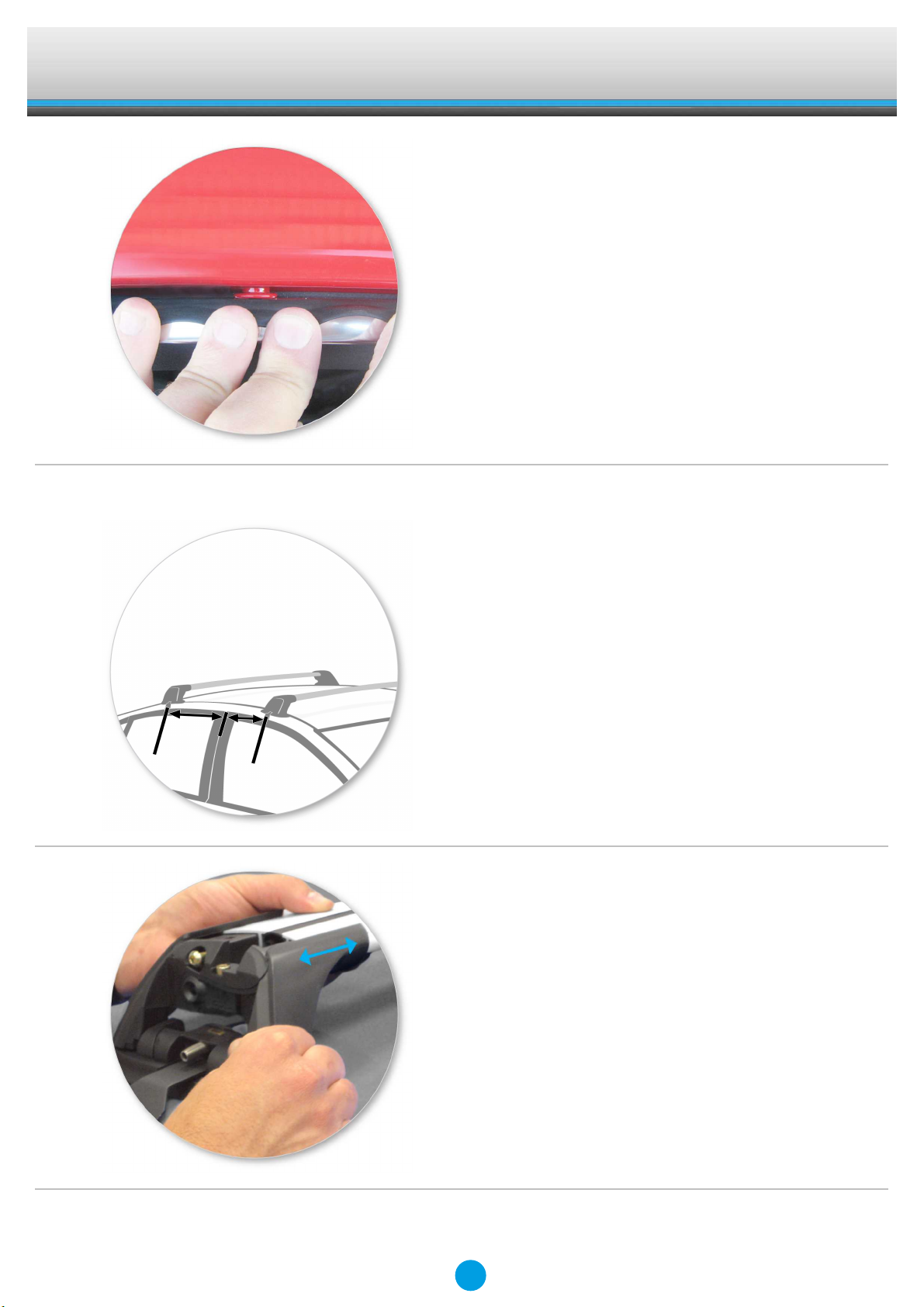

●The rubber seal must be peeled back from

the vehicle body to allow the clamp to be

inserted between the vehicle body and the

rubber seal.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Press adjusting screw to adjust the leg

positions on the crossbar.

Fitting Kit EN

K707W

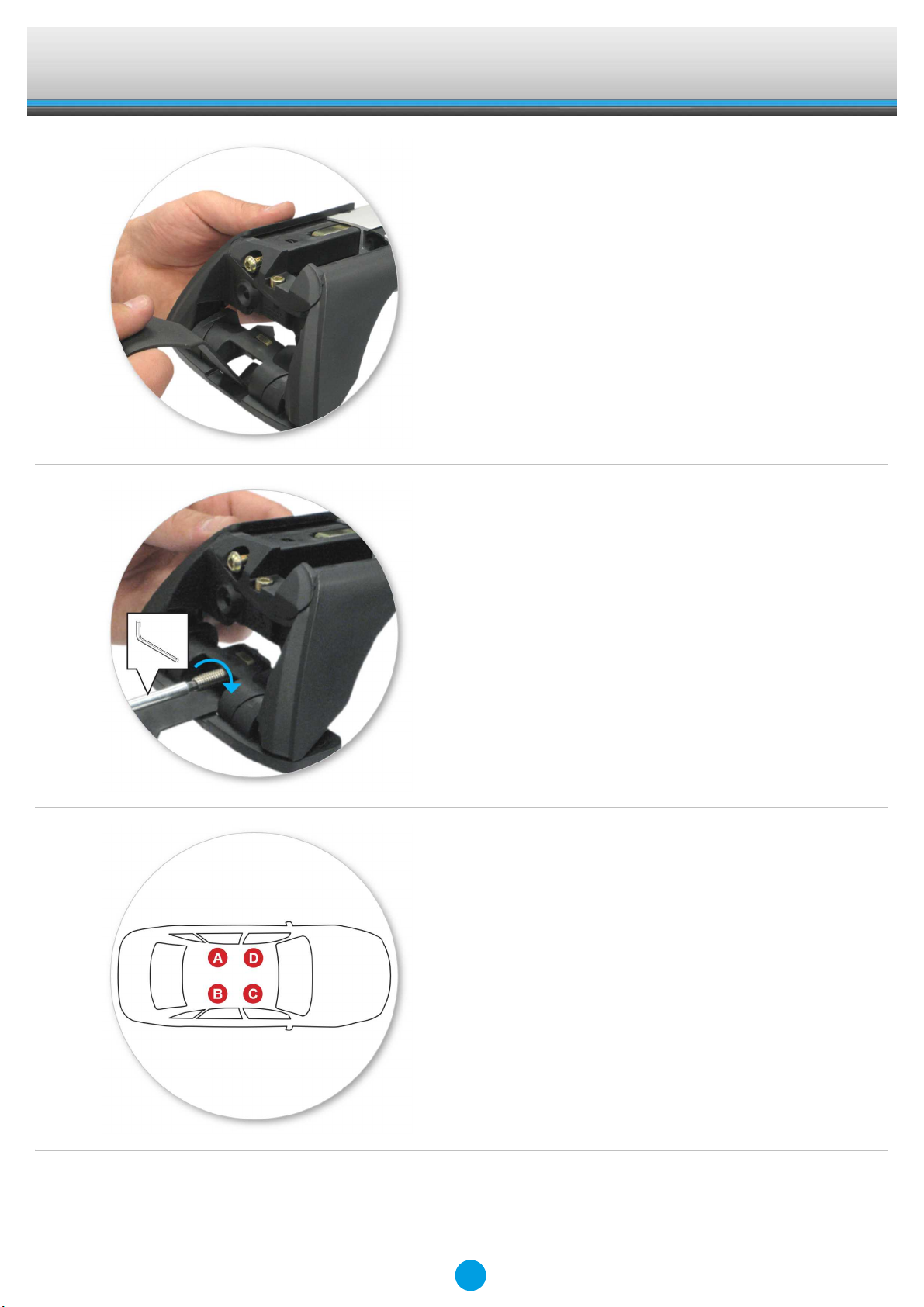

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Tighten locking screw on both legs evenly,

3 Nm (2.2 ft lb).

●Check crossbar is securely attached to the

vehicle.

Fitting Kit EN

K707W

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
