Whispbar PR3074 Manuel utilisateur
PR3074
Load Holder
EN Fitting Instructions for Basic Carrier
DMontageanleitung für Basisträgersystem
ES Instrucciones de montaje para el sistema de transporte.
FInstructions de montage pour Basic Carrier
NO Monteringsanvisning for takstativ
PT Instruções de Montagem para sistema de transporte.
RU Установочные Инструкции для Поперечных Балок

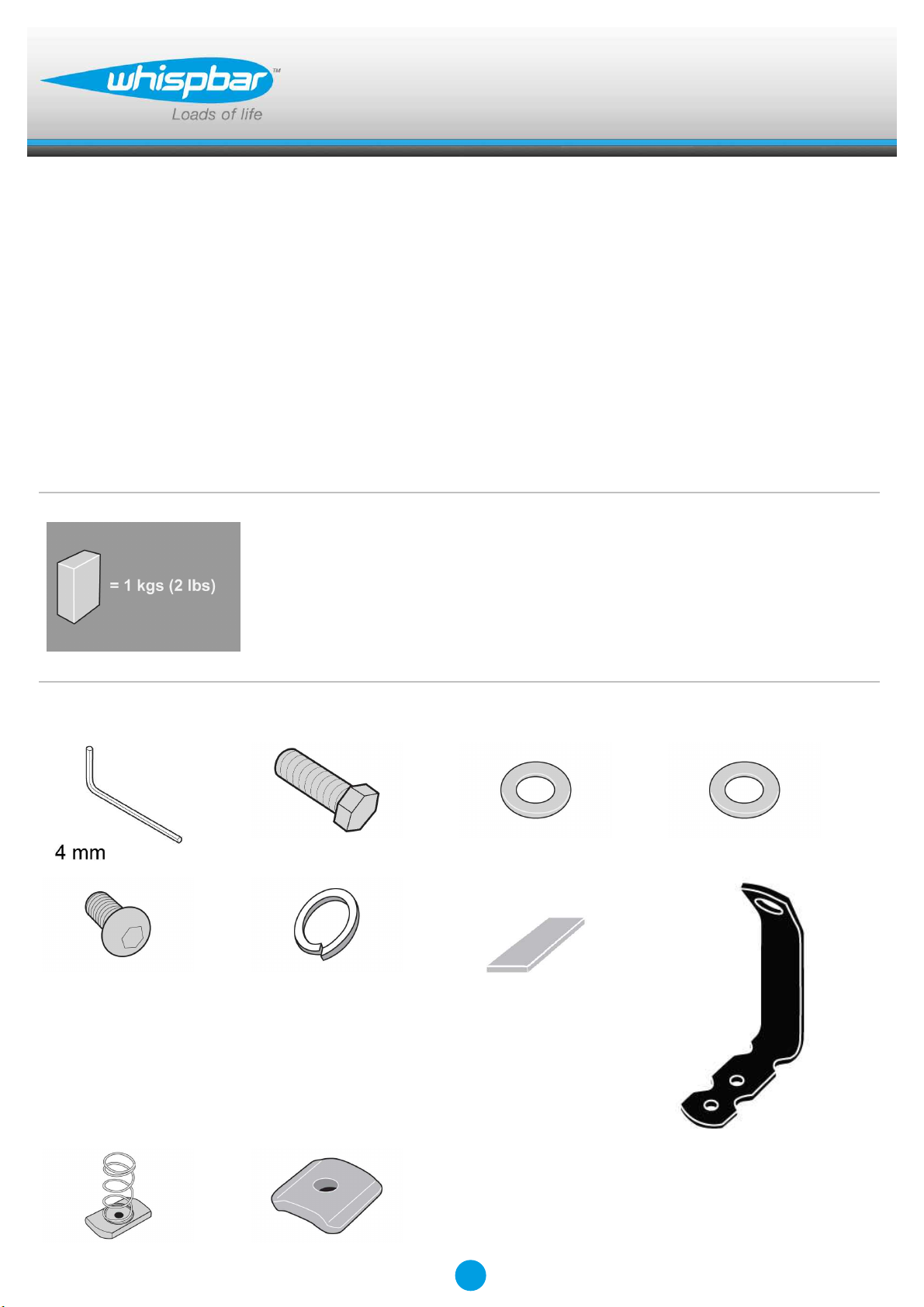

x 1 x 4 x 4 x 4
x 4 x 4 x 4 x 2
x 4 x 4
Revision No: 3C 1
Load Holder EN
PR3074
First Time Installation

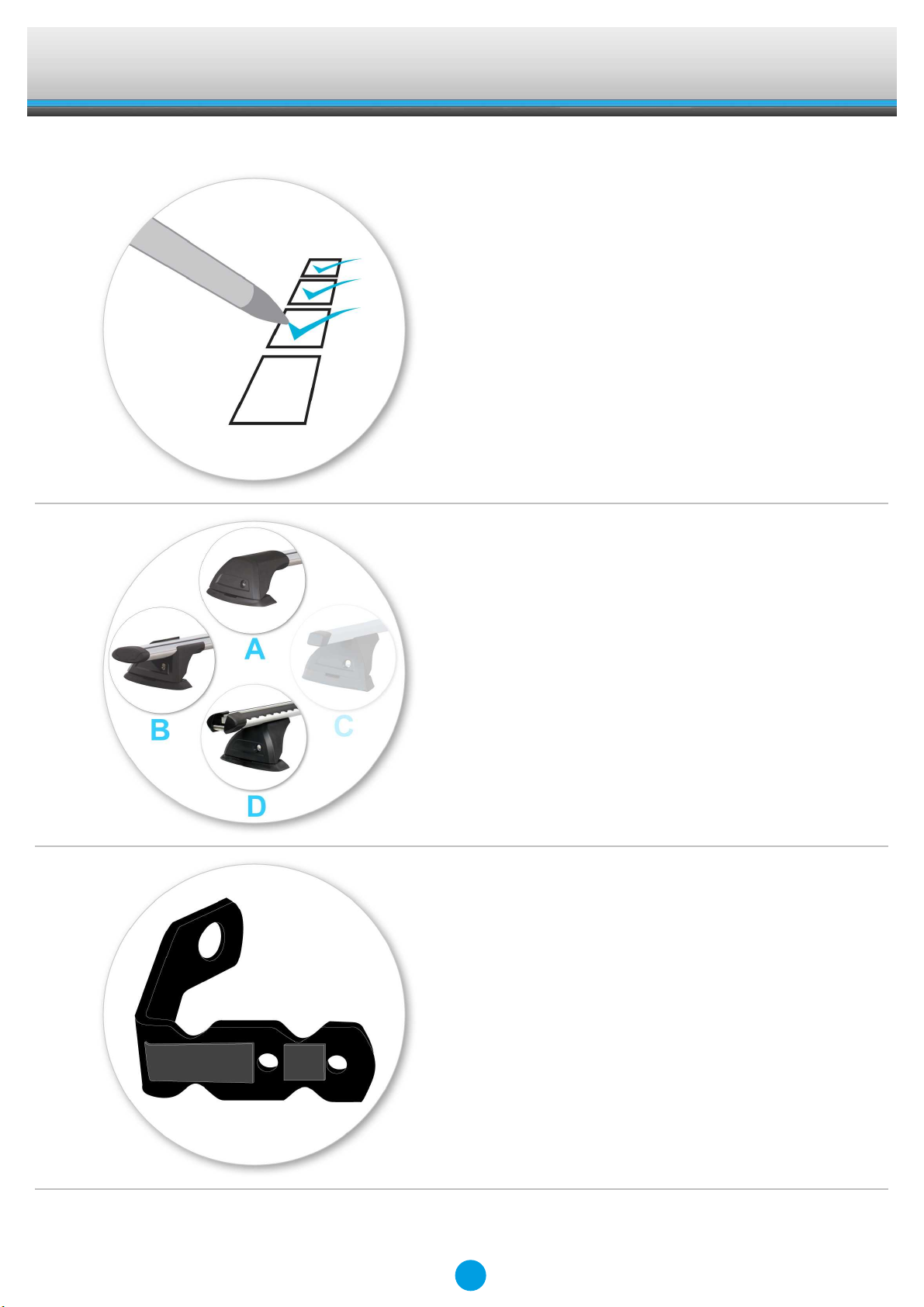

●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A , B and D only.
●Cut grey protective strip to size. Apply as
shown.
2
Load Holder EN
PR3074

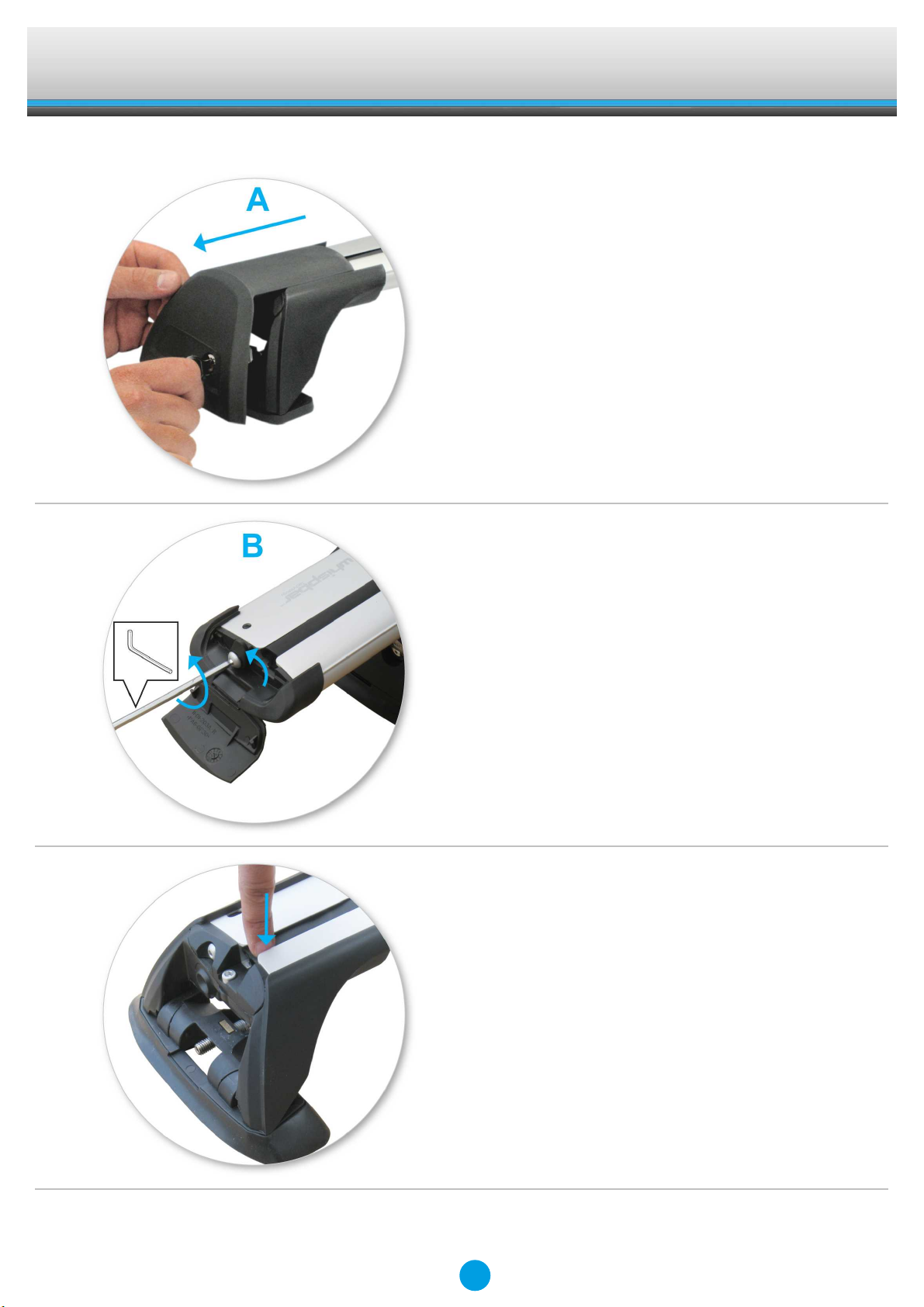

For type A and B crossbars only.
●For type A, remove cover with keys.
●For type B, unfasten security screw with an
Hex Key and lift the accessory tab up.
●Push down rubber infill.
3
Load Holder EN
PR3074
●Slide square nut along channel.
●Position where you want the accessory to
be.
●Repeat for all four positions.

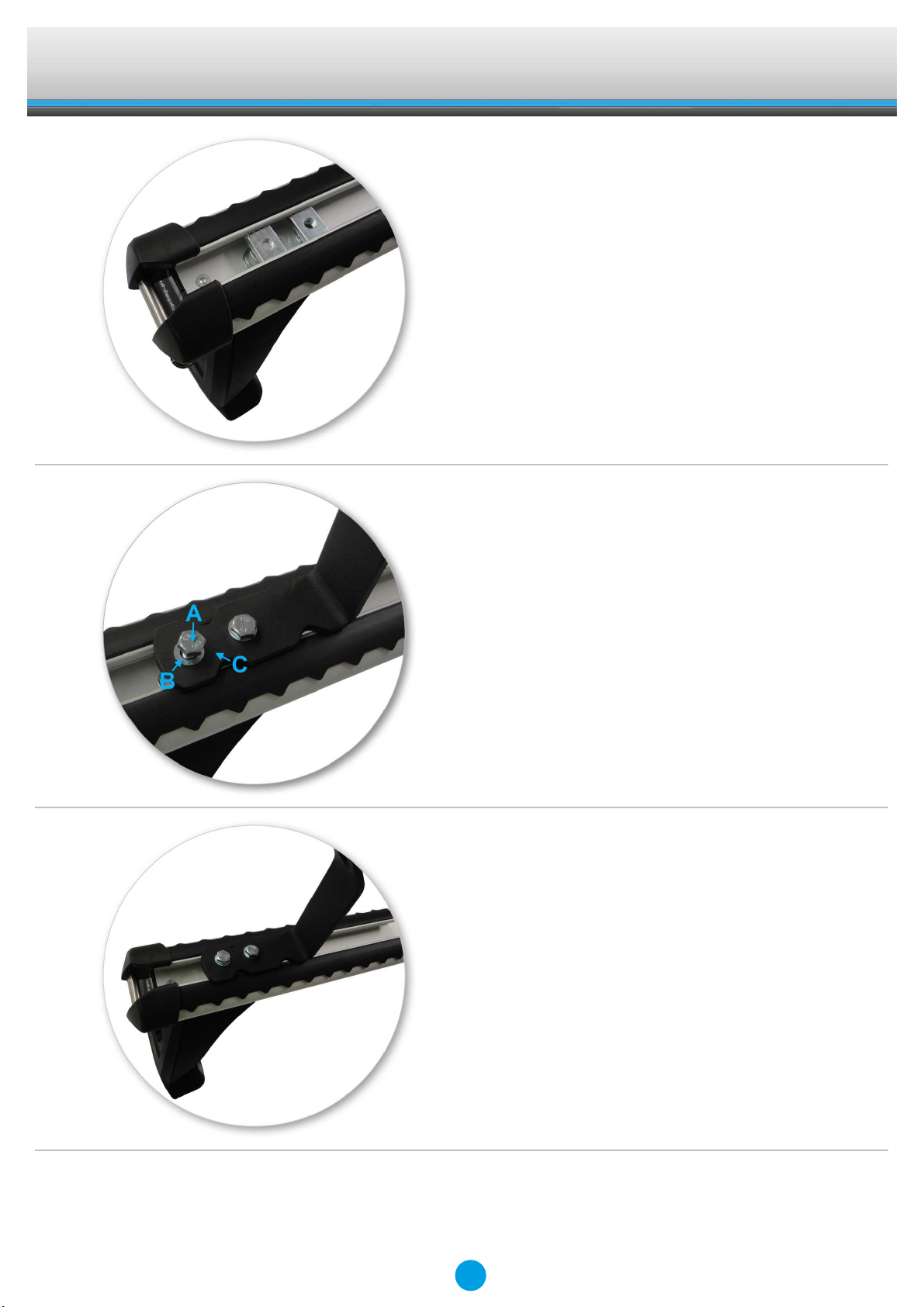

●Assemble as shown.
●Ensure spring washer (B) is between
standard washer (C) and the head of the
screw (A),
4
Load Holder EN
PR3074
●Attach capscrew with the Hex Key. Do not
fully tighten.
●Repeat for both holders.
●Tighten all screws.

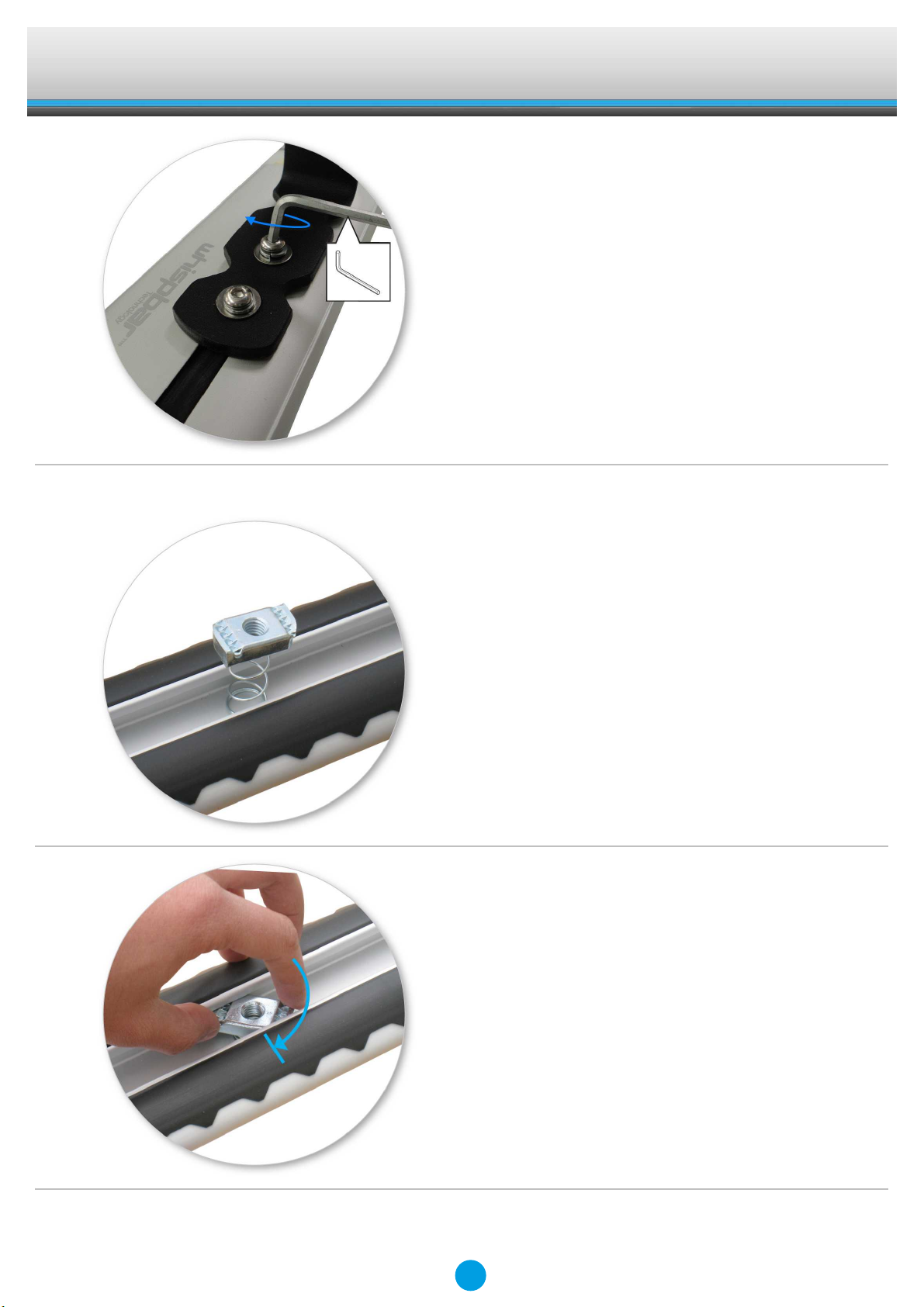

For type D and Tradesman crossbars only.
●Place spring nut into crossbar channel.
●Position where you want the accessory to
be.
●Push down and twist spring nut to lock into
place.
5
Load Holder EN
PR3074
●Repeat for all four positions.
●Place washer (B) between the load holder
(C) and the head of the bolt (A).
●Repeat for both holders.
●Screw the bolt into the nut to secure the
load holder.
6
Load Holder EN
PR3074
Maintenance
●Clean the car roof and surfaces of the
product that will be in contact with the car
roof.
●Follow the fitting instructions for fitting the
product to your vehicle. Make sure all steps
are carried out in order.
●Set crossbars a minimum distance of
700mm (27 1/2") apart where no other
distance is specified in the fitting
instructions. This is especially important
when carrying long loads.
●Check unit is securely attached whenever
you refit it to the vehicle. If the unit feels
loose, refer to the fitting instructions and
readjust.
●Some glass/panoramic roofs and radio
antennae may not be able to be used when
the product is fitted.
●Do not modify this product.
●Refer to the maximum permitted load
capacity specified in the fitting instructions.
Do not exceed the vehicle manufacturers
roof load rating if it is lower than the
maximum load capacity specified in the
fitting instructions.
●Loads should not overhang the sides of the
product and be evenly distributed with the
lowest possible centre of gravity.
●Long loads should be secured with non-
elastic straps to the front and rear of the
vehicle.
●Objects with pointed ends (e.g. ski poles)
should be carried with the pointed ends to
the rear of the vehicle.
●Remove all loose or removable objects
from the load prior to loading.
●Make sure all loads are securely fastened
with non-elastic straps. Check regularly
during longer journeys.
●A loaded roof rack system can alter the
performance of your vehicle. Be especially
aware of the effects of side winds,
changing of direction, and braking
performance. Avoid rapid acceleration and
deceleration. Drive carefully.
●Note that the total height of the vehicle
increases when upright loads are carried.
●Products should be locked during transport
if they have locks fitted.
7
Load Holder EN
PR3074
●Check and replace worn out or defective
parts.
●Keep the product clean and maintained.
●Never drive into a car wash with the roof
rack system fitted.
●Lubricate locks and adjusting screws at
regular intervals.
●Remove the products from the vehicle
when not in use. Make sure all loose parts
are stored safely.
●Yakima Products, Inc.
15025 SW Koll Pkwy.
Beaverton, OR 97006-6056
USA
www.whispbar.com
www.whispbar.ca
www.whispbar.eu
www.whispbar.co.uk
www.whispbar.co.za
8
Load Holder D
PR3074
Erstinstallation
●Komponenten aus der Verpackung
nehmen und überprüfen. Setzen Sie sich
mit Ihrem Händler in Verbindung, sollten
Teile fehlen oder beschädigt sein!
●Dieses Kit ist nur für die Typen A, B und D.
●Grauen Sicherheitsstreifen zurecht
schneiden. Wie gezeigt anbringen.
9
Load Holder D
PR3074
Dachträger ausschließlich für Typ A und B
●Entfernen Sie bei Typ A die Abdeckung mit
den Schlüsseln.
●Lösen Sie bei Typ B die
Sicherheitsschraube mit einem
Innensechskantschlüssel und klappen Sie
den mitgelieferten Aufhänger hoch.
●Drücken Sie die Gummifüllung herunter.
10
