COOKTOP PARTS
1
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8/07 Litho in U.S.A. (cre) Part No. 8186652
30" Slide−In
GAS OVEN
NON−CONV
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literaturre Parts
9761413 Installation
Instructiions
9762258 Use & Care Guide
9761386 Tech Sheet
9757680 Anti−Tip Instruct.
3191638 Safe Cooking Tips
9759133 Safe Cooking Tips
2 9759523 Burner Box
3 4454023 Bracket, Mounting
4 Cooktop
9760428BT
Biscuit
9760428WH
White
9760428BL
Black
5 3400843 Screw
6 Trim−CkTop, SI
9759531WH
White LH
9759531BT
Biscuit LH
9759531BL
Black LH
9759531SS
S.Steel LH
9759530WH
White RH
9759530BT
Biscuit RH
9759530BL
Black RH
9759530SS
S.Steel RH
7 3196537 Screw
8 4453989 Shield, Heat
9 3192811 Bracket, Burner
10 9756821 Support, Wiring
11
9756505BL
Dome Cap, Vent
12 Grate, Burner
9759756BL
Black (RH)
9759756EP
Espresso (RH)
9759756MG
Mouse Grey (RH)
9759755BL
Black (LH)
9759755EP
Espresso (LH)
9759755MG
Mouse Grey (LH)
13 4449809 Screw
14 3196160 Screw
16 9759944 Thermostat (60c)
17 Vent, Center
9760224BL
Black
9760224WH
White
9760224BT
Biscuit
18 Trim, Extension
9760520WH
White
9760520BT
Biscuit
9760520BL
Black
9760520SS
S.Steel
19 Cap, Burner
14K (LF)
9753939GB
Black
9753939EP
Espresso
9753939GS
Mouse Grey
12.5K (RR)
3191904 Black
3191905 Mouse Grey
8273345 Espresso
6K (RF, LR)
3191898 Black
3191899 Mouse Grey
8273343 Espresso
23 9759629 Cover, Cktp Rear

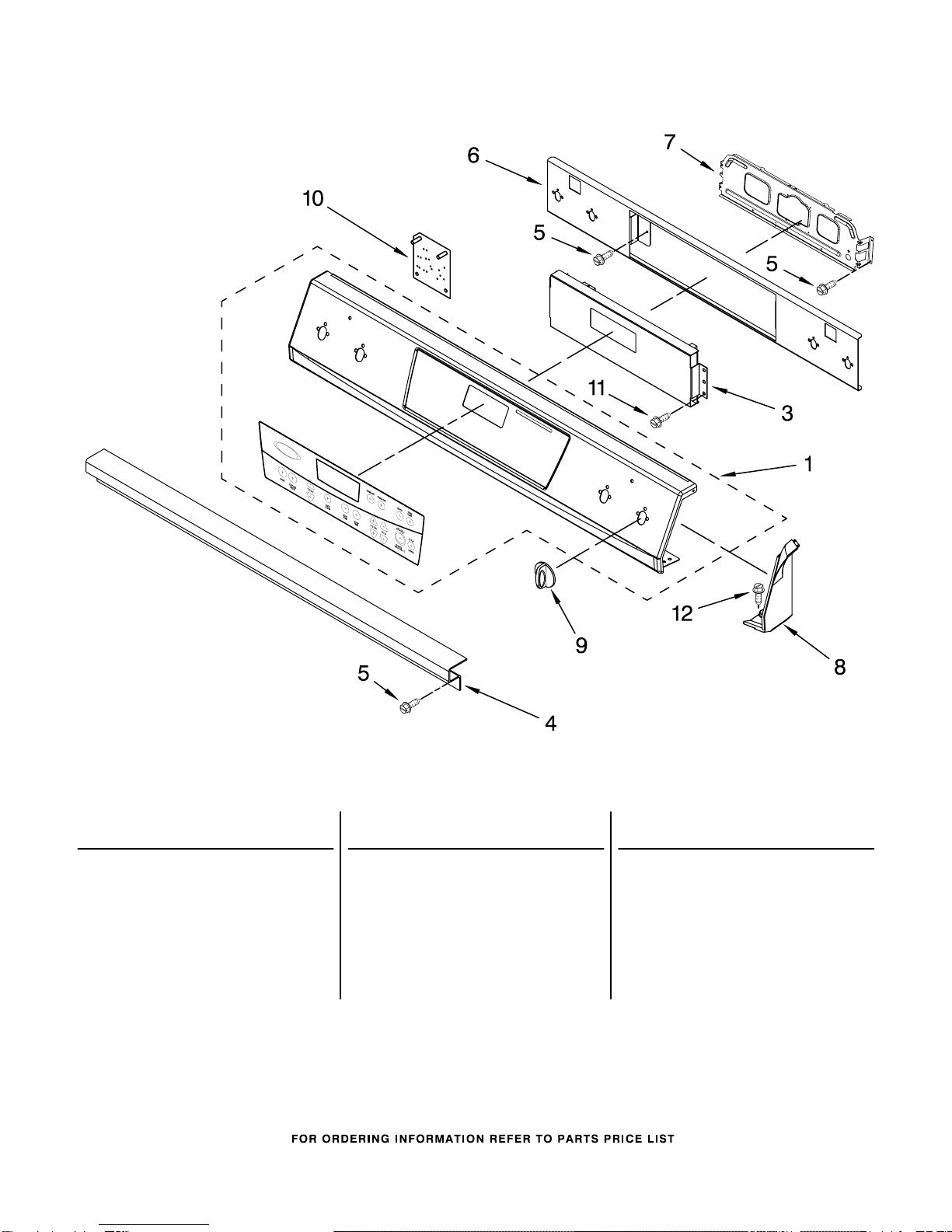

CONTROL PANEL PARTS
2
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8186652
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Control Panel
9756506WH
White
9756506BT
Biscuit
9756506BL
Black
9756506SS
S.Steel
3 9760013 Control, Migration
4 9757119 Bracket, Console
5 3196537 Screw
6 9759731 Bracket, Control
7 9757409 Support, Gas Valve
8 Endcap
9756614BT
Biscuit LH
9756614WH
White LH
9756614BL
Black LH
9756611BT
Biscuit RH
9756611WH
White RH
9756611BL
Black RH
9 Knob
9759941BL
Black
9759941WH
White
9759941BT
Biscuit
10 9758080 Module, Spark
11 9780271 Screw
12 3196172 Screw

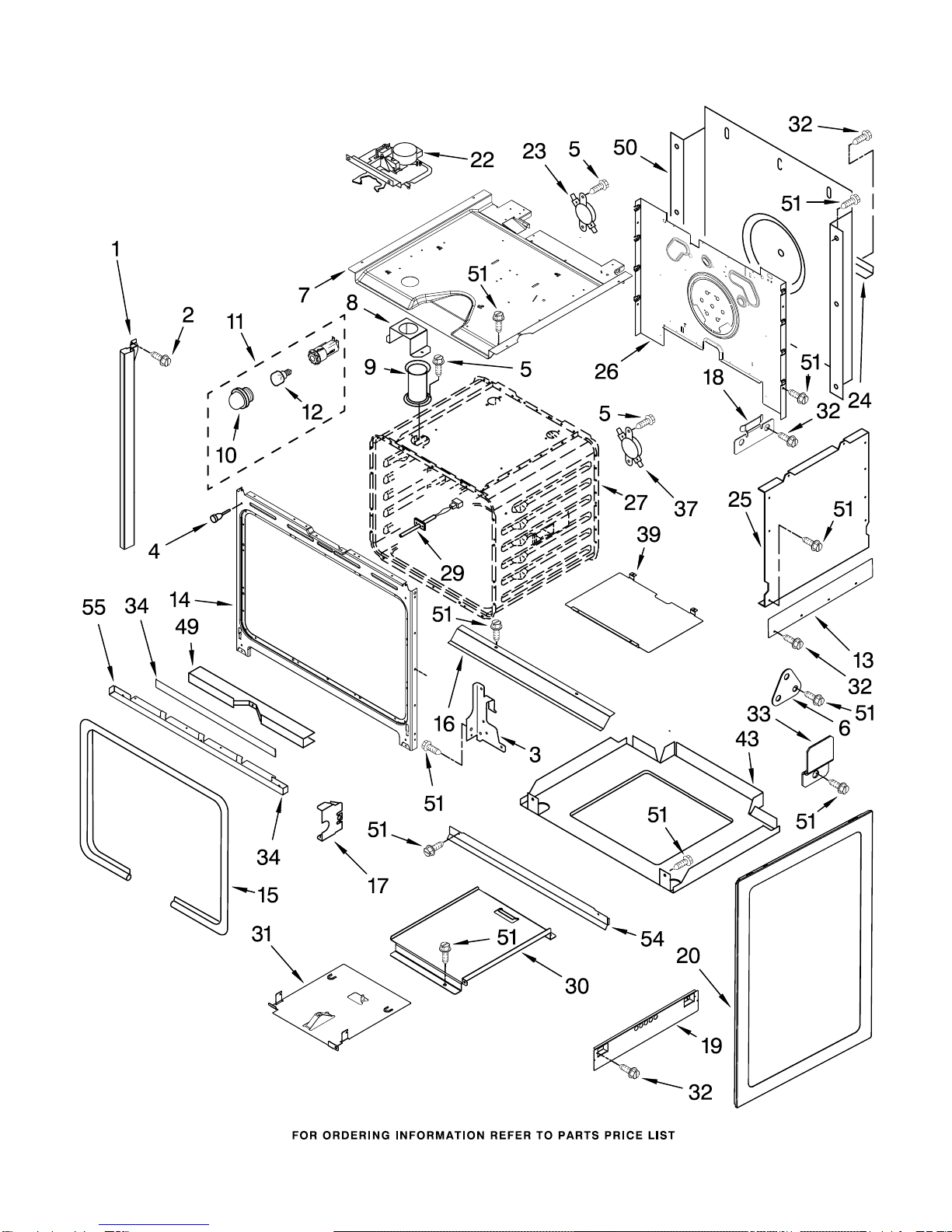

OVEN PARTS
3
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8186652
OVEN PARTS
4
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8186652
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Trim, Side
(Right Hand)
9757735WH
White
9757735BT
Biscuit
9757735BL
Black
9757735SS
S.Steel
(Left Hand)
9757734WH
White
9757734BT
Biscuit
9757734BL
Black
9757734SS
S.Steel
2 3400832 Screw
3 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
5 3196160 Screw
6 9757461 Bracket,Side Panel
7 8303099 Top Chassis
8 9759469 Bracket, Vent Sprt
9 9761062 Tube, Vent
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
13 9757732 Shield, Heat
14 9759060 Frame, Front
15 4455382 Gasket, Door
16 4453951 Deflector, Vent
Bottom
17 4452152 Bracket, Mounting
18 9757685 Guide, Side Panel
19 9757811 Brace, SidePanel
20 Oven, Side Panel
9760723PB
Black
9760723PW
White
9760723PC
Biscuit
22 9760888 Latch, Motorized
23 9757807 Thermostat SPST
(230)
24 8053971 Brace, Main Back
25 4455641 Side, Chassis
(R.H. & L.H.)
26 9759762 Back, Chassis
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
30 9756454 Bracket, GOC
31 9760223 Slide, GOC
32 3196537 Screw
33 9759890 Clip, Side Panel
34 9757717 Insulation
37 8300802 Thermostat (TOD)
(Temp.) SPST
39 9757070 Plate, Relectance
43 4453981 Base, Chassis
9756637 Gasket
49 4448933 Retainer, Gasket
50 4451747 Cover, Back
51 4449809 Screw
54 Vent, Bottom Upper
9756481WH
White
9756481BT
Biscuit
9756481BL
Black
9756481SS
S.Steel
55 Trim, Btm Vent
9756485WH
White
9756485BT
Biscuit
9756485BL
Black
9756485SS
S.Steel
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
9756817 Insulation, Wrap
9756470 Insulation, Back

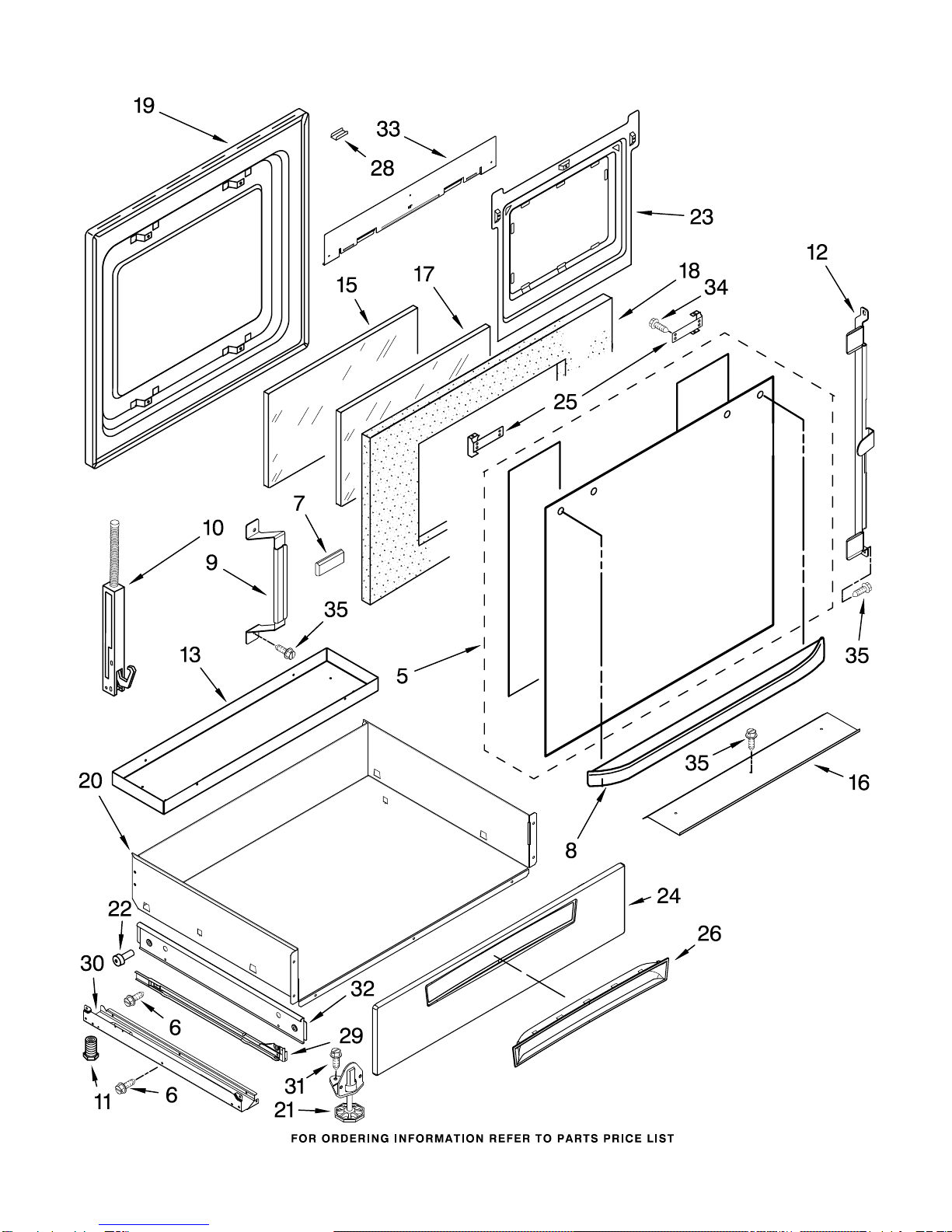

DOOR AND DRAWER PARTS
5
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8186652
DOOR AND DRAWER PARTS
6
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8186652
Illus. Part
No. No. DESCRIPTION
5 Glass, Door Front
9759641 Black
9759639 White
9759640 Biscuit
9759642 S.Steel
6 3196537 Screw
7 9759635 Spacer, Glass
8 Handle, Door
4448854 Black
4448855 White
4448856 Biscuit
9 8302094 Bracket, Central
10 Hinge, Door
9760571 White RH
9760572 White LH
11 9761935 Foot, Rear
12 8302092 Bracket, Side
13 9760592 Panel, Drawer
15 9757706 Glass, Inner
16 4457114 Shield, Heat Btm
17 4449263 Glass, Inner (2)
18 4451722 Insulation, Door
19 9759413 Liner, Door
20 9757806 Drawer & Roller
21 3196037 Foot, Front
22 422604 Roller, Drawer
23 4457132 Retainer, Glass
24 Front, Drawer
4453921WH
White
4453921BL
Black
4453921BT
Biscuit
4453921SS
S.Steel
25 Bracket, Handle
26 Handle, Drawer
9756674WH
White
9756674BT
Biscuit
9756674BL
Black
28 4450863 Retainer, Clip
29 Track, Drawer
9756837 R.Side
9756839 L.Side
30 Side, Base
9759953 R.Side
9759954 L.Side
31 4449743 Screw
32 9756673 Guide, Roller
33 9757707 Shield, Heat Top
34 4451040 Screw
35 4449809 Screw
9763497 R. Hand
9763496 L. Hand
4451040 Screw

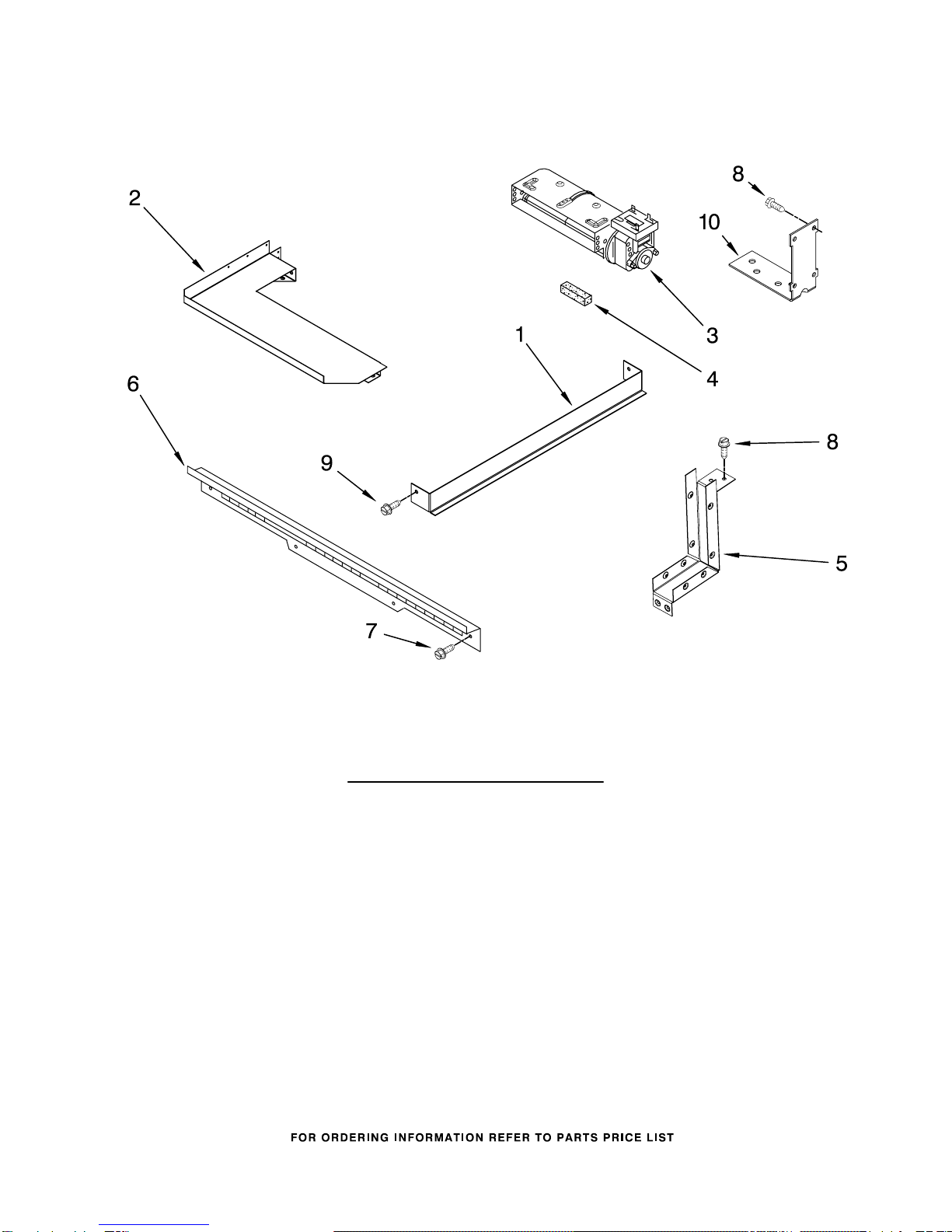

TOP VENTING PARTS
7
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8186652
Illus. Part
No. No. DESCRIPTION
1 9758810 Front, Air Duct
2 Top, Air Duct
9757827 L.Hand
9757828 R.Hand
3 9759320 Blower
4 4451758 Block, Foam
5 Corner, Air Duct
9756639 R.Hand
9756638 L.Hand
6
9757117BL
Vent,
(Control Panel)
7 4450038 Screw
8 4449809 Screw
9 4449040 Screw
10 4455352 Bracket, Blower
INTERNAL OVEN PARTS
8
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8186652
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 9752980 Shield, Flame
2 3196176 Screw
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
5 9757779 Fitting, Broiler
6 3196176 Screw
7 4448717 Rack, Oven
8 4453957 Pan Support, Bake
9 9760229 Electrode, Bake
10 9760228 Burner, Bake Log
11 9752737 Shield, Oven
12 4453984 Shield, Bake Flame
13 9763716 Valve, Assy
14 9756831 Tube, Broil
15 9757700 Burner, Broil
16 8054129 Ignitor, Broil
17 4454009 Cover, Ignitor
18 4453920 Pan, Oven Bottom
19 3196385 Screw
COOKTOP BURNER PARTS
9
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8186652
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Burner Base
w/Orifice
9782447 Small (2)
9782448 Large
9782449 Turbi
2 9756827 Tubing, Burner(RF)
3 9756828 Tubing, Burner(RR)
4 9759759 Tubing, Burner(LF)
5 9756829 Tubing, Burner(LR)
6 4456818 Valve, Turbi
7 4456816 Valve, Burner
Small (2)
8 4456817 Valve, Burner
Large
9 9756822 Spark Switch &
Harness Assembly
10 4453755 Tube, Manifold
11 9756803 Manifold
12 3196537 Screw
14 8523704 Bolt, Valve (4)
18 4453754 Tubing
GDS to Manifold
21 Head, Burner
9759894 Small (2)
4455981 Large (1)
4455849 Turbi (1)
22 3368921 Screw, 7−18 x .750
OPTIONAL PARTS
10
For Models: GW395LEPB02, GW395LEPQ02, GW395LEPT02, GW395LEPS02
(Black) (White) (Biscuit) (S.Steel)
8186652
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
WIRING HARNESS PARTS
9760533 Harness, Wire
(Main)
9756892 Harness, Wire
(Cooktop Power)
9756920 Harness, Wire
Bake/Broil Ignit.
313660 Clip, Ground Wire
4448664 Clamp
4449809 Screw
112432 Nut
4450800 Screw, Ground
4452222 Spacer, Harness
3400015 Screw, Ground
Miscellaneous
814381 Hinge Pin Kit
4448950 Screw, Install (4)
9756609 Gasket, 19 x 388
9758677 Power Cord
9782676 Anit−Tip Assy
9757427 Kit, Orific (LP)
Filler,Counter Top
9757785WH
White
9757785BL
Black
9757785BT
Biscuit
