Whirlpool GMC275PDB6 Manuel utilisateur

OVEN PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

5−01 Litho In U.S.A. (cre) Part No. 8185830

27" BUILT−IN ELECTRIC

COMBO

SENSOR/SC

(GOLD LINE)

OVEN PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

8185830

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8300653

Installation

Instructions

LIT8300667

Use & Care Guide

(Oven)

LIT4450785

Cooking Guide

(Label)

LIT4452005

Use & Care Guide

(Microwave)

LIT4455474

Tech Sheet

LIT3191638

Safer Cooking Tips

2 Trim, Side

4450856 RH Black

4450857 RH White

4452124 RH Biscuit

4450859 LH Black

4450860 LH White

4452125 LH Biscuit

Screw

8281236 Black Model

4449041 White

694091 Biscuit Model

4 4448520 Bumper, Door

7 4455285 Top Chassis

4449809 Screw

8 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

9 4452158 Tube, Vent

3196176 Screw

10 4452165 Lens,Light

11 4452368 Oven Light Assy

12 4452166 Bulb,Light

14 4455611 Frame, Front

4449040 Screw

15 4455381 Gasket, Door

19 4451477 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

4450583 Right Side

4450584 Left Side

4448444 Grommet

4449154 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4452233 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

4449154 Screw

30 4449845 Bracket, Support

4449809 Screw

34 4451666 Vent, Center

4450038 Screw

37 4451442 Thermostat (TOD)

(Temp.) SPST

4449809 Screw

43 4455529 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

51 Trim, Bottom

4448475 Black Model

4448476 White Model

4452414 Biscuit Model

3400832 Screw

52 4450787 Vent, Control

53 4451755 Chassis, Back

4452260 Spacer, Foam

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

CONTROL PANEL PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

8185830

Illus. Part

No. No. DESCRIPTION

2 4450356 Gasket

3 4452889 Microcomputer

8281179 Screw

4449745 Screw

10 Control Panel Assy

W/Membrane Switch

8300411 Black Model

8300410 White Model

8300536 Biscuit Model

OVEN DOOR PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

8185830

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4455617 Door Liner

2 Hinge, Door

8300569 Right Hand

8300570 Left Hand

(White & Black

Models)

8300571 Right Hand

8300572 Left Hand

(Black StainlessModel)

4449743 Screw

3 4449253 Glass, Inner

4 4451721 Insulation, Door

5 8300777 Retainer, Glass

4449809 Screw

7 4455256 Glass, Inner

4449809 Screw

10 4449257 Glass, Inner

13 Door Handle

4448405 Black Model

4448406 White Model

8300255 Biscuit Model

14 4450813 Bracket,Handle

4451040 Screw

3400832 Screw

18 Assy.,Door Glass

4452062 Black Model

4452063 White Model

8300257 Biscuit Model

4452478 Black StainlessModel

19 4450361 Shield, Heat

4449809 Screw

20 4451668 Retainer, Glass

4449809 Screw

21 8300819 Seal, Door Top

23 Retainer, Clip

4450863 Black Model

4450864 White & Biscuit

Model

3400832 Screw

LATCH PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

8185830

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451759 Vent, Exhaust

4449040 Screw

2 4455178 Elbow Vent−Top

3 4455177 Elbow Vent−Bottom

9 4450407 Baffle, Rear

4449809 Screw

10 4451896 Latch Assy.

11 4452224 Solenoid

12 4452312 Micro Switch N.C.

13 4451426 Micro Switch

14 4451537 Spring, Leaf

4449154 Screw

16 6610168 Blower

21 4451758 Seal, Foam

22 4455191 Plate, Blower

INTERNAL OVEN PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

8185830

Illus. Part

No. No. DESCRIPTION

2 4452154 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

6 4448715 Rack, Oven

7 4452153 Element, Bake

CABINET AND STIRRER PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

8185830

CABINET AND STIRRER PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

8185830

Illus. Part

No. No. DESCRIPTION

1 4375299 Bracket, Capacitor

3 4375037 Rubber Ring

4 4375038 Screw

5 4375314 Air Duct,

Magnetron

11 4375315 Damper

12 4375260 Duct, Inlet

13 4375316 Insulation, Switch

14 4375322 Fan Wheel

15 4375317 Duct, Air

16 4375264 Block, Slide

17 4375248 Cover Plate, Upper

19 4375318 Lens, Lamp

20 4375319 Spring

21 4375320 Reflector

25 4375020 Capacitor

26 4375072 Magnetron

27 4375321 Fuse

28 4375231 Block, Fuse

29 4375278 Motor, Blower

30 4375279 Thermostat

31 4375079 Thermostat

34 4375286 Transformer

35 Hinge, Door

4375323 Left

4375324 Right

36 4451008 Torsion Spring

37 Bracket, Hinge

4375327 Left

4375328 Right

38 4375329 Inlet

39 4375331 Door Strap

40 4375333 Fan Cap

41 4375334 Fan Cap Bottom

42 Holder, Switch

4375335 Left

4375336 Right

43 4375337 Isolation Plate

44 4375338 Cover Plate

45 4375339 Plate, Door

46 4375340 Inner Frame

47 Side Plate

4375341 Right

4375342 Left

48 4375343 Turntable

49 4375344 Ring Assembly

50 4375345 Shaft

51 4375346 Switch

52 4375347 Motor, Turntable

53 4375348 Lamp

54 4375349 Rectifier

55 4375350 Cable

56 4375351 Holder, Lamp

MICROWAVE DOOR PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

8185830

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

9 4450834 Glass, Middle

10 4450945 Frame, Door

14 Bracket, Mounting

4449141 Right Side

4449142 Left Side

4449809 Screw

15 4449083 Filler, Side

4449809 Screw

16 Handle, Door

4448405 Black Model

4448406 White Model

17 Glass, Outer

4450379 Black Model

4451219 White Model

4452470 Black Stainless

8300523 Biscuit Model

24 4452330 Bracket, Handle

4451040 Screw

25 Retainer, Glass−Clip

4450863 Black Model

4450864 White Model

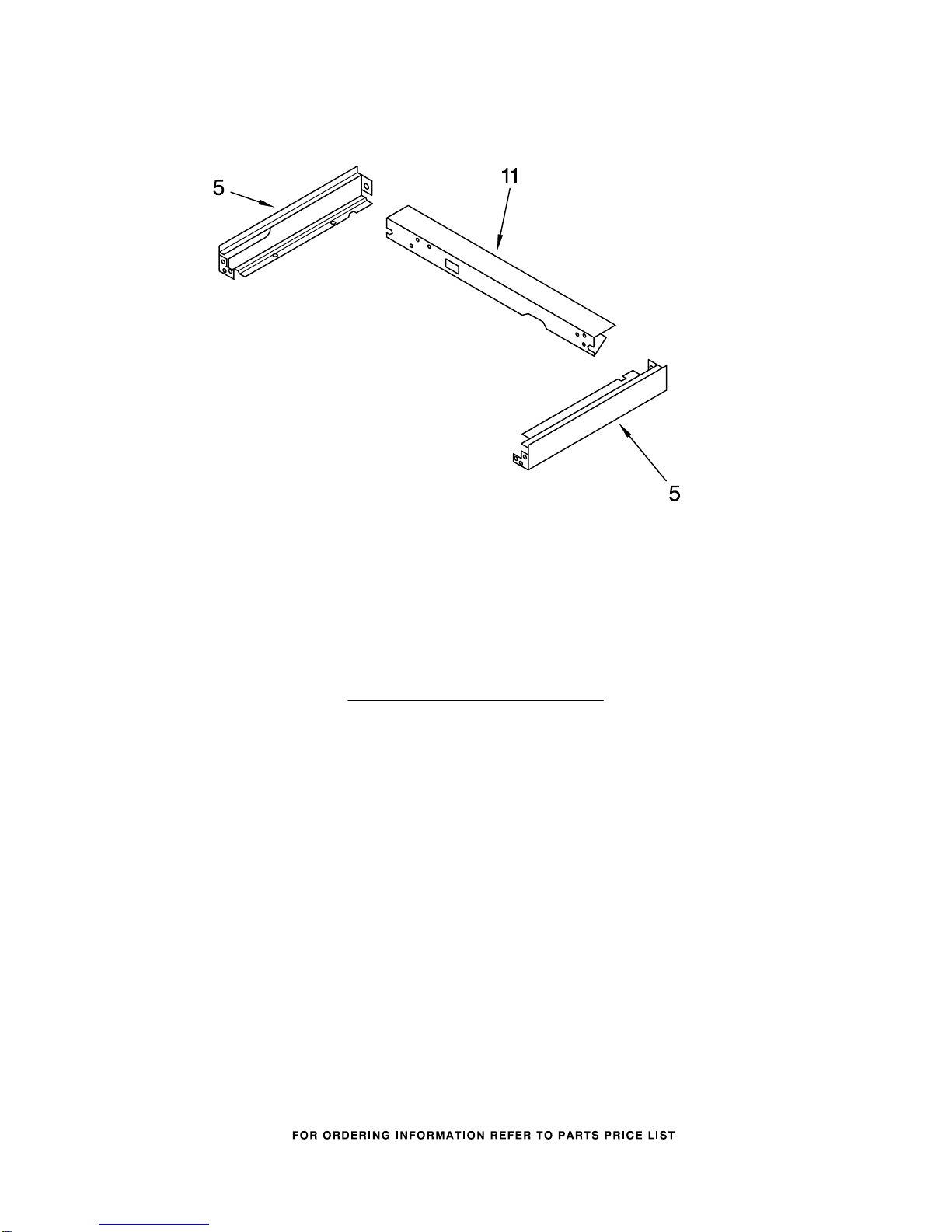

MICROWAVE COMPARTMENT PARTS

For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6

(Black) (White) (Black Stainless) (Biscuit)

8185830

Illus. Part

No. No. DESCRIPTION

5 Support Rails

4452551 Right Side

4452552 Left Side

4449809 Screw

11 4452547 Rear Channel

4449809 Screw

4449154 Screw
