LOWER OVEN PARTS

For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03

(Black) (Desinger White) (Stainless) (Universal Stainless)

05−08 Litho in U.S.A. (amd) (psw) Part No. W10203827 Rev. A

30" BUILT−IN ELECTRIC

DOUBLE OVEN

CONVECTION−UPPER

SELF−CLEAN (GOLD LINE)

LOWER OVEN PARTS

For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03

(Black) (Desinger White) (Stainless) (Universal Stainless)

W10203827

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303647 Installation

Instructions

Use & Care Guide

W10162171

English

W10162172

French

8302068 Tech Sheet

Safer Cooking Tips

9762761 English

W10065852

French

2 Trim, Side

Right

W10136098

Black

W10136100

White

W10166949

Stainless

Left

W10136099

Black

W10136101

White

W10166948

Stainless

8281236 Screw

3 Hinge Receiver

4455605 Left

4455606 Right

W10105790

Bumper, Door

5 9760888 Latch, Motorized

6 8302349 Divider, Vent

7 8303099 Top, Chassis

8 Screw

8281236 Black

3400805 Silver

9 4452158 Tube, Vent

W10067870

Lens, Light

W10009930

Assembly, Oven

Light

12 4452166 Bulb, Light

13 4449809 Screw

W10130368

Frame, Front

15 4455382 Gasket, Door

16 4449040 Screw

17 4450118 Nut

18 4452152 Bracket, Mounting

19 4451478 Support, Insulation

20 3196176 Screw

21 4449154 Screw

22 3400832 Screw

23 4455641 Side, Chassis

W10161110

Back, Chassis

25 Liner, Oven

(Not serviceable)

28 9760677 Deflector, Bottom

29 9759242 Thermostat (TOD)

30 9759713 Base, Chassis

31 4448933 Retainer, Gasket

32 4451747 Cover, Back

33 Vent, Bottom Trim

8303583 Black

8303584 White

8303582 Stainless

34 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

UPPER OVEN PARTS

For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03

(Black) (Desinger White) (Stainless) (Universal Stainless)

W10203827

UPPER OVEN PARTS

For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03

(Black) (Desinger White) (Stainless) (Universal Stainless)

W10203827

Illus. Part

No. No. DESCRIPTION

1 4449809 Screw

2 4449154 Screw

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door

5 3196176 Screw

6 8302349 Divider, Vent

7 8303099 Top, Chassis

8 4448444 Grommet

9 4452158 Tube, Vent

W10067870

Lens, Light

W10009930

Assembly, Oven

Light

12 4452166 Bulb, Light

13 9760888 Latch, Motorized

W10130368

Frame, Front

15 4455382 Gasket, Door

16 4449040 Screw

17 4450118 Nut

18 3400832 Screw

19 4451478 Support, Insulation

21 Rail, Side

8302793 Right

8302794 Left

22 4455641 Side, Chassis

W10161110

Back, Chassis

24 Liner, Oven

(Not serviceable)

26 4452267 Vent, Center

27 9759242 Thermostat (TOD)

28 4448933 Retainer, Gasket

29 4451747 Cover, Back

30 4449845 Support, Bracket

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

OVEN DOOR PARTS

For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03

(Black) (Desinger White) (Stainless) (Universal Stainless)

W10203827

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9759413 Panel, Door

2 Hinge, Door

9760577 Right

9760578 Left

3 4449259 Glass, Inner

4 8303810 Nameplate

5 8303878 Pad, Handle

6 Clip, Door

8303389BL

Black

8303389WH

White

W10166937

Stainless

7 9759225 Glass, Inner

8 4449743 Screw

9 4451040 Screw

10 4449809 Screw

11 4448520 Bumper, Door (3)

12 Assembly, Door

Glass

Upper

8303300 Black

8303306 White

8303288 Stainless

8304177 Silver

Lower

8303301 Black

8303307 White

8303289 Stainless

8304178 Silver

13 Door Handle

8302813 Black

8302814 White

8303164 Stainless

W10136473

Bracket, Handle

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

18 4451722 Insulation, door

19 4457103 Shield, Heat

20 4457132 Retainer, Glass

22 4457114 Shield, Heat

INTERNAL OVEN PARTS

For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03

(Black) (Desinger White) (Stainless) (Universal Stainless)

W10203827

Illus. Part

No. No. DESCRIPTION

1 4448988 Cover, Fan

2 9760771 Element, Broil

3 4448717 Rack, Oven

4 9760766 Element,

Convection Bake

5 4449154 Screw

W10116228

Motor,

Convection Fan

W10116351

Blade, Fan

W10116349

Nut

CONTROL PANEL PARTS

For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03

(Black) (Desinger White) (Stainless) (Universal Stainless)

W10203827

Illus. Part

No. No. DESCRIPTION

1 Control Panel

8302848 Black

8302849 White

8304153 Apollo Gray

2 Assembly, Switch

W10161676

Black

W10161677

White

W10112118

Silver

3 8303883 Assembly, Control

4449745 Screw

W10153086

Backer, Control

Panel

5 4449745 Screw

6 8301848 Latch, Sister

Board

W10166944

Cladding, Control

Panel (Stainless)

Model Only)

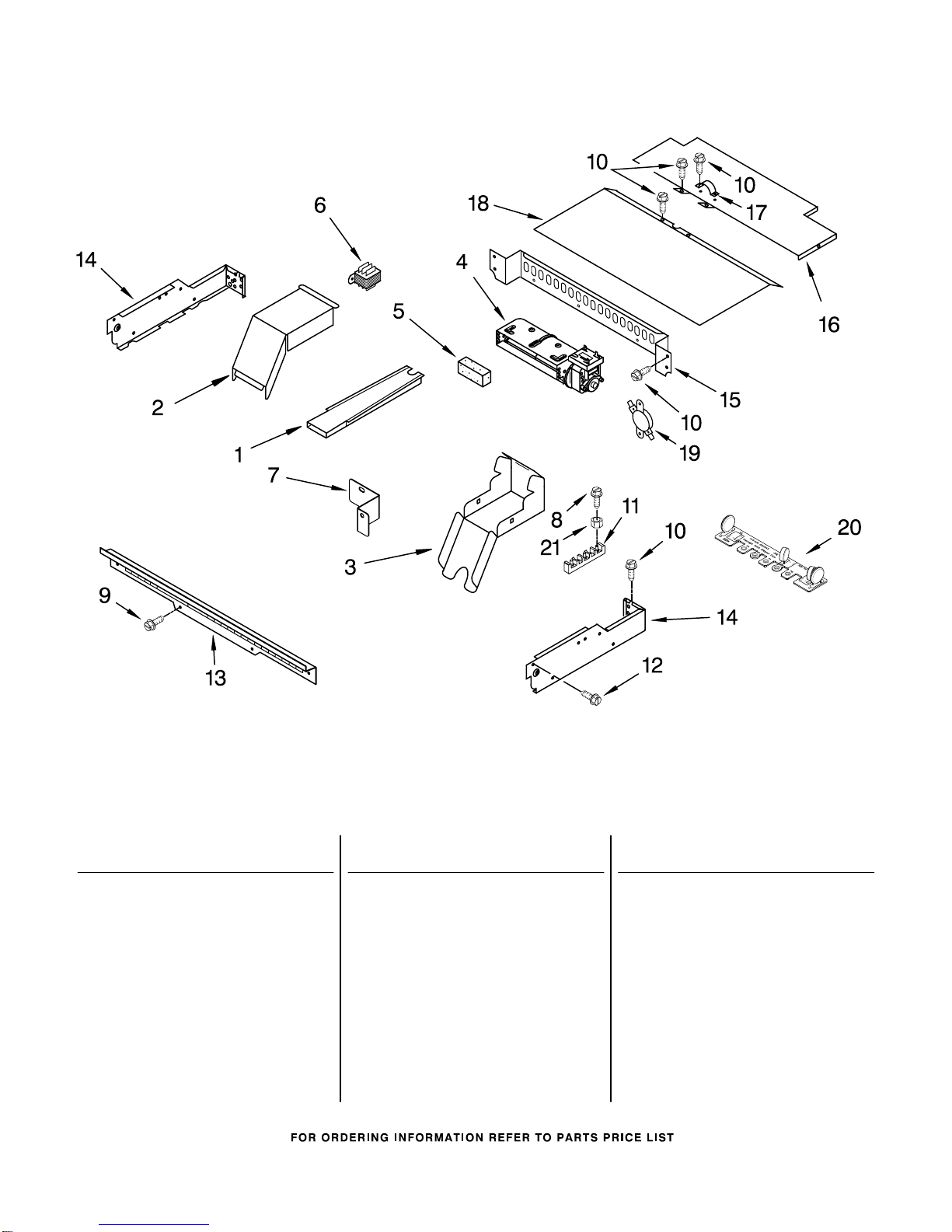

TOP VENTING PARTS

For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03

(Black) (Desinger White) (Stainless) (Universal Stainless)

W10203827

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Assembly,Vent

2 4455178 Elbow, Vent Top

3 4455177 Elbow, Vent

Bottom

4 Blower

W10016550

45MM Lower Oven

4457289 65MM Upper Oven

4455191 Bracket

5 4451758 Foam, Block

6 9760587 Transformer,

Control

7 8302390 Bracket, Support

Air Stop

8 3400080 Screw

9 4450038 Screw

10 4449809 Screw

11 4449868 Block, Terminal

12 4449154 Screw

13 8303497 Vent, Control

Panel

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450551 Cover, Top Rear

17 4448664 Clamp

18 4452367 Cover, Top Front

19 9759243 Thermostat, Oven

20 8302143 Suppressor

7103P027−60

Nut, Terminal

Block

OPTIONAL PARTS

For Models: GBD307PRB03, GBD307PRQ03, GBD307PRS03, GBD307PRY03

(Black) (Desinger White) (Stainless) (Universal Stainless)

W10203827

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8301909 Harness, Lower

Latch

4449809 Screw

8301777 Harness, Main

4450953 Conduit, Double

4452400 Lead, Ground Wire

4450800 Screw

4448664 Clamp

4449809 Screw

98997 Clip

4452222 Spacer, Harness

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

Miscellaneous

4448950 Screw, Install (4)
