Whirlpool SCS3617RB01 Manuel utilisateur

COOKTOP, BURNER AND GRATE PARTS

For Models: SCS3617RB01,SCS3617RQ01, SCS3617RS01,SCS3617RT01

(Black) (Designer White) (Stainless) (Biscuit)

12−05 Litho in U.S.A. (cre) Part No. 8186517

36" GAS COOKTOP

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

3192098 Wiring Diagram

8286304 Installation

Instructions

8286615 Use & Care Guide

3191638 Safe Cooking Tips

9759133 Safe Cooking Tips

8286620 LP Conversion

Instructions

2 Panel, Control

8286502 Black

8286503 White

8286504 Biscuit

3 Cooktop

3191252 Black

3191253 White

3191289LM

Stainless

8284706 Biscuit

4 Cap, Burner

6K (1)

8286153CB

Coal Matte Black

8286153CG

Cumberland Gray

8286153EP

Espresso

9.5K (2)

8286154CB

Coal Matte Black

8286154CG

Cumberland Gray

8286154EP

Espresso

12.5K (1)

8286155CB

Coal Matte Black

8286155CG

Cumberland Gray

8286155EP

Espresso

5 Grate

R.Hand

8285885CB

Coal Matte Black

8285885CG

Cumberland Gray

8285885EP

Espresso

L.Hand

8285887CB

Coal Matte Black

8285887CG

Cumberland Gray

8285887EP

Espresso

7 Knob, Control (4)

8286057BL

Black

8286057WH

White

8286057BT

Biscuit

10 9760279 Seal, Foam

15 Holder, Orifice

8286513 Auxi

8286178 Semi Rapid

8286180 Rapid

16 Head, Burner

8286182 12K Rapid

8286181 6K Auxi

8286184 9K Semi−Rapid

18 4449809 Screw

Following Parts Not Illustrated

Harness, Wire

Ignitor

4456626 15"

4456627 28"

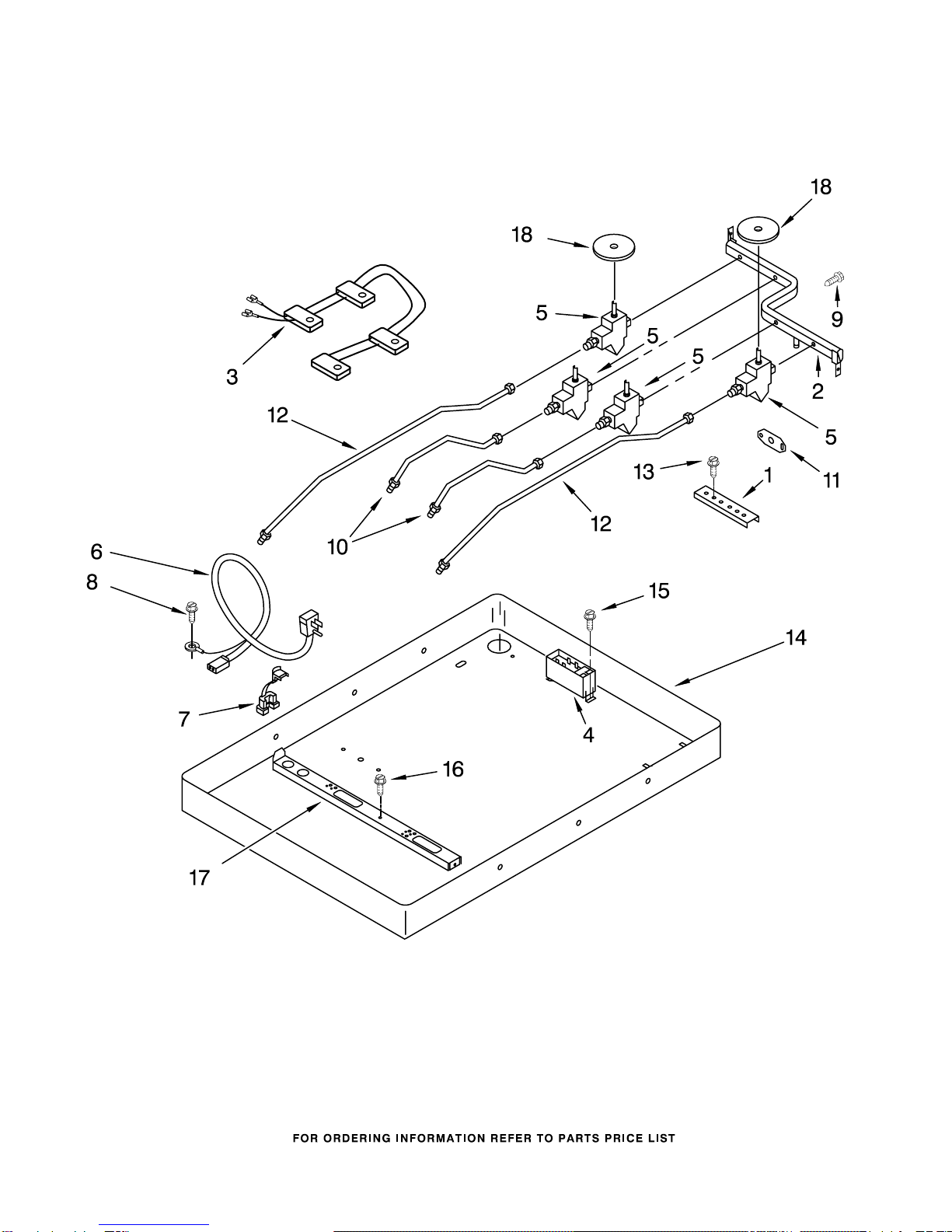

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: SCS3617RB01,SCS3617RQ01, SCS3617RS01,SCS3617RT01

(Black) (Designer White) (Stainless) (Biscuit)

8186517

BURNER BOX, GAS VALVES, AND SWITCHES

For Models: SCS3617RB01,SCS3617RQ01, SCS3617RS01,SCS3617RT01

(Black) (Designer White) (Stainless) (Biscuit)

8186517

Illus. Part

No. No. DESCRIPTION

1 4455917 Bracket, (2)

Cooktop mounting

2 9759354 Pipe, Manifold

3 4456905 Harness & Switches

4 8522423 Spark Module

5 Valve, Burner

4456817 Large (Black)

8286559 Auxi (White)

8286560 Rapid (Purple)

6 9763116 Power Cord

7 4173634 Bushing, Cord

8 3177991 Screw, Ground

9 3186217 Bolt, Gas Valve

10 3191318 Tubing, Burner

RR & RF

11 3192491 Bracket, Manifold

12 3191322 Tubing, Burner

LR & LF

13 3400093 Screw

14 4456781 Box, Burner

15 3400843 Screw

16 4449809 Screw

17 8286099 Rail, Burner (2)

18 3191387 Seal, (4)

Switch Cover

Following Parts Not Illustrated

and Optional Parts Not Included

8286320 Gas Conversion Kit

(Natural Gas To

LP Gas)

4455918 Hardware Kit

(Mounting)
