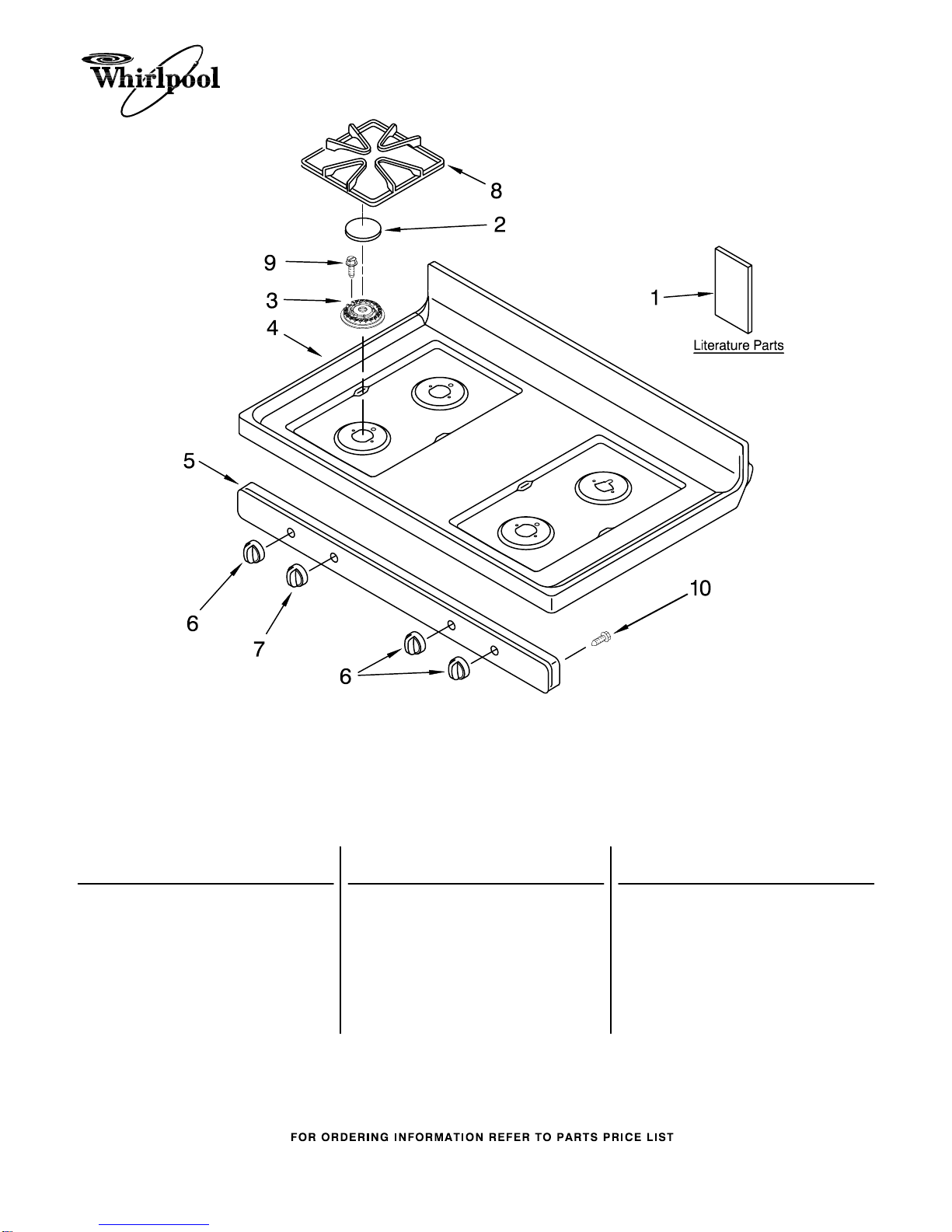

COOKTOP PARTS
1
For Models: SF272LXTD1
(Universal Silver)
05−07 Litho in U.S.A. (rek) Part No. W10139618 Rev. A
30" GAS FREESTANDING
SELF CLEAN RANGE
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9762998 Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10110369
Owners Manual
W10116295
Tech Sheet
9762761 Safer Cooking Tips
2 Cap, Burner
3191904 Left Front
3191901 R. Front, L. Rear
3191898 Right Rear
3 Burner
4455981 Left Front
4455980 R. Front, L. Rear
4455979 Right Rear
4 8272253 Cooktop
5 8523855 Panel, Manifold
6 8273103 Knob, Control (3)
7 8273111 Knob, Powerburner
8 8053458 Grate, Burner (4)
9 3400701 Screw
10 3196557 Screw

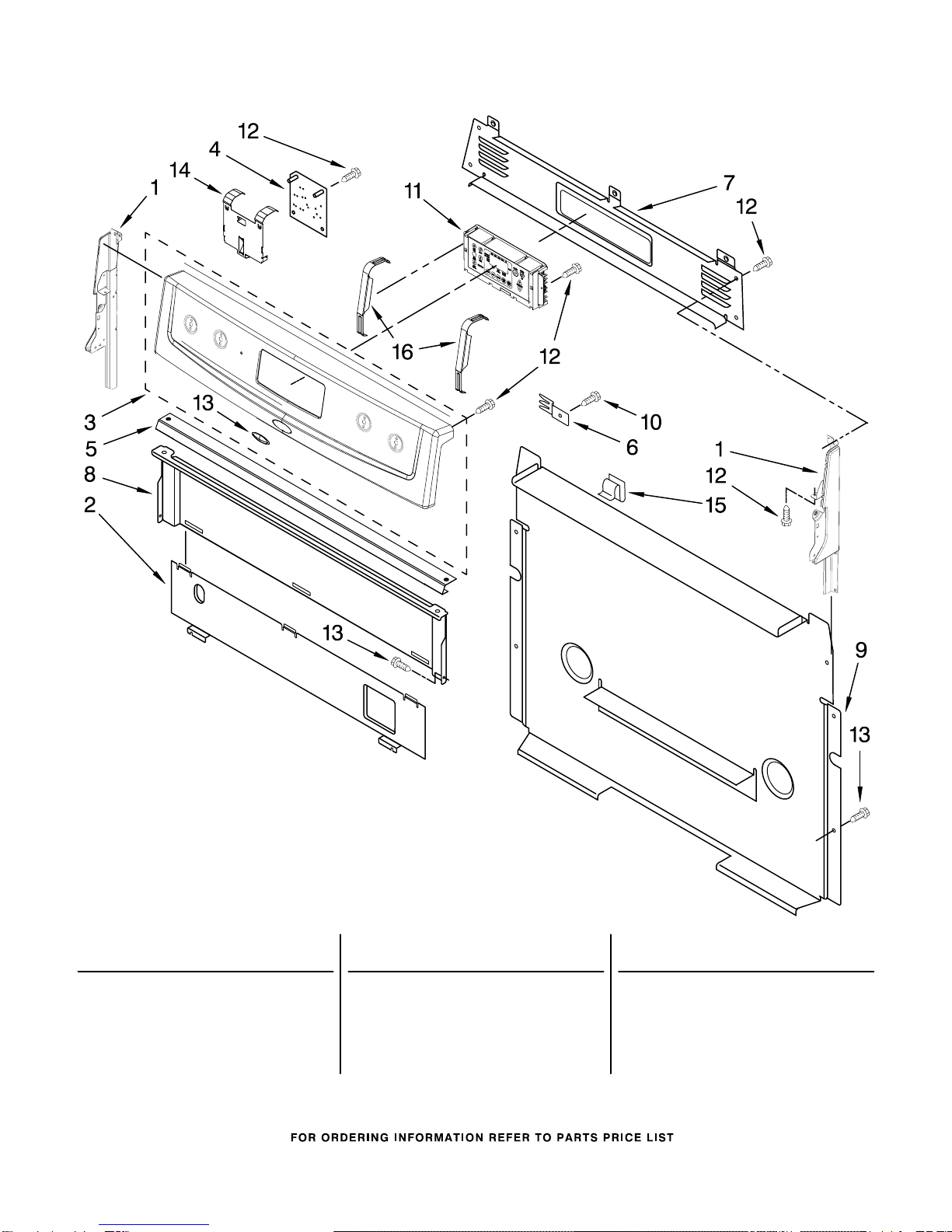

CONTROL PANEL PARTS
2
For Models: SF272LXTD1
(Universal Silver)
W10139618
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10009080
Endcap, Left Hand
W10009090
Endcap, Right Hand
2 8053505 Shield−Heat, Lwr
3
W10117565
Panel, Console
4 9758080 Module, Spark
5 9762095 Brkt−Mntg, Console
6 8523412 Bracket, Support
7 9756301 Cover, Upper
8 8053910 Shield, Heat
9 8273132 Cover, Lower
10 3196169 Screw
11
W10108260
Control, Range
12 3196178 Screw
13 9757609 Badge
14 9762726 Brkt−Mntg, DSI
15 8273564 Clip
16 9762078 Bracket, EOC Mount

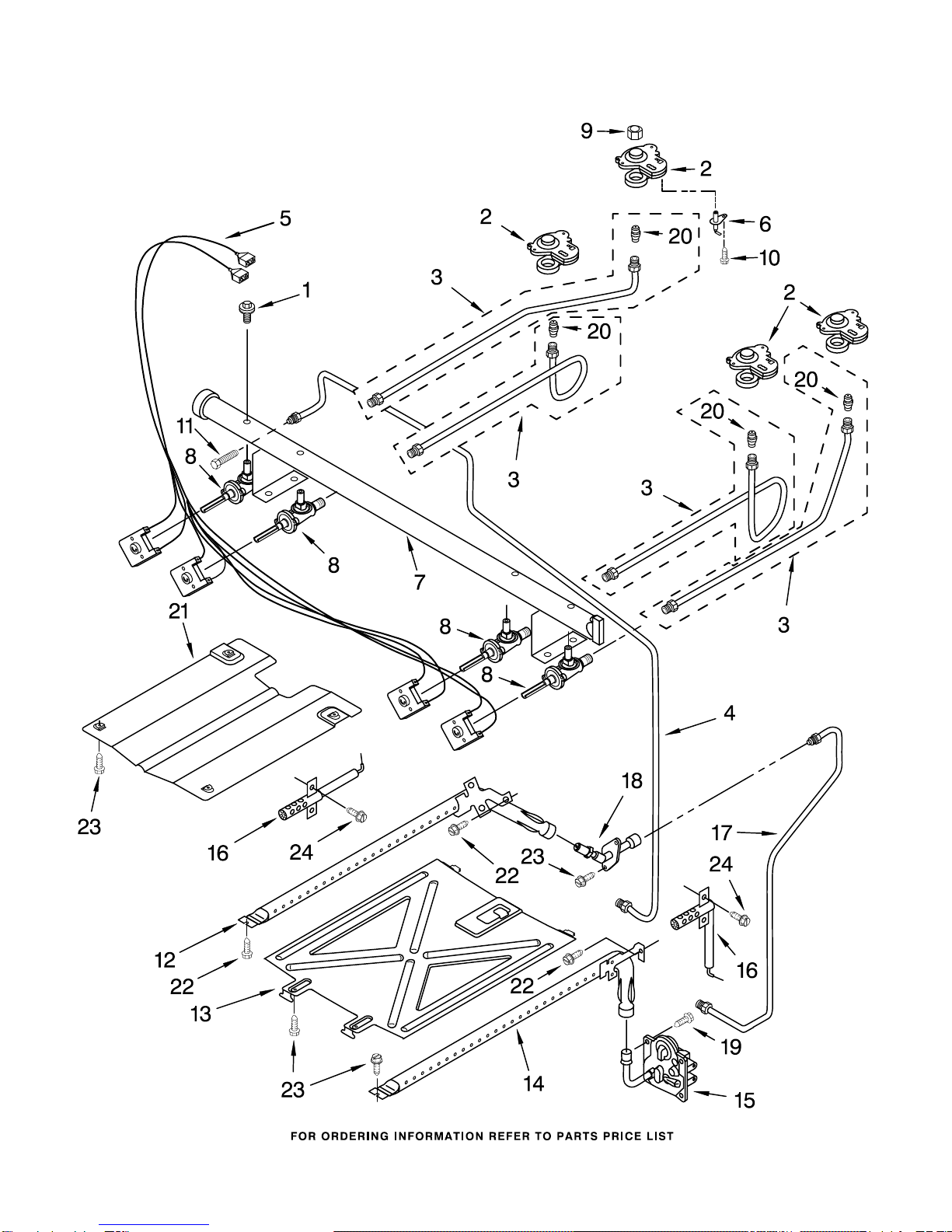

MANIFOLD PARTS
3
For Models: SF272LXTD1
(Universal Silver)
W10139618
MANIFOLD PARTS
4
For Models: SF272LXTD1
(Universal Silver)
W10139618
Illus. Part
No. No. DESCRIPTION
1 8273096 Screw, Valve
2 Burner Base
8273700 Large (3)
8273701 Small (1)
3 Tubing, Burner
W/Orifice
8273693 Left Front
8273698 Left Rear
8273695 Right Front
8273697 Right Rear
4 8523402 Tubing (Manifold
to Regulator)
5 8523406 Harness, Igniter
(W/Switches)
6 8523793 Electrode (4)
7 9762230 Pipe, Manifold
8 Valve
9757218 LF − RF − LR
8273004 Right Rear
9 8273060 Nut (4)
10 8273062 Screw (4)
11 3400228 Bolt
12 8054078 Burner, Broiler
13 8053970 Spreader, Flame
(Oven)
14 9758078 Burner, Bake
15 9761959 Valve/Regulator
16 Igniter
8054129 Broil
9758079 Bake
17 8272222 Tubing (Broiler
Fitting To Valve)
18 3186489 Fitting, Broiler
19 3400016 Screw
20 Orifice, Burner
8273064 Left Front
8273065 Right Front
8273066 Left Rear
8273067 Right Rear
21 8053262 Spreader, Flame
(Broiler)
22 3196265 Screw
23 3196176 Screw
24 3196385 Screw
Following Parts Not Illustrated
8523418 Spuds, LP Gas
(Kit of 4)

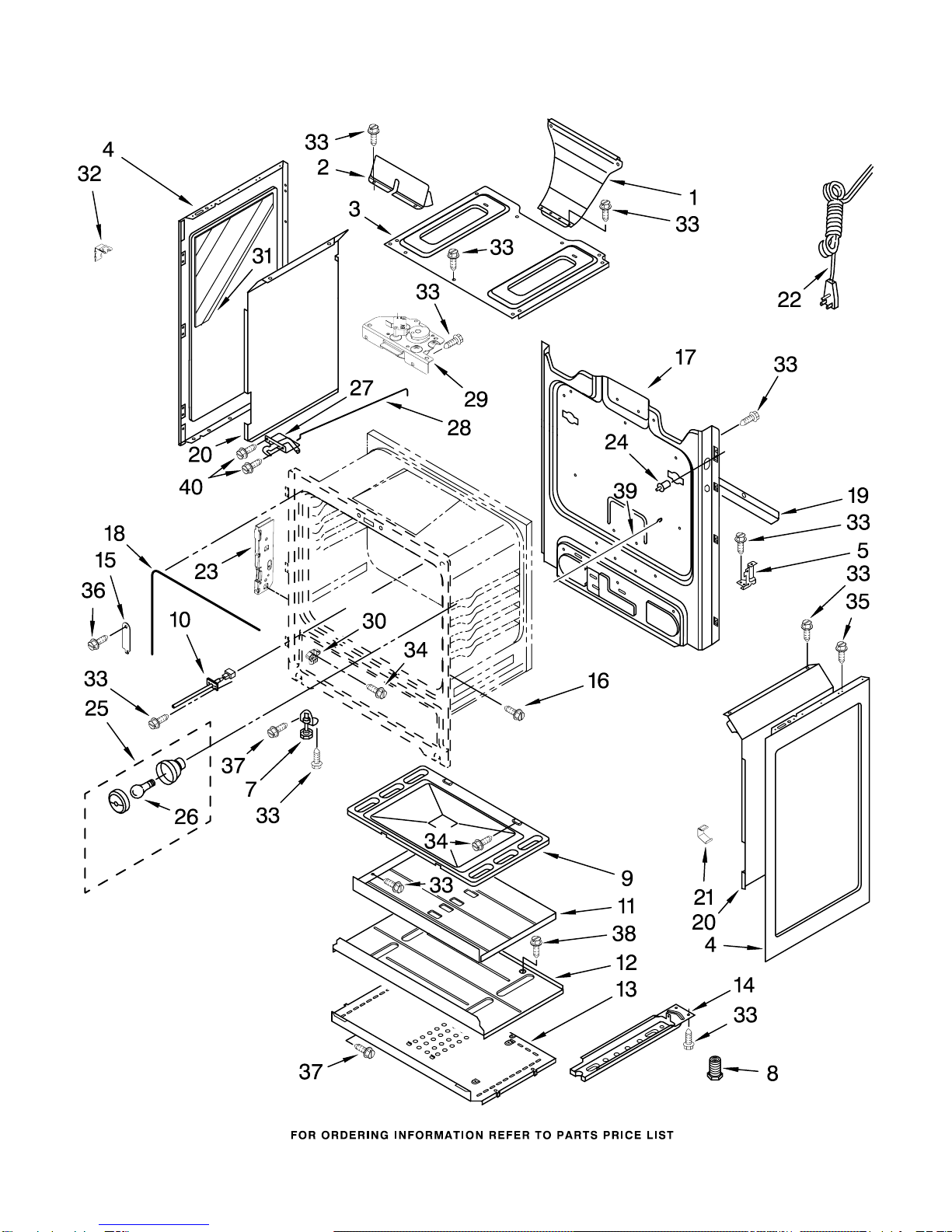

CHASSIS PARTS
5
For Models: SF272LXTD1
(Universal Silver)
W10139618
CHASSIS PARTS
6
For Models: SF272LXTD1
(Universal Silver)
W10139618
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10012240
Flue Box
2 8272747 Shield, Flue
3 8273036 Burner Box
4 8053832 Panel, Side (2)
5 8523249 Brkt, Manifold (2)
7 3196037 Foot, Front (2)
8
W10058460
Foot, Rear (2)
9 3195097 Bottom, Oven
10 8273902 Sensor, Oven
11 8053967 Baffle, Burner
12 8053969 Shield, Heat
13 8053968 Shield, Lower
14 9760314 Rail, Base (2)
15 9761517 Clip, Door Mntg(2)
16
W10067840
Screw
17 9757098 Back, Main
18 8522416 Seal, Oven
19 8053971 Brace, Main Back
20 Retainer, Insul.
9761449 Left Hand
9761448 Right Hand
21 3196576 Clip, Panel (6)
22 9757891 Cord, Power
23 9760407 Brkt − Hinge
24 9757262 Switch, Door
25 3196701 Light Socket Assy
26 311255 Bulb, Oven Light
27 9761013 Latch, Door
28
W10078370
Rod, Latch
29
W10107820
Latch−Mtr
30
W10114344
Glide, Drawer
31 9761490 Insulation
32 9761512 Clip, Mounting
33 3196178 Screw
34 3196152 Screw
35 3196168 Screw
36
W10031780
Screw
37 3196179 Screw
38 3196177 Screw
39 9757239 Rod − Door Switch,
Rear Mount
40 3196560 Screw
INSULATION
8524099 Insulation, Wrap
8272614 Insulation, Back
8272613 Insulation, Vent

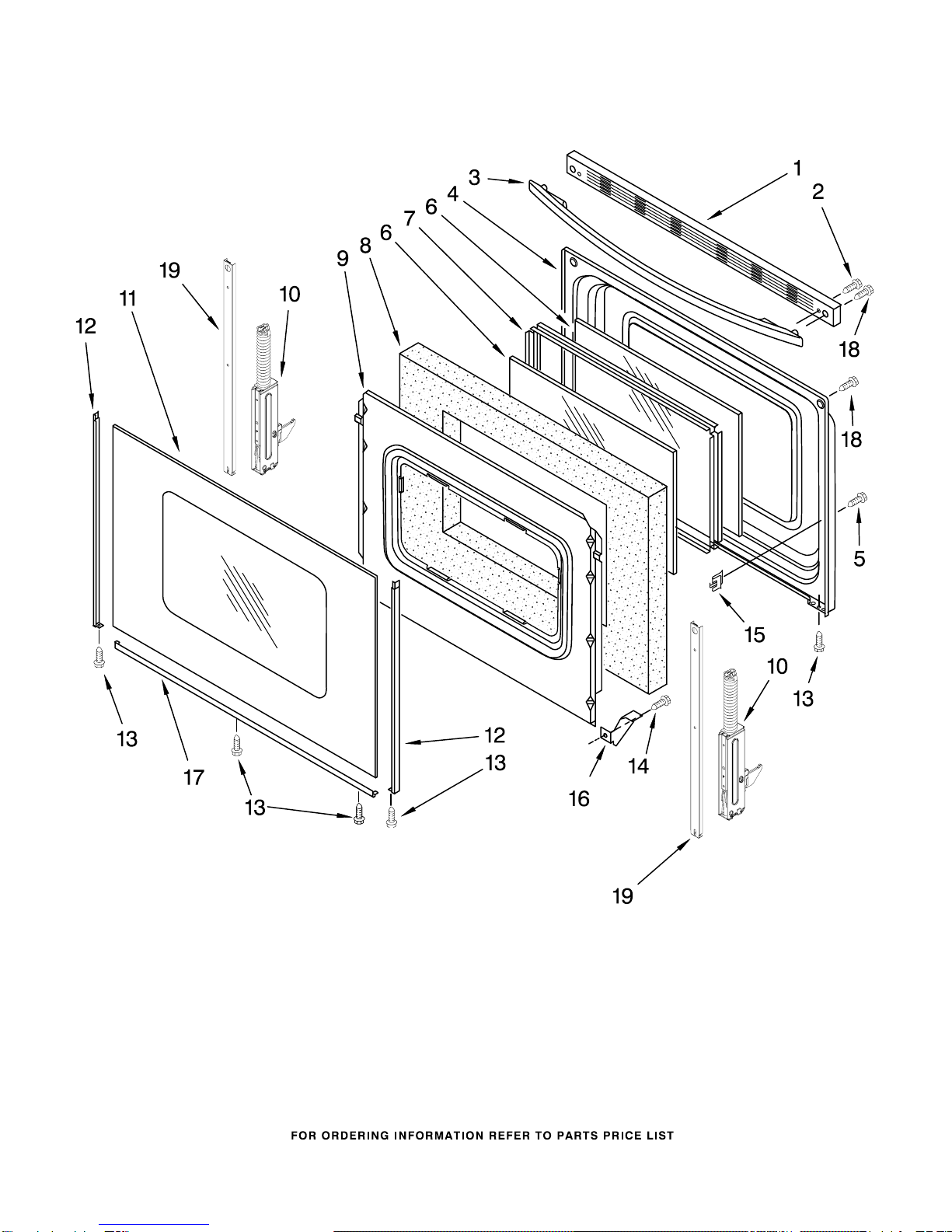

DOOR PARTS
7
For Models: SF272LXTD1
(Universal Silver)
W10139618
DOOR PARTS
8
For Models: SF272LXTD1
(Universal Silver)
W10139618
Illus. Part
No. No. DESCRIPTION
1 9762394 Trim, Top
2 3196164 Screw
3 9761983 Handle, Door
4 9761344 Liner, Door
5
W10031790
Screw
6 9758162 Glass, Inner (2)
7 3186289 Frame, Glass
8 8272618 Insulation, Door
9 9761357 Retainer, Insul.
10 9761496 Hinge, Door
11 9761699 Glass, Outer Door
12 Trim, Door Side
8523171 Left Hand
8523165 Right Hand
13 3196160 Screw
14 3196165 Screw
15 3196025 Clip, Door Glass
16 3196794 Bracket, Window(2)
17 8523180 Trim, Bottom
18
W10031780
Screw
19
W10113759
Strap, Door

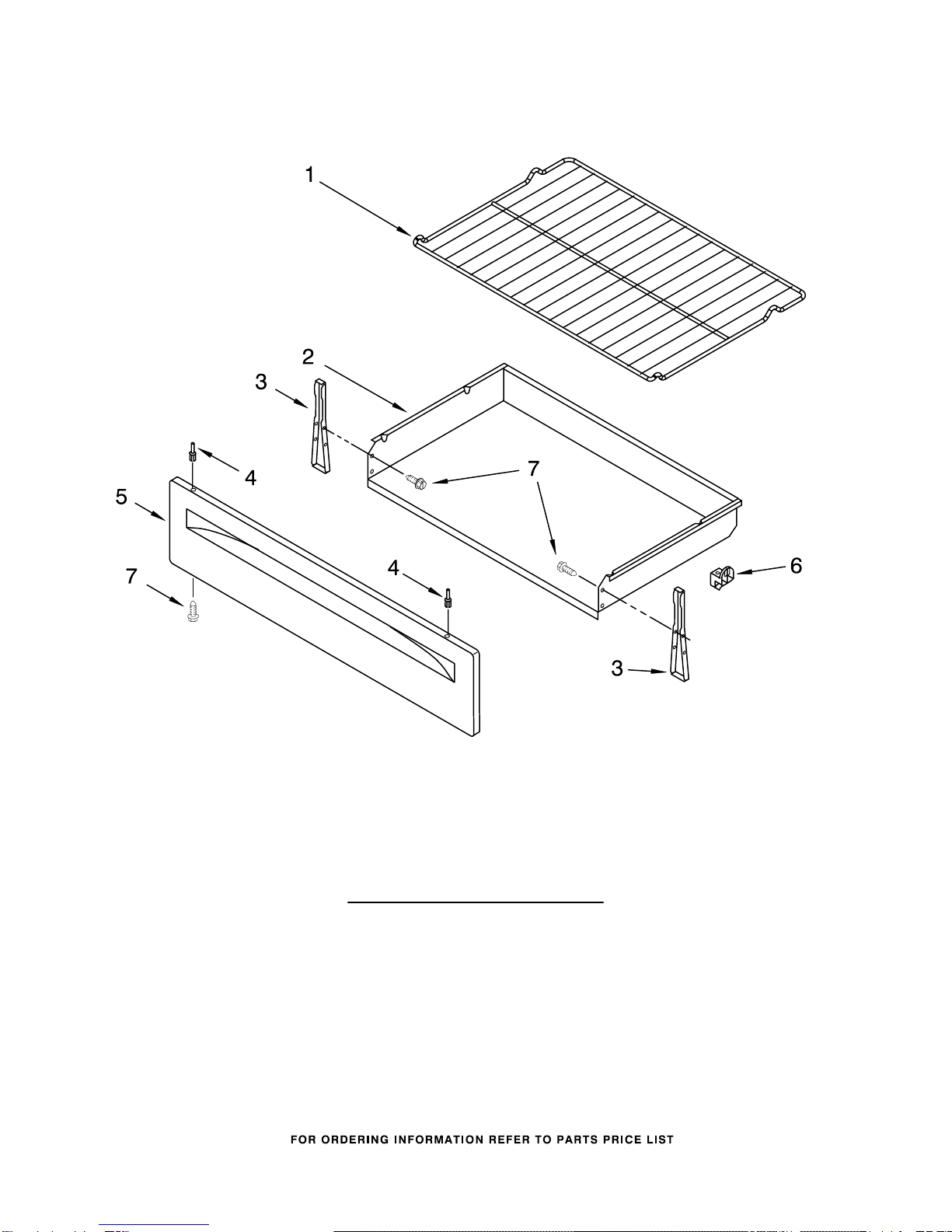

DRAWER & BROILER PARTS
9
For Models: SF272LXTD1
(Universal Silver)
W10139618
Illus. Part
No. No. DESCRIPTION
1 3195710 Rack, Oven (2)
2 9761031 Drawer, Storage
3 3196817 Bracket, Drawer(2)
4 3196813 Rivet, Push (2)
5 9761693 Panel, Drawer Frnt
6 8053334 Spacer, Glide
7 3196168 Screw
OPTIONAL PARTS (NOT INCLUDED)
10
For Models: SF272LXTD1
(Universal Silver)
W10139618
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150 c
242821 Wire, Blue
14 Ga. 150 c
242822 Wire, Brown
14 Ga. 150 c
242830 Wire, Brown
14 Ga. 200 c
242823 Wire, Green
14 Ga. 150 c
242824 Wire, Orange
14 Ga. 150 c
242825 Wire, Red
14 Ga. 150 c
242831 Wire, Red
14 Ga. 200 c
REFINISHING MATERIAL
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit (Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
4396923 Pan − Broiler
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
W10082160
Harness, Main
(EOC Pyro)
8524207 Harness, Wire
Bake/Broil
8523599 Harness, Wire
(Cooktop Spark)
W10045060
Harness, Wire
(Ground)
3196896 Clip, Wire
3400964 Clip, Wire
313438 Clip, Harness
3196173 Screw
3196696 Clip, Harness
3196174 Screw−Grnd Harns
