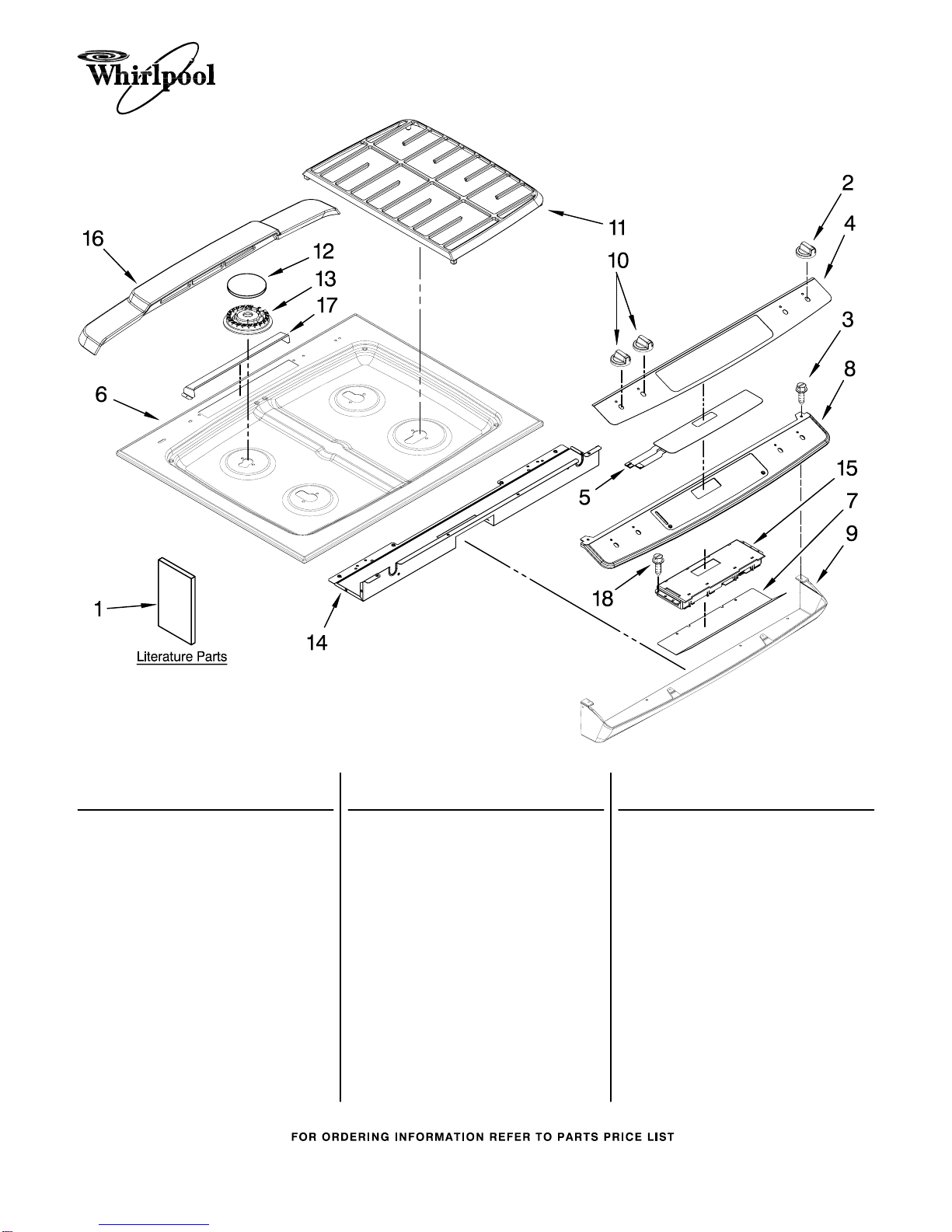

COOKTOP PARTS
1
4−08 Litho In U.S.A. (cre) (psw) Part No. W10194216 Rev. C
30" Gas Slide−In
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8113P681−60
Installation
Instructions
8113P679−60
Owners Manual
2 Knob, (Accusimmer)
W10177201
Black
W10177198
White
3 74003640 Screw
4
W10179739
Overlay
(S.Steel Mdl Only)
5 Membrane, Switch
7450P117−60
Black & SS Mdls
7450P118−60
White Mdl
6 Cooktop
W10177246
Black
W10177256
White
7
W10166279
Shield, Control
8 Panel, Control
W10177206
Black
W10177205
White
W10179737
S.Steel
9 Panel,Control(LWR)
W10177219
Black
W10177213
White
10 Knob, Valve (3)
W10177199
Black
W10177197
White
11 Grate, Burner (2)
W10177293
Black
W10177379
Gray
12 Cap, Burner
W10177373
Black 5K (1)
W10177366
Gray 5K (1)
W10177375
Black 12.5K (2)
W10177368
Gray 12.5K (2)
W10177376
Black 16K (1)
W10177370
Gray 16K (1)
13 Base, Burner
74007413 16K RF (1)
74007411 5K LR (1)
74007698 12K RR,LF (2)
14
W10177196
Support, Cntl Pnl
15
8507P391−60
Control, (ERC)
16 Cover, Vent
W10177265
Black
W10177264
Gray
17
W10179527
Baffel, Vent Cover
18 74004288 Screw
For Models: GW399LXUB0, GW399LXUQ0, GW399LXUS0
(Black) (White) (S.Steel)

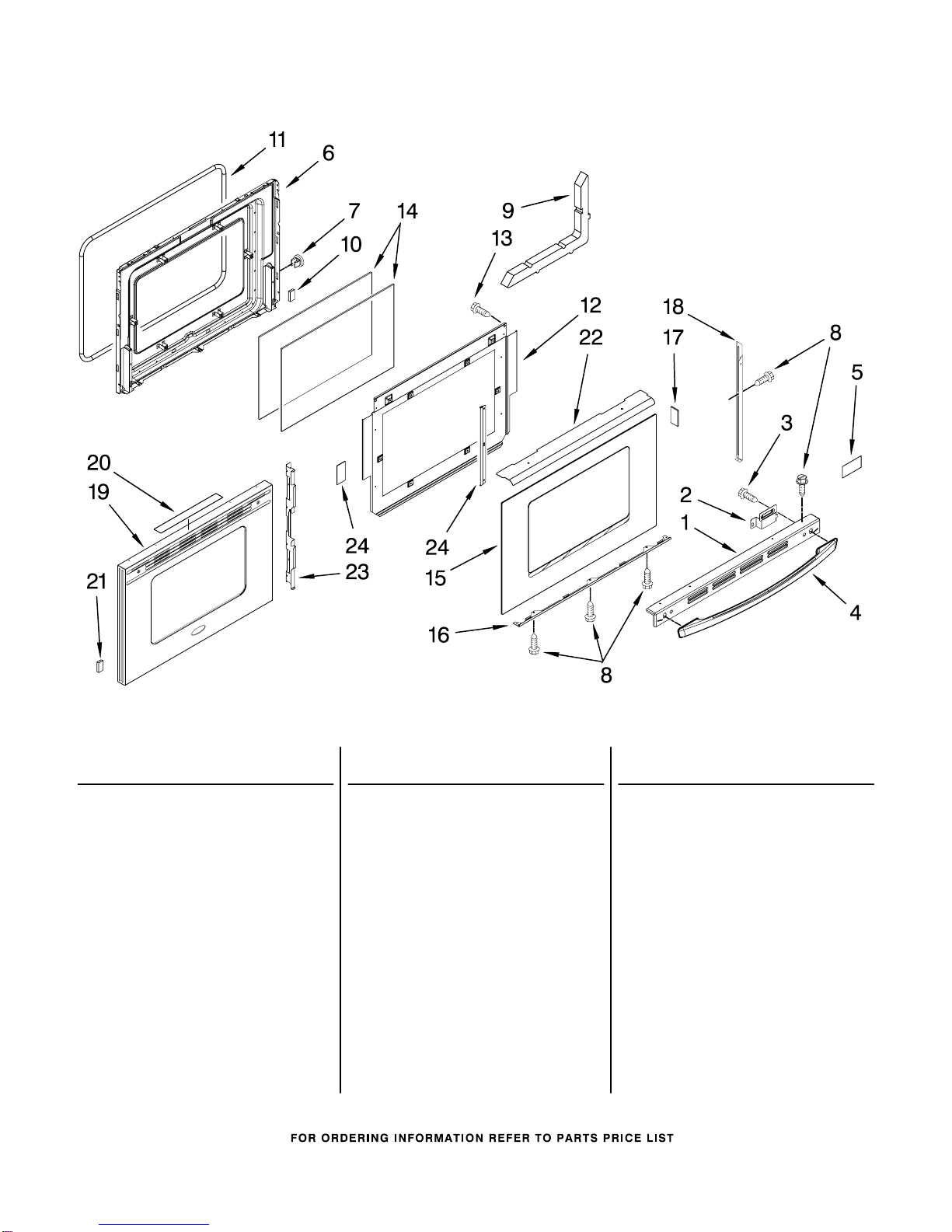

DOOR PARTS
2W10194216
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Trim, Door Top
W10165729
Black
W10165726
White
2 Bracket, Handle
74009698 Right
74009699 Left
3 74002979 Screw
74006635 (S.Steel Mdl Only)
4 Handle, Door
W10118431
Black
W10118430
White
W10144883
S.Steel
5 8303810 Nameplate
6 74011456 Liner, Door
7 74001574 Nut, Snap (4)
8 Screw, Trim
74009539 Black
74009540 White
74009268 S.Steel
9 Insulation, Door
74003647
74010043 (S.Steel Mdl Only)
10 74005546 Spacer
11
7201P046−60
Seal, Door
74009029 (S.Steel Mdl Only)
12 74011457 Baffle, Retainer
13 74001530 Screw
14 Glass, Inner (2)
74003645 Clear
74010231 Coated
15 Glass, Includes
Glass, Tape & Logo
W10170229
Black
W10170228
White
16 Trim, Door Bottom
74009686 Black
74009687 White
17 Tape
74003664 Foil
74004224 White
W10168886
Protective
18 Trim, Door Side
74009693 Black, Left
74009695 White, Left
74009692 Black, Right
74009694 White, Right
19
W10179679
Panel,Oven Dr(SST)
20 74011048 Insulation, Foil
(S.Steel Mdl)
21
7112P034−60
Clip, Glass
22 74011049 Shield, Door
23 74011050 Retainer, Glass
(S.Steel Mdl)
24 74011458 Bracket, Glass
(S.Steel Mdl)
For Models: GW399LXUB0, GW399LXUQ0, GW399LXUS0
(Black) (White) (S.Steel)

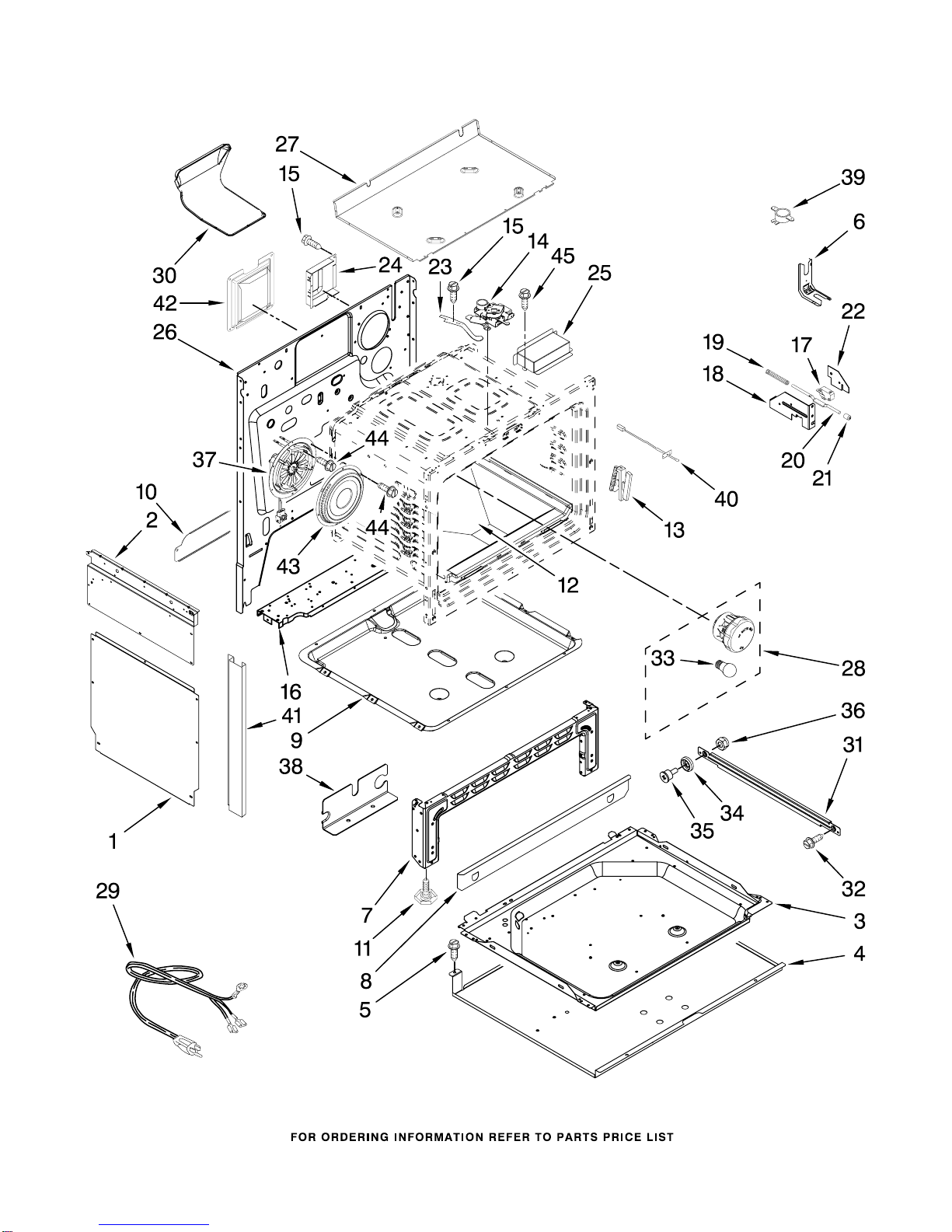

CHASSIS PARTS
3
W10194216
For Models: GW399LXUB0, GW399LXUQ0, GW399LXUS0
(Black) (White) (S.Steel)
CHASSIS PARTS
4W10194216
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 74010905 Shield, Lower Side
2 Panel, Shield
74010821 Left
74010822 Right
3 74009480 Retainer, Bottom
4
W10177095
Shield, Drawer
5 74002979 Screw
6 74005564 Bracket, Anti−Tip
7 74010882 Oven, Front Lower
8 74001219 Baffel, Oven Front
9 74004465 Pan, Burner
10 74010815 Extention, Back
11 74010805 Foot, Leveler (4)
12 74010948 Bottom, Oven
13 74011142 Hinge (2)
14 74010819 Latch Assembly
15 74003975 Screw, Latch Lever
16 74007129 Support, Valve/Reg
17 74008263 Switch, Light
18 74001632 Bracket, Switch
19 74001629 Spring, Switch
20 74003562 Rod, Door Switch
21 74001631 Bumper,Rod
22 74001872 Insulator, Switch
23 74001075 Lever, Lock
24 74004591 Cover, Access
25 74010845 Cover, Door Lock
26 74011465 Back, Main Gas
27
W10177086
Bottom,Burner Box
28 74010885 Light Assembly
29 74004438 Cord, Power
30 74011923 Box, Assy Vent
31 74003565 Runner, Drawer (2)
32
7101P017−60
Screw
33
7407P103−60
Bulb−Oven
34 74004078 Roller, Drawer (2)
35 74005231 Shaft, Roller
36 74005230 Nut, Lock
37 74010902 Fan, Convection
38
W10177020
Bracket,Pwr Supply
39 74010904 Switch, Limit
40 74004944 Sensor, Short
41 Trim, Side (2)
74010831 Black
74010832 White
42 74010814 Retainer, Conv
Insulation
43 74008315 Cover,Conv Fan
44 71001394 Screw
45 Y700502 Screw
INSULATION
74010987 Insulation, Wrap
W10165852
Insulation, Back
74010986 Insulation,
Lower Sides
7002P140−60
Insulation, Drawer
W10163917
Insulation,
Control Shield
For Models: GW399LXUB0, GW399LXUQ0, GW399LXUS0
(Black) (White) (S.Steel)

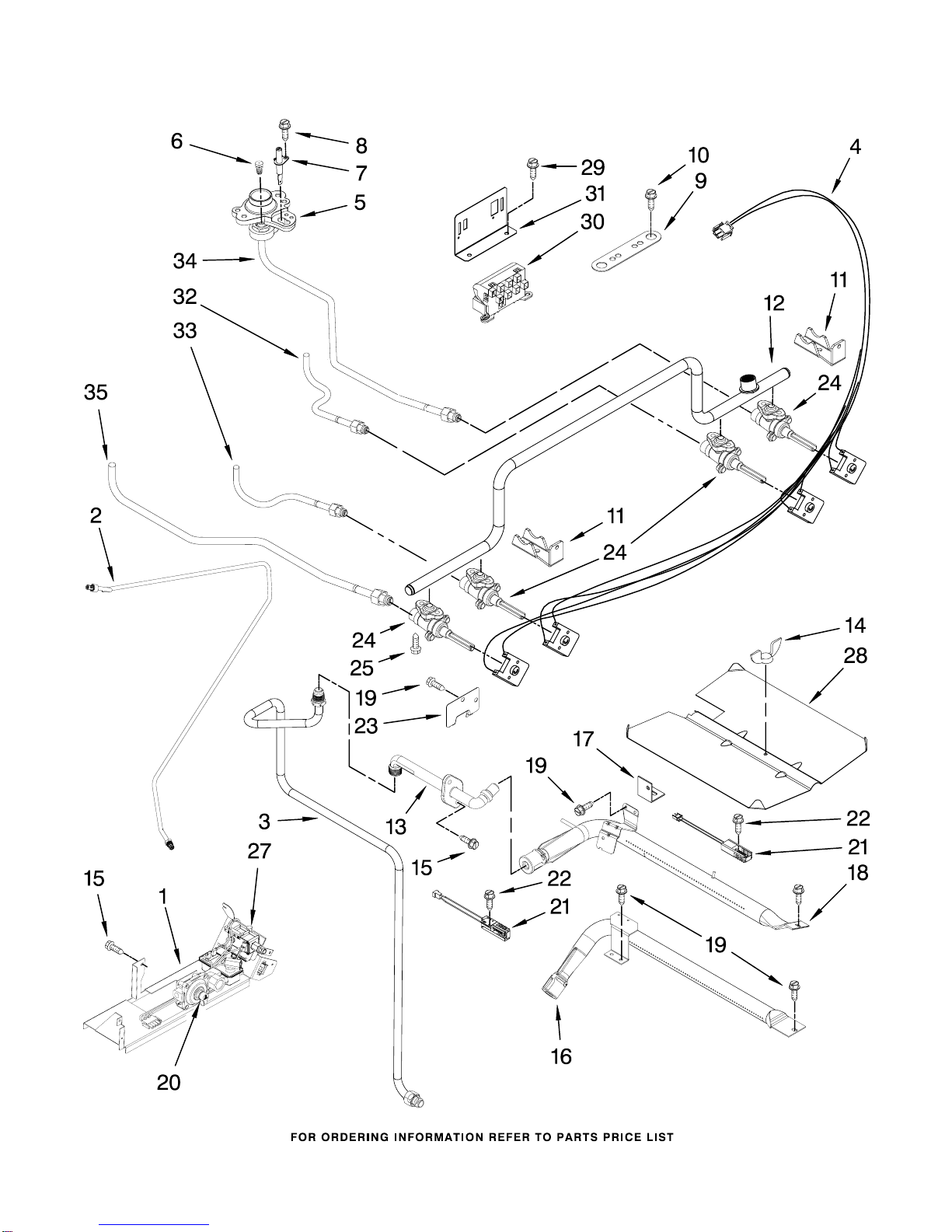

MANIFOLD PARTS
5
W10194216
For Models: GW399LXUB0, GW399LXUQ0, GW399LXUS0
(Black) (White) (S.Steel)
MANIFOLD PARTS
6W10194216
Illus. Part
No. No. DESCRIPTION
1 74005465 Cover, Bnr Valve
2
7506P535−60
Tubing, Gas Supply
3
W10177238
Tube, Broil
4
W10177102
Harness, Valve
Includes Switches
5 Orifice, Holder
W10164497
16K,RF
74010961 12K,LF
74010909 9.2K,RR
74010908 5K,LR
6 Orifice
W10177434
RF
W10177435
LF,RR
W10177436
LR
7 74009958 Ignitor (4)
8 8273062 Screw, Ignitor
9
W10160530
Retainer, Base (4)
10
7101P282−60
Screw
11
W10160655
Bracket, Valve (4)
12
W10177097
Pipe, Manifold
13 74010901 Fitting, Broil
14
7103P030−60
Nut, Wing
15
7101p274−60
Screw
16 74003960 Burner, Bake
17
W10177006
Support, Bake Bnr
18 74004076 Burner, Broil
19 71001394 Screw
20 74006035 Valve/Regulator
21 Ignitor, Bake
74007498 Broil
74008064 Bake
22 700502 Screw
23
4005F421−45
Cover,Ignitor Wire
24 Valve, Top Burner
W10160941
LR
W10177101
LF, RF, RR (3)
25
7101P338−60
Support, Screw (4)
27
W10179530
Valve, Safety
28 Baffle, Bake
W10163813
Broil
W10179632
Bake
29 74001530 Screw
30 74004283 Spark Module
31 74007020 Support, Spark Mod
32
W10177103
Tube,Burner RF
33
W10177105
Tube,Burner LF
34
W10177104
Tube,Burner RR
35
W10177107
Tube,Burner LR
Following Parts Not Illustrated
W10168551
Spuds, LP Gas
For Models: GW399LXUB0, GW399LXUQ0, GW399LXUS0
(Black) (White) (S.Steel)

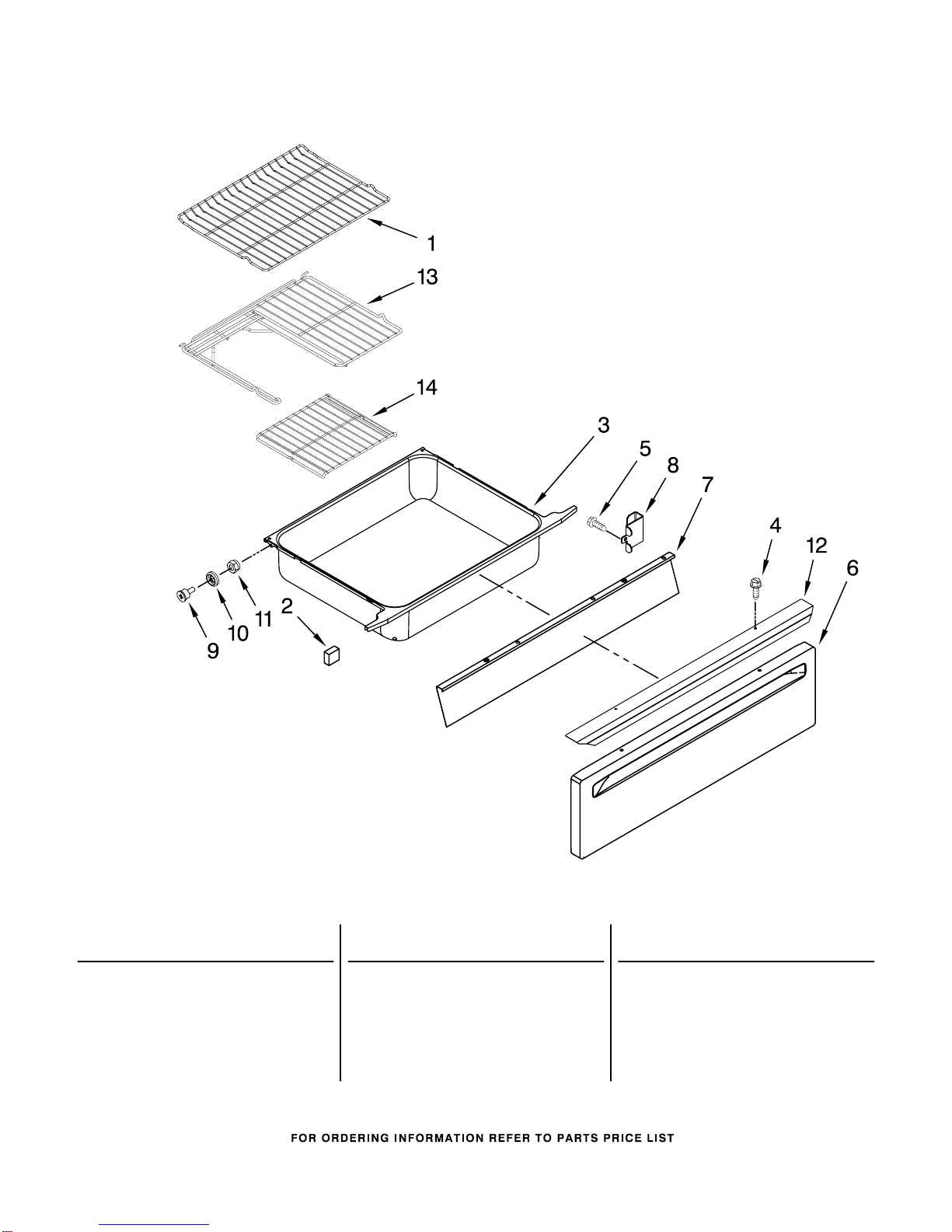

DRAWER AND RACK PARTS
7
W10194216
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 74011813 Rack, Oven (2)
2 74005546 Spacer, Rubber
3 74008333 Drawer, Service
4 Screw, Panel
74009539 Black
74009540 White
74009538 S.Steel
5 74001530 Screw
6 Panel,Drawer Frnt
74003701 Black
74003407 White
W10160943
S.Steel
7
2404F030−51
Lining, Drawer
8 74010896 Bracket, Drawer
9 74004078 Roller, Drawer (2)
10 74005231 Shaft, Roller (2)
11
7103P082−60
Nut, Lock
12
W10174639
Handle
(S.Steel Mdl Only)
13 74009589 Rack, Half
14 74009587 Insert, Rack
For Models: GW399LXUB0, GW399LXUQ0, GW399LXUS0
(Black) (White) (S.Steel)
OPTIONAL PARTS (NOT INCLUDED)
8W10194216
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150 c
242821 Wire, Blue
14 Ga. 150 c
242822 Wire, Brown
14 Ga. 150 c
242830 Wire, Brown
14 Ga. 200 c
242823 Wire, Green
14 Ga. 150 c
242824 Wire, Orange
14 Ga. 150 c
242825 Wire, Red
14 Ga. 150 c
242831 Wire, Red
14 Ga. 200 c
242827 Wire, Yellow
14 Ga. 150 c
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350939 Black
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
799340 Black (Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
WIRING HARNESS PARTS
W10160396
Harness, Valve
W10160395
Harness, Main
74010914 Harness, Spark
7101P027−60
Screw, Ground
74010849 Harness,Sensor
For Models: GW399LXUB0, GW399LXUQ0, GW399LXUS0
(Black) (White) (S.Steel)
