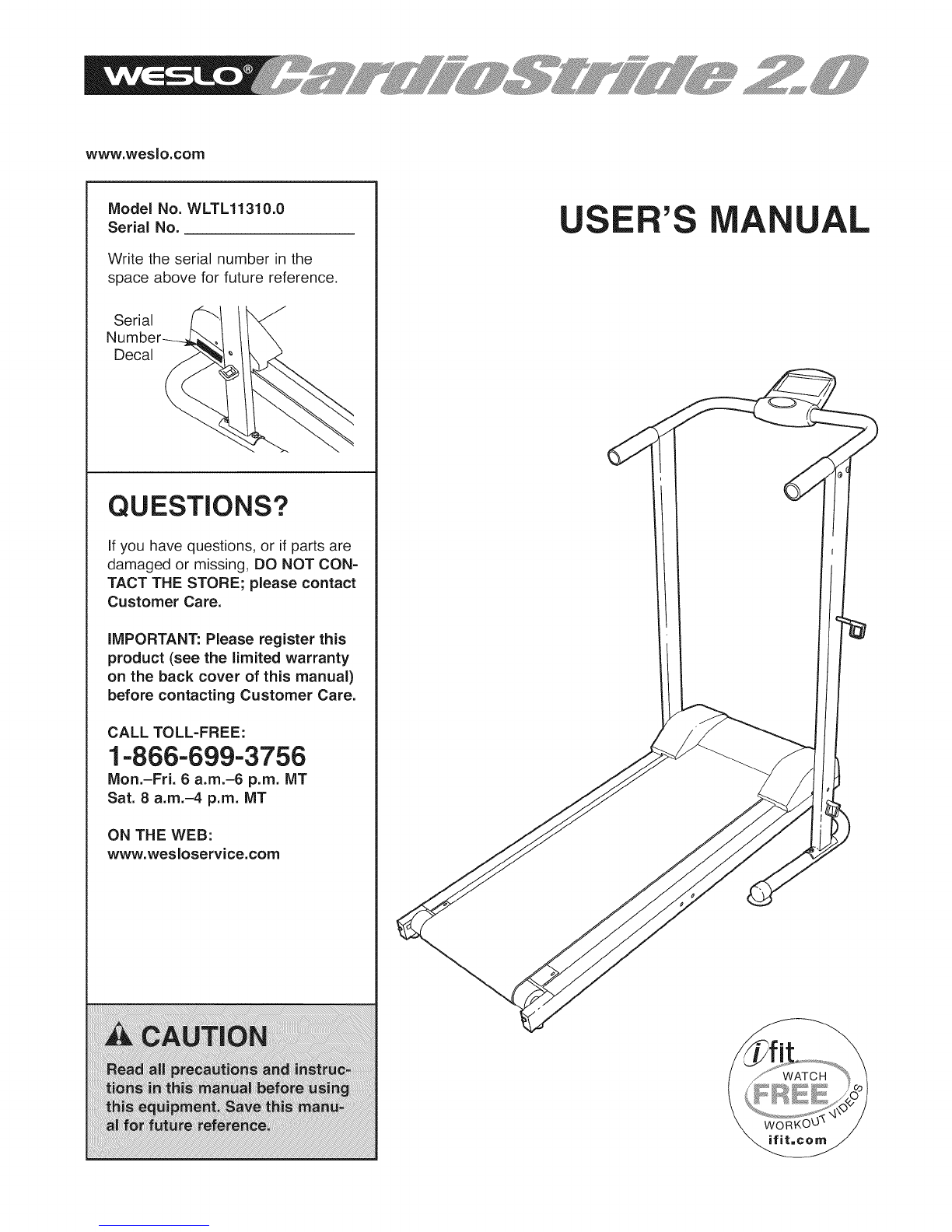

Weslo CARDIO STRIDE 2.0 Manuel utilisateur

www.wesIo.com

Model No. WLTL11310.0

Serial No.

Write the serial number in the

space above for future reference.

Serial

Decal

QUESTIONS?

If you have questions, or if parts are

damaged or missing, DO NOT CON-

TACT T!lE STORE; please contact

Customer Care.

iMPORTANT: Please register this

product (see the limited warranty

on the back cover of this manual)

before contacting Customer Care.

CALL TOLL-FREE:

1-866-699-3756

Mon.-Fri. 6 a.m.-6 p.m. MT

Sat. 8 a.m.-4 p.m. MT

ON TIlE WEB:

www.wesloservice.com

AUAL

//I

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................. 3

BEFORE YOU BEGIN ....................................................................... 5

ASSEMBLY ............................................................................... 6

TREADMILL OPERATION .................................................................... 9

HOW TO FOLD THE TREADMILL ............................................................. 11

TROUBLESHOOTING ...................................................................... 12

EXERCISE GUIDELINES ................................................................... 13

PART LIST ............................................................................... 14

EXPLODED DRAWING ..................................................................... 15

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY ............................................................... Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, call the

telephone number on the front cover of this manual and request a free replacement decal. Apply

the decal in the location shown. Note: The decal(s) may not be shown at actual size.

jury, standon Parareducireltiesgodelesionessedas, "

foot rails before starting treadmill; read en los rieles de soporte para los pies antes de

and understand the user's manual, all comenzar la m_quina para correr, lea y

instructions and all warnings before entienda el manual del usuario, todas las

use. Keep children away. instrucdones, y las advertencias antes del use

(One on each side)

WESLO is a registered trademark of ICON IP, Inc.

iMPORTANT PRECAUTIONS

WARNING: Toreducetheriskofseriousojory,reada.important precautions and

instructions in this manual and all warnings on your treadmill before using your treadmill, iCON

assumes no responsibility for personal injury or property damage sustained by or through the use

of this product.

Before beginning this or any exercise pro=

gram, consult your physician. This is espe-

cially important for persons over age 35 or

persons with pre-existing health problems.

it is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

11.

treadmill. Athletic support clothes are recom=

mended for both men and women. Always

wear athletic shoes; never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

Do not operate the treadmill if the treadmill is

not working properly. (See TROUBLESHOOT-

iNG on page 12 if the treadmill is not working

properly.)

10.

Place the treadmill on alevel surface, with at 12.

least 8 ft. (2.4 m) of clearance behind it and 2

ft. (0.6 m) on each side. Do not place the

treadmill on any surface that blocks air open= 13.

ings. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

Keep children under age 12 and pets away

from the treadmill at all times.

The treadmill should not be used by persons

weighing more than 250 Ibs. (113 kg).

Never allow more than one person on the

treadmill at a time.

Wear appropriate exercise clothes when

using the treadmill. Do not wear loose

clothes that could become caught in the

14.

15.

16.

17.

18.

Always hold the handrails while using the

treadmill.

Do not attempt to raise or lower the treadmill

until it is properly assembled. (See ASSEM-

BLY on page 6 and HOW TO FOLD THE

TREADMILL on page 11.) You must be able to

safely lift 25 Ibs. (11 kg) to raise or lower the

treadmill.

When folding the treadmill, make sure that

the storage latch is holding the frame secure=

ly in the storage position.

Do not change the incline of the treadmill by

placing objects under the treadmill.

inspect and properly tighten all parts of the

treadmill regularly.

Never drop or insert any object into any

opening on the treadmill

Servicing other than the procedures in this

manual should be performed by an autho-

rized service representative only.

BEFORE YOU BEGIN

Thank you for selecting the new WESLO ®CARDIO

STRIDE 2.0 treadmill. The CARDIO STRIDE 2.0

treadmill offers a selection of features designed to

make your workouts at home more effective. And

when you're not exercising, the unique treadmill can

be folded up, requiring less than half the floor space of

other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Console

Handrail

Storage Pin

Walking Belt

Hood

Adjustment Pin

Roller

Rear

Rear Roller Adjustment

ASSEMBLY

To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly

requires only the included hex_eyj and wrench _.

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials, Do not

dispose of the packing materials until assembly is completed. Note: Some small parts may have been

pre-assembled. To avoid damaging parts, do not use power tools for assembly. Extra hardware may be

included. The number in parentheses in the drawing below is the key number of the part, from the PART LIST

near the end of this manual. The number after the parentheses is the quantity needed for assembly.

M4 x 12mm

Screw (3)-2 M5 x 10mm Bolt

(10)-2

M8 Nylon

Nut (13)-4

M8 x 15mm Bolt

(33)-4

M8 x 50mm Bolt

(38)-4

M8 Curved M8 Washer

Washer (37)-4 (34)-4

.Identify the Right Upright (36), which has a single hole

in the indicated location. (Note: There is a wire inside of

the Left Upright [35].) Hold the Right Upright against the

Base (14) as shown, and orient the Right Upright so the

two indicated holes are on the side shown.

Attach the Right Upright (36) to the Base (14) with two

M8 x 50mm Bolts (38), two M8 Curved Washers (37),

and two M8 Nylon Nuts (13) as shown. Make sure that

the curved sides of the Washers are against the Base.

Do not tighten the Nylon Nuts yet.

Attach the Left Upright (35) to the Base (14) in the

same way. Make sure that the Left Upright is oriented

so the two indicated holes are on the side shown. Do

not tighten the Nylon Nuts yet.

14 Holes

.Raise the Left Upright (35) and the Right Upright (36) to

the position shown. I

Attach the Hood (28) to the front of the Frame (29) with

two M5 x 10mm Bolts (10). 28

.See drawing 4a. Hold the front of the Frame (29)

between the Left Upright (35) and the Right Upright

(36). Align the holes near the front of the Frame with

one of the two sets of adjustment holes in the Uprights.

Insert the two Adjustment Pins (4) into the holes in the

Uprights and the Frame. Make sure that the

Adjustment Pins are fully inserted at the same

height.

Look under the Frame (29) near the Left Upright (35).

See drawing 4b. Locate the Reed Switch Clip (11)

attached to the underside of the Frame. Insert the Reed

Switch (6) into the Clip as shown. Next, locate the

Magnet (12) on the left Flywheel (9). Turn the Flywheel

until the Magnet is aligned with the Reed Switch. Move

the Reed Switch so that there is a 1/8" (3 ram) gap

between the Reed Switch and the Magnet. Then,

tighten the M5 x 12mm Screw (44) in the Clip.

9/44

1/8 in.

View from

below

.Hold the Handrail (5) near the Left and Right Uprights

(35, 36). Connect the Handrail Wire (2) to the Reed

Switch Wire (6). Insert the Wires down into the Left

Upright.

Attach the Handrail (5) to the Uprights (35, 36) with four

M8 x 15mm Bolts (33) and four M8 Washers (34). Be

careful not to pinch the Wires (2, 6).

See step 1. Tighten the four M8 Nylon Nuts (13).

.The Console (1) requires two "AAA" batteries. Alkaline

batteries are recommended. Press the indicated tab on

the Battery Cover (27), and remove the Battery Cover.

Insert two batteries into the two battery clips; make

sure that the negative (-) ends of the batteries are

touching the springs in the battery clips.

atteriei/°

.See drawing 7a. Hold the Console (1) near the

Handrail (5). Connect the wire on the Console to the

Handrail Wire (2). Attach the Console to the Handrail

with two M4 x 12mm Screws (3). Make sure that the

wires are not pinched.

See drawing 7b. Press the Battery Cover (27) back

onto the Console (1).

7a 7b

.Remove the paper backing from the Adhesive Clip (30).

Press the Adhesive Clip onto the left side of the Frame

(29) in the indicated location. Press the Hex Key (20)

into the Adhesive Clip.

Make sure that the walking belt is properly tightened

(see SYMPTOM 3 on page 12).

30 29

9. Make sure that all parts are properly tightened before you use the treadmill. To protect the floor or car-

pet, place a mat under the treadmill.

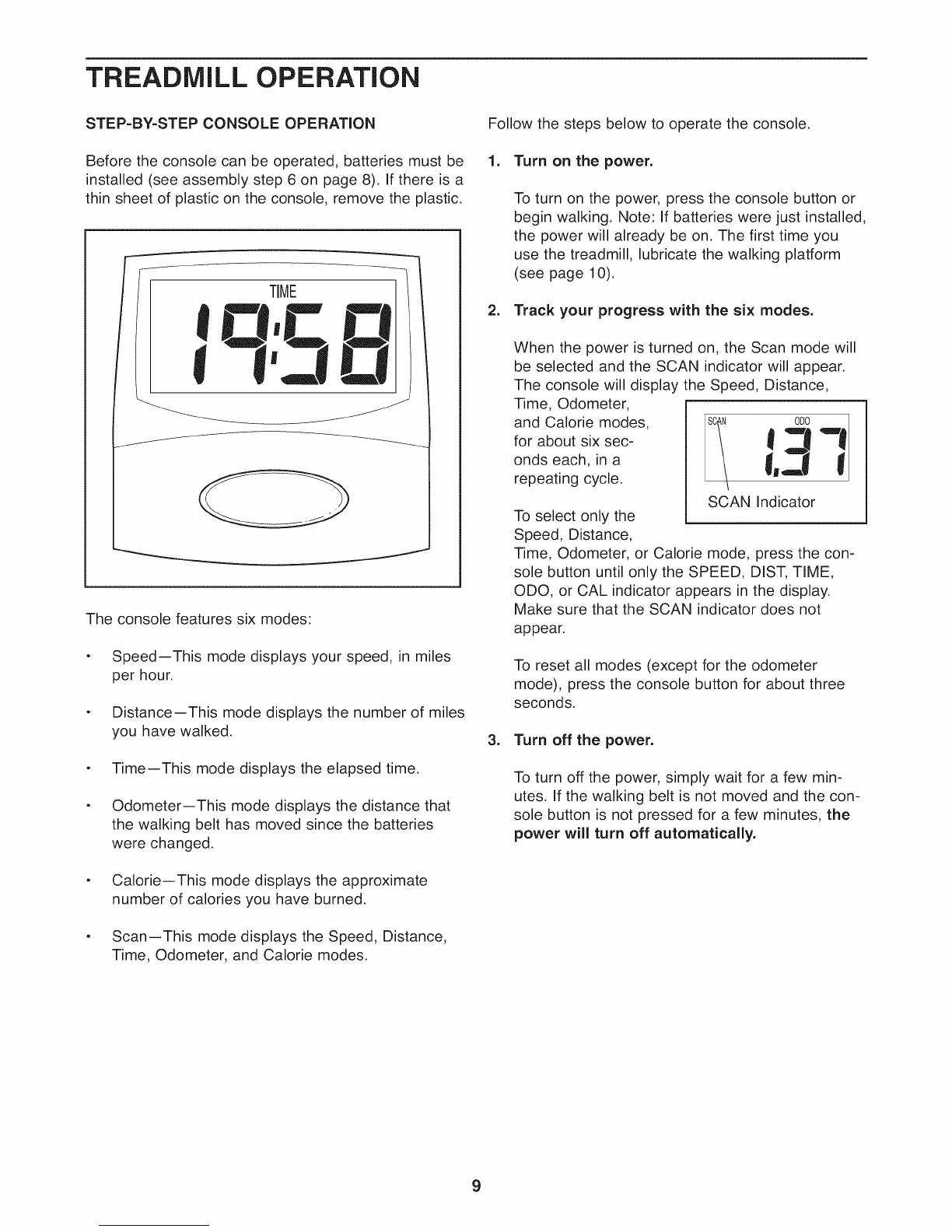

TREADMILL OPERATION

STEP-BY-STEP CONSOLE OPERATION

Before the console can be operated, batteries must be

installed (see assembly step 6 on page 8). If there is a

thin sheet of plastic on the console, remove the plastic.

_ J

The console features six modes:

Speed--This mode displays your speed, in miles

per hour.

Distance--This mode displays the number of miles

you have walked.

Time--This mode displays the elapsed time.

Odometer--This mode displays the distance that

the walking belt has moved since the batteries

were changed.

Calorie--This mode displays the approximate

number of calories you have burned.

Scan--This mode displays the Speed, Distance,

Time, Odometer, and Calorie modes.

Follow the steps below to operate the console.

1. Turn on the power.

To turn on the power, press the console button or

begin walking. Note: If batteries were just installed,

the power will already be on. The first time you

use the treadmill, lubricate the walking platform

(see page 10).

2. Track your progress with the six modes.

When the power is turned on, the Scan mode will

be selected and the SCAN indicator will appear.

The console will display the Speed, Distance,

Time, Odometer,

and Calorie modes,

for about six sec-

onds each, in a

repeating cycle.

To select only the

Speed, Distance,

Time, Odometer, or Calorie mode, press the con-

sole button until only the SPEED, DIST, TIME,

ODO, or CAL indicator appears in the display.

Make sure that the SCAN indicator does not

appear.

To reset all modes (except for the odometer

mode), press the console button for about three

seconds.

3. Turn off the power.

To turn off the power, simply wait for a few min-

utes, If the walking belt is not moved and the con-

sole button is not pressed for a few minutes, the

power will turn off automatically.

iNCLiNE ADJUSTMENT LUBRiCATiNG THE WALKING PLATFORM

The incline of the treadmill can be adjusted to two

positions. Hold the front of the Frame (29), and

remove the two Adjustment Pins (4). Raise or lower

the Frame, align the holes in the Frame with one of

the sets of holes in the Uprights (35, 36), and then

reinsert the Adjustment Pins.

Before the treadmill is used, the walking platform

should be lubricated. Open the included lubricant

packet. Reach under one side of the walking belt as

far as you can, and apply half of the lubricant to the

walking platform. Then, reach under the other side of

the walking belt and apply the remaining lubricant.

After you have applied the lubricant, walk on the

treadmill for a few minutes to spread the lubricant.

Apply lubricant here

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weslo tapis roulant

Weslo

Weslo Cadence 2300 Manuel utilisateur

Weslo

Weslo Cadence 6.0 Treadmill Manuel du système

Weslo

Weslo Cadence 200 Manuel utilisateur

Weslo

Weslo Cadence 400 Treadmill Manuel d'utilisation et d'entretien

Weslo

Weslo Cadence S5 Treadmill Manuel d'utilisation et d'entretien

Weslo

Weslo Cadence 700 Treadmill Manuel du système

Weslo

Weslo Cadence5.8 Treadmill Manuel utilisateur

Weslo

Weslo Cadence 720 Guide de démarrage rapide

Weslo

Weslo Cadence 900 Treadmill Guide de démarrage rapide

Weslo

Weslo Cadence 720 Manuel utilisateur

Weslo

Weslo Cadence C 8 Treadmill Manuel utilisateur

Weslo

Weslo Compact XS WETL20708.0 Manuel utilisateur

Weslo

Weslo Cadence G 7.0 WLTL39810.0 Manuel utilisateur

Weslo

Weslo Cadence C 8 Treadmill Manuel du système

Weslo

Weslo Cadence S5 Treadmill Guide de démarrage rapide

Weslo

Weslo Cadence 300 Treadmill Manuel du système

Weslo

Weslo Cadence 700 Treadmill Manuel d'utilisation et d'entretien

Weslo

Weslo WLTL45310 Manuel utilisateur

Weslo

Weslo WLTL29820 Manuel utilisateur

Weslo

Weslo Cadence Ls 6 Manuel utilisateur

Weslo

Weslo Cadence Ct10 Manuel utilisateur

Weslo

Weslo Cadence 940 WETL21200 Manuel utilisateur

Weslo

Weslo Cadence S 8 Manuel du système

Weslo

Weslo Cadence S5 Treadmill Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

NordicTrack

NordicTrack NTL12941 Manuel utilisateur

NordicTrack

NordicTrack T7.5 S Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

NordicTrack

NordicTrack NETL81810.0 Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

NordicTrack

NordicTrack T 14.0 Treadmill Manuel utilisateur
