USERÕS MANUAL

PATENT PENDING

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

Warning Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Part Identification Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Adjusting the Weight Bench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Muscle Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Note: A Part List/Exploded Drawing is attached to the center of this manual. Remove the Part List/Exploded

Drawing before beginning assembly.

Table of Contents

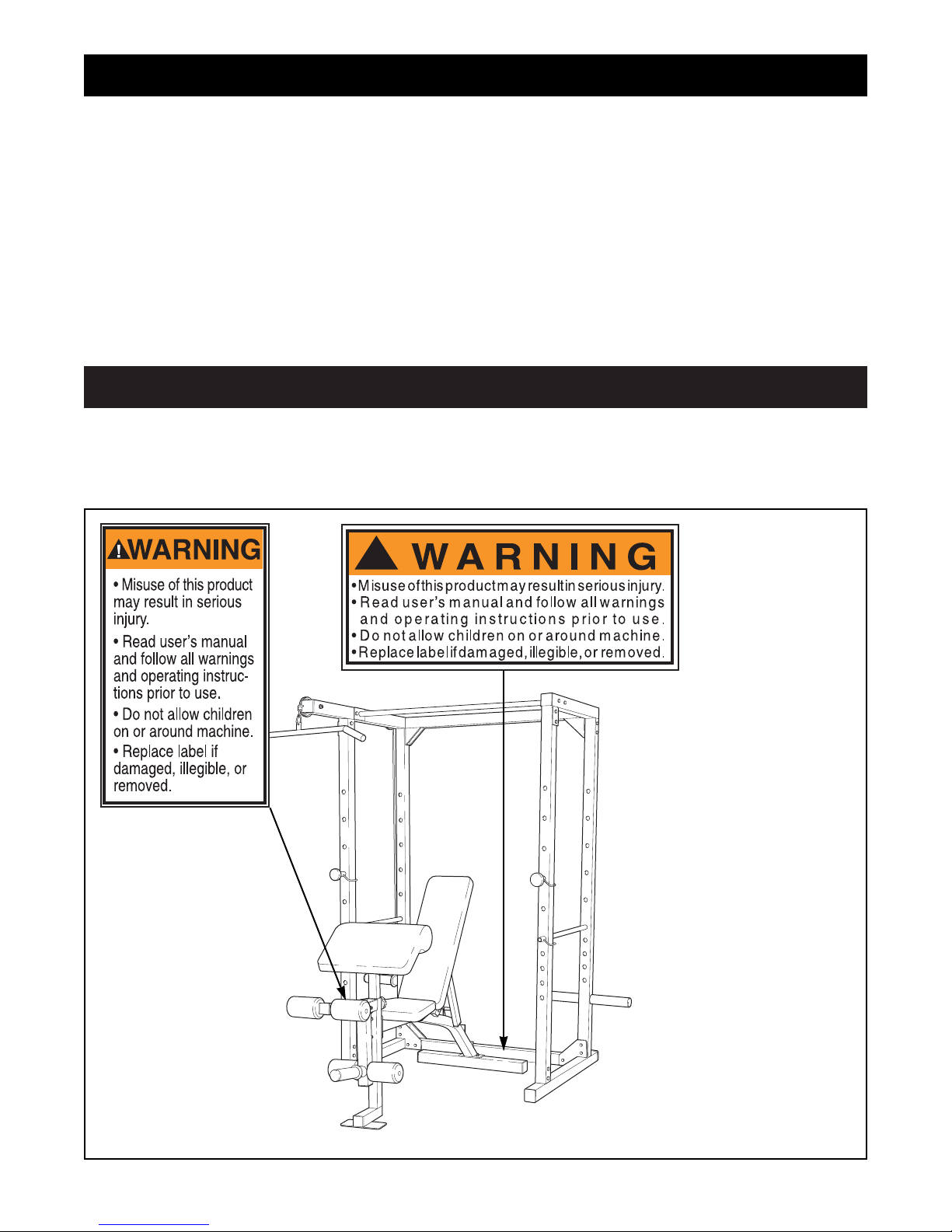

The decals shown below have been placed on the weight bench. If a decal is missing, or if it is not legi-

ble, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6

a.m. until 6 p.m. Mountain Time, to order a replacement decal. Apply the replacement decal to the loca-

tion shown.

Warning Decal Placement

1. Read all instructions in this manual before

using the weight bench. Use the weight

bench only as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

3. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental or institutional setting.

4. Use the weight bench only on a level surface.

Cover the floor beneath the weight bench for

protection.

5. Inspect and tighten all parts each time you

use the weight bench. Replace any worn

parts immediately.

6. Keep children under 12 and pets away from

the weight bench at all times.

7. Keep hands and feet away from moving parts.

8. Always wear athletic shoes for foot protec-

tion while exercising.

9. Always make sure there is an equal amount

of weight on each side of your barbell.

10. Always move the bench out of the way when

performing squat exercises.

11. The weight bench is designed to support a

maximum of 560 pounds, including the user,

a barbell and weights. Do not place more

than 310 pounds, including the barbell, on

the weight rests. Do not place more than 150

pounds on the weight carriage. Do not place

more than 150 pounds on the leg lever for

normal use.

12. Make sure that the cable remains on the pul-

leys at all times. If the cable binds as you are

exercising, stop immediately and make sure

that the cable is on the pulleys.

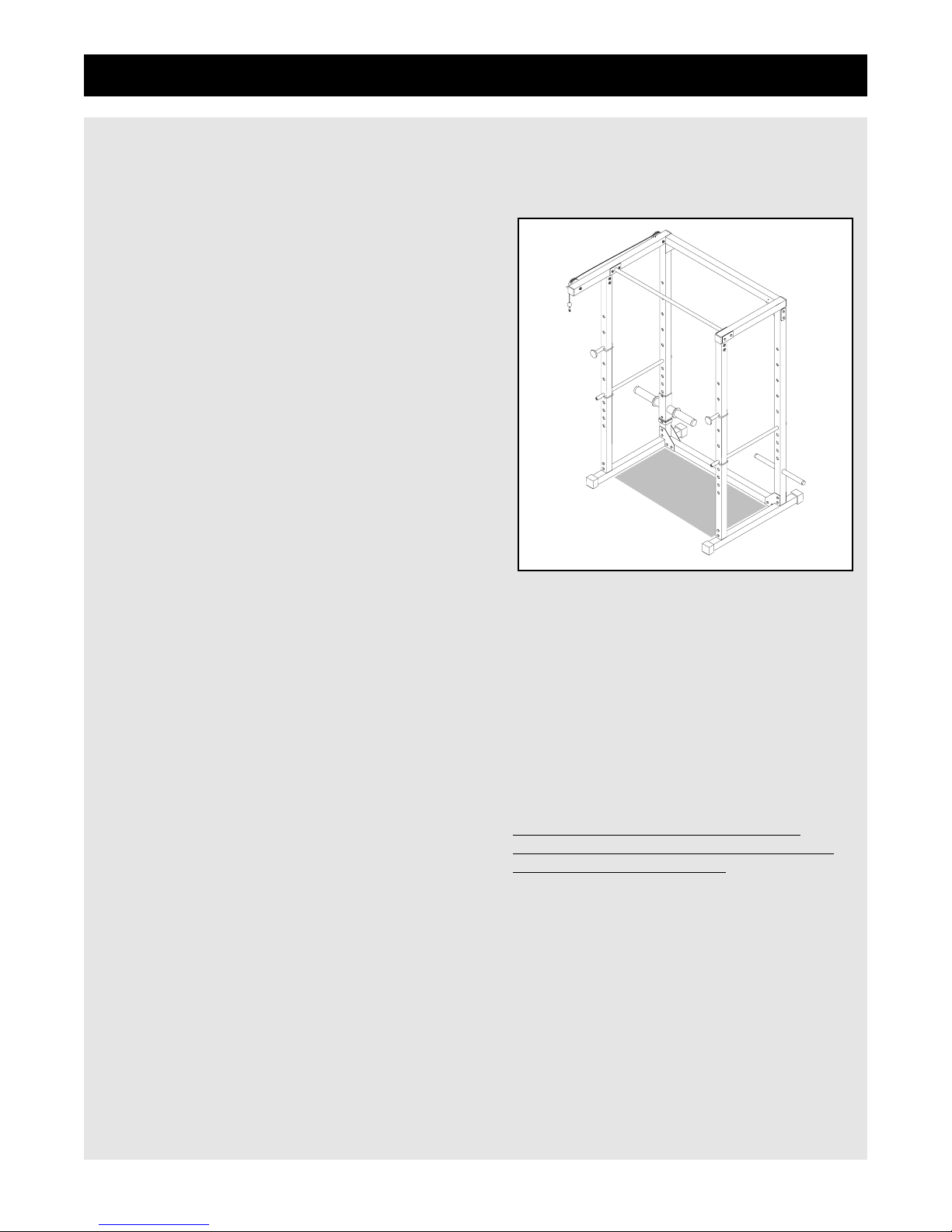

13. When performing standing exercises, stand

inside the area that is shaded in the drawing.

14. Always set both weight rests at the same

height.

15. Always exercise with a partner. When you

are performing bench press exercises, squat

exercises or toe raise exercises, your part-

ner should stand behind you to catch the

barbell if you cannot complete a repetition.

16. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

17. Always disconnect the lat bar from the

weight bench when performing an exercise

that does not use the lat bar.

18.Always secure the weights with the weight

clips when you have mounted them on the

barbell, leg lever, weight carriage or storage

tubes.

19.When using the pulley station, always place

50 pounds on the storage tubes (on the left

rear upright) to balance the cage.

WARNING: Before beginning this or any exercise program, consult your physician. This is especially

important for persons over the age of 35 or persons with pre-existing health problems. Read all

instructions before using. ICON assumes no responsibility for personal injury or property damage

sustained by or through the use of this product.

To reduce the risk of serious injury, read the following important pre-

cautions before using the weight bench.

WARNING:

Important Precautions

Weight

Carriage

Weight

Tube

Weight

Tube

Pulley

Station

Lat Bar

Small Weight

Rest

Weight Rest

Right Side

Left Side

Note: The terms Òright sideÓ and Òleft sideÓ are

determined relative to a person sitting on the

bench, and they do not correspond to what is

right and left on the drawings in the manual.

Backrest

Leg Lever

Seat

Thank you for selecting the versatile WEIDER¨PRO

OLC Weight Bench. The WEIDER¨PRO OLC is

designed to help you develop every major muscle

group of the body. Whether your goal is a shapely fig-

ure, dramatic muscle size and strength or a healthier

cardiovascular system, the OLC Weight Bench will

help you achieve the specific results you want.

For your benefit, read this manual carefully before

using the WEIDER¨PRO OLC Weight Bench. If you

have additional questions, please call our Customer

Service Department toll-free at 1-800-999-3756,

Monday through Friday, 6 a.m. until 6 p.m. Mountain

Time (excluding holidays). To help us assist you,

please note the product model number and serial

number before calling. The model number is

WEBE96491. The serial number can be found on a

decal attached to the WEIDER¨PRO OLC Weight

Bench (see the front cover of this manual).

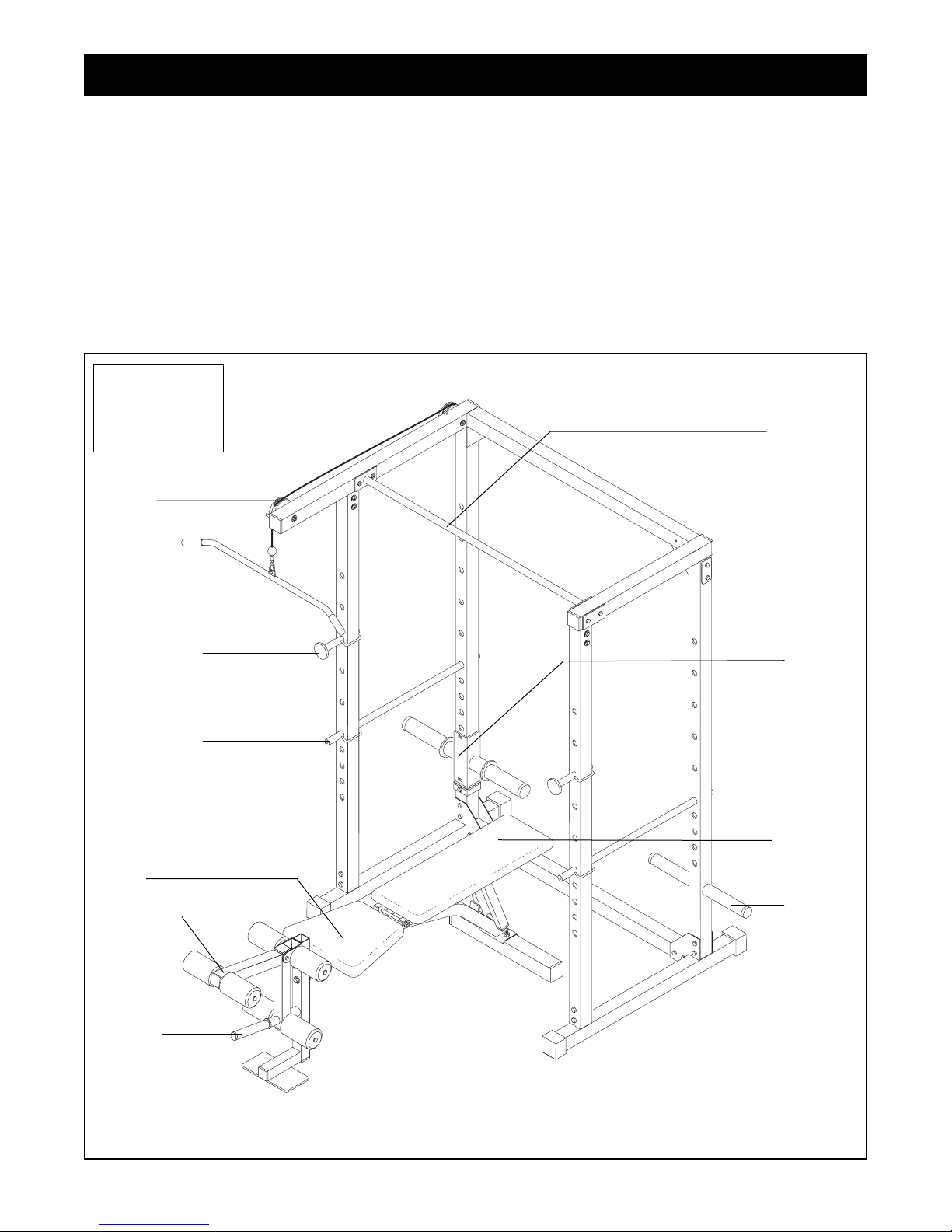

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

Before You Begin

Crossbar

Assembled

Dimensions:

Height: 81Ó

Base: 49Ó x 40Ó

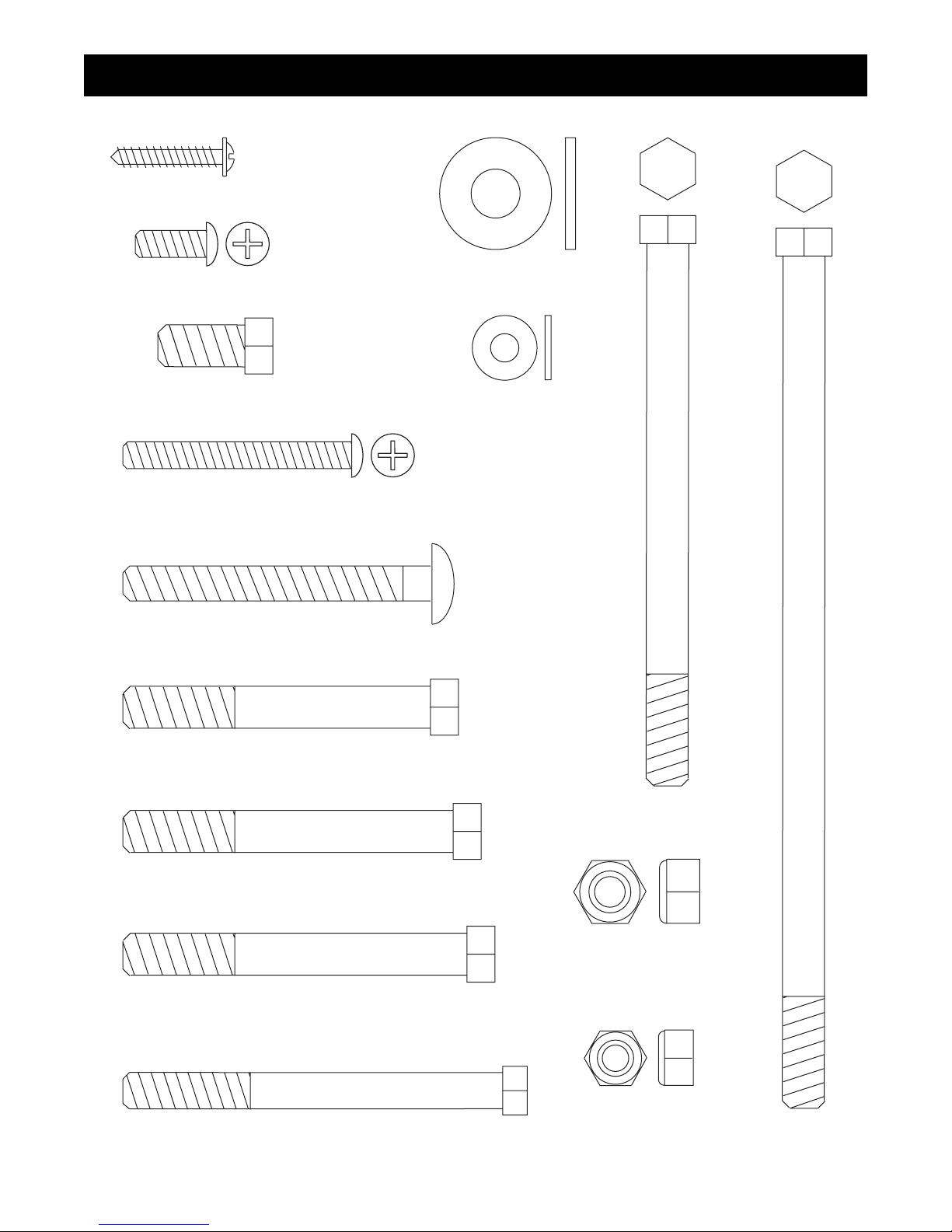

Part Identification Chart - Model No. WEBE96491 R0899A

M10 Nylon Locknut (11)

M8 Nylon Locknut (34)

M6 Washer (30)

M6 x 16mm Screw (3)

M8 x 86mm Bolt (58)

M10 x 19mm Bolt (56)

M6 x 52mm Screw (4)

M4 x 25mm Screw (45)

M10 Washer (6)

M10 x 75mm Bolt (53)

M10 x 123mm Bolt (43)Ð1

M10 x 70mm Carriage Bolt (52)

M10 x 78mm Bolt (33)

M10 x 70mm Bolt (48)

M10 x 193mm Bolt (22)Ð2

1. Before beginning assembly, make sure you

understand the information in the box above.

Note: Some of the parts described in the assem-

bly steps may come pre-assembled.

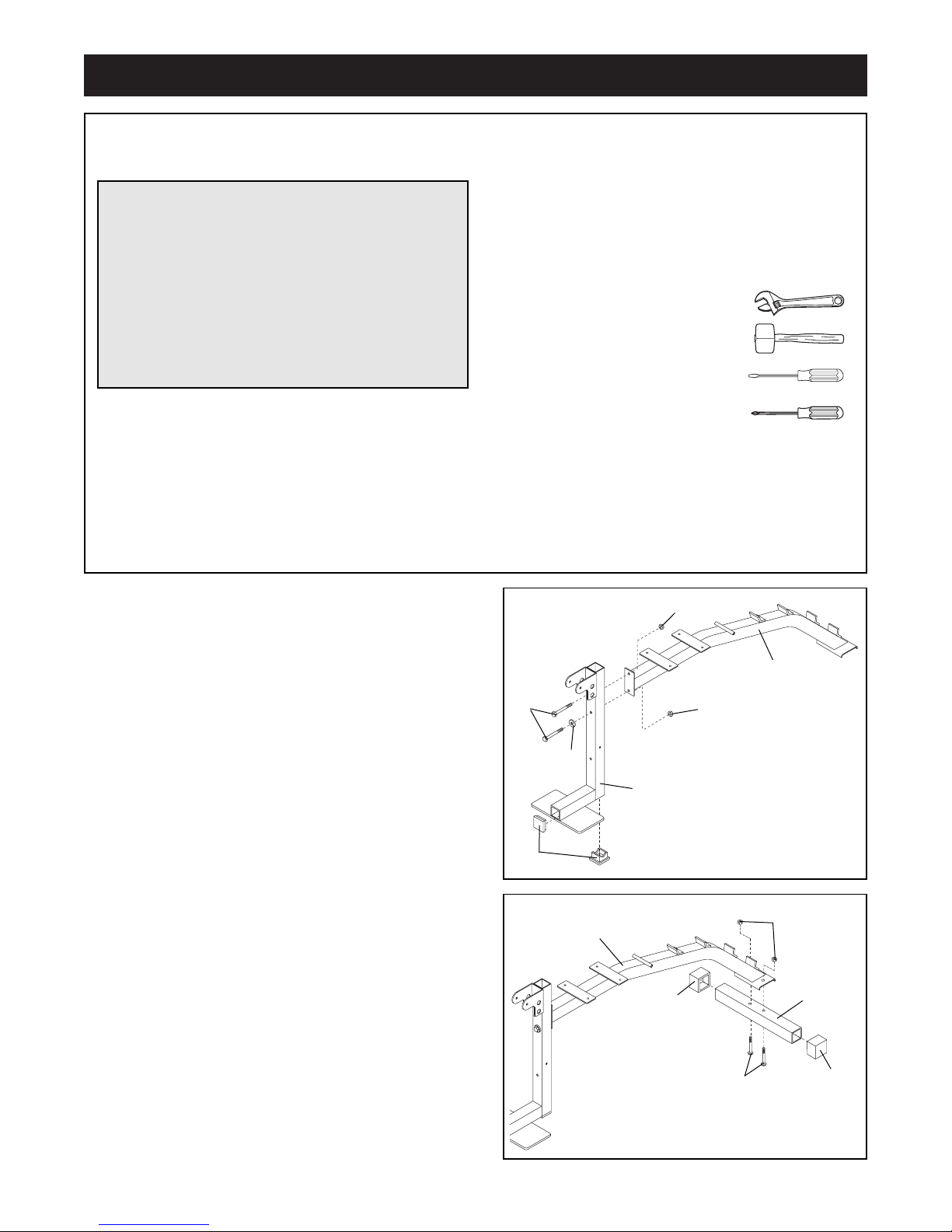

Press a 50mm x 50mm Square Inner Cap (17) into

the indicated ends of the Front Leg (19).

Insert an M10 x 70mm Bolt (48) with an M10 Washer

(6) through the lower of the two holes in the Front

Leg (19). Insert an M10 x 70mm Bolt with no

Washer through the upper of the two holes in the

Front Leg.

Slide the bracket on the Bench Frame (5) over the

two M10 x 70mm Bolts (48) and secure it with two

M10 Nylon Locknuts (11).

Before beginning assembly, carefully read the

following information and instructions:

¥Assembly requires two people.

¥Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

¥Tighten all parts as you assemble them, unless

instructed to do otherwise.

¥For help identifying the small parts, use the PART

IDENTIFICATION CHART on page 5.

¥As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

The following tools (not included) are required

for assembly:

¥ Two (2) adjustable wrenches

¥ One (1) rubber mallet

¥ One (1) standard screwdriver

¥ One (1) phillips screwdriver

¥ Lubricant, such as grease or petroleum jelly

plus soapy water.

Assembly will be more convenient if you have the

following tools: A socket set, a set of open-end or

closed-end wrenches or a set of ratchet wrenches.

Assembly

Make Things Easier for Yourself!

Everything in this manual is designed to ensure

that the assembly of our products can be complet-

ed successfully by anyone. However, it is impor-

tant to recognize that your new equipment is a

sophisticated product with many small parts and

consequently, the assembly process will take

time. Most people find that by setting aside plenty

of time, and by deciding to make the task enjoy-

able, assembly will go smoothly.

48 11

2. Press a Base Outer Cap (69) onto each end of the

Stabilizer (37). Insert two M10 x 70mm Carriage Bolts

(52) through the holes in the Stabilizer. Note that on

one side of the Stabilizer there is an indentation

around the holes. Push the Bolts in from this

side, and then turn the bolt heads towards the

floor.

Slide the bracket on the Bench Frame (5) over the

two M10 x 70mm Carriage Bolts (52) in the Stabilizer

(37) and secure it with two M10 Nylon Locknuts (11).

211

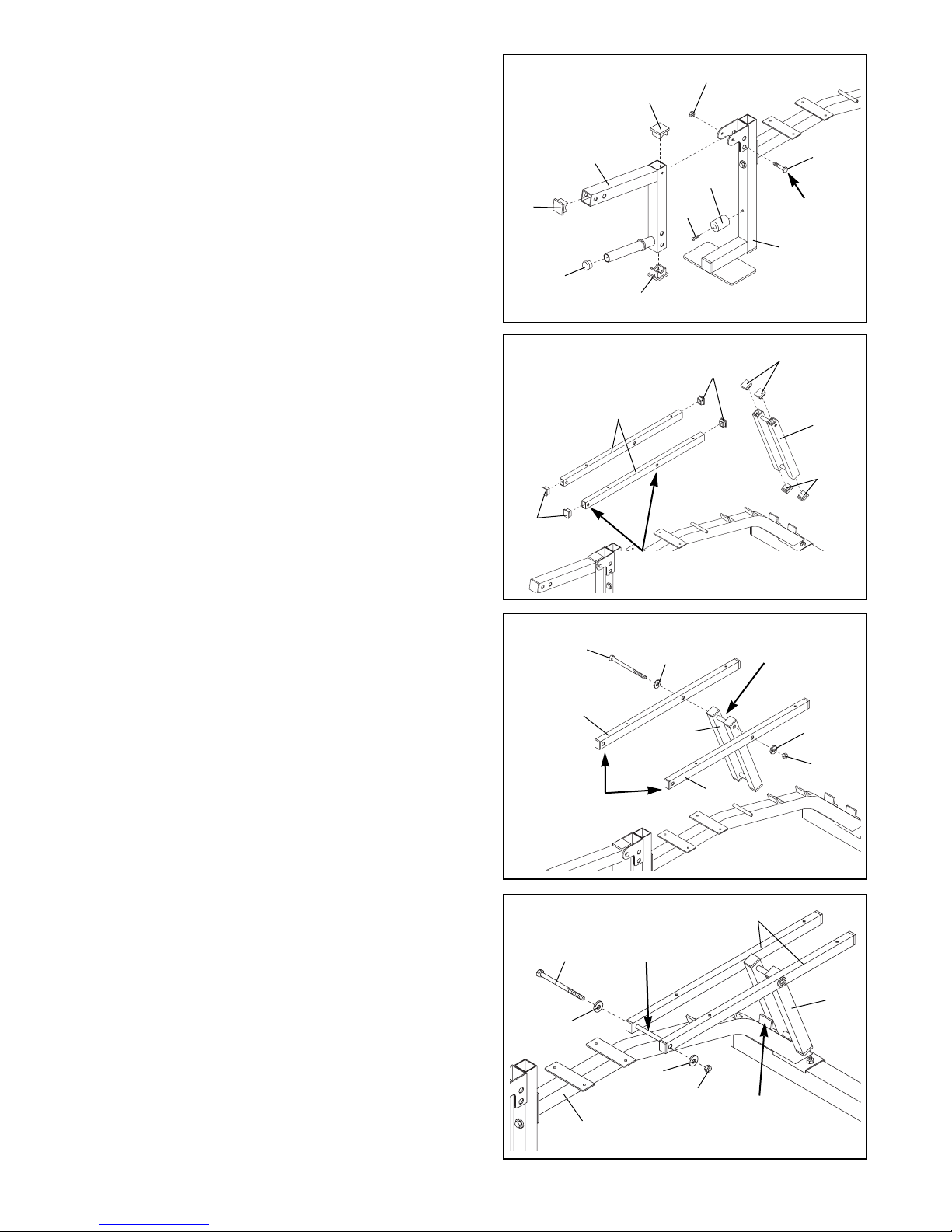

5. Slide an M10 Washer (6) onto an M10 x 193mm Bolt

(22) and then slide the Bolt through the indicated hole

in one Backrest Tube (27).

Make sure the Backrest Tube (27) is oriented as

shown in the drawing. Slide the M10 x 193mm Bolt

(22) through the welded tube at the upper end of the

Backrest Adjustment Bracket (39).

Slide the second Backrest Tube (27) onto the

M10 x 193mm Bolt (22). Secure the Backrest Tubes

with an M10 Washer (6) and an M10 Nylon Locknut

(11).

4. Press a 25.4mm x 38mm Inner Cap (28) into each

end of both Backrest Tubes (27).

Press a 25.4mm x 38mm Inner Cap (28) into each

open end of the tubes on the Backrest Adjustment

Bracket (39).

Important: Before performing step 5, make sure

the Backrest Tubes are oriented correctly. The

holes marked in the drawing are not centered on the

Tube; they are closer to one edge. This edge must be

pointed towards the floor.

3. Attach the Bumper (41) to the Front Leg (19) with an

M4 x 25mm Screw (45).

Press a 50mm x 50mm Square inner Cap (17) into

each open end of the Leg Lever (18). Press a 48mm

Round Inner Cap (54) into the weight tube on the Leg

Lever.

Lubricate the M10 x 75mm Bolt (53). Attach the Leg

Lever (18) to the bracket on the Front Leg (19) with

the Bolt and an M10 Nylon Locknut (11).

Lubricate

6. Slide an M10 Washer (6) onto an M10 x 193mm Bolt

(22).

Place the backrest tube assembly onto the Bench

Frame (5), so the lower end of the Backrest

Adjustment Bracket (39) rests on one of the adjust-

ment tabs.

Slide the M10 x 193mm Bolt (22) through the indicat-

ed hole in one Backrest Tube (27), then through the

welded tube on the Bench Frame (5) and finally

through the other Backrest Tube. Secure the Bolt with

an M10 Washer (6) and an M10 Nylon Locknut (11).

Do not overtighten the Nylon Locknut; it must be

easy to pivot the Backrest Tubes.

Holes

Welded Tube

Welded

Tube

Adjustment

Tab

Holes are closer to one edge.

Point this edge towards the floor.

7. Attach the Backrest (15) to the Backrest Tubes (27)

with four M6 x 52mm Screws (4) and four M6

Washers (30).

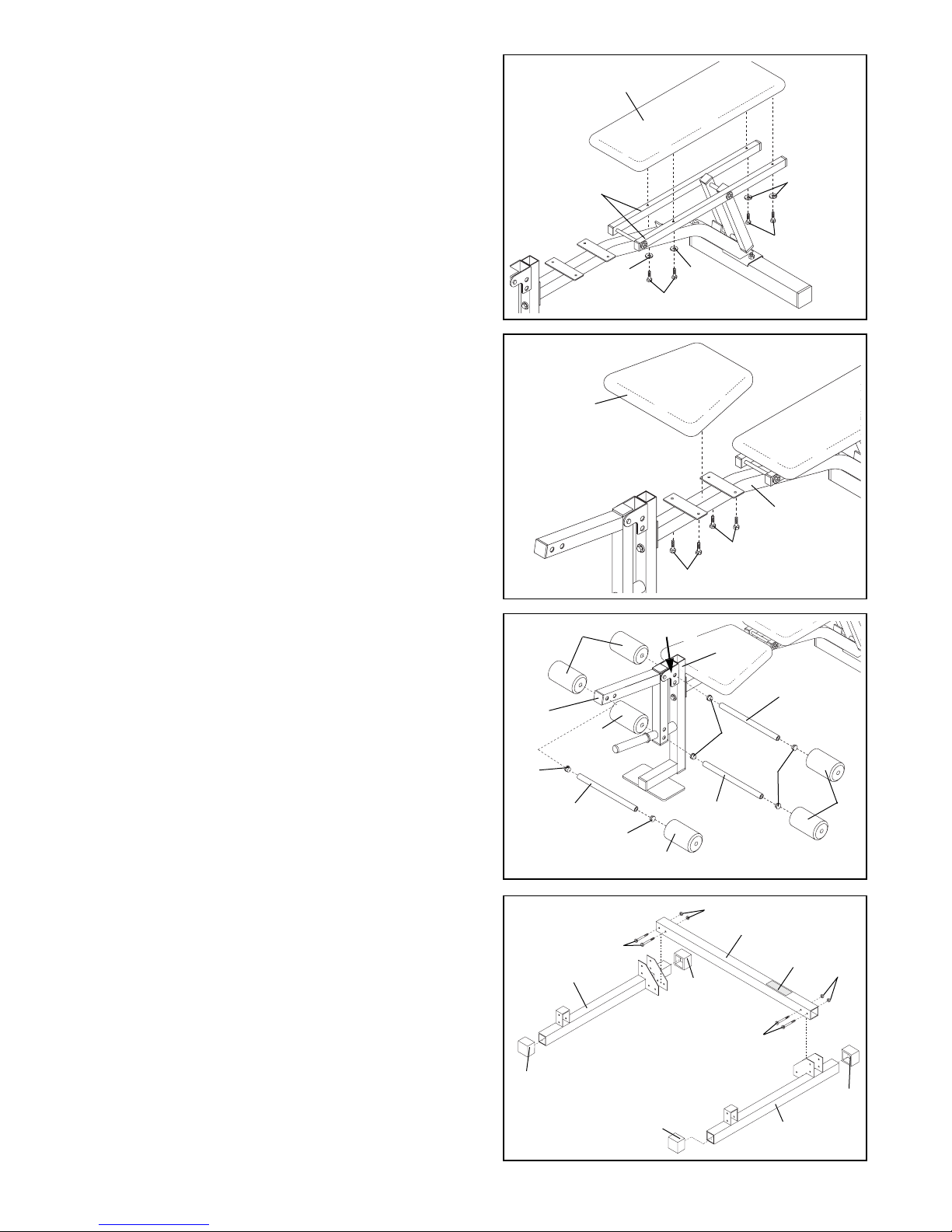

10. Press a Base Outer Cap (69) onto each end of the

Left Base (2) and the Right Base (7). Place both

bases on the floor and orient them as shown in the

drawing.

Orient the Rear Base (8) as shown and insert the

ends into the brackets on the Left Base (2) and the

Right Base (7). Secure the Rear Base with four M10 x

78mm Bolts (33) and four M10 Nylon Locknuts (11).

Note: Do not tighten the Nylon Locknuts yet.

30 30

Decal

9. Press a 3/4Ó Round Inner Cap (12) into each end of

the three Pad Tubes (38).

Slide a Foam Pad (10) onto one end of each Pad

Tube (38).

Slide the Pad Tubes (38) into the indicated holes in

the Leg Lever (18) and the bracket on the Front Leg

(19). Slide another Foam Pad (10) onto the other end

of each Pad Tube.

Bracket

8. Attach the Seat (14) to the indicated brackets on the

Bench Frame (5) with four M6 x 16mm Screws (3). 8

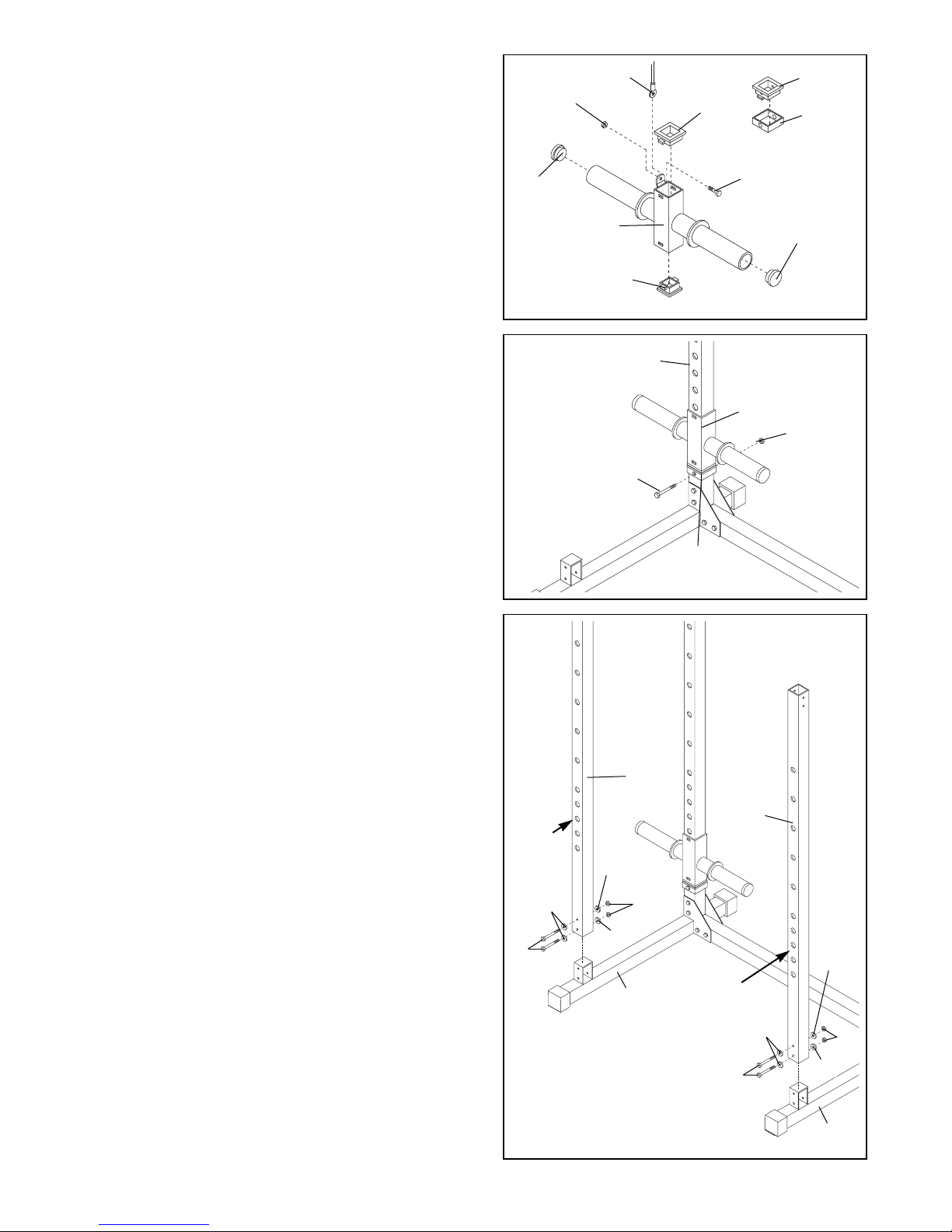

12. Identify the Right Rear Upright (68) which is the only

Upright with the indicated hole on the lower end.

Place the lower end of the Right Rear Upright (68)

inside the bracket on the Right Base (7) and secure it

with two M10 x 78mm Bolts (33) and two M10 Nylon

Locknuts (11). Note: Do not tighten the Nylon

Locknuts yet.

11. Identify the Left Rear Upright (25) which is the only

Upright with weight tubes on it.

Press a 48mm Round Inner Cap (54) into the end of

each weight tube.

Place the lower end of the Left Rear Upright (25)

inside the bracket on the Left Base (2) and secure it

with two M10 x 78mm Bolts (33) and two M10 Nylon

Locknuts (11). Note: Do not tighten the Nylon

Locknuts yet.

Hole

Weight

Tube

13. Press a Carriage Bushing (23) into each end of the

Weight Carriage (47). Press a Carriage Bushing into

the Carriage Stop (24).

Press a 48mm Round Inner Cap (54) into each

weight tube on the Weight Carriage (47).

Attach the closed loop on the Cable (35) to the brack-

et on the Weight Carriage (47) with an M10 x 19mm

Bolt (56) and an M10 Nylon Locknut (11).

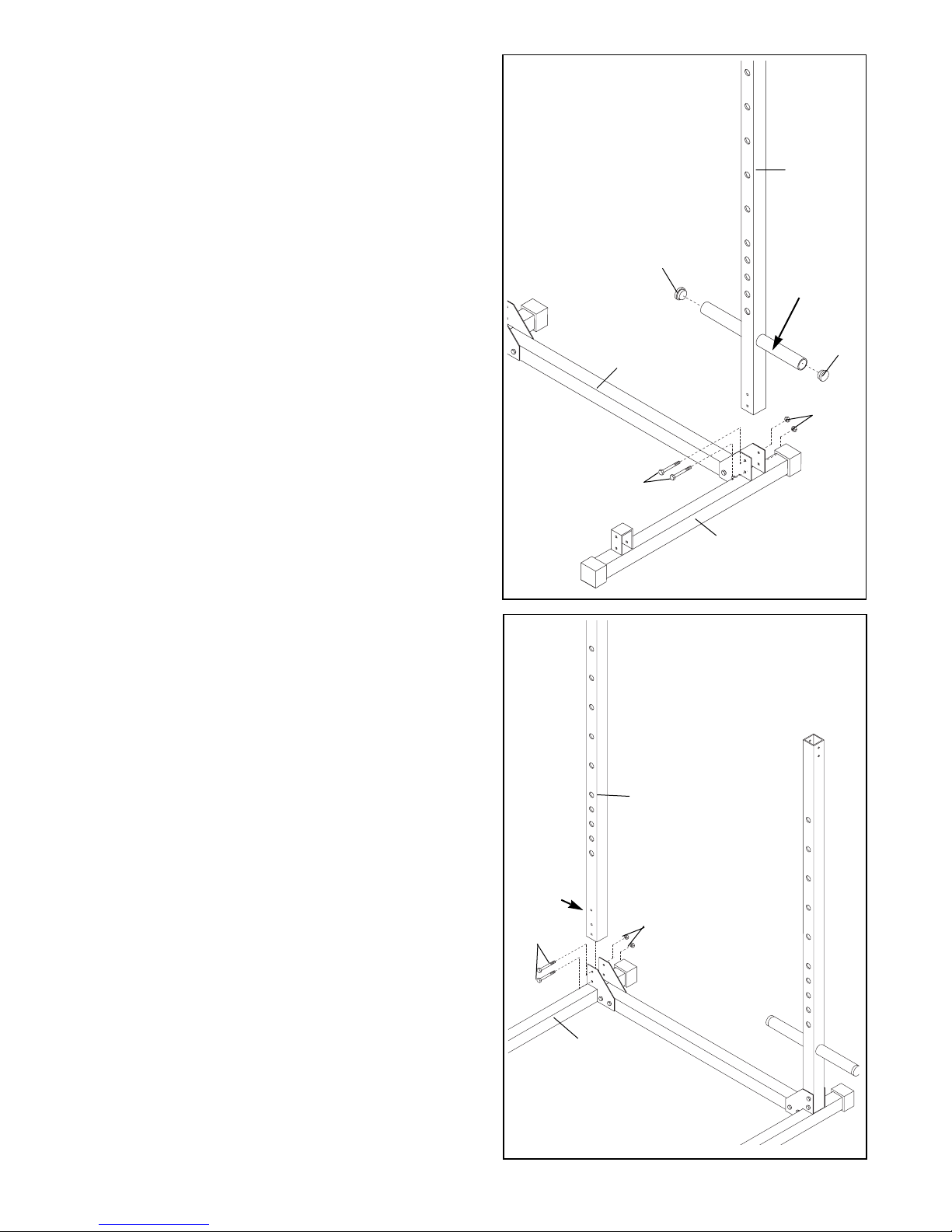

15. Locate the two Front Uprights (1) and identify the

lower end by looking at the group of five holes with

the smallest space between them.

Place the lower end of one Front Upright (1) over the

bracket on the Left Base (2) and secure it with two

M10 x 78mm Bolts (33), four M10 Washers (6) and

two M10 Nylon Locknuts (11). Note: Do not tighten

the Nylon Locknuts yet.

Place the lower end of the other Front Upright (1)

over the bracket on the Right Base (7) and secure it

with two M10 x 78mm Bolts (33), four M10 Washers

(6) and two M10 Nylon Locknuts (11). Note: Do not

tighten the Nylon Locknuts yet.

Holes

14. Slide the Carriage Stop (24) onto the Right Rear

Upright (68) and secure it with an M8 x 86mm Bolt

(58) and an M8 Nylon Locknut (34).

Slide the Weight Carriage (47) onto the Right Rear

Upright (68).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Weider Salle de sport à domicile

Weider

Weider 8980 I Guide de l'utilisateur

Weider

Weider Body Works Manuel utilisateur

Weider

Weider WESY8630C3 Manuel utilisateur

Weider

Weider Powerguide12 Stationkit Manuel utilisateur

Weider

Weider 8515 Manuel utilisateur

Weider

Weider Pro 290 wc bench Guide de démarrage rapide

Weider

Weider E8000 Gym Manuel utilisateur

Weider

Weider Pro 3770 Manuel utilisateur

Weider

Weider PRO 290 W Manuel utilisateur

Weider

Weider WEMC0942.1 Manuel utilisateur

Weider

Weider 8220hard Drive Sys Manuel utilisateur

Weider

Weider ABShaper DRMC20062 Manuel utilisateur

Weider

Weider Tc 150 Bench Guide de l'utilisateur

Weider

Weider Gold medallion Manuel utilisateur

Weider

Weider 340 Lc Bench Manuel d'utilisation et d'entretien

Weider

Weider WESY16010 Manuel utilisateur

Weider

Weider 9150 Guide de démarrage rapide

Weider

Weider WESY85103 Manuel utilisateur

Weider

Weider WESY3873.2 Manuel utilisateur

Weider

Weider WEBE11880 Manuel utilisateur

Weider

Weider Pro power Stack 831.159832 Manuel utilisateur

Weider

Weider WEBE44490 Manuel utilisateur

Weider

Weider 831.159822 Manuel utilisateur

Weider

Weider 214 Bench Manuel utilisateur

Manuels Salle de sport à domicile populaires d'autres marques

Horizon Fitness

Horizon Fitness OXFORD 6 Manuel utilisateur

Energetics

Energetics Multi Trainer 5.1 Manuel utilisateur

Matrix

Matrix MG-PL Series Manuel utilisateur

Reebok

Reebok Tbr2i Manuel d'utilisation et d'entretien

Pure Fitness

Pure Fitness 8526HE Manuel utilisateur

Bowflex

Bowflex Sport 001-6961 Manuel utilisateur

NordicTrack

NordicTrack E8200 Competition Bench Guide de démarrage rapide

Body Solid

Body Solid GHYP-345 Manuel utilisateur

Evo

Evo TAHOE 5105 Manuel utilisateur

cardiobull

cardiobull RA17 Manuel utilisateur

ParaBody

ParaBody 40 Manuel utilisateur

JLL

JLL Ventus Pro Air Power Manuel utilisateur

Trojan

Trojan Colorado 370 Manuel utilisateur

Octane Fitness

Octane Fitness xRide xR650 Manuel utilisateur

Precor

Precor Discovery Series Manuel utilisateur

Insportline

Insportline RW600 Manuel utilisateur

Stamina

Stamina 55-1532 Manuel utilisateur

Tunturi

Tunturi R25 Manuel utilisateur
