WeBoost Office 200 Manuel utilisateur

Installation Guide

Cell Signal Booster

Oce 200

Oce 200

A WILSON ELECTRONICS BRAND

NEED HELP? support.weboost.com 866.294.1660

Package Contents 1

Preparation 3

STEP 1: Inside Antenna & Booster Placement 5

STEP 2: Mount Outside Antenna 6

STEP 3: Route & Connect Outside Antenna To Booster 7

STEP 4: Route & Connect Inside Antenna To Booster 8

STEP 5: Power Up The Booster 9

Measuring Booster Performance 10

Menu System 12

Troubleshooting 16

Safety Guidelines 17

Speciﬁcations 19

Warranty 20

______

Index

OFFICE 200 CELL PHONE SIGNAL BOOSTER

______

Package

Contents

Office 200

Booster

Office 200

Booster

Power

Supply

(850026)

Power

Supply

(850026)

Lightning Surge

Protector

(859902)

Lightning Surge

Protector

(859992)

Cable Mounting

Clips

Cable Mounting

Clips

Inside

Antenna

(314407)

Inside

Antenna &

Connector

(314407)

Outside

Antenna

(314422)

Outside

Antenna

(314423)

75’ & 60’

Wilson 400 Cables

(952360 & 952375)

75’ & 60’

RG-11 Cables

(951160 & 951175)

2’ Wilson 400

Cable

(952302)

2’ RG-11

Cable

(951127)

Oce 200 50 Ohm Kit

Oce 200 75 Ohm Kit

2CELL PHONE SIGNAL BOOSTER OFFICE 200

______

Key Features

Extended Dynamic Range (XDR) for continuous

connectivity: XDR lets the Oce 200 system work with

any incoming signal and never shuts down due to a

strong outside signal.

Simple Wall-Mount Installation: An indoor and outdoor

port are located on top of the ampliﬁer for easy antenna

connections, while an exposed mounting ﬂange at each

corner of the ampliﬁer provides for simple and clean wall-

mount installation.

Onboard Software for Better Control: The ampliﬁer is

automatically controlled with automatic onboard software,

ensuring great connectivity throughout large spaces and

multi-story buildings. The ampliﬁer will adjust its gain

level up or down as required by the conditions of the

immediate signal environment.

Color LCD Touch Screen: The Oce 200 utilizes a color

LCD touch screen for assessing ampliﬁer performance,

making adjustments to the outside antenna, and turning

bands on and o.

OFFICE 200 CELL PHONE SIGNAL BOOSTER

______

Preparation

You Will Need (tools not included)

Make sure the following materials are prepared and ready for your installation.

o Ladder

o Drill

o 1” - 2” diameter existing pole for mounting

Outside Antenna (#901117 Pole Mount can be

purchased separately if needed)

o Recommended: Power Strip with surge protection

1 to 2 hours

4CELL PHONE SIGNAL BOOSTER OFFICE 200

______

Installation Diagram

Outside

Antenna

Booster

75’ Coax Cable

Troubleshooting section recommends increasing distance

further if needed.

60’ Coax Cable

to power

Lightning Surge

Protector

Inside

Antenna

60 FEET HORIZONTAL OR 25 FEET VERTICAL DISTANCE

OFFICE 200 CELL PHONE SIGNAL BOOSTER

AT LEAST 24” APART

Oce 200

Plastic Nut

Tab Ring

ceiling mount

drywall

NOTE: Do not connect booster to power until the system is fully installed.

______

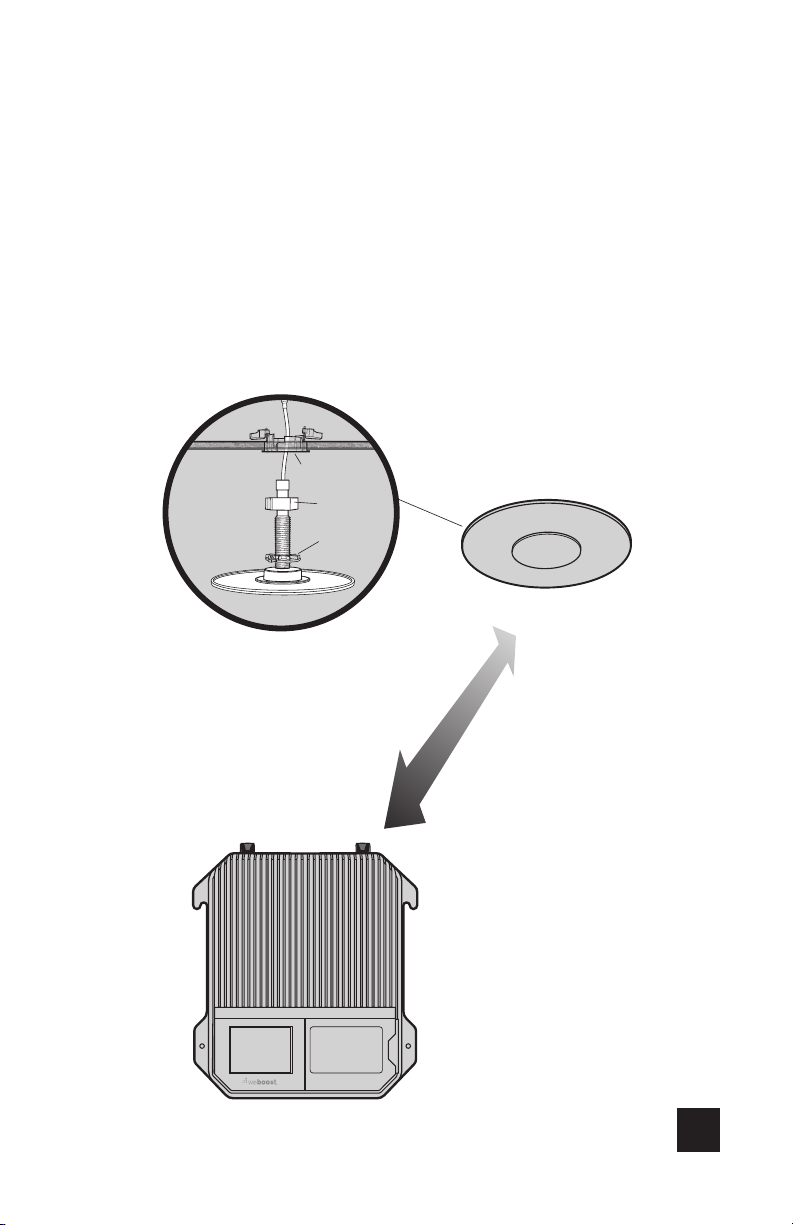

Step 1: Inside Antenna &

Booster Placement

Place the inside antenna in the ceiling over where you need the greatest signal

boost and place booster in your desired location at least 24” away from

inside antenna.

6CELL PHONE SIGNAL BOOSTER OFFICE 200

______

Step 2: Mount Outside Antenna

NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch

out for power lines.

Pole mounting and wall mounting options are included.

Attach the mount to the outside antenna and use the bracket clamp to attach

the antenna to a pole or exhaust pipe.

Outside

Antenna

U-Bolt

L-Bracket

existing

pole

Pole

Bracket

OFFICE 200 CELL PHONE SIGNAL BOOSTER

______

Step 3: Route & Connect

Outside Antenna To Booster

Route cable to the Oce 200 booster and connect to the port labeled

‘OUTSIDE ANTENNA’.

Outside

Antenna

75’ Coax Cable 2’ Coax Cable

Outside

Antenna

Lightning Surge

Protector

Booster

Cable Mounting Clips

provided

Lightning Surge

Protector

Connect 2 ft. coax cable to outside antenna, attach the lightning surge

protector, then connect the black 75 ft. coax cable and route into building.

8CELL PHONE SIGNAL BOOSTER OFFICE 200

______

Step 4: Route & Connect

Inside Antenna To Booster

Inside

Antenna

60’ Coax Cable

Booster

Connect the black 60 ft. coax cable to inside antenna and route to the Oce

200 booster and connect to the port labeled ‘INSIDE ANTENNA’.

Outside

Antenna

Booster

Cable Mounting Clips

provided

Inside

Antenna
