weBoost Home Room U530001 Manuel utilisateur
ENGLISHESPAÑOL
NEED HELP? support.weboost.com 866.294.1660
Installation Guide
Home Room
A WILSON ELECTRONICS BRAND
Cell Signal Booster
Package Contents 1
STEP 1: Preparation 2
STEP 2: Find The dBm Reading On Your Phone 3
STEP 3: Measure Signal Strength For Inside Antenna 4
STEP 4: Measure Signal Strength For Outside Antenna 5
STEP 5: Temporarily Mount The Outside Antenna 6
STEP 6: Connect The System 7
STEP 7: Compare Results 8
STEP 8: Permanently Mount The Outside Antenna 9
STEP 9: Route & Secure The Cable 11
Troubleshooting 12
Specifications 16
Warranty 17
______
Index
1
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
______
Package
Contents
Home
Room
Inside
Antenna
Outside
Antenna
Cable
Connector
Window
Entry Cable
Roof/Pole
Mount
Bracket
Wall Mount
Bracket
30' Cables
Qty. 2
2CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
Step 1: Preparation
NOTE: These instructions will walk you through a “soft” install process to find the
optimal locations for the inside and outside antennas, then through the process of the
permanent installation.
You Will Need (tools not included)
Make sure the following materials are prepared and ready for your installation.
o Ladder
o Phillips-head screwdriver
o 10mm open-end wrench or adjustable wrench
o Drill (if routing cable through wall)
o Mounting Option A:1-2” diameter pole (#901117) or an
existing pole
o Recommended: Power Strip with surge protection
1 to 2 hours
2 people (a person to help with antenna calibration)
3
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
Dial *3001#12345#* then press Call.
1Hold down power button until you see 'Slide to
Power O'.
2Then release the power button.
3 Hold the Home button until your main screen appears.
If you want to check 3G/1x but your iPhone is picking up 4G/
LTE signal, go to Settings>Cellular>Cellular Data Options>En-
able LTE>Select O.
After you system is set up, you can go back to the dots signal
by once again dialing *3001#12345#* then pressing call.When
the menu comes back up, tap “phone” in the top left corner of
your phone.
Settings > About Phone > Status or Network > Signal Strength
or Network Type and Strength (exact options/wording
depends on phone model).
______
Step 2: Find The dBm
Reading On Your Phone
All Other Phones & Alternate Methods
• https://www.weboost.com/test-mode-instructions/
All Phones:
• Keep track of the network (3G or 4G) phone is connected to.
• Any signal readings you take are valid for that phone’s carrier. To get readings
from other carriers, you’ll need phones from each carrier.
iPhone®
Android™
NEED HELP? support.weboost.com 866.294.1660
iPhone is a registered trademark of Apple Inc. Android is a trademark of Google Inc.
4
CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
Step 3: Measure Signal
Strength For Inside
Antenna Placement
Having an accurate measurement of signal strength in decibels (dBm) is crucial
when installing your system. Decibels accurately measure the signal strength you
are receiving. Test both 3G and 4G signal for best results by turning the LTE o in
the carrier settings of your device.
SIGNAL STRENGTH EXCELLENT GOOD FAIR POOR DEAD ZONE
3G/1x
(typically voice) -70dBm -71 to -85dBm -86 to -100dBm -101 to -109dBm -110dBm
4G/LTE
(typically data) -90dBm -91 to -105dBm -106 to -110dBm -111 to -119dBm -120dBm
Turn o your cell phone’s WiFi to ensure you
are checking the cellular connection. The dBm
reading will be refreshed every 30-60 seconds.
Want faster results? Once you have a reading,
turn on airplane mode. Wait 15 seconds.
Turn o airplane mode. The signal strength
reading is refreshed.
Walk around your home/oce taking signal
strength readings until you find the area that has
the weakest reception, or number farthest away
from zero. For example -100 is a weaker signal
than -80.
Weakest Signal Number:___________
Weakest Signal Location: ___________
Place your Inside Antenna in this poor signal area.
For best results, keep the inside antenna more
than 18 inches away from the booster.
5
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
______
Step 4: Measure Signal
Strength For Outside
Antenna Placement
This is the most critical step of the installation
process because it will determine the overall
performance of the booster system. Using the
same method as Step 3, find the place with the
strongest signal (number closest to zero) on the
outside of your home.
The further apart the Inside Antenna is located
from the Outside Antenna, the better. To
determine the best location for your Outside
Antenna, note the dBm reading in a variety of
locations.
6CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
Step 5: Temporarily Mount
The Outside Antenna
Use one of the two options to mount the
outside antenna on the side of the house with
the strongest signal.
Note: Using an app like 'Open Signal' will help
you point the outside antenna in the direction of
the nearest cell phone tower.
AOption (Best)
BOption (Better)
Note: The Outside Antenna must be at least
50 feet horizontal or 20 feet vertical from the
Inside Antenna for best performance. Make sure
the Inside Antenna and outside Antennas are
facing away from each other.
A
B
7
HOME ROOM CELL PHONE SIGNAL BOOSTER
ENGLISH
OUTSIDE
INSIDE
OUTSIDE
INSIDE
OUTSIDE
INSIDE
______

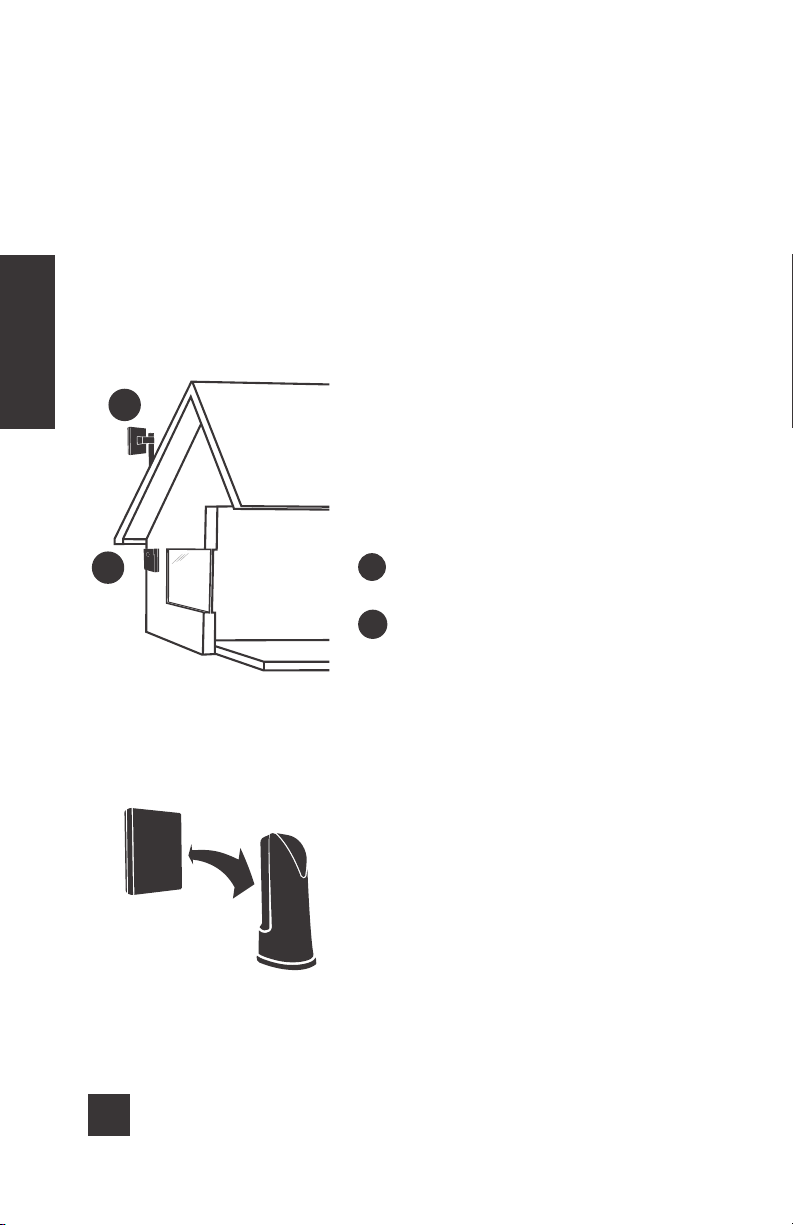

Step 6: Placing Inside Antenna
And Connect The System
Connect the supplied Inside Antenna to
end of booster labeled Inside.
Power up the Booster by connecting it
to a power source.
Note: To protect Booster from power
surges, connect to a power strip.
Connect the supplied Coax Cable to
end of booster labeled Outside.
If you choose to bring the cable in
through a window, you can use the flat
Window Entry Cable to connect the
two 15 feet cable sections. You can
use this option during set-up and/or
permanently if you don’t want to drill
holes through your wall.
Place inside antenna in weak signal
area at least 18 inches away from
booster.
Outside
Antenna
Inside
Antenna
Power
Supply
1
2
3
4
Window Entry Cable
8CELL PHONE SIGNAL BOOSTER HOME ROOM
ENGLISH
______
Step 7: Compare Results
Using the field test mode described in step 3, measure the new signal
strength and write it down here ___________.
Compare this number with the original reading you took in the same part of the house.
If the number is higher (closer to zero) than the original reading without booster, your
booster is working. If it is not, look at the lights on the booster and the section at the
end of this manual “Test System: Lights”.
Did you know a signal increase in just
3dB is 2 times the power and signal amplification!
Distance from Cell Tower
CELL
TOWER
Signal Strength
GOOD
Signal Strength
POOR
Signal Strength
DEAD ZONE
Signal Strength
EXCELLENT
Signal Strength
FAIR
3G/1x
4G/LTE
-70dBm
-90dBm
-75dBm
-100dBm
-90dBm
-108dBm
-105dBm
-115dBm
-110dBm
-120dBm
DECIBEL GAIN POWER INCREASE
3dB 2 times the power and signal amplification
6dB 4 times the power and signal amplification
10dB 10 times the power and signal amplification
12dB 16 times the power and signal amplification
20dB 100 times the power and signal amplification
