WeBoost DRIVE X RV Manuel utilisateur

User Manual

RV Cell Signal Booster

DRIVE X RV

A WILSON ELECTRONICS BRAND

NEED HELP? support.weboost.com 866.294.1660

______

Index

Package Contents 1

STEP 1: Mount Outside Antenna & Route Cable 2

STEP 2: Connect Cable To Outside Antenna 4

STEP 3: Inside Antenna Location 5

STEP 4: Booster Location & Connect Cables 6

STEP 5 & 6: Power Up The Booster 9

Using The Optional Cable Entry Accessories 10

Light Patterns 13

Troubleshooting 14

Safety Guidelines 16

Speciﬁcations 17

Warranty Back Page

DRIVE X RV CELL PHONE SIGNAL BOOSTER 1

________

Package

Contents

Drive X

Booster & Bracket

Outside Antenna

Ladder Mount

AC/DC Wall Power

Supply

DC/DC Hardwire

Power Supply

Installation

Accessories

Inside

Antenna

Outside Antenna &

25 ft. RG-6 Cable

Mast Extension,

Side-Exit Adapter

& Spring

2CELL PHONE SIGNAL BOOSTER DRIVE X RV

!!!

______

Step 1: Mount Outside

Antenna & Route Cable

Determine where you want the Outside Antenna on your RV.

Mount Outside Antenna to a ladder or pole so that the entire

Outside Antenna is above the roof line of the RV and clear of

other metal obstructions.

NOTE: Keep in mind to stay below the maximum height limit allowed by law,

which varies from state to state (generally 14’ in western states and 13’6” in

eastern states).

NOTE: This must be in a location within reach of the booster with the

25’ coax cable (installed in Step 4). The system performs best with maximum

vertical and horizontal separation.

common outside

antenna location

DRIVE X RV CELL PHONE SIGNAL BOOSTER 3

Determine where you want the cable to enter the RV.

NOTE: With this option, we recommend doing a ‘soft install’ before drilling

the hole. Set up the system by routing the cable through an open door or

window, completing the setup instructions, verifying the system works as

desired, and then drilling the hole.

WARNING: Be sure to stay clear of

any power, pipes, etc. that may be

damaged.

Option A: Using existing

cable entry point.

Option B: Through the slider on

your RV (using the slider gasket as

a seal).

Option C: Drill a hole with the

included hole saw bit.

______

(STEP 1: MOUNT OUTSIDE ANTENNA & ROUTE CABLE cont.)

4CELL PHONE SIGNAL BOOSTER DRIVE X RV

______

Step 2: Connect Cable To

Outside Antenna

Determine where you want the cable to enter the RV, then

connect the RG-6 cable to the Outside Antenna.

Spring

Side Exit

Adapter

Mast

Extension

NOTE: If installing with Spring, the Side

Exit Adapter must be used.

Thread Lock

Add thread lock on all threads

with tube provided

DRIVE X RV CELL PHONE SIGNAL BOOSTER 5

______

Step 3: Inside Antenna

Location

Place Inside Antenna where stronger signal is desired.

6CELL PHONE SIGNAL BOOSTER DRIVE X RV

______

Step 4: Booster Location &

Connect Cables

Find a location to place the booster, then mount by

removing the bracket from back side of booster and fasten

to desired surface. Snap booster back into bracket.

common booster

location

NOTE: We recommend mounting in a cabinet near a power source. Be sure it’s in a

location that cables from both Inside and Outside Antennas can reach.

DRIVE X RV CELL PHONE SIGNAL BOOSTER 7

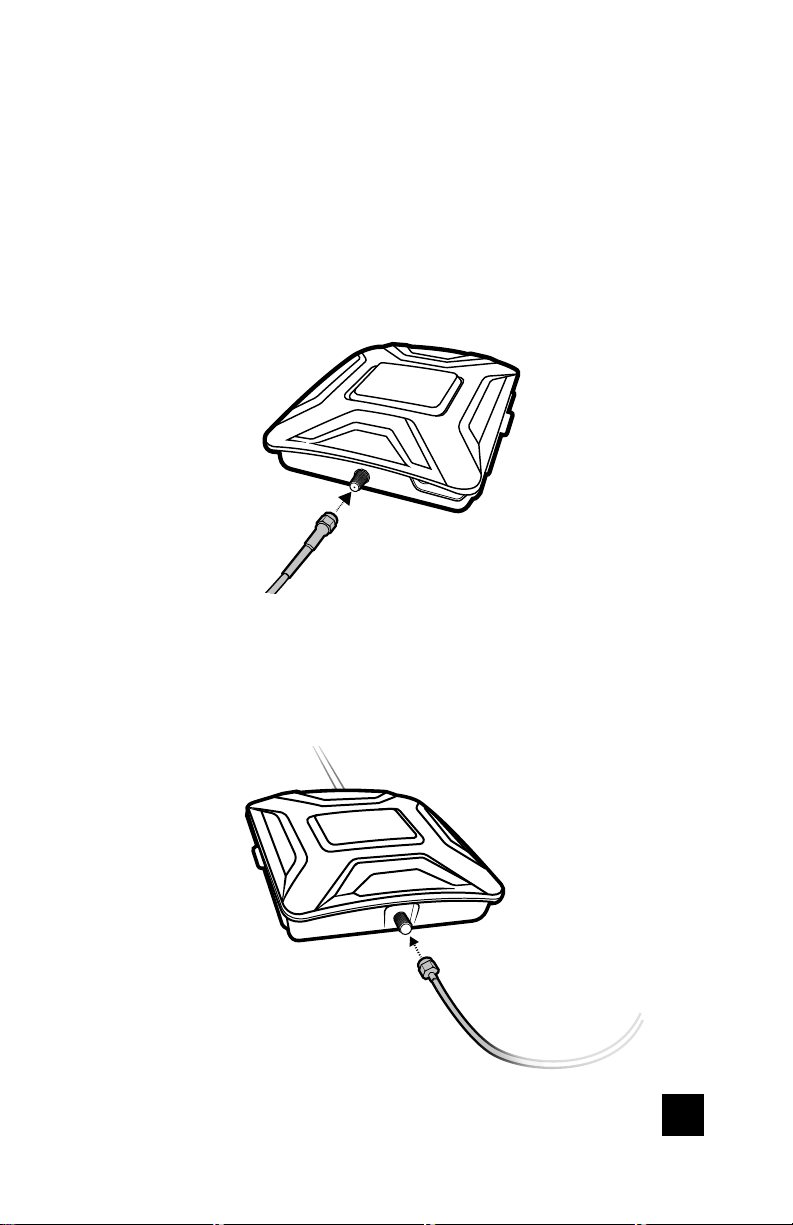

Fasten the end with smaller SMA connection to the ‘Outside

Antenna’ port on the booster.

be sure to

ﬁnger tighten only

be sure to

ﬁnger tighten only

______

(STEP 4: BOOSTER LOCATION & CONNECT CABLES cont.)

from Outside Antenna

route to Inside Antenna

Connect the 13’ RG-58 cable to the ‘Inside Antenna’ port on

the booster. Route the cable to the Inside Antenna.

8CELL PHONE SIGNAL BOOSTER DRIVE X RV

Connect the 13’ RG-58 cable to the ‘Inside Antenna’ port

on the booster. Route the cable and connect to the Inside

Antenna.

Inside

Antenna

best when used within

4-10 feet of cellular device

______

(STEP 4: BOOSTER LOCATION & CONNECT CABLES cont.)
