weBoost Drive Reach OTR Manuel utilisateur
Installation Guide
Drive Reach OTR
Cell Signal Booster
®
Index
Package Contents ........................................................... 1
STEP 1 Select Mounting Location & Assemble the Outside Antenna ................ 2
STEP 2 Mounting the Outside Antenna ......................................... 4
STEP 3 Mounting the Inside Antenna .......................................... 6
STEP 4 Connect Coax Cables to Booster ....................................... 7
STEP 5 Connect Power Supply to Booster ...................................... 8
Booster Light Patterns ....................................................... 9
Troubleshooting ............................................................. 11
Safety Guidelines ........................................................... 13
Specifications .............................................................. 16
Warranty................................................................... 17
1

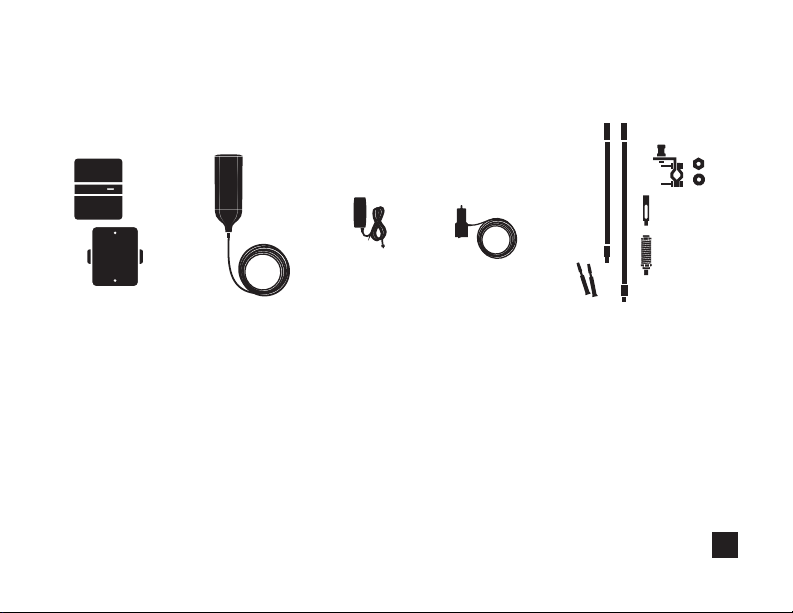

Package Contents
Drive Reach
Signal Booster
& Bracket
Outside
Antenna
Inside
Antenna
Power
Supply
13 in. & 18 in.
Mast Extensions,
Side-Exit Adapter,
Spring, 3-Way
Mount & Thread
Lock Packs
2
c
a
b
l
e
c
a
b
l
e
c
a
b
l
e

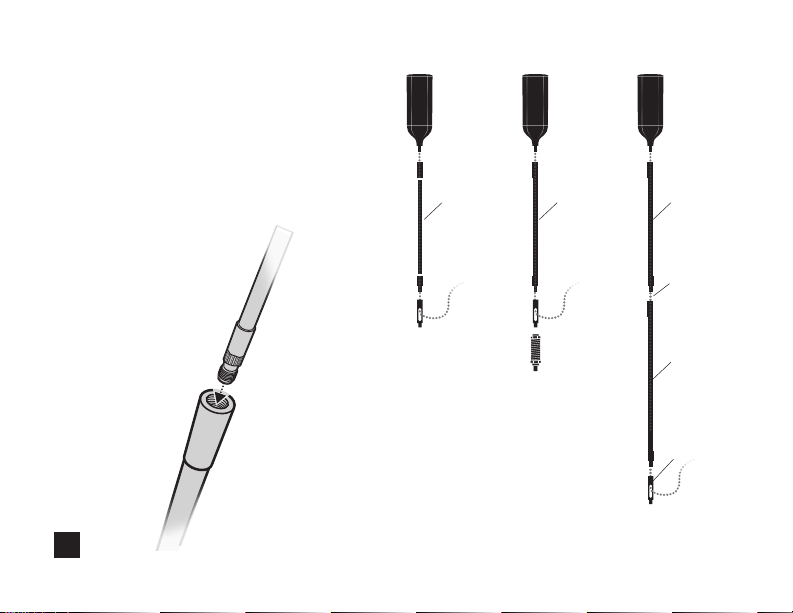

Once you have determined the best
location for the Outside Antenna, insert
cable through Mast Extension(s) then
through Side Exit Adapter.
STEP 1 Select Mounting
Location & Assemble the
Outside Antenna
cable from
Outside Antenna
Mast
Extension
13 in.
mast
Outside
Antenna
13 in.
mast
13 in.
mast
Side Exit
Adapter
run cable
through Mast
Extension(s)
run cable
through Mast
Extension(s) Antenna Spring
(can be used
optionally)
18 in.
mast
3

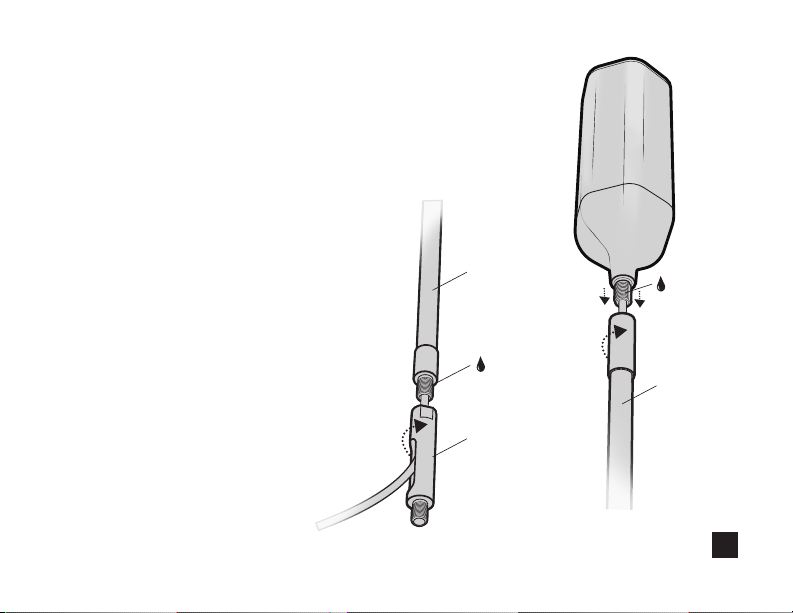

Use Thread Locker (provided) to thread
points and screw into place.
NOTE: Be sure the Outside Antenna is
the correct height before applying
Thread Locker.
NOTE: When adding the Side Exit Adapter
hold the Outside Antenna vertically and
screw the adapter from the bottom up.
This reduces cable twisting.
(STEP 1 cont.)
Side Exit
Adapter
mast
mast
add Thread
Locker
add Thread
Locker
Outside
Antenna
c
a
b
l
e
f
r
o
m
O
u
t
s
i
d
e
A
n
t
e
n
n
a
4
If the vehicle does not have built-in
mounting points, a 3-Way Mount is
included that will work on vehicles with
mirror rails.
NOTE: The cable is strong enough that
it may be shut in most vehicle doors
without damaging the cable.
STEP 2 Mounting the Outside
Antenna
3-Way Antenna
Mount with hardware
Side Exit
Adapter
Mast Extension
add Thread
Locker
c
a
b
l
e
f
r
o
m
O
u
t
s
i
d
e
A
n
t
e
n
n
a
5

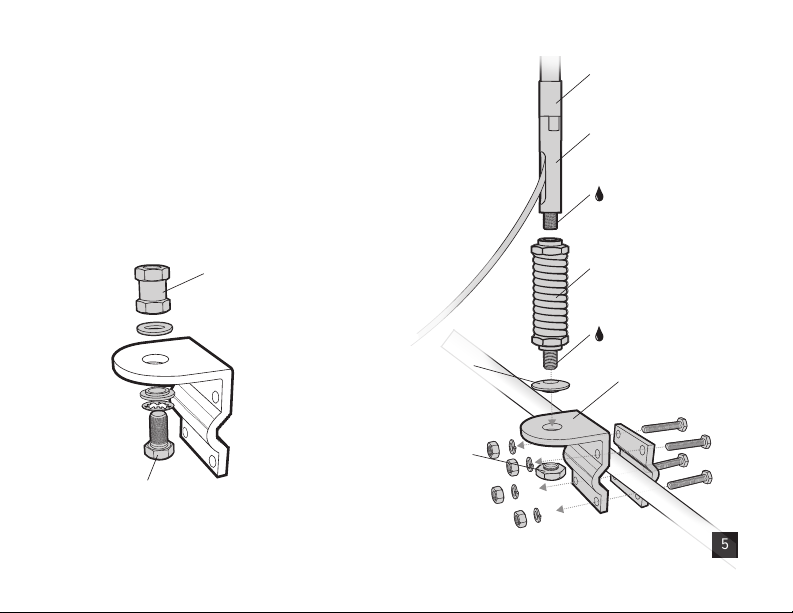

(STEP 2 cont.)
3-Way Antenna
Mount with hardware
Side Exit
Adapter
Spring
Mast Extension
If installing with the Spring, disassemble
the 3-Way Mount and use disc washer
and nut (provided) to mount the Outside
Antenna with Spring as shown. add Thread
Locker
add Thread
Locker
Remove nut &
shakeproof washer
Remove bolt, lock
washer & plastic
washer
Mount disc washer with lip
in the DOWN position
Fasten nut with lip in
the UP position
6

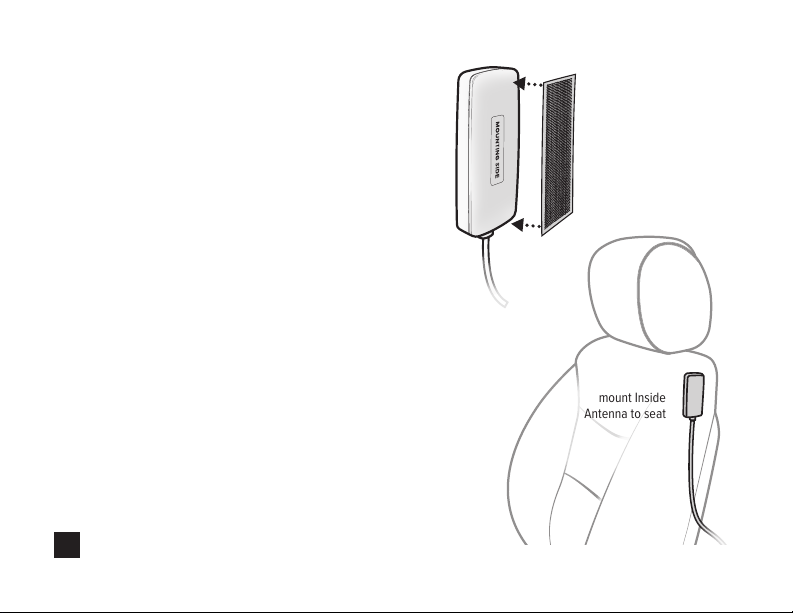

Identify a place to mount the Inside Antenna,
either on the side of the seat or on the dash
and mount. The location should be at least
18 inches but no more than 36 inches from
where the cellular device will be used. Use
the Velcro® adhesive strip/adhesive strip
provided and attach to desired location.
STEP 3 Mounting the Inside
Antenna
Velcro®strip
mount Inside
Antenna to seat
7

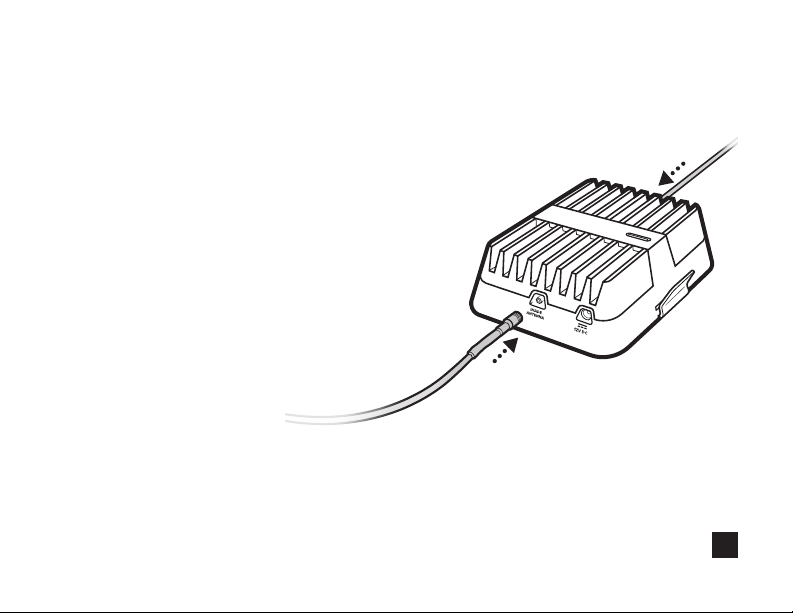

Connect the cable from the Outside Antenna
to the port labeled “Outside Antenna” on the
booster and connect the cable from the Inside
Antenna to the port labeled “Inside Antenna”
on the booster.
STEP 4 Connect Coax Cables
to Booster
from Inside Antenna
from Outside Antenna
8

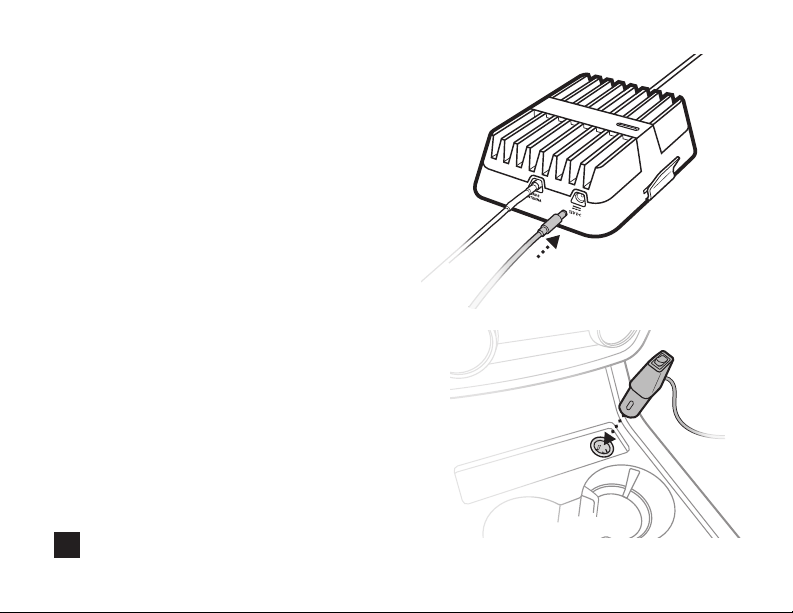

Connect the 12V Power Supply Cord to the end
of the Booster, labeled "12V DC" then plug the
power adapter into vehicle’s 12V DC Power
Supply. Push switch to ON position. If your
Drive Reach is working correctly, the light on
the Booster will be green. Use only the Power
Supply provided in this package.
NOTE: If the 12V Cigarette Lighter port on
your car is always on (even when your vehicle
is turned o) and you will be parking for
extended periods of time (more than a day),
we recommend you turn the Booster o by
pushing power cord switch to OFF position.
This will prevent the Drive Reach from draining
the battery in your vehicle.
STEP 5 Connect Power Supply
to Booster
connect Power
Supply Cord
plug into vehicle's 12V
DC Power Supply
