WE-EF ETC330-FS Manuel utilisateur

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning

and electrical surges,it is essential to cover mains supply and data input

lines at the distribution board level,by using respective primary (Type 1)

and secondary (Type 2) surge arrestors in compliance with EN61643-11/

IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and

activated prior to luminaire installation.Also,disconnect luminaires

before operating high-power devices such as, for example,electrical

arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

WE-EF LIGHTING

Installation and Maintenance

Instructions

Inground Luminaire

ETC330-FS

EVC330-FS

ETC340-FS

EVC340-FS

ETC330-FS CC

EVC330-FS CC

ETC340-FS CC

EVC340-FS CC

ETC330-FS TW

EVC330-FS TW

ETC340-FS TW

EVC340-FS TW

IP67, Class I,ta = 40°C

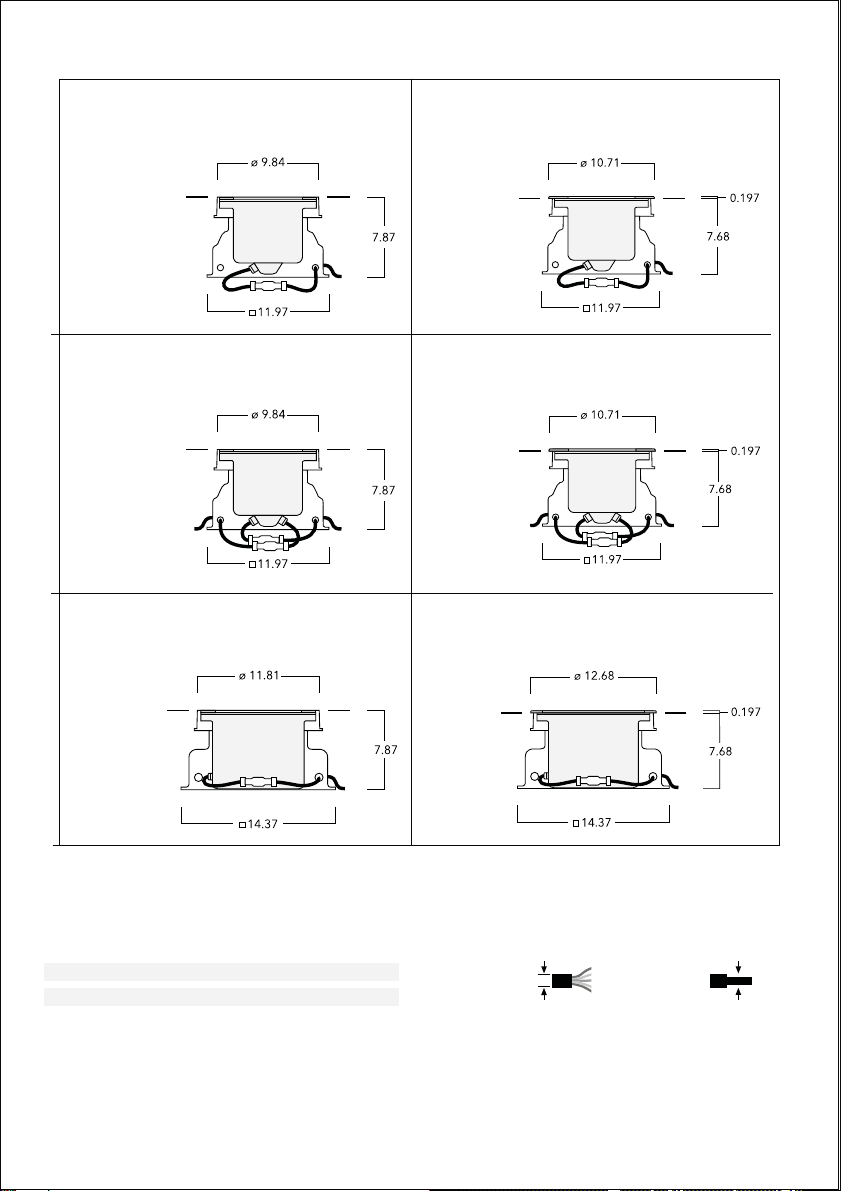

Inground Luminaire

EVC330-FS

EVC330-FS TW

EVC330-FS CC*

EVC340-FS

EVC340-FS CC*

EVC340-FS TW

ETC330-FS

ETC330-FS TW

ETC330-FS CC*

ETC340-FS

ETC340-FS CC*

ETC340-FS TW

Accessories:

DMX Wireless*

RF for ETC/EVC330-FS CC 430-0018

RF for ETC/EVC340-FS CC 430-0018 ø 0.217 - 0.472 in 22AWG - 18AWG

DMX-Power

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces,no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried

RXWE\DVXLWDEO\TXDOLĥHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

For operation as colour changer the inground of the ETC/EVC300-FS CC series require a DMX control signal

(DALI on request).The operation without control signal may lead to error.

Installation

The product must be installed and maintained by

a VXLWDEO\TXDOLĥHGSURIHVVLRQDOLQFRPSOLDQFHZLWK

latest building/construction and/or electrical regula-

tions and relevant legislation.

Warning:6ZLWFKRĪPDLQVHOHFWULFDOVXSSO\SULRUWR

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLĥHGE\DQ\ERG\RWKHU

than the original manufacturer,then the warranty

will no longer be valid and shall become the full

responsibility of the modifying person/organisation.

Claims based on defects attributable to improper

installation and/or application,and the consequences

thereof, are excluded.

The installation on site must comply with local and/or

national health and safety regulations.

Installation Methods

Attention: The luminaire is factory-sealed and does

not need to be opened during installation.

For proper installation,use the supplied installation

blockout.

Phase One

Blockout Installation Procedure

Draining pipe

1) Ensure that proper drainage is provided for

the shown installation methods:

a) In landscape/paved areas,sand or concrete

with gravel base (Fig.I).

b) With fully concreted installation, drainage

piping must be provided (Fig. II).

3) Test drainage (ensure water drains within

30 mins, Warning: warranty void if luminaire

installed without appropriate drainage)

4) Select appropriate installation blockout holes S

for mains supply cable(s) Oand

data cable(s) if necessary.

2) Ensure a suitable recess.

Fig. II

Fig. I

Fig. Il

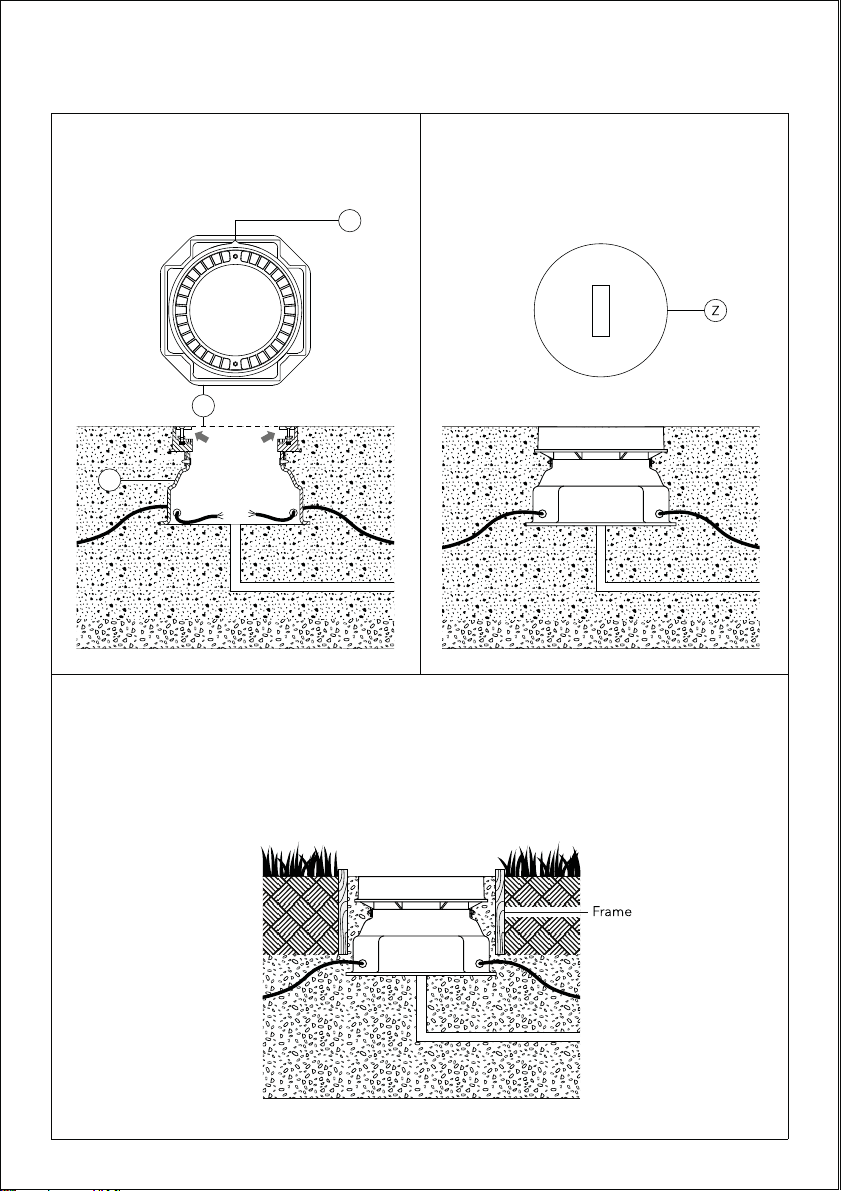

5) Set mounting ring B/M in position.Arrow R

on mounting ring Mis pointed towards the

object to be illuminated (wall,tree,column).

7) Framing should be installed to prevent vegetation from growing over the lens.

6) Replace blockout cover Zprior to

luminaire installation to prevent tripping

hazard and concrete or dirt from getting

into blockout.

FLUSH

 6ZLWFKRĪPDLQVHOHFWULFDOVXSSO\

10)Terminate cable Eand mains supply cable Oin

sealable junction box Jand connect leads to

respective terminals:

a) ON/OFF or wireless (L= Phase, N = Neutral,

= Earthing)

b) 0-10 V(L = Phase, N = Neutral,

= Earthing,D–/D+ = 0-10 V control line).

c) DMX: refer to separate wiring instruction for

DMX cable.Please refer to instruction inside

SJB packaging.

For wallwash illumination only

Ensure the arrow indicated on the sticker is

facing the illuminated surface.

Phase Two

Luminaire Installation and Electrical Connection

9) Check that rating shown on luminaire label

conforms with mains electrical supply.

(example)

ETC330-FS 120-277V/60/Hz, 0-10V

185-XXXX SOE XXXXXXX

LED 4000K 12W item no.XXX

03/17 IP67

3HHORĪVWLFNHUVRQĥ[LQJWKUHDGKROHVD.

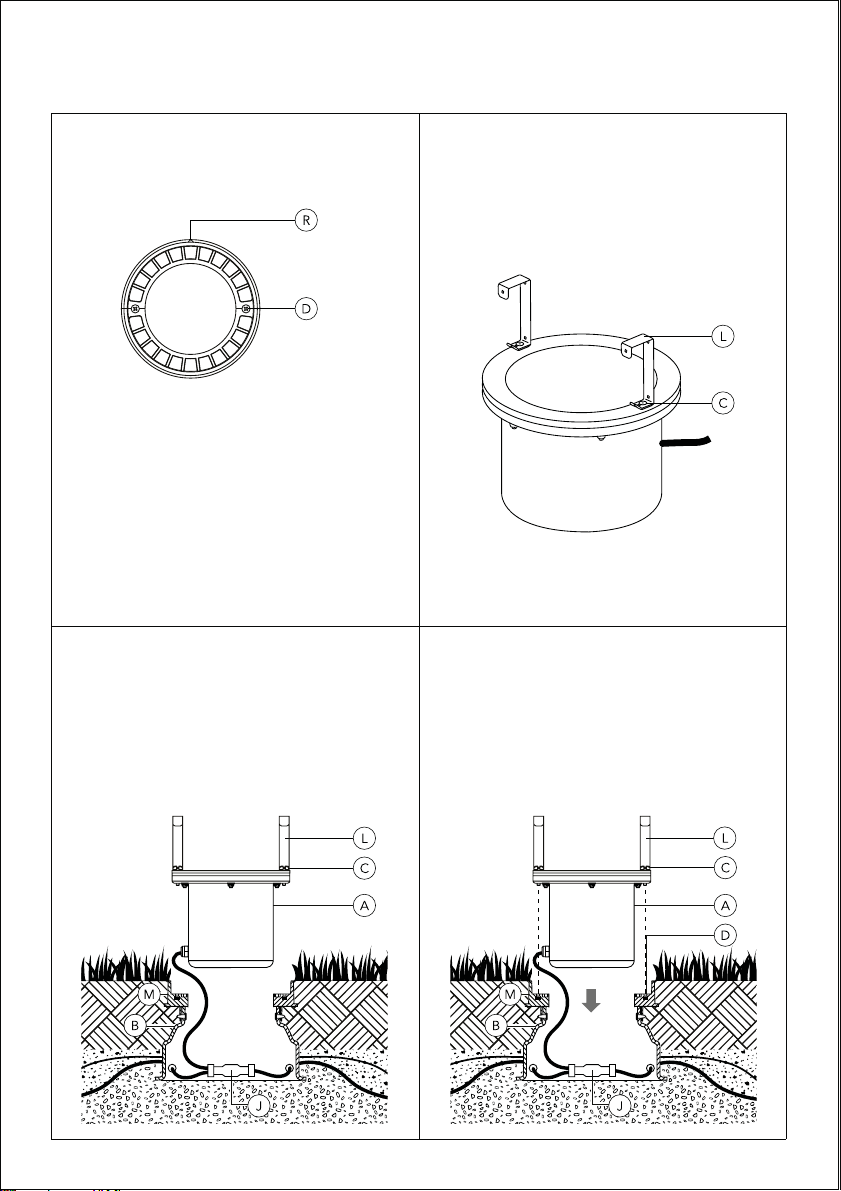

14)Place housing Ainto installation blockout/

mounting ring assembly B/M while aligning

holes Don mounting ring M.

Warning: When housing Ais placed inside

installation blockout B,ensure there is no

stress on seal able junction box Jor electric

cables.

12)Loosen countersunk screws C(do not turn

out). Insert mounting lever Lbetween head

of countersunk screws Cand cover lens.

13)Connect supply cables using supplied

sealable junction box J and/or supplied

UL410-D wire nuts.Set cables and sealable

junction box Jinside installation blockout/

mounting ring assembly B/M.

15) Remove lever Land tighten countersunk

screws C'hand-tight'.

www.we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

[email protected]

TO9192W0422 © WE-EF 2022

Technical specifications are

subject to change.
