WE-EF VFL530-SE LED Manuel utilisateur

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Street and Area Lighting Luminaire

VFL530-SE LED

VFL540-SE LED

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

IP66, IK08, Class I, ta = 25°C

Street and Area Lighting

VFL530-SE LED VFL540-SE LED

50 91

ø 42 x 100

300

485

50 101

300

ø 60 x 100

680

Mounting height m

for VFL530/VFL540 3 - 6

Weight kg

for VFL530 - 12 LED max 6.4

for VFL530 - 24 LED max 6.6

for VFL540 max 8.4

Windage area m

VFL530 0.040

VFL540 0.046

Installation: horizontal, light output downwards,

Suitable for spigot diameter D = 60 x 80 mm or D = 76 x 80 mm

Upper pole offset D1 max. 102 mm

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

InstallationProcedure

1) Switchoffthemainselectricalsupply.

2) Checkthatratingshownonluminairelabelconforms

withmainselectricalsupply.

3) FeedmainscableAintooutreachbracketCand

pole,whilesettingluminaireassemblyinposition.

TightenscrewsB.

4) TrimmainssupplycableAtothedesiredlengthand

connectleadstotheirrespectiveterminalsatthe

baseofpole

(L=Phase,N=Neutral, =Earthing).

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

The supply cable must be installed inside the pole and

not be exposed to the outside environment.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Supply cable

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

United Kingdom

Tel +44 844 880 5346

Fax +44 844 880 5347

info.uk@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

LQIRDVLDSDFLƂF#ZHHIFRP

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

TO9198W1117 © WE-EF 2017

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels WE-EF Lanterne

WE-EF

WE-EF ALP530 Manuel utilisateur

WE-EF

WE-EF ETC120-FS LED Manuel utilisateur

WE-EF

WE-EF RMC320 LED Manuel utilisateur

WE-EF

WE-EF PFL230 Manuel utilisateur

WE-EF

WE-EF RFL500-SE Series Manuel utilisateur

WE-EF

WE-EF QLS400 Series Manuel utilisateur

WE-EF

WE-EF RLS400 LED Series Manuel utilisateur

WE-EF

WE-EF RBL640 Manuel utilisateur

WE-EF

WE-EF ETC330-GB LED Manuel utilisateur

WE-EF

WE-EF ETC339-FS LED Manuel utilisateur

WE-EF

WE-EF ETC310-FS LED Manuel utilisateur

WE-EF

WE-EF VFL500 LED Series Manuel utilisateur

WE-EF

WE-EF DLO200 Series Manuel utilisateur

WE-EF

WE-EF ETV100 Series Manuel utilisateur

WE-EF

WE-EF PFL230 LED Manuel utilisateur

WE-EF

WE-EF ZAT40 Manuel utilisateur

WE-EF

WE-EF VFL500 LED Series Manuel utilisateur

WE-EF

WE-EF CFT500 LED Series Manuel utilisateur

WE-EF

WE-EF CTY150 LED Manuel utilisateur

WE-EF

WE-EF DLO239 LED Manuel utilisateur

WE-EF

WE-EF ETC100-GB LED Series Caractéristiques techniques

WE-EF

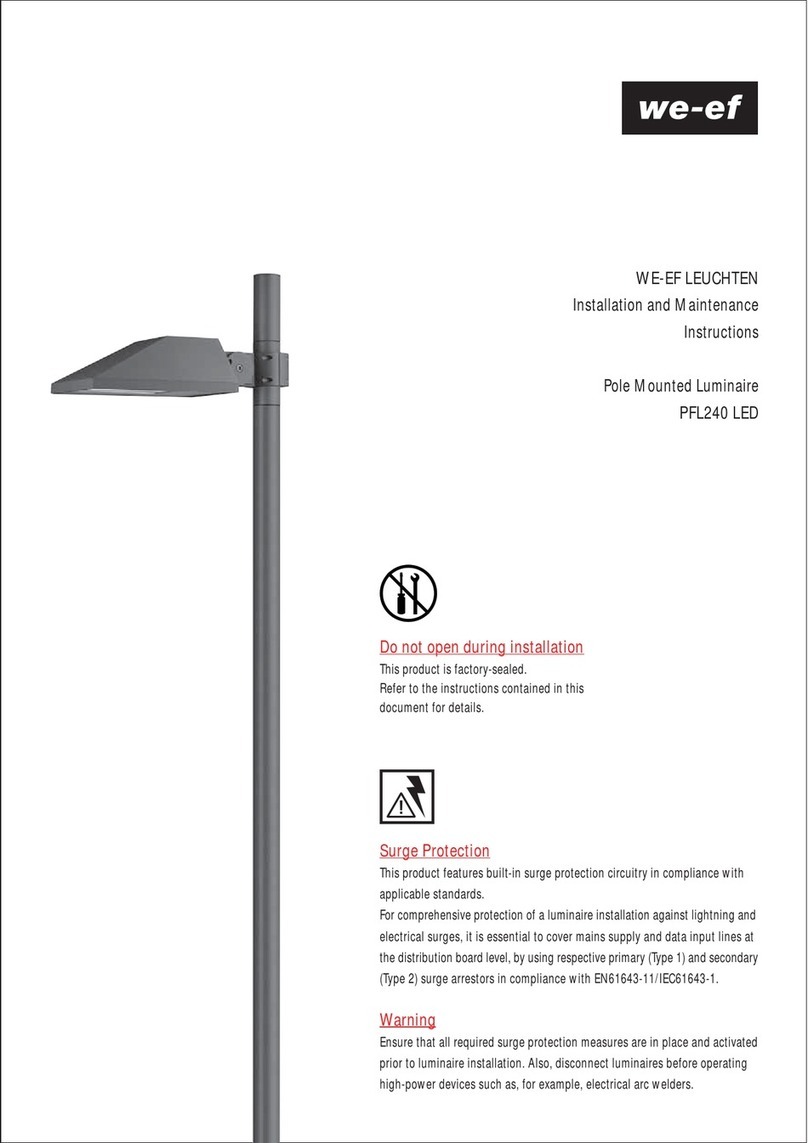

WE-EF PFL240 LED Manuel utilisateur
