WE-EF RFL530-SE LED Manuel utilisateur

Do not open during installation

This product is factory-sealed.

Refer to the instructions contained in this

document for details.

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Post Mounted Luminaire

RFL530-SE LED

RFL540-SE LED

IP66, IK07, Class I, ta = 25°C

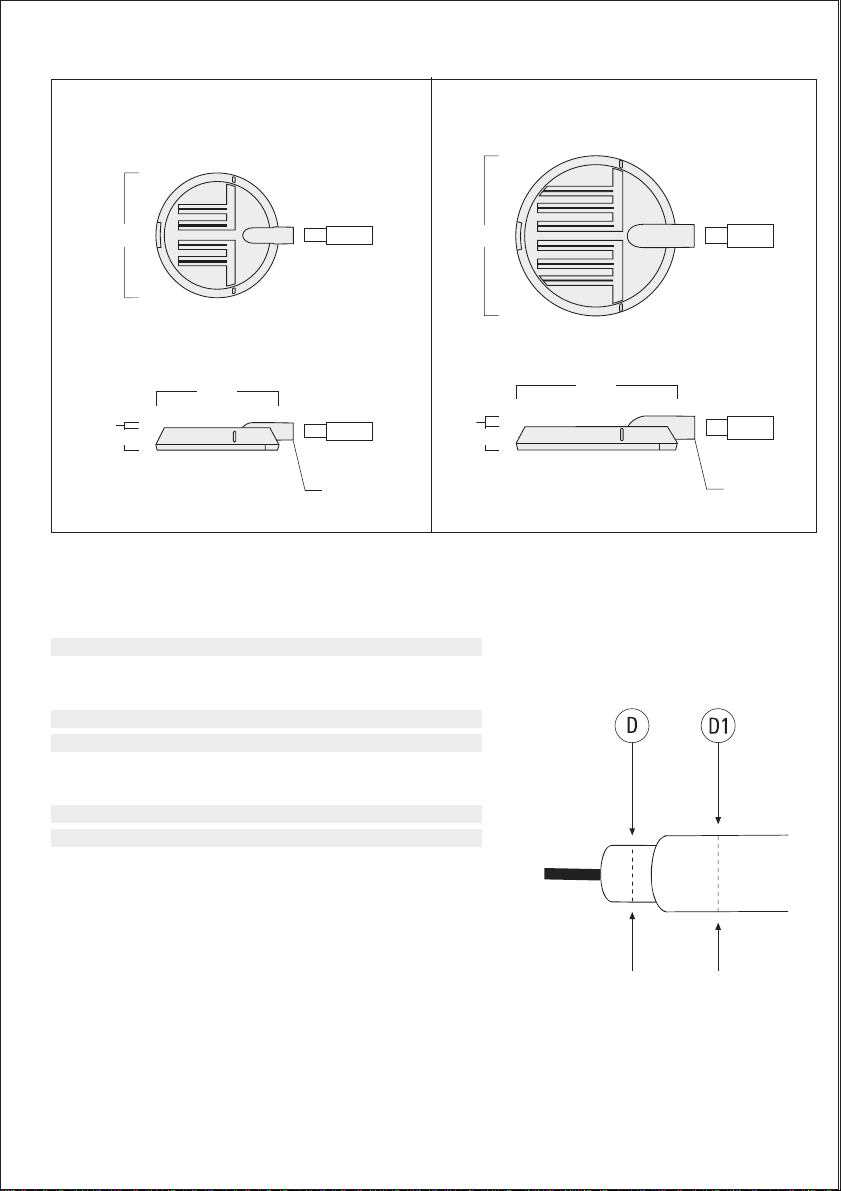

Post Mounted Luminaire

RFL530-SE RFL540-SE

ø 460 ø 570

ø 42 x 100

ø 460

ø 60 x 100

ø 570

Mounting height m

for RFL530-SE/RFL540-SE 3 - 6

Weight kg

for RFL530-SE 9.3

for RFL540-SE 15.0

Windage area m

RFL530-SE 0.166

RFL540-SE 0.255

Installation: horizontal, light output downwards,

Suitable for spigot diameter D = 60 x 80 mm or D = 76 x 80 mm

Upper pole offset D1 max. 102 mm

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

by a suitably qualiƂed and trained professional.

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

suitably qualiƂed professional in compliance with latest

building/construction and/or electrical regulations and

relevant legislation.

The supply cable must be installed inside the pole and

not be exposed to the outside environment.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice: If the luminaire is modiƂed by anybody other

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Installation Procedure

1) Switch off mains electrical supply.

2) Check that rating shown on luminaire label conforms

with mains electrical supply.

3) Feed mains cable Ainto outreach bracket Dand pole,

while setting luminaire assembly in position. Tighten

screws B.

4) Trim mains supply cable Ato the desired length and

connect leads to their respective terminals at the base

of pole (L = Phase, N = Neutral, = Earthing).

Supply cable

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

United Kingdom

Tel +44 844 880 5346

Fax +44 844 880 5347

info.uk@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

info.asiapaciƂc@we-ef.com

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

TO9185W1017 © WE-EF 2017

Technical speciƂcations are

subject to change.
