Waring Torq 2.0 TBB145S6 Manuel utilisateur

TBB145 TBB175

TBB BLENDER SERIES

INSTRUCTION MANUAL

MANUAL DE INSTRUCCIONES

PARA LAS LICUADORAS DE LA SERIE TBB

DIRECTIVES D’UTILISATION

DES BOLS MIXEURS DE LA SÉRIE TBB

For your safety and continued enjoyment of this product,

always read the instruction book carefully before using.

Para su seguridad y para disfrutar plenamente de este producto,

siempre lea las instrucciones cuidadosamente antes de usarlo.

An que votre appareil vous procure en toute sécurité beaucoup

de satisfaction, lire attentivement les directives avant de l’utiliser.

TBB160

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should

always be taken, including the following:

1. READ ALL INSTRUCTIONS.

2. Unplug from outlet when not in use, before putting

on or taking off parts, and before cleaning.

3. To protect against electrical hazards, do not immerse the

blender base in water or other liquids.

4. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

5. Children should be supervised to ensure that they

do not play with the appliance.

6. Avoid contact with moving parts.

7. Do not operate any appliance with a damaged cord or

plug or after the appliance malfunctions or is dropped or

damaged in any manner. Return appliance to the

nearest authorized service facility for examination, repair or

electrical or mechanical adjustment.

8. The use of attachments not recommended by the appliance

manufacturer may cause hazards.

9. Do not use outdoors.

10. Do not let cord hang over edge of table or counter, where it

can inadvertently be pulled on or tripped over or touch hot

surfaces, which could damage the cord.

11. Keep hands and utensils out of container while blending

to prevent the possibility of severe personal injury and/or

damage to the blender. A rubber scraper may be used, but

must be used only when the blender is not running.

12. Blades are sharp. Handle carefully.

13. Never place cutting assembly or cutting blades on base

without container properly attached.

14. Always operate blender with cover in place.

15. Always operate blender with jar pad in place.

16. CAUTION: This blender is not intended for use with hot

liquids or ingredients.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

17. Do not ll above MAX FILL line for blending.

18. Not for waterjet cleaning.

19. Ensure the jar coupler and motor coupler are aligned and

engaged before operating. If unable to engage, remove jar

and shake contents, then try again.

20. The jar coupler and motor coupler may be hot after running;

do not touch.

21. Replace jar pad if worn.

22. Always use HIGH speed for crushing ice.

23. If the jar overows during blending, there is too much

liquid/ingredients in the jar. Stop blending, remove

enough liquid/ingredients to below MAX FILL line, and

continue blending. Do not operate if overowing.

24. DO NOT use carbonated liquids in the blender jar or any

blending container. Using carbonated liquids in the blender

jar or any blending container may result in injury.

25. DO NOT blend oil or oil-based products such as peanut

butter for more than 5 minutes.

26. Never remove blender jar from base unit until the blade and

coupling have completely stopped.

27. CAUTION: In order to avoid a hazard due to inadvertent

resetting of the thermal cutout, this appliance must not be

supplied through an external switching device, such as a

timer, or connected to a circuit that is regularly switched on

and off by the utility.

SAVE THESE INSTRUCTIONS

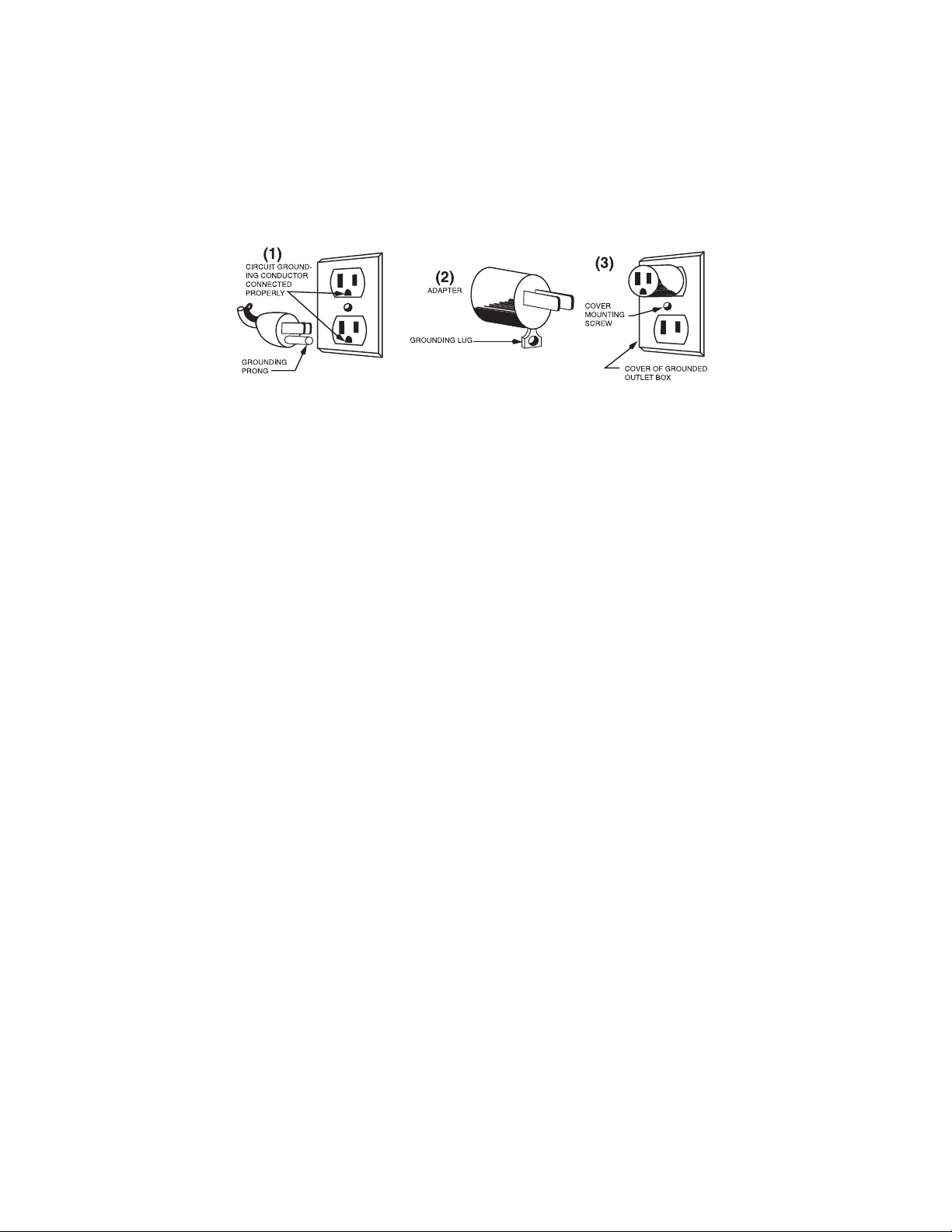

GROUNDING INSTRUCTIONS

• For your protection, Waring®Commercial Blenders are

equipped with a 3-conductor cord set.

• 120 volt units are supplied with a molded 3-prong grounding-

type plug and should be used in combination with a properly

connected grounding-type outlet, as shown in Figure 1.

If a grounding-type outlet is not available, an adapter, shown in

Figure 2, may be obtained to enable a 2-slot wall outlet to be

used with a 3-prong plug.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Referring to Figure 3, the adapter must be grounded by attaching

its grounding lug under the screw of the outlet cover plate.

CAUTION: Before using an adapter, it must be determined that

the outlet cover plate screw is properly grounded. If in doubt,

consult a licensed electrician.

Never use an adapter unless you are sure it is properly grounded.

NOTE: Use of an adapter is not permitted in Canada.

BLENDER SPECIFICATIONS

• Capacity: 48 oz. Working Capacity

• Rating: 220-240 Volts, 60 Hz, 13.0 Amps

• Base Material: Polycarbonate

• Bearing: High-Precision Ball Bearing

• Cord: 6-Foot, Three-Conductor Ground Cord with Strain Relief

in Base

• Overall Height: 17 Inches

• cULus, NSF Listed

• Operating Cycle: 1 min. ON/3 min. OFF

Controls:

TBB145 / TBB160 – LO 20,500, HI 24,000, PULSE 24,000

TBB175 – Variable speed dial from 1,000 to 17,000 RPM with

Pulse, 24,000 RPM

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

PARTS & ASSEMBLY

A. Base

B. Jar Pad

C. Container

48 oz., BPA-free copolyester

container.

D. Lid

Center part of the two-piece

lid is removable for adding

ingredients.

E. Blade

Stainless steel cutting blades.

F. Operating Light

Lighted LED indicates that

the unit is in standby mode.

LED will blink during operation.

G. Power Cord (not shown)

Control Panel Variations

TBB145 – Toggle Switch Controls with

HI, LO, OFF & PULSE

TBB160 – Electronic Touchpad Controls

with HI, LO, STOP, PULSE & 60-Second Timer

LED with Up & Down

TBB175 – Variable Speed Control Dial & PULSE

PULSE Button Feature

PULSE overrides HI speed for a quick

burst of power.

All parts that come in contact with

food are BPA free.

TBB145

TBB160

TBB175

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

BEFORE FIRST USE

After unpacking, follow the Cleaning and Sanitizing Instructions

on page 9 before rst use and if you have not used your blender

for a period of time. Thoroughly dry the container before placing it

on the base.

OPERATING INSTRUCTIONS

TBB145 – Toggle Switch Controls

1. With the blender unplugged and

in the OFF position, place the

container on the blender base.

Be sure container is fully seated

and that the drive coupling is

properly engaged.

2. Plug the power cord into an

outlet and the LED operating

light will illuminate.

3. Put ingredients into the container and place the lid on top.

Do not ll above MAX FILL line.

4. This blender has 2 speed settings: HI and LO. Switch toggle

switch to desired position. Always use HI or PULSE for

crushing ice.

5. When blending is complete, set toggle switch to OFF

position.

6. This blender is equipped with a PULSE option. Hold toggle

switch in down position to engage PULSE function. Unit will

run on MAX speed until the toggle switch is released.

NOTE: This blender utilizes a Slow Start™feature. When

beginning HI or LO operation, the unit will start in a lower speed

for 1 second and then switch to the full selected speed. PULSE

utilizes a .5-second Slow Start™. This allows for a more even

blending of ingredients in the container.

7. Allow motor to come to a complete stop before removing

container from blender base. Never place the container

on the motor base or remove it from the motor base while

motor is running.

8. Always hold container with one hand when starting and

while blending. Never operate without lid.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

9. Wash and dry the container after each use. See Cleaning

and Sanitizing Instructions.

10. Unplug to turn off all power to blender.

TBB160 –

Electronic Touchpad Controls with Timer

Follow steps 1–3 from the TBB145

operating instructions.

4. This blender is equipped with

electronic touchpad controls

with HI, LO, STOP and PULSE

buttons as well as a 60-second

countdown timer. Always use HI

or PULSE for crushing ice.

NOTE: Blender can operate in two

modes: Timer Mode & Continuous Mode.

5. For timer mode, press the

up or down

arrow to set

the desired time on the LED display, up to 60 seconds.

Press and hold the u

por down

arrow for fast scrolling.

After the time is set, press either LO or HI to start the

blender. LED will blink during blending. The timer will count

down to 0 in 1-second intervals and then the blender will

stop. Once you set a time, it will be kept and is repeatable

until reset or unplugged.

NOTE: If you want to increase or decrease the time while the

timer is counting down, press the u

por down

arrow symbols

as needed. Time will increase in 1-second intervals. Pressing the

PULSE or STOP button during timer mode will

stop the motor regardless of how much time is left on the timer.

6. For continuous operation, press either the LO or HI button.

When blending is complete, press STOP. For momentary

operation, press the PULSE button; motor will run on MAX

speed until the button is released.

NOTE: This blender utilizes a Slow Start™feature. When

beginning HI or LO operation, the unit will start in a lower speed

for 1 second and then switch to the full selected speed. PULSE

utilizes a .5-second Slow Start™. This allows for a more even

blending of ingredients in container.

7. Allow motor to come to a complete stop before removing

container from blender base. Never place the container

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

on the motor base or remove it from the motor base while

motor is running.

8. Always hold container with one hand when starting and

while blending. Never operate without lid.

9. Wash and dry the container after each use. See Cleaning

and Sanitizing Instructions.

10. Unplug to turn off all power to blender.

TBB175 – Variable Speed Controls

Follow steps 1–3 in the TBB145

operating instructions.

4. This blender is equipped with

a Variable Speed Control Dial

that operates from speeds 1–10

and POWER, START/STOP and

PULSE buttons. Always use

Speed 10 or PULSE for crushing

ice.

5. For continuous blending, turn the variable speed control

dial clockwise to set the speed from 1–10. Press the START/

STOP button to start blending. The LED will blink during

blending. When blending is complete, press the START/

STOP button to stop blending. You may wish to start at a

low speed and increase to a higher setting.

6. For momentary operation, press the PULSE button; motor

will run on MAX speed until the button is released.

NOTE: This blender utilizes a Slow Start™feature. When

beginning HI or LO operation, the unit will start in a lower speed

for 1 second and then switch to the full selected speed. PULSE

utilizes a .5-second Slow Start™. This allows for a more even

blending of ingredients in container.

7. Allow motor to come to a complete stop before removing

container from blender base. Never place the container

on the motor base or remove it from the motor base while

motor is running.

8. Always hold container with one hand when starting and

while blending. Never operate without lid.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

9. Wash and dry the container after each use. See Cleaning

and Sanitizing Instructions.

10. Unplug to turn off all power to blender.

RESETTING THERMAL PROTECTION

• Your blender is equipped with a manual reset switch to protect

the motor from overheating.

• If your blender stops running under heavy use, or if the LED

light starts to blink much more rapidly than usual during normal

blending, press the power switch to OFF and unplug the power

cord. Empty the blender container of all its contents and allow

approximately 5 to 10 minutes for the motor to cool down.

• Plug the power cord back into the outlet and continue

blending.

• If your blender does not function properly following this

procedure, discontinue use and contact a certied Waring

Customer Service Center.

CLEANING AND SANITIZING INSTRUCTIONS

THE CONTAINER MUST BE CLEANED AND DRIED AFTER EACH

USE OF THE BLENDER ACCORDING TO THE FOLLOWING

INSTRUCTIONS.

FAILURE TO DO SO MAY ALLOW RESIDUE OF PROCESSED

MATERIAL TO COLLECT ON THE INTERNAL SEALS OF THE

BLADE ASSEMBLY, RENDERING THEM INEFFECTIVE.

• Wash, rinse, sanitize and dry container prior to initial use and

whenever it will not be used again within a period of 1 hour.

• Wash and rinse container after each use.

• Clean and sanitize motor base prior to initial use and after each

use.

• Washing solutions based on non-sudsing detergents and

chlorine-based sanitizing solutions having a minimum chlorine

concentration of 100 PPM are recommended.

The following washing, rinsing, and sanitizing solutions, or their

equivalents, may be used.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

• In repetitive batch-processing applications, frequent cleaning

of the container will prolong the life of the blade assembly. In

no case should actual running time between cleanings exceed

one-half hour.

• Do not use container to store processed foods or beverages.

TO WASH AND RINSE CONTAINER

1. REMOVE CONTAINER FROM MOTOR BASE. Remove

lid. Rinse container interior and lid under running water.

Add washing solution to container. Scrub and ush out the

container interior and lid to dislodge and remove as much

food residue as possible. Empty container.

2. Wipe down exterior of container with a soft cloth or sponge

dampened with washing solution. Wash lid and lid insert

in fresh washing solution. Fill container one-quarter full

with fresh washing solution, cover (with lid only), place on

motor base and run on HI speed for two (2) minutes. Empty

container.

3. Repeat step 2 using clean rinse water in place of washing

solution.

IMPORTANT

NOTE: IN ORDER TO MINIMIZE POSSIBILITY OF SCALDING,

TEMPERATURE OF WASHING SOLUTION AND RINSE WATER

SOLUTION PRODUCT DILUTION IN WATER TEMPERATURE

Washing International

Products

Corporation LF2100

Liquid Low-Foam

Cleaner

1%–2%: 1¼ – 2¾

Ounce/Gallon (lower

dilution of 1% for normal

cleaning and up to 2% for

more stubborn soils)

Room

Temperature

Rinsing Plain Water Warm 95˚F (35˚C)

Sanitizing Clorox®

Regular Bleach

(8.25% Hypochlorite

Concentration)

2 Teaspoons/Gallon

(Alternately a bleach

with 5.25% Hypochlorite

Concentration can be

used at dilution of 3

Teaspoons/Gallon)

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Waring Mixer

Waring

Waring BIG STIX WSB50 Manuel utilisateur

Waring

Waring Xtreme MX1000XTX Manuel utilisateur

Waring

Waring 24CB9EC Manuel utilisateur

Waring

Waring QUIK STIK PLUS WSB40 Manuel utilisateur

Waring

Waring WSB35 Manuel utilisateur

Waring

Waring Torq 2.0 TBB175S6 Manuel utilisateur

Waring

Waring BB185SK Manuel utilisateur

Waring

Waring PRO MEGAMIX HPB300 Manuel utilisateur

Waring

Waring MB Series Manuel utilisateur

Waring

Waring Xtreme MX1200 Series Manuel utilisateur

Waring

Waring Commercial Blender Manuel utilisateur

Waring

Waring BB300 Manuel utilisateur

Waring

Waring BB150 Manuel utilisateur

Waring

Waring NuBlend BB180PK Manuel utilisateur

Waring

Waring MBB-521 Manuel utilisateur

Waring

Waring PRO WPB Manuel utilisateur

Waring

Waring Torq 2.0 TBB Series Manuel utilisateur

Waring

Waring WPB Manuel utilisateur

Waring

Waring BIG STIX WSB50 Manuel utilisateur

Waring

Waring CB15V Manuel utilisateur

Waring

Waring TAILGATER TG15 Manuel utilisateur

Waring

Waring Ellipse Manuel utilisateur

Waring

Waring Quik Stik Xpress WSB25X Manuel utilisateur

Waring

Waring BOLT WSB38X Manuel utilisateur

Manuels Mixer populaires d'autres marques

ROTOR

ROTOR 1125.201 Manuel utilisateur

Braun

Braun Multiquick 5 Vario series Manuel utilisateur

ARENDO

ARENDO MIRA 305424 Manuel utilisateur

CHEF-BUILT

CHEF-BUILT CCB-3500 Manuel utilisateur

Viconte

Viconte VC-4406 Manuel utilisateur

Oster

Oster BLSTAB-CB0 Manuel utilisateur

HOFFEN

HOFFEN MC-3005 Manuel utilisateur

Black & Decker

Black & Decker BLC18750DM Manuel utilisateur

Sunbeam

Sunbeam 4182 Manuel utilisateur

Bialetti

Bialetti FMX35 Manuel utilisateur

Black & Decker

Black & Decker BL8000 Manuel utilisateur

Duronic

Duronic BL530 Manuel utilisateur

Exquisit

Exquisit MS 3002 wes Manuel utilisateur

Lumme

Lumme LU-KP1891A Manuel utilisateur

Binatone

Binatone HB-735 Manuel utilisateur

Moulinex

Moulinex LM936E10 Manuel utilisateur

Oster

Oster VERSA Manuel d'installation et d'exploitation

Ninja

Ninja NN210Q Manuel utilisateur
