INSTALLATION MANUAL

PTT007T-B

Monitor Stand Riser

20kg/44lbs

RATED

1-844-SATTLER (18447288537)

[email protected]

www.walielectric.com

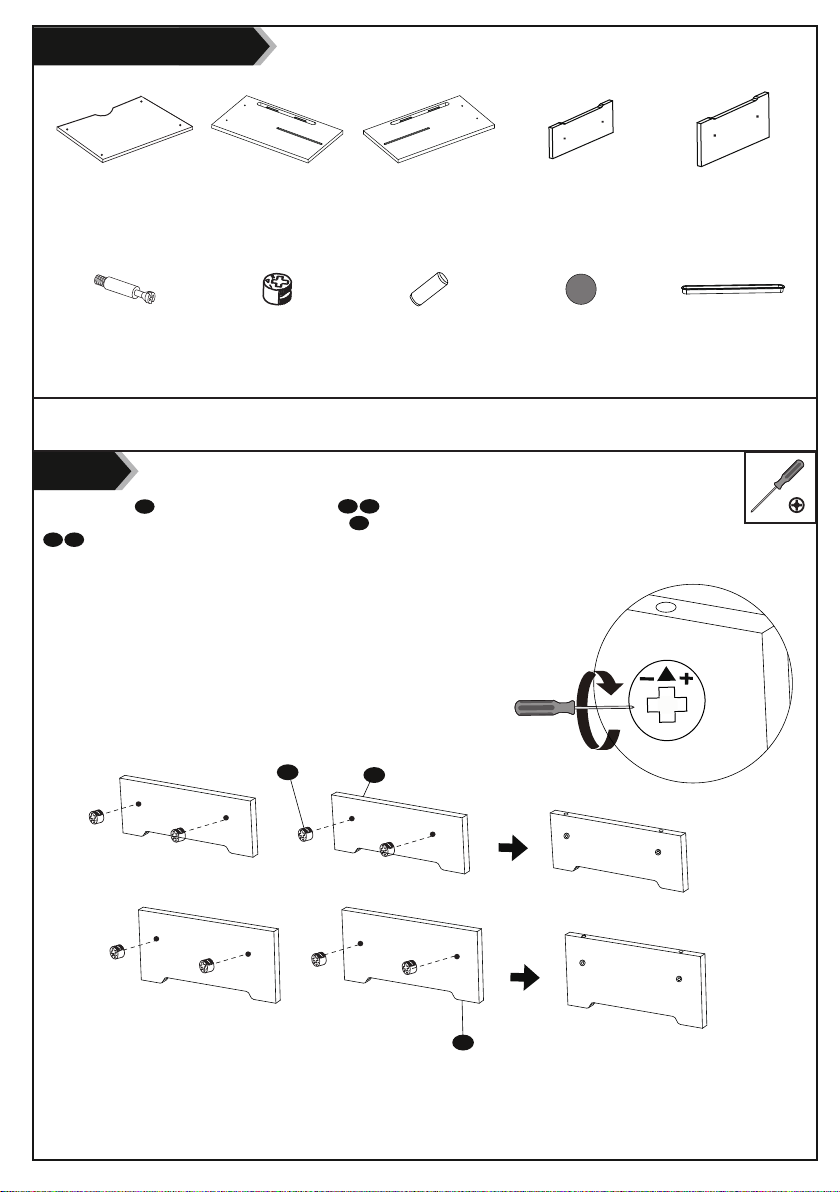

Supplied Parts List

2

Step 1

Left

Board

B (x1)

Right Board

C (x1)

Bolt

F (x8)

Center

Board

A (x1)

Nut

G (x8)

Sticker

I (x8)

D

G

E

Storage Slot

J (x2)

Side Support Stand

E (x2)

Center Support Stand

D (x2)

Metal Retainer Pin

H (x2)

Attach the Nut G to the hole on Support Stand D E as the image shown.

Caution: Please make sure the arrow on the Nut G is pointing upright towards the hole on the Support Stand

D E as the image shown.

D E

D E

G

G

Caution: Frequently assembling and disassembling may cause damage to the wood board.

Board surface

3

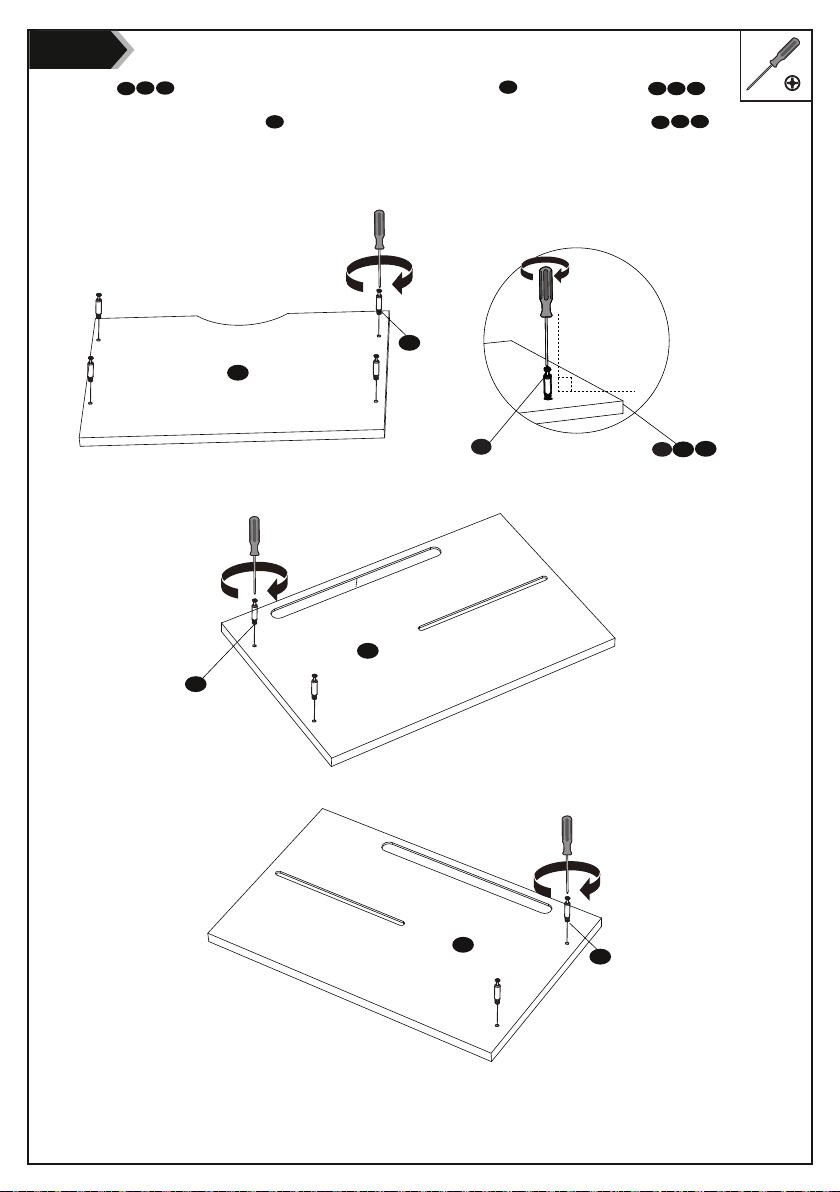

Step 2

F

F

F

BC

B

C

A

A

Place Board A B C on a flat surface with bottom upward, insert the Bolt F to the hole on Board A B C and

tighten with a screwdriver. (Screwdriver not included)

Caution: Please make sure the Bolt C is vertically straight at an 90° angle to the surface of Board A B C as

the image shown.

BA B

AF C

BC

C

A

F

FA

90° Angle

Bolt

4

Step 3

B

D

E

D

E

F

G

B

B

C

C

A

A

Insert Center Support Stand D to the Center Board A .

Insert Side Support Stand E to the Left and Right Board B C .

Tighten all the Nut G clockwise to fasten for stability. (Screwdriver not included)

A

C

B

D

G

E

Insert Metal Retainer Pin H to the hole on Center Board A.

5

Step 5

Step 4

H

A

B

B

C

C

A

A

H

HA

Insert Metal Retainer Pin H on Center Board A to the pre-drilled slot on Left and Right Board B C . Combine the three

boards and prevent the Left and Right Board B C from sliding out.

H

CB

CB

A

Tear off the sticker I and attach it to the designated position of Support Stand D E as the image shown.

Insert the Storage Slot J to the designated position on Left and Right Board B C .

Notice: The

Storage Slot J

is removable. Push it from the back of the Board to remove it if necessary.

Optional Step

6

Step 6

D

E

G

J

B

C

I

C

B

J

J

I D E
