2 AS-Interface Components

2.1 AS-Interface Module IP20

2.1.1 751-5702 [AS-Interface Module 4IN/3OUT 24V/2A A/B]

Digital I/O-Module 4 IN / 3 OUT 24 V / 2 A A/B

2.1.1.1 View

751-5702

4IN 24V-3OUT 24V 2A

O3 O2 O1AUX

S 7.A.E

I4 I3 I2 I1ASIFLT

X1 X3

X2 X4

NTERFACE

Status

inputs

Status

outputs

Status

AS-interface,

AUX supply

Error

Sensor connectors

Actuator connectorsAS-interface and

AUX connectors

Programming device

connector

Fig. 2.1.1-1: View gq57020e

2.1.1.2 Description

The AS-Interface module 751-5202 is an economical solution for a fieldbus-

independent and flexible connection of actuators and sensors from the field

and the control cabinet. The module is in accordance with AS-Interface

specification V.3.0.

The module works in extended address area and can be set to one of 62

addresses ranging from 1A ... 31A resp. 1B … 31B.

The voltage for the sensors is supplied via the AS-Interface cable and is short

circuit protected.

The voltage for the actuators is supplied via the AUX black cable.

The AS-Interface module 751-5202 provides 4 digital 24 V inputs and 3

digital 24 V / 2 A outputs.

Sensors, actuators, AS-Interface power supply and actuator supply are

connected using connectors from the WAGO Multi Connection System Mini.

AS-Interface Components •9

AS-Interface Module IP20

WAGO-I/O-SYSTEM 751

AS-Interface Components IP20

LEDs indicate the status of inputs and outputs, the AS-Interface and actuator

supply as well as a short circuit or overload condition.

2.1.1.3 Connectors

2.1.1.3.1 AS-Interface Cable and AUX Cable

The connections for AS-Interface cable and AUX cable are 4-pole male

connectors for use with female connectors from the Multi Connection System

Mini.

The following table shows the pin assignment of the sockets.

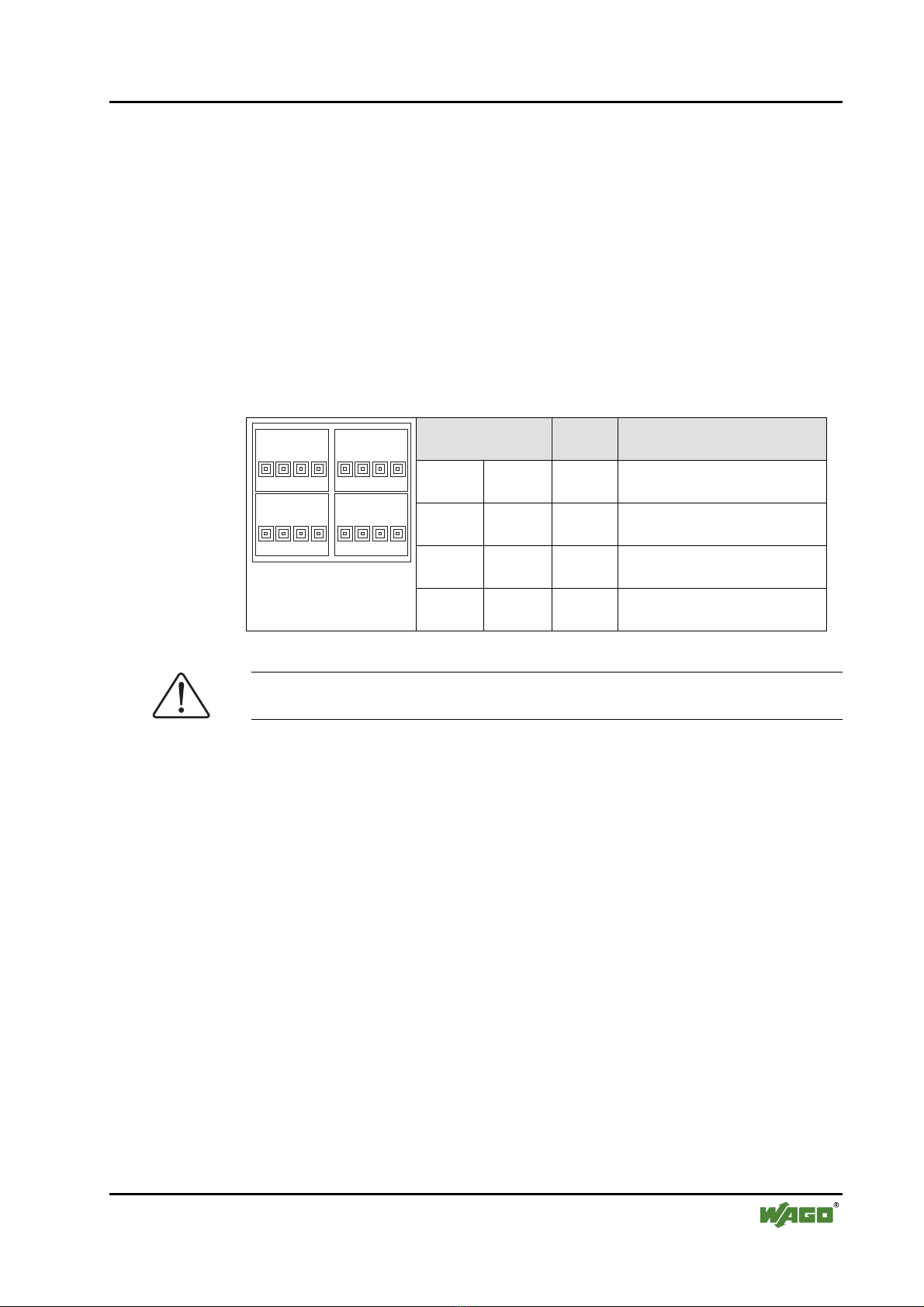

Tab. 2.1.1-1: AS-Interface and AUX Connectors

Connector Pin Function

X1 --- ASI+ AS-Interface power supply +

X1 --- ASI- AS-Interface power supply –

--- X2 AUX+ External power supply +

X2 X4

OUT3

OUT-

OUT1

OUT-

OUT2

OUT-

ASI+

ASI-

AUX+

AUX-

Fig. 2.1.1-2: AS-

Interface and AUX

Connectors gqxxxx7x --- X2 AUX- External power supply –

Warning

Connectors must only be mated or unmated in “No Load” condition!

2.1.1.3.2 Sensor and Actuator Connectors

Sensor connections are 3-pole male connectors, actuator connections are 4-

pole male connectors, both for use with female connectors from the Multi

Connection System Mini.

The following table shows the pin assignment of the sockets.

10 •AS-Interface Components

AS-Interface Module IP20

WAGO-I/O-SYSTEM 751

AS-Interface Components IP20

Tab. 2.1.1-2: Sensor and Actuator Connectors

Sensor Connectors

Connector Pin Function

X5 X6 X7 X8 IN+ Sensor supply L+

X5 X6 X7 X8 IN- Sensor supply L–

X5 --- --- --- IN1 Sensor signal

--- X6 --- --- IN2 Sensor signal

--- --- X7 --- IN3 Sensor signal

X6 X8

IN+ IN+

IN+

IN-

IN+

IN-

IN1

IN3

IN2

IN4

Fig. 2.1.1-3: Sensor

Connectors gqxxxx4x --- --- --- X8 IN4 Sensor signal

Actuator Connectors

Connector Pin Function

X3 X4 OUT- External power supply –

X3 --- OUT1 Switching output +

--- X4 OUT2 Switching output +

X2 X4

OUT3

OUT-

OUT1

OUT-

OUT2

OUT-

ASI+

ASI-

AUX+

AUX-

Fig. 2.1.1-4: Actuator

Connectors gqxxxx7x X3 --- OUT3 Switching output +

Warning

The inputs are DC coupled with the AS-Interface voltage. They shall not be

supplied with an external supply voltage!

Warning

Connectors must only be mated or unmated in “No Load” condition!

2.1.1.3.3 Programming Connector

On the left side of the front plate is the programming connector. It is a plug for

a DC socket, which is compatible with all popular programming adapters, for

example Pepperl+ Fuchs VAZ-PK-1.5M-V1-G.

Please note manufacturer documentation for the operation of the programming

device.

Table des matières

Autres manuels WAGO Unité de contrôle

WAGO

WAGO 2789-9023 Manuel utilisateur

WAGO

WAGO 750-640 Manuel utilisateur

WAGO

WAGO 761-113 Manuel utilisateur

WAGO

WAGO 750-614/040-000 Manuel utilisateur

WAGO

WAGO I/O-SYSTEM 751-3002 Manuel utilisateur

WAGO

WAGO 4FDI 24V PROFIsafe V2.0 Guide produit

WAGO

WAGO 750-486/040-000 Manuel utilisateur

WAGO

WAGO 750-477 Manuel utilisateur

WAGO

WAGO 750-535/040-000 Manuel utilisateur

WAGO

WAGO SPEEDWAY 767 Series Manuel utilisateur

WAGO

WAGO 750-333/040-000 Manuel utilisateur

WAGO

WAGO 750-457/040-000 Manuel utilisateur

WAGO

WAGO 750-616/040-000 Manuel utilisateur

WAGO

WAGO 750-439 Manuel utilisateur

WAGO

WAGO 750-469 Manuel utilisateur

WAGO

WAGO 750-1606/040-000 Manuel utilisateur

WAGO

WAGO TECHDOCS 750-600/000-001 Manuel utilisateur

WAGO

WAGO 750-585/040-000 Manuel utilisateur

WAGO

WAGO 750-652/040-000 Manuel utilisateur

WAGO

WAGO 750-528 Manuel utilisateur

WAGO

WAGO 750-523 Manuel utilisateur

WAGO

WAGO 750-527 Manuel utilisateur

WAGO

WAGO 753-668/000-004 Manuel utilisateur

WAGO

WAGO 750-557/040-000 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur

Flyron

Flyron FN-BC04 Manuel utilisateur
