750-509 [2 DO AC/DC 230 V SSR, 0.3 A] • 7

View

WAGO-I/O-SYSTEM 750

I/O Modules

2 I/O Modules

2.1 Digital Output Module

2.1.1 750-509 [2 DO AC/DC 230 V SSR, 0.3 A]

2-Channel Digital Output Module AC/DC 230 V

Solid State Relay 0.3 A

2.1.1.1 View

13 14

750-509

DO 2

Power jumper contacts

Data contacts

DO 2

230V

DO 1

Status

Fig. 2.1.1-1: 2-Channel Digital Output Module 750-509 g050900e

2.1.1.2 Description

The electronic relay module 750-509 can switch up to 230 V AC/DC, which

supplies actuators or AC loads.

The module has two output channels. Two actuators with ground (earth) wire

may be directly connected to signal output DO 1, N and PE (earth potential) or

signal output DO 2, N and PE.

The module is equipped with two high performance MOSFETs as switching

relays. The semiconductor outputs of the MOSFETs allow for the unlimited

triggering of the actuators while having no wear on the outputs.

The MOSFETs are non-floating, i.e. the fieldside voltage supply (0 V AC/DC

up to 230 V) is connected to each terminal of the relay and is fed in via the

internal power jumper contacts of an adjacent supply module.

By closing a relay, the field power applied is switched to the second relay

connection of signal output DO1 or DO2.

8 • 750-509 [2 DO AC/DC 230 V SSR, 0.3 A]

Display Elements

WAGO-I/O-SYSTEM 750

I/O Modules

The semiconductor outputs can be controlled fully isolated using the internal

system voltage.

The specified output values are designed for 100 % duty cycle.

The switching status of the two relays is indicated via green status LEDs.

Any configuration of the output modules is possible when designing the

fieldbus node. Grouping of module types is not necessary.

Attention

An additional supply module must be added for the field supply with

AC/DC 0 V to 230 V.

The AC/DC 0 V to 230 V supply voltage for the field side, the N (neutral

conductor) and the earth (ground) potential is made automatically through the

individual I/O modules by means of power jumper contacts.

Warning

The maximum current of the internal power jumper contacts is 10 A. When

configuring the system it is important not to exceed the maximum/sum

current. However, if such a case should occur, another supply module must

be added.

Note

For the protection of relay coils and contacts, inductive loads must be

dampened with an effective protection circuit!

Examples of protection circuits can be seen in the section 2.1.2 "Contact

Protective Circuit for Relay Modules".

The output module 750-509 can be used with all couplers/controllers of the

WAGO-I/O-SYSTEM 750.

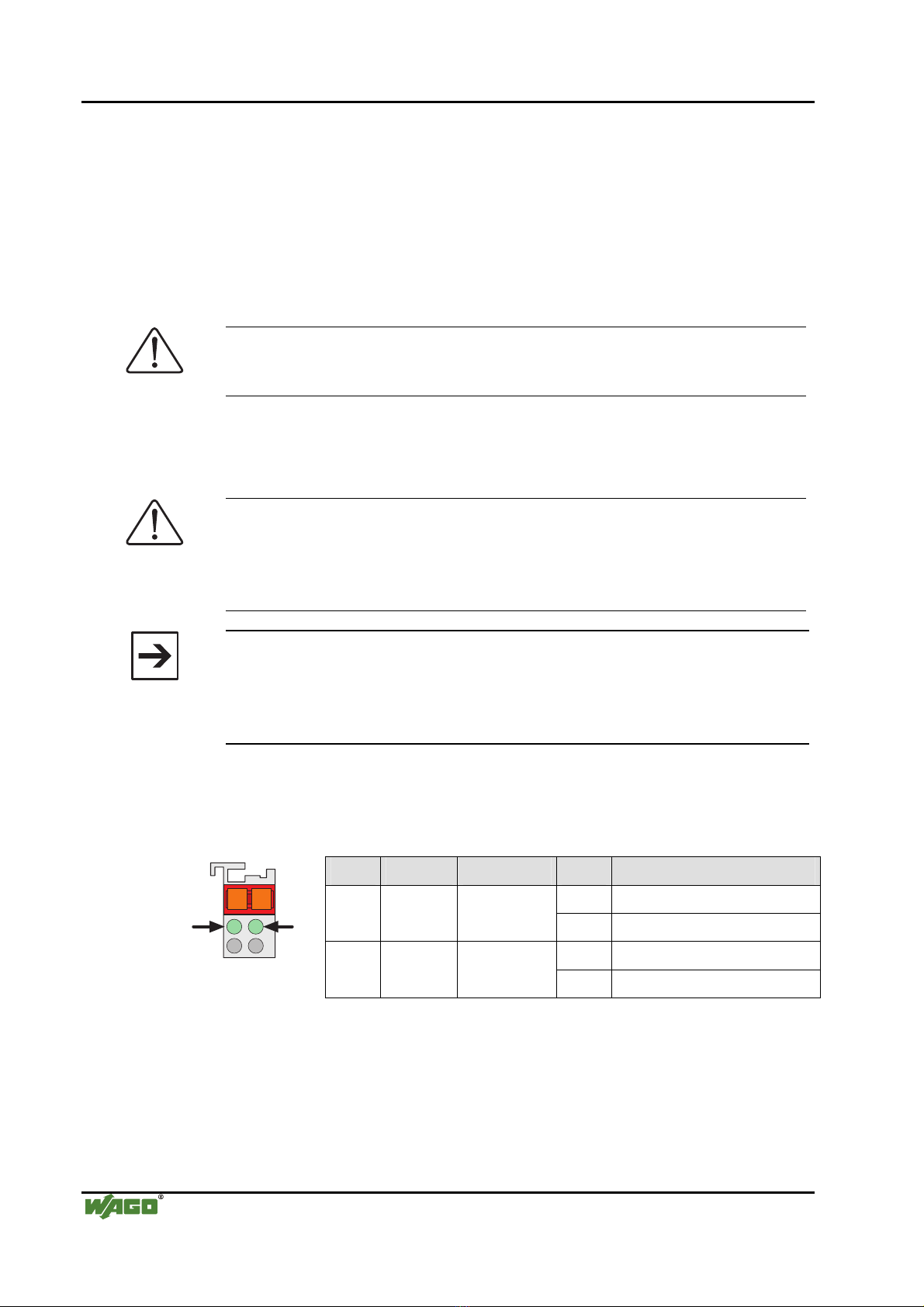

2.1.1.3 Display Elements

LED Channel Designation State Function

off Output DO 1: not activated

green 1 Status

DO 1 on Output DO 1: activated

off Output DO 2: not activated

13 14

Fig. 2.1.1-2: Display

Elements g050102x

green 2 Status

DO 2 on Output DO 2: activated

750-509 [2 DO AC/DC 230 V SSR, 0.3 A] • 9

Schematic Diagram

WAGO-I/O-SYSTEM 750

I/O Modules

2.1.1.4 Schematic Diagram

DO 1 DO 2

AC/DC 230V

750-509

AC/DC 230V

Fig. 2.1.1-3: 2-Channel Digital Output Module 750-509 g050901e

2.1.1.5 Technical Data

Module Specific Data

Number of outputs 2

Current consumption (internal)max. 10 mA

Switching voltage AC/DC 0 V ... 230 V

Switching current 300 mA

Peak current 0.5 A (20 s); 1,5 A (0.1 s)

Switching rate max. 5 Hz (24 V 0,3 A DF=50 %)

0,5 Hz (230 V 0,3 A DF=50 %)

Pull-in time typ. 4,0 ms

Pull-in time max. 10 ms

Dropout time typ. 0.1 ms

Dropout time max. 3,0 ms

RON typ. 2.1 Ω

RON max. 3.2 Ω

Overvoltage protection AC 275 V (Varistor)

Isolation 1,5 kVeff. (System/Supply)

*2,5 kV rated surge voltage

overvoltage category III

Internal bit width 2 bit out

Dimensions (mm) W x H x L 12 x 64* x 100

* from upper edge of 35 DIN rail

Weight ca. 55 g

10 • 750-509 [2 DO AC/DC 230 V SSR, 0.3 A]

Process Image

WAGO-I/O-SYSTEM 750

I/O Modules

Standards and Regulations (cf. Chapter 2.2 of the Coupler/Controller Manual)

EMC-Immunity to interference (CE) acc. to EN 50082-2 (96)

EMC-Emission of interference (CE) acc. to EN 50081-1 (93)

EMC-Immunity to interference

(Ship building)

acc. to Germanischer Lloyd (97)

EMC-Emission of interference

(Ship building)

acc. to Germanischer Lloyd (97)

Approvals (cf. Chapter 2.2 of the Coupler/Controller Manual)

CULUS (UL508)

ABS (American Bureau of Shipping)

BV (Bureau Veritas)

DNV (Det Norske Veritas) Cl. B

GL (Germanischer Lloyd) Cat. A, B, C, D

KR (Korean Register of Shipping)

LR (Lloyd's Register) Env. 1, 2, 3, 4

NKK (Nippon Kaiji Kyokai)

RINA (Registro Italiano Navale)

CULUS (UL1604) Class I Div2 ABCD T4A

KEMA II 3 G EEx nC II C T4

Conformity Marking

More Information

Detailed references to the approvals are listed in the document "Overview

Approvals WAGO-I/O-SYSTEM 750", which you can find on the CD ROM

ELECTRONICC Tools and Docs (Item-No.: 0888-0412)

or in the internet under:

www.wago.com !Documentation !WAGO-I/O-SYSTEM 750 !

System Description

2.1.1.6 Process Image

The output bits control the state of the outputs.

Output bit B1 B0

Meaning controls DO 2

Channel 2

controls DO 1

Channel 1

Autres manuels pour 750-502

Table des matières

Autres manuels WAGO Unité de contrôle

WAGO

WAGO 750-481/040-000 Manuel utilisateur

WAGO

WAGO WAGO-I/O-SYSTEM 750-506 Manuel utilisateur

WAGO

WAGO 750-468/040-000 Manuel utilisateur

WAGO

WAGO 750 Series Manuel utilisateur

WAGO

WAGO 750-450 Manuel utilisateur

WAGO

WAGO 753-646 Manuel utilisateur

WAGO

WAGO 750-606 Manuel utilisateur

WAGO

WAGO 750-404/040-003 Manuel utilisateur

WAGO

WAGO 750-506 Series Manuel utilisateur

WAGO

WAGO 750-458 Manuel utilisateur

WAGO

WAGO 750-557/040-000 Manuel utilisateur

WAGO

WAGO 761-216 Manuel utilisateur

WAGO

WAGO 761-114 Manuel utilisateur

WAGO

WAGO 750-654 Manuel utilisateur

WAGO

WAGO 750-1416/040-000 Manuel utilisateur

WAGO

WAGO 750-564 Manuel utilisateur

WAGO

WAGO 750-482 Manuel utilisateur

WAGO

WAGO 750-651 Manuel utilisateur

WAGO

WAGO WAGO-I/O-SYSTEM 750 750-481/003-000 Manuel utilisateur

WAGO

WAGO 753-668/000-004 Manuel utilisateur

WAGO

WAGO 750-489 Manuel utilisateur

WAGO

WAGO 750-651 Manuel utilisateur

WAGO

WAGO WAGO-TO-PASS 761 Manuel utilisateur

WAGO

WAGO 750-652/040-000 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur

Flyron

Flyron FN-BC04 Manuel utilisateur
