Service Training

Self-study programme 338

The Golf Plus 2005

The self-study programme portrays the design and

function of new developments!

The contents will not be updated.

For current testing, adjustment and repair instruc-

tions, please refer to the customer service literature

intended for this purpose.

The Golf Plus is based on the Golf's successful history

as the benchmark in the compact class, is positioned

in the new segment of high-roof passenger cars and

can therefore safely claim leadership in the Golf

segment.

It is intended to continue to the "superior dynamics"

positioning introduced by the Golf in 2004, extending

this with characteristics such as spatial comfort,

variability and functionality.

This self-study programme provides an overview of the structure of the Golf Plus.

It informs you of the special body features, which engines and gearboxes are installed,

which front and rear axles carry the Golf, how the electronics are structured and what changes have taken place in

the convenience system.

NEW Attention

Note

S338_105

In brief . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Body . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Occupant protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Engine-gearbox combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Engines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Power transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Running gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Electrical system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Convenience electronics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Radio and navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Heater and air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

At a glance

In brief

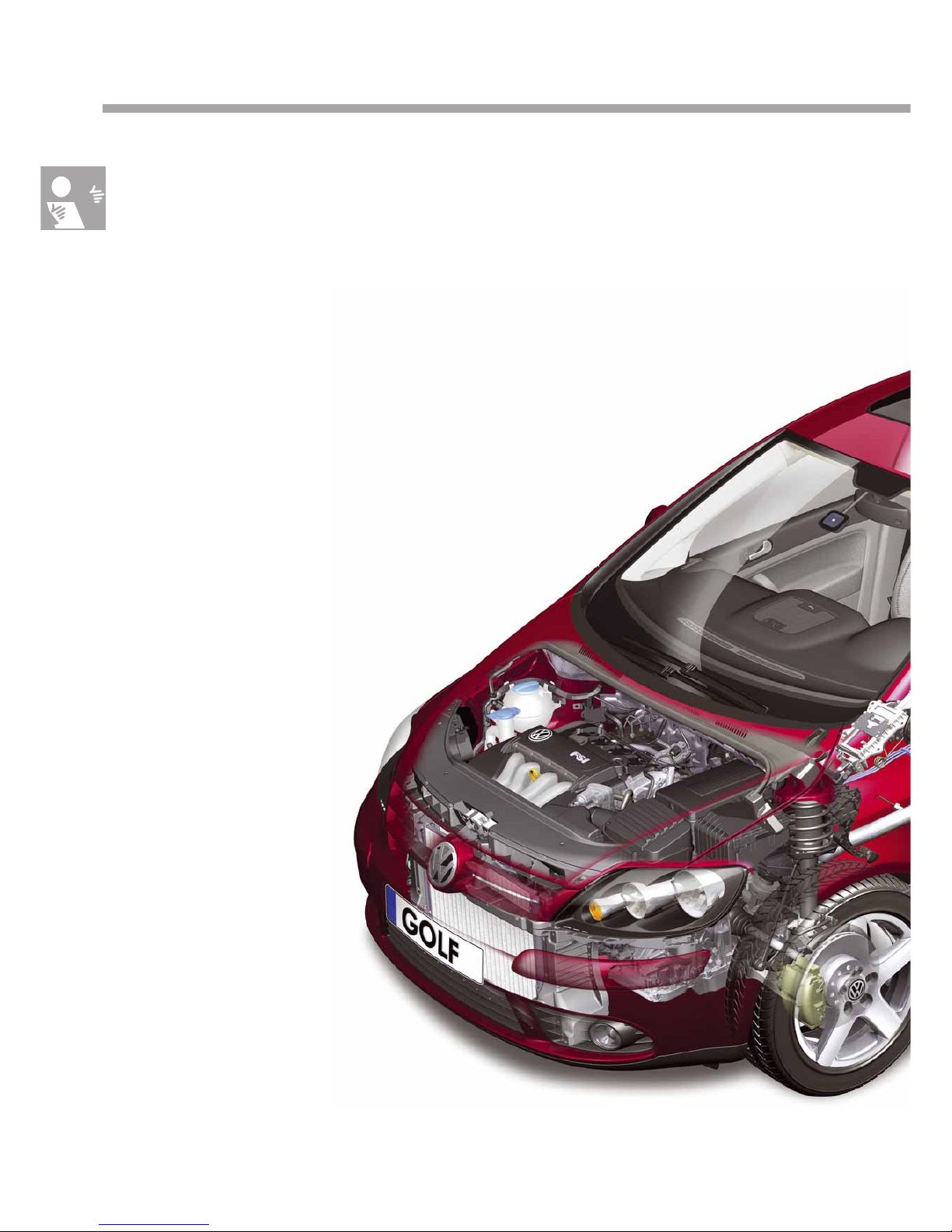

The Golf Plus 2005

●Extensive storage compartment concept

●Modified bonnet

Front area optimised to protect pedestrians

●New headlights with three round elements

●Headlights in

bi-xenon technology with

cornering light function

●Sensor for rain and light detection

●2C-Climatronic

(2-zone climate control)

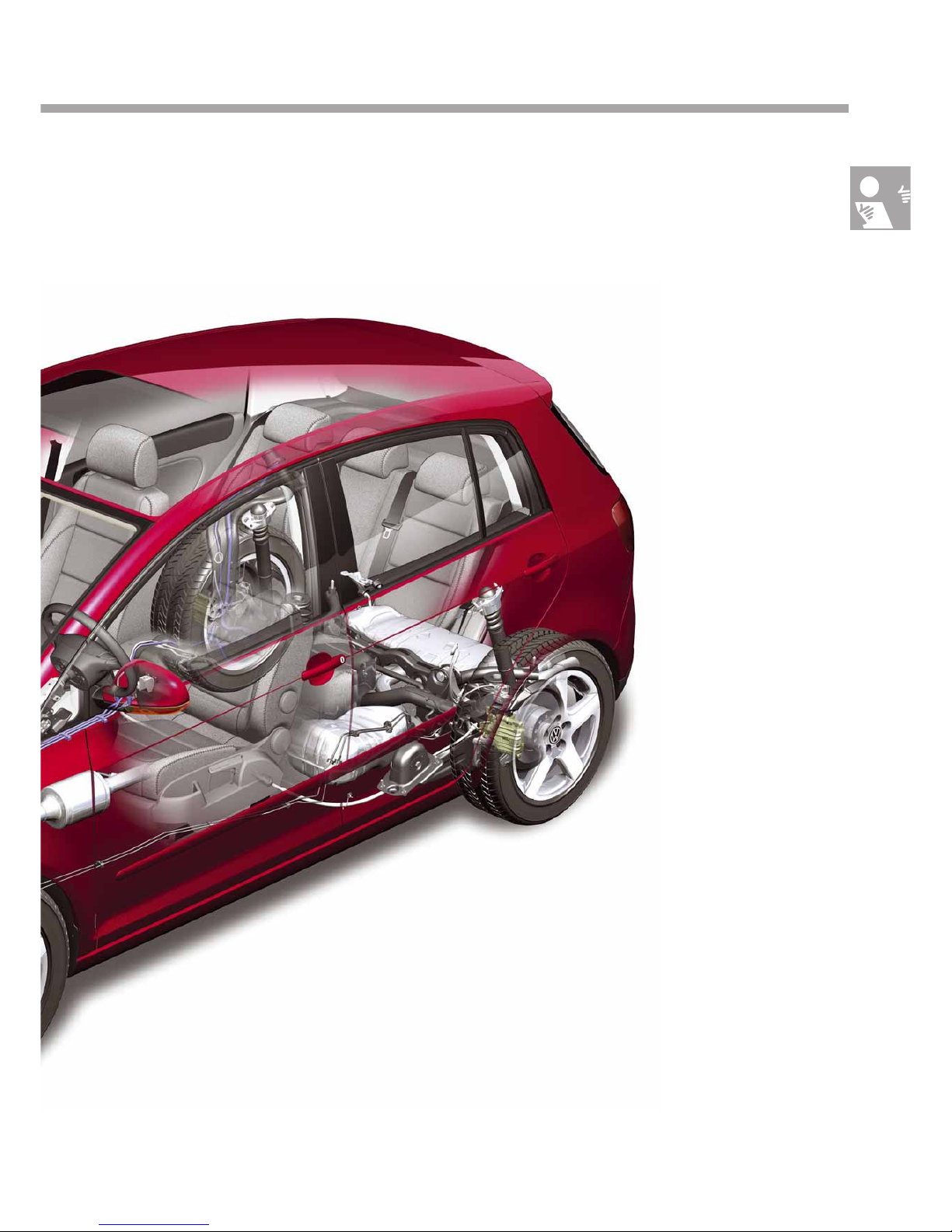

In addition to the technology familiar from the Golf,

the Golf Plus is equipped with a few further special

features.

This includes its higher body, its rear lights in LED

technology and also its split rear seat bench, which

can be separately adjusted and

moved.

S338_001

●230V socket

●Rear lights

in LED technology

●Rear Seat Entertainment system

●Variable

load floor concept

●Seating level 80mm higher

●Body 95mm higher

●Split rear seat bench,

can be separately moved and adjusted

In brief

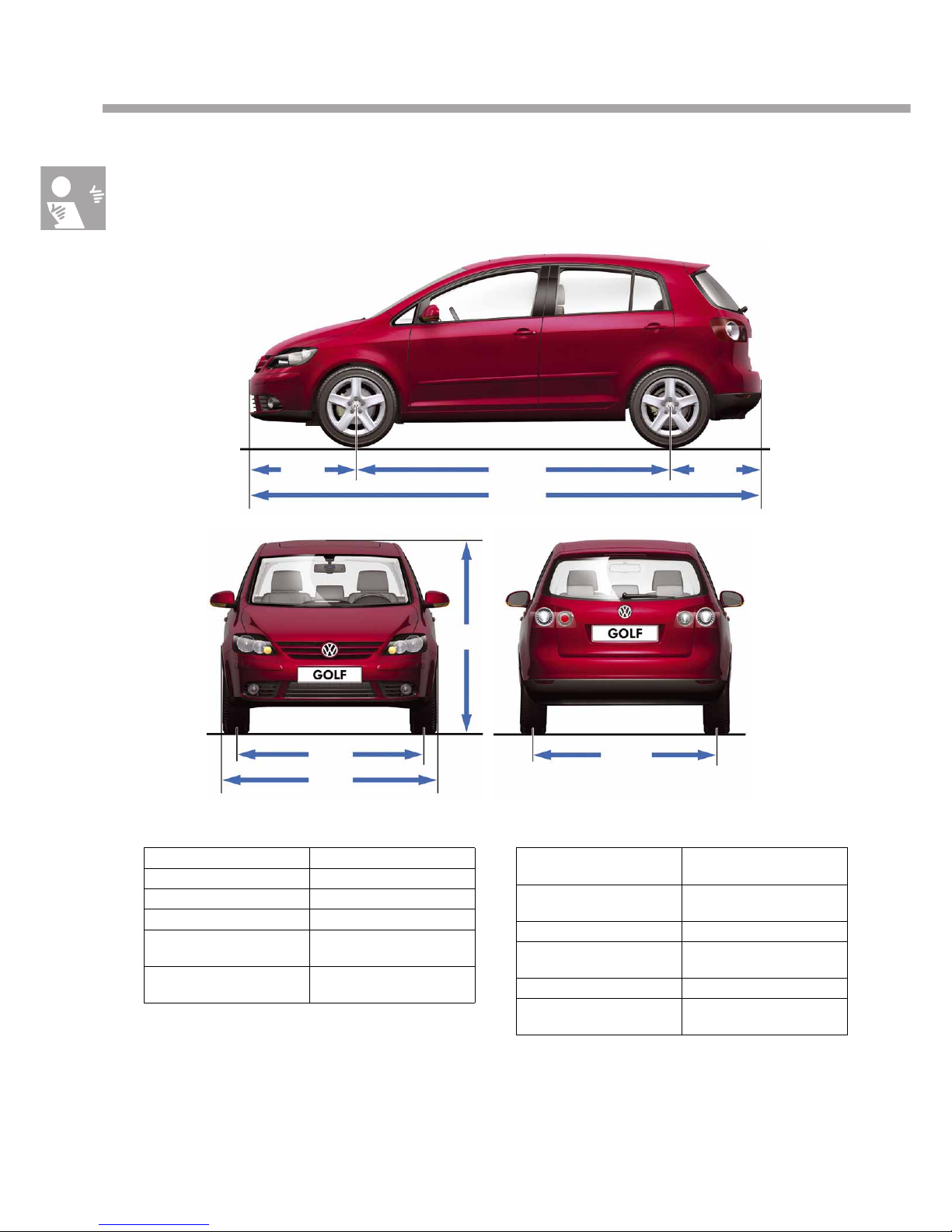

Technical data

Exterior dimensions and weights

Exterior dimensions

Length 4206mm

Width 1759mm

Height 1580mm

Wheelbase 2578mm

Front track 1541mm

Rear track 1529mm

Weights

Permissible gross vehicle

weight

1900kg

Unladen weight without

driver

1293kg

Roof load 75kg

Trailed load (braked) 1200kg at 8% incline

Fuel tank capacity 55l

Drag coefficient 0.32

S338_053

S338_052

S338_051

877mm 2578mm 751mm

4206mm

1541mm

1759mm

1580mm

1529mm

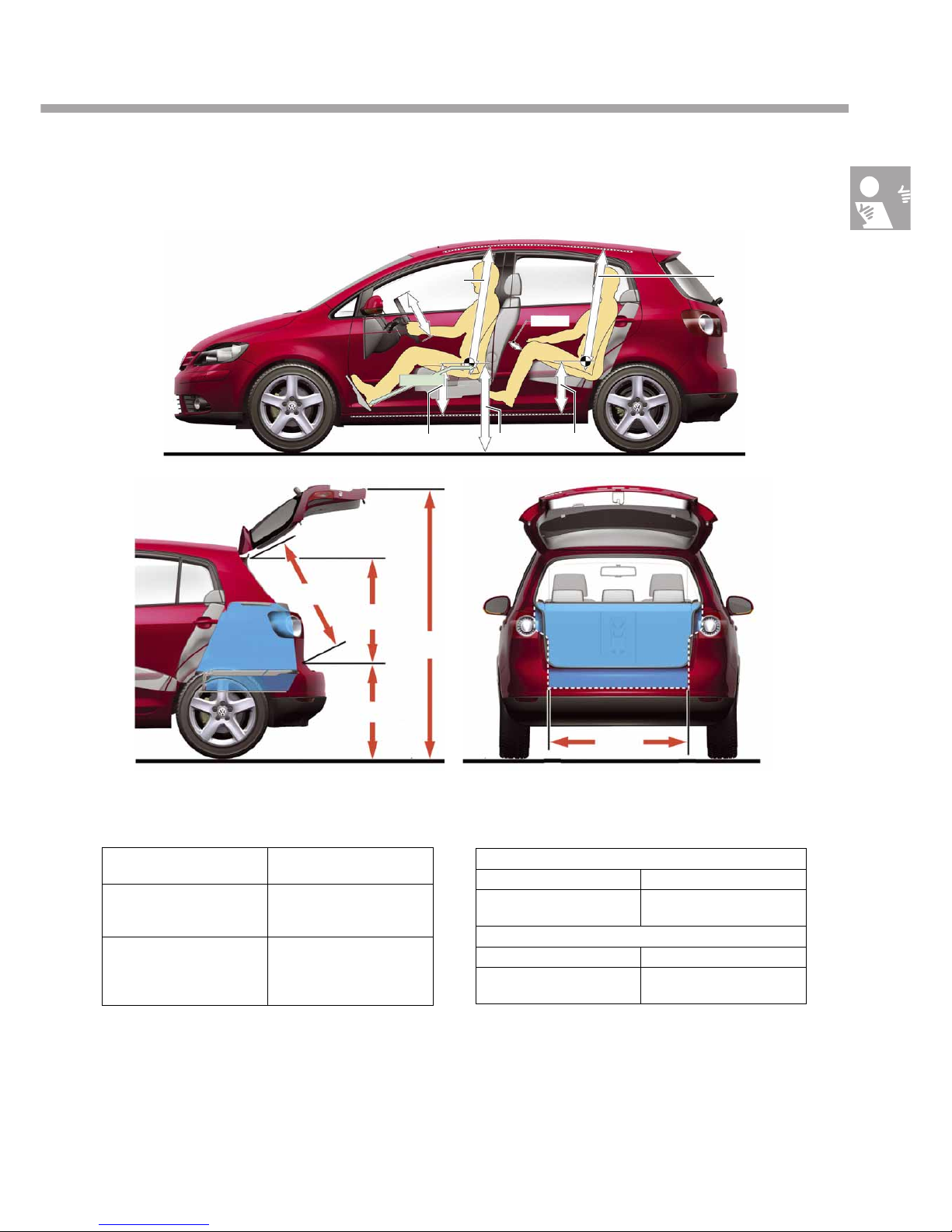

Interior dimensions

S338_056

Interior dimensions and volumes

* - Without variable load floor

** - With variable load floor

Total interior length 1740mm

Luggage compartment

volume

425 - 505l *

402 - 443l **

Luggage compartment

volume with rear seat back-

rest folded down

1450l *

1350l **

Interior dimensions, front

Headroom 1007mm

Elbow width 1468mm

Interior dimensions, rear

Headroom 976mm

Elbow width 1452mm

S338_055

S338_054

1008mm

842mm

750mm

624mm

2076mm

375mm

343mm 585mm

70mm

1007mm 976mm

375mm

1019mm

Body

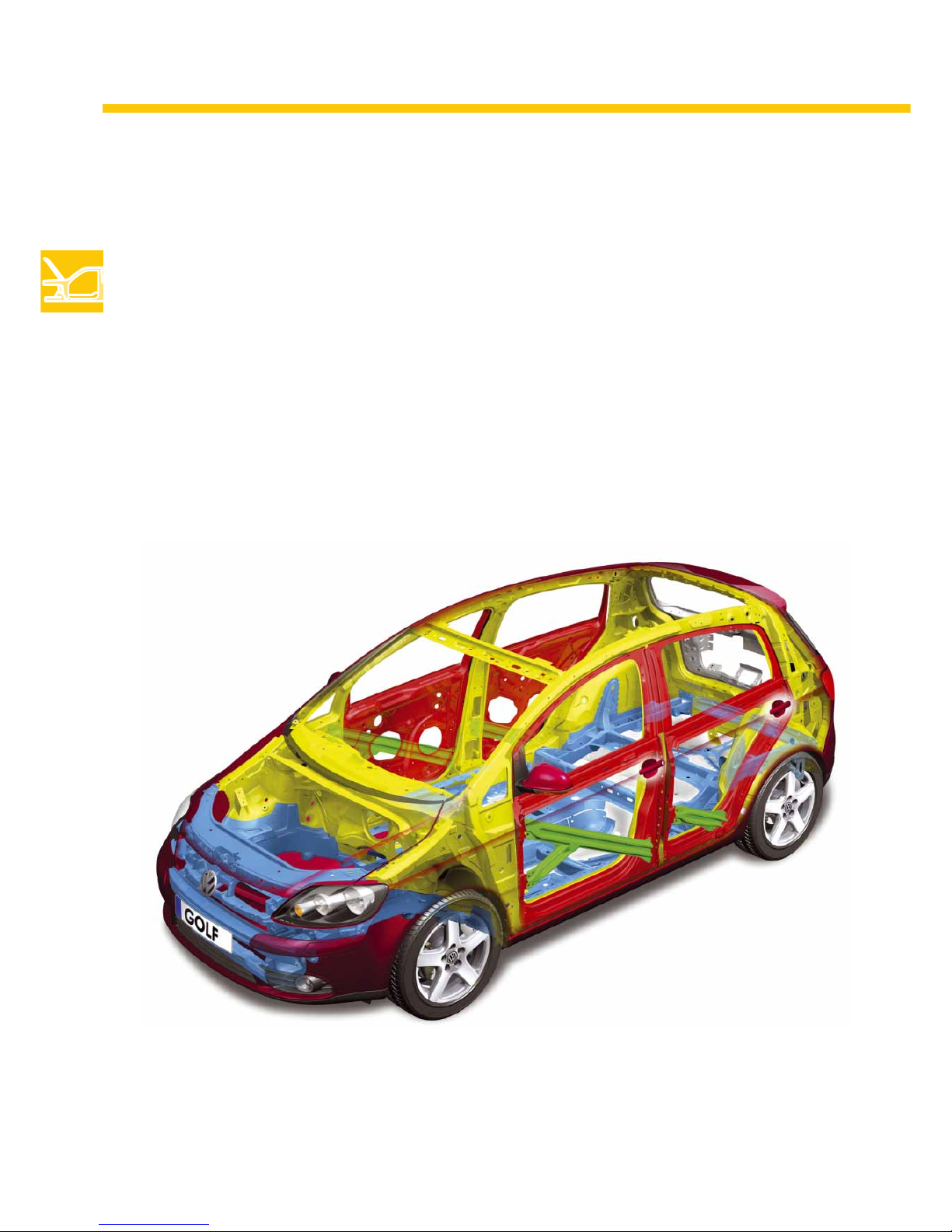

The body structure

Its concept has been integrated from the tried-and-tested Golf 2004 and adapted to the requirements of the

Golf Plus.

By consistently employing high- and ultra-high-strength panels, its strength has again been

optimised without significantly increasing its weight.

Special characteristics

●The A-pillar has been modified to integrate

the quarter light.

●The roof bow has been omitted thanks to the

design of the side areas.

S338_023

Normal plate grade up to 180 MPa

High-strength plate grade 220 - 240 MPa

Higher-strength plate grade 280 -300 MPa

Ultra-high-strength plate grade 320 -420 MPa

Ultra-high-strength, treated plate grade over 900 MPa

1 MPa = 1 Newton/mm2

The specified values refer to the yield strength.

S338_096

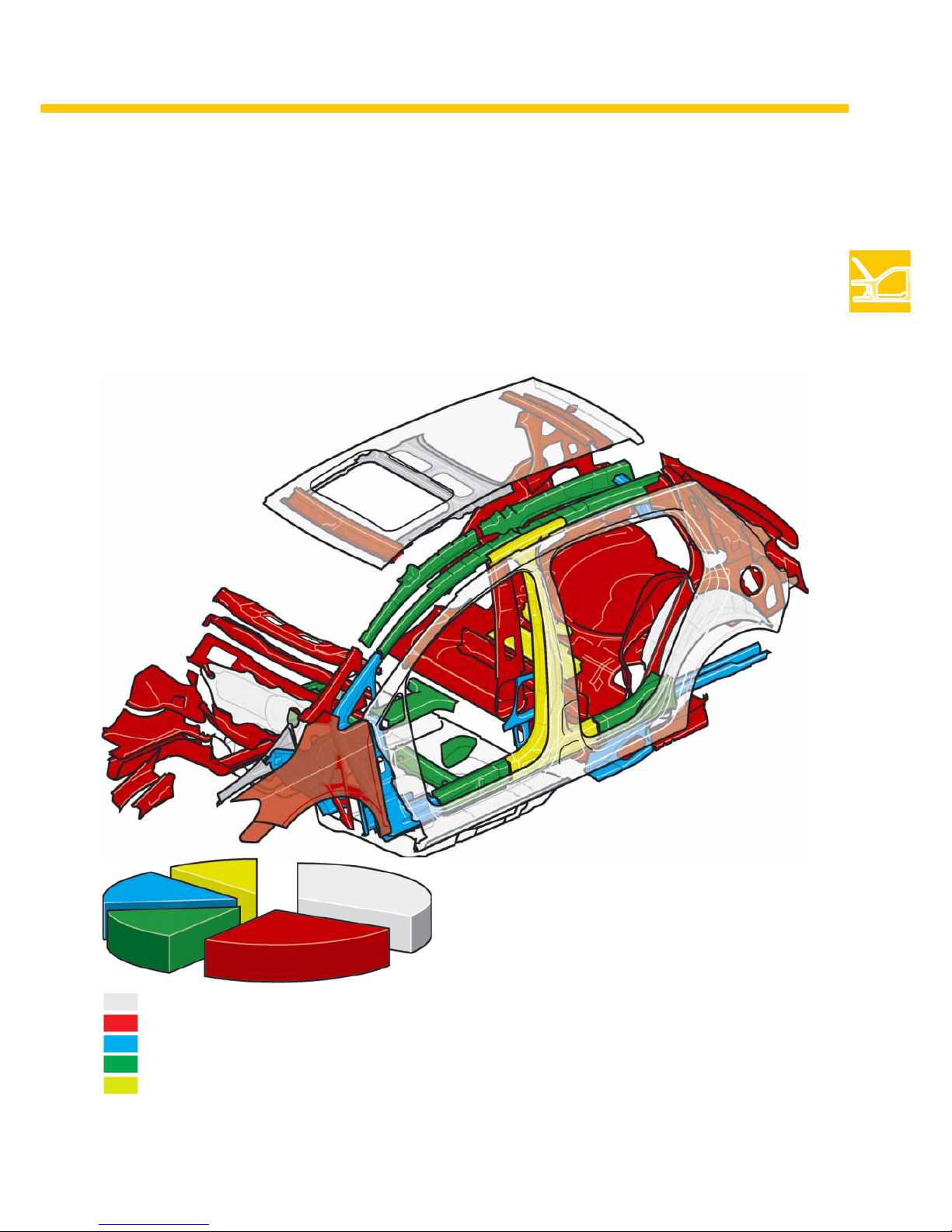

Steel grades in the Golf Plus

Steels are classified according to their tensile strength. The higher the steel grade, the higher the tensile strength,

which is measured in Megapascals. The higher material properties are achieved by alloying and hardening the

steel in different ways. The Golf Plus body is essentially comprised of five different steel grades.

Even this limited selection of body-in-

white parts shows the considerable

percentage of higher-strength panels

in the Golf Plus.

S338_119

Body

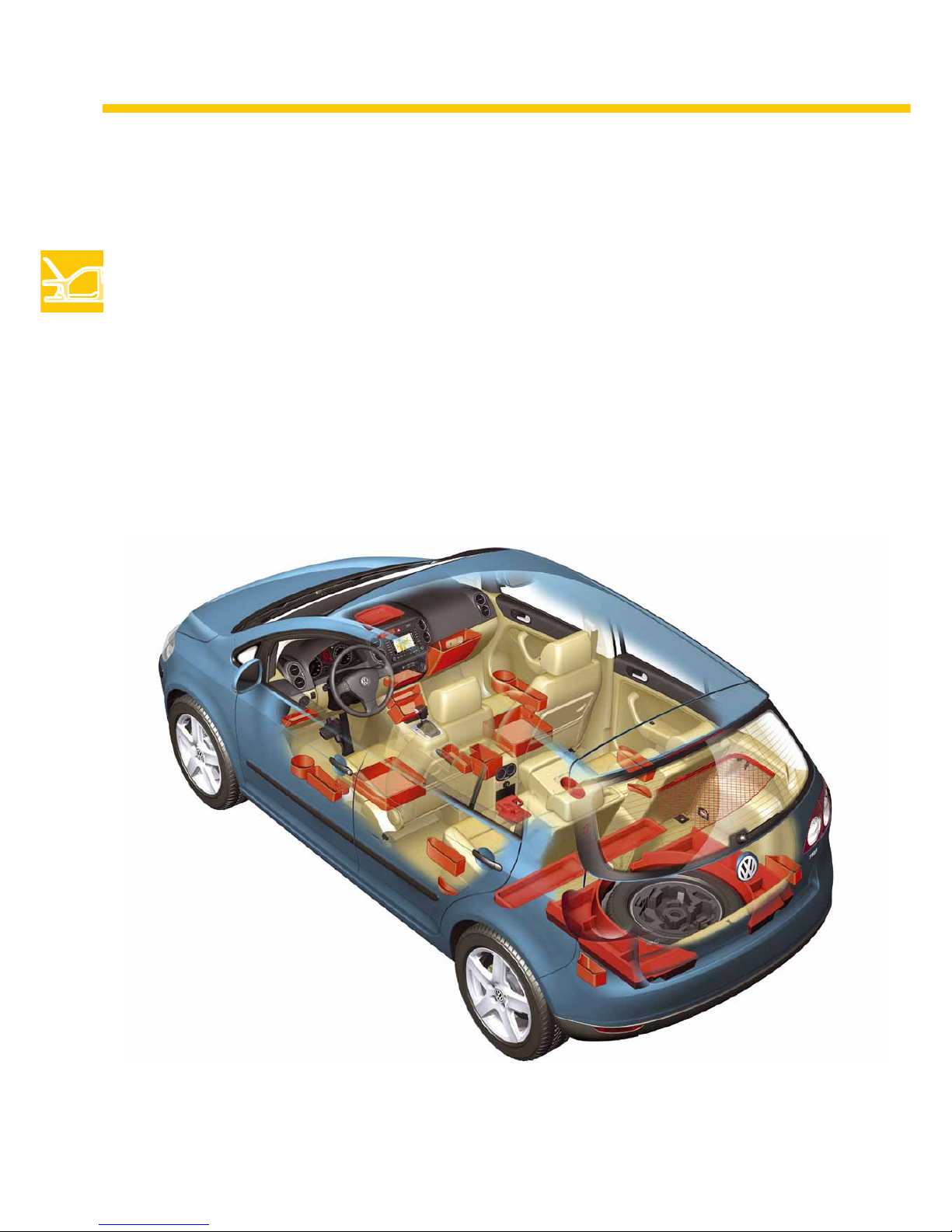

The storage compartments

Besides a multitude of storage compartments familiar from the Golf 2004, the Golf Plus additionally offers storage

compartments in the centre console and drawers beneath the front seats.

In vehicles fitted with the Rear Seat Entertainment system, the DVD player is located in the storage compartment

between the front seats beneath the armrest.

S338_057
