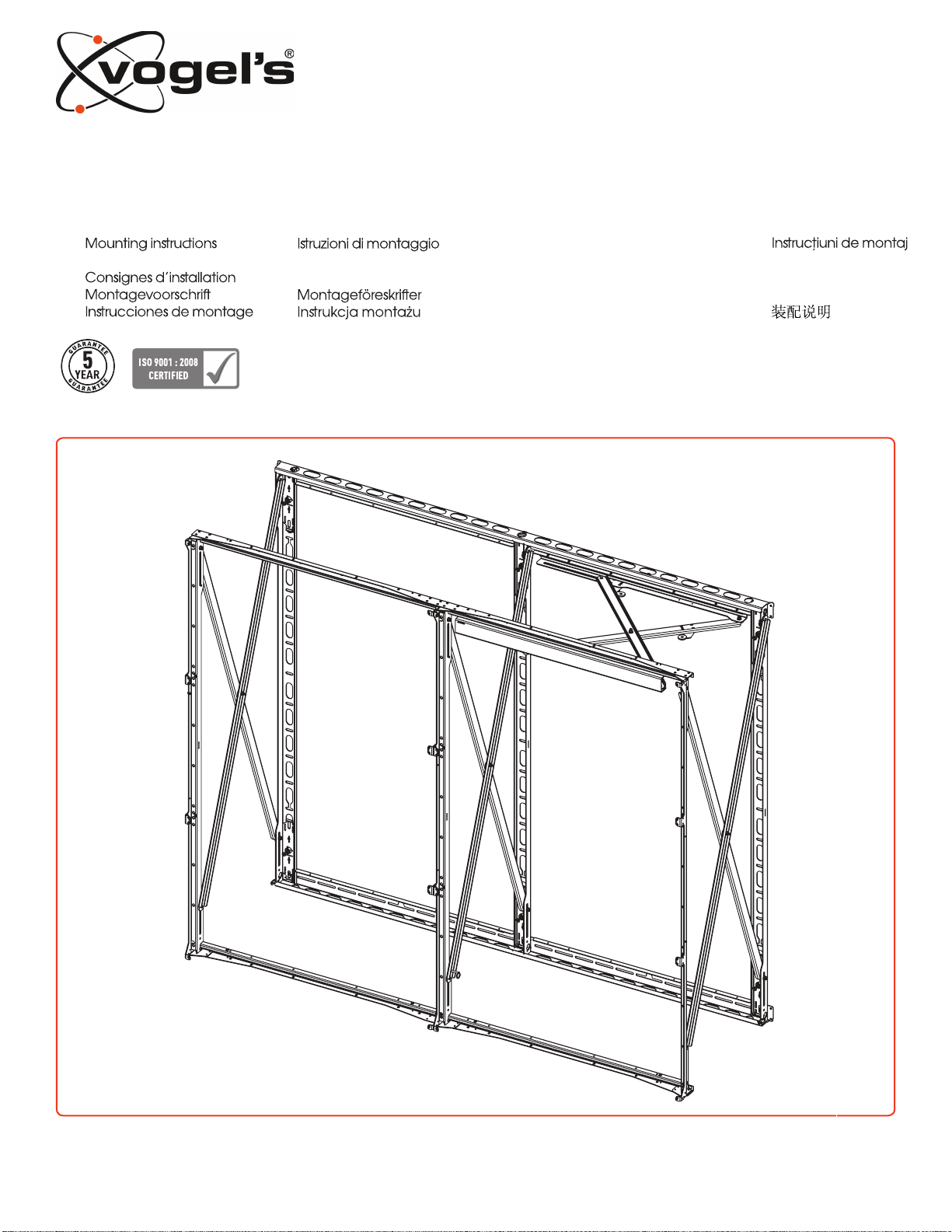

VOGELS PLW 1004 Manuel utilisateur

MOUIN_PLW 1004 _V02

PPLW 1004 - 2x3 LED video wall mount

DE Montageanleitung

PT Manual de montagem

EL Οδηγίες συναρμογής

RU Инструкция по сборке и установке

CZE Návod k montáži

SK Návod na montáž

HU Szerelési előírás

TR Montaj kılavuzu

UK Вказівки по монтажі

BG Инструкции за монтаж

JA 設置の説明書

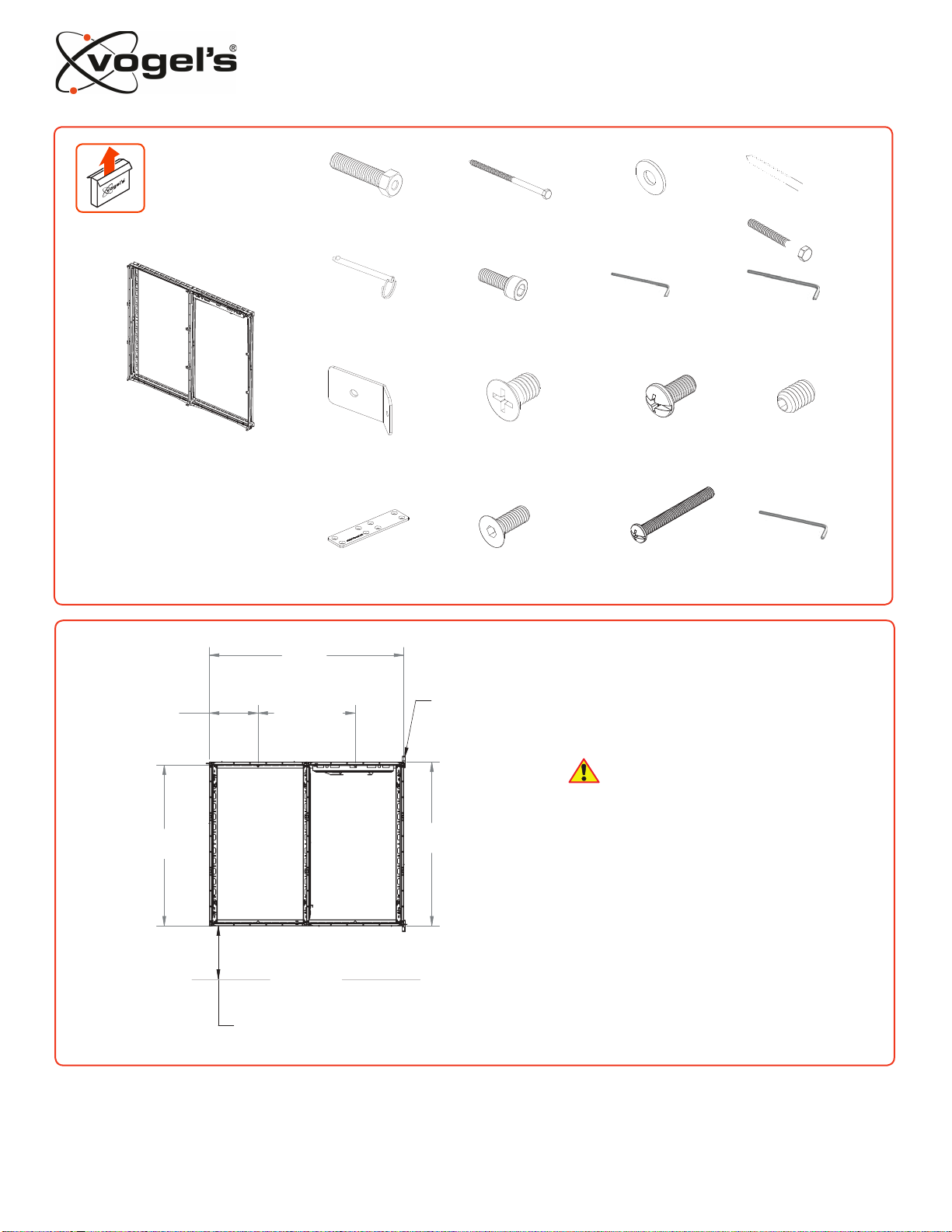

1/4” x 2 1/2”

Push Pin

M6 x 20 mm

Socket Cap

5/16” x 3” Lag

Bolt

Wall Mount

M5 Allen KeyM2 Allen Key

5/8”-10 x 2” Bolt

with hole

5/16” x 6” Lag Bolt 5/16” Washer

x6 x6 x8

x1 x24

x1x1

Wall Plate M5 x 6 mm Flat Head

Screw

M5 x 10 mm Screw M4 x 6 mm Set Screw

yeKnellA”23/5tekcarBrecapS

x6 x8

x6 x24

M6 x 16 mm Flat

Socket Head Screw

M8 x 70 mm Screw

2x4x

2400

[94.49]

600.2

[23.63]

1200

[47.24]

[PRE-HANG

MOUNTING]

2023.7

[79.67]

1986.4

[78.20]

TO DETERMINE THE POSITION OF THE PRE-HANGER SCREW

FIRST MEASURE THE DISTANCE REQUIRED FROM THE FLOOR

TO THE BOTTOM EDGE OF THE FRAME AND ADD 1986.4 mm [78.20"]

SECTION

CONNECTOR

PLATE

(FLOOR LINE)

1) Find your desired mounting location.

2) Drill the 5/16” x 3” lag bolt (D) with washer (C) into

the wall

Do not fully drill 5/16” x 3” lag bolt into the

wall. Leave 25 mm [1” inch] out.

Page 2

JK L

M N OP

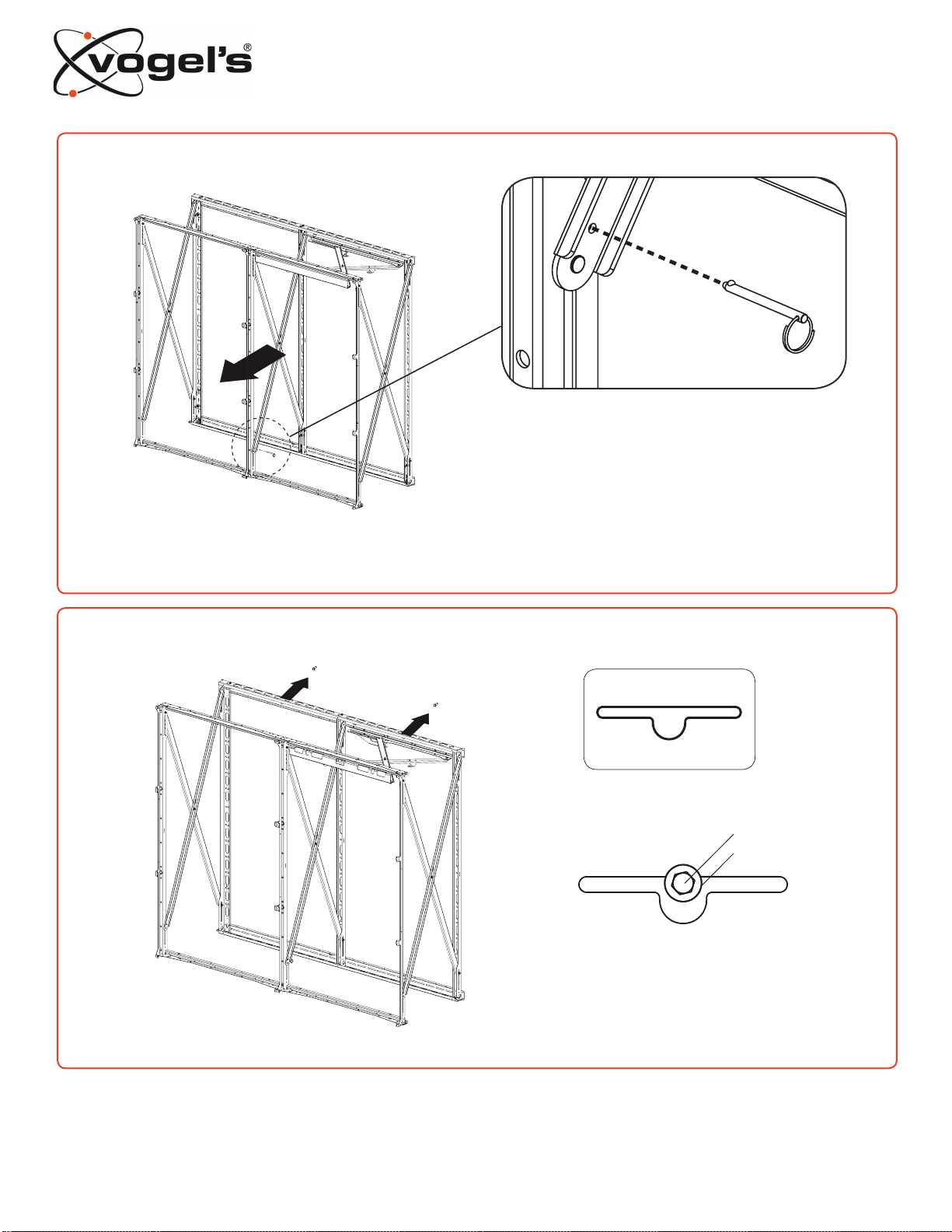

Place the wall mount over the lag bolt (D) through

the key slot hole.

Key Slot

1) Extend the mount.

2) Install the 1/4”x 2 1/2” Push Pin (E) to keep the

mount extended.

Lag Bolt

Washer

Page 3

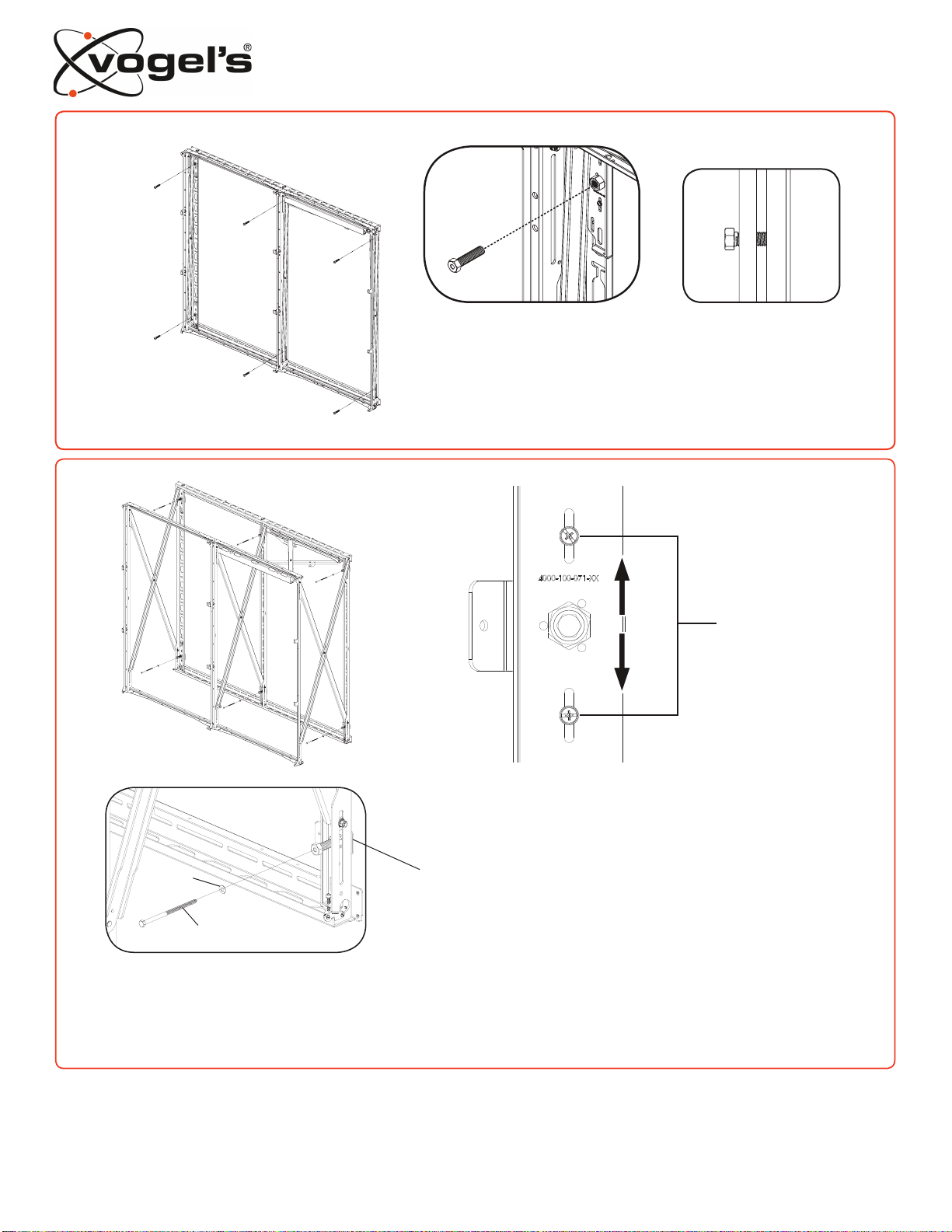

Install the six (6) 5/8”-10 x 2” Bolt (A) with hole into the

wall mount.

1) Level the wall mount.

2) Place the wall bracket (I) between the wall mount and wall.

3) Secure the mount into the wall using six (6) 5/16” x 6” lag

bolts (B) and six (6) 5/16” washers (C) into the 5/8”-10 x 2” Bolt

with hole.

Wall Bracket

Washer

5/16” x 6” Lag Bolt

Before installing the

5/16” x 6” lag bolt (B)

and washer (C) make

sure the phillips

screw is in the

center of the slots.

This will give 1/2”

adjustments either

up or down.

Flush Bolt

Page 4

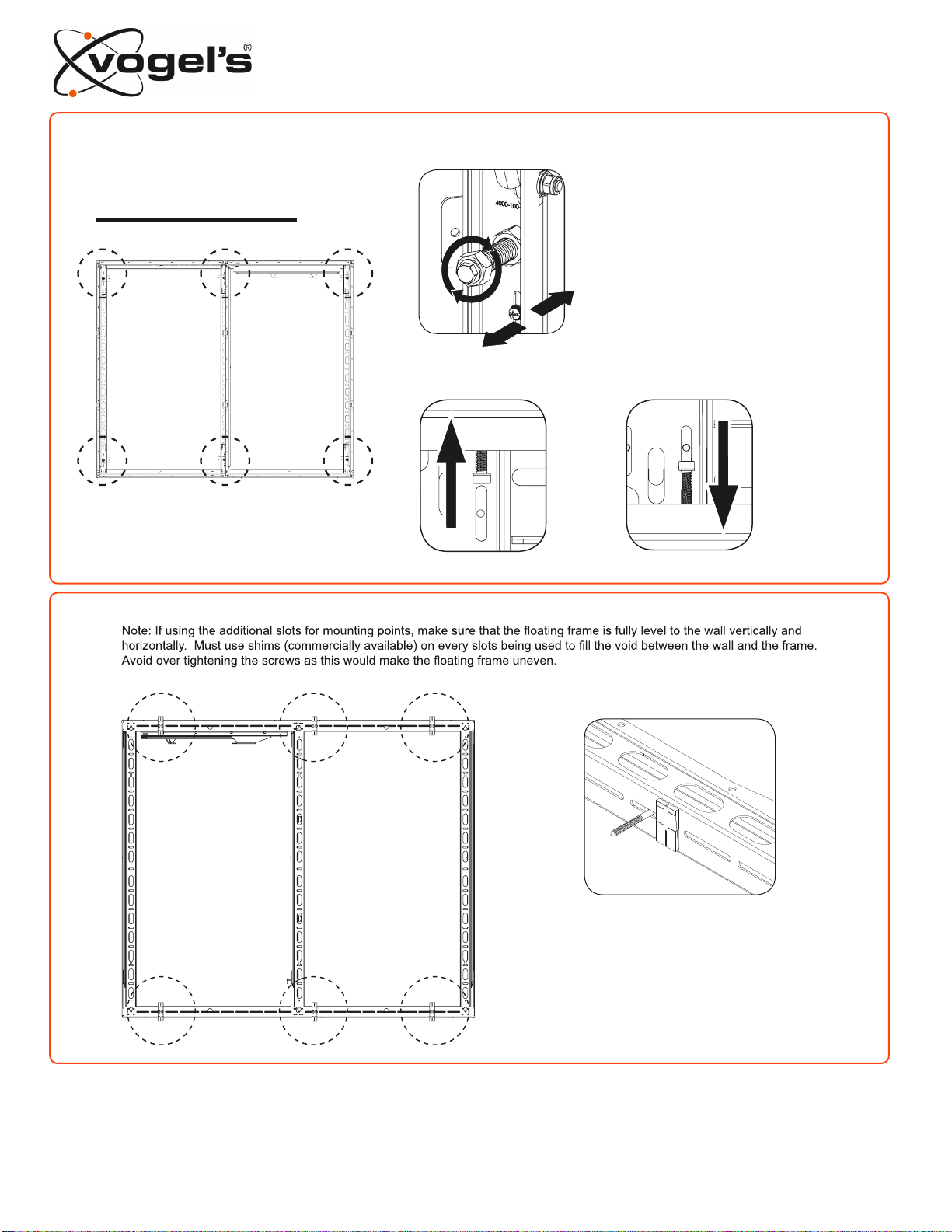

Uneven wall surfaces can be adjust by

turning the 5/8”-10 x 2 Bolt with hole.

Up / Down

In / Out

Adjustments

Page 5

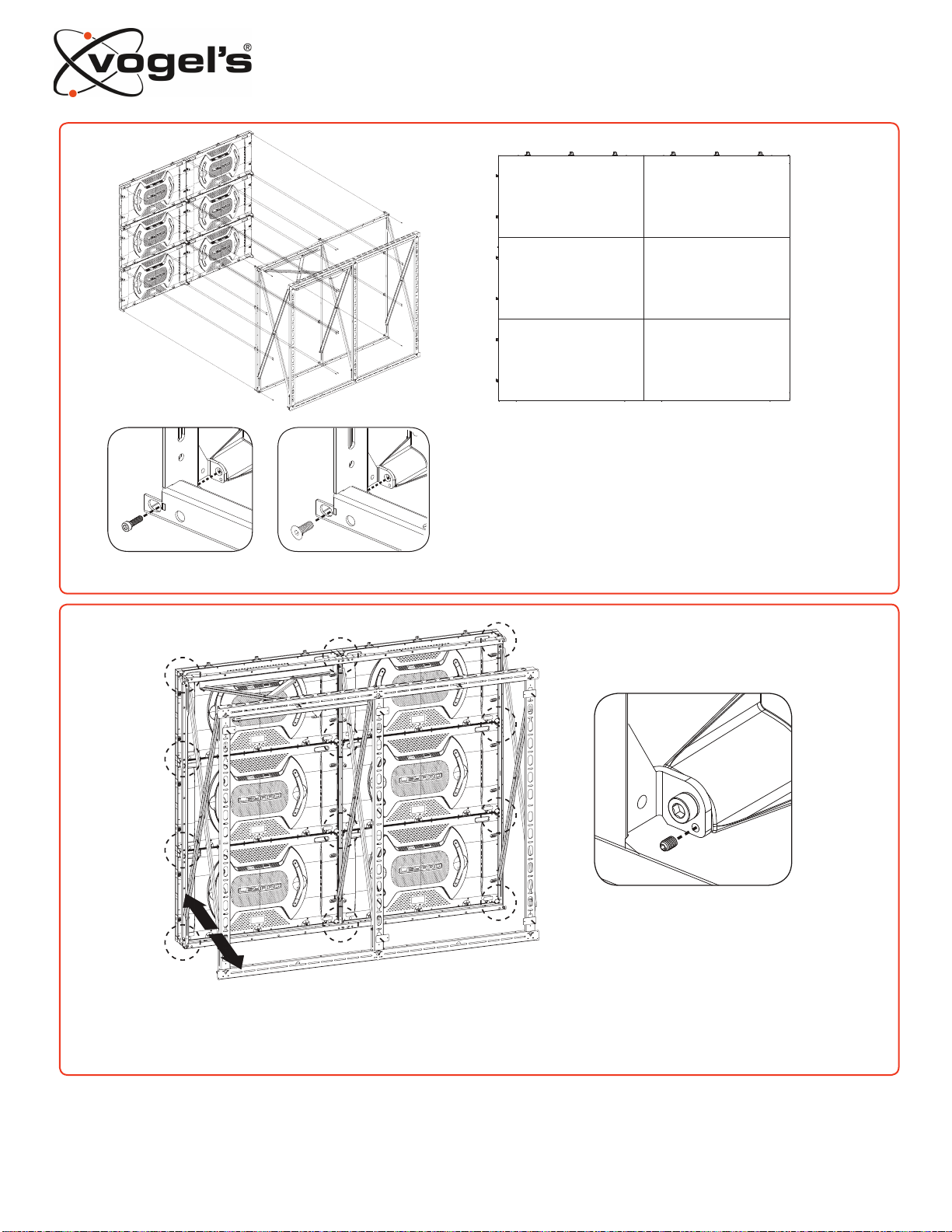

Install twenty four (24) M4 x 6 mm set screws (L). You can adjust the panel in & out by using the M2 Allen key (G).

Page 6

1) Use four (4) M6 x 16 mm flat socket head screws (N) on the

first LED display to center it in place.

2) Install the second and third LED display unsing four (4)

M6 x 20 mm socket cap screw in each LED display (F).

3) Optional to change the M6 x 16 mm flat socket head

screws (N) to M6 x 20 mm socket cap screws (F).

4) Install the LED panels in the following order as shown above.

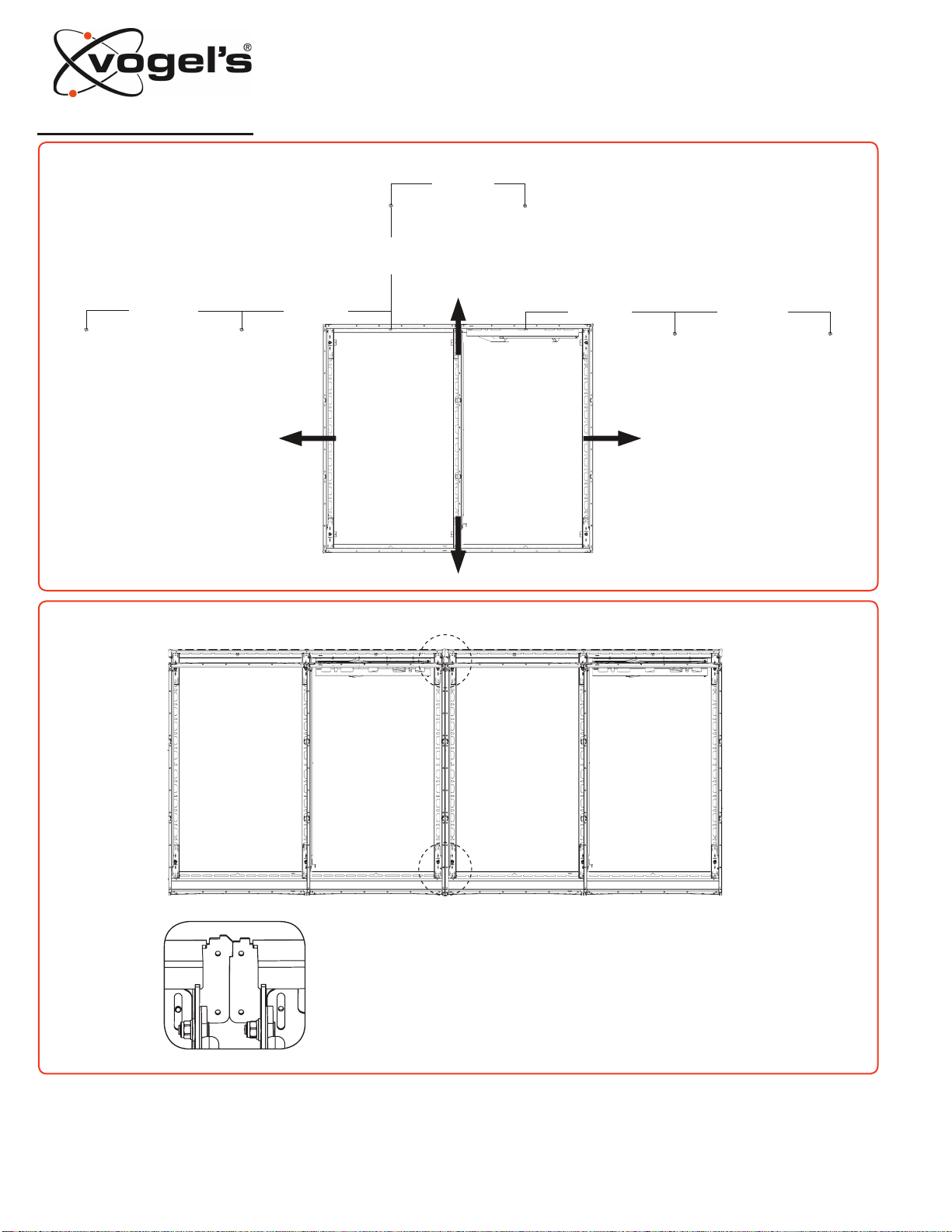

OPTIONAL EXTENSIONS

1200 mm

[47.24”] [47.24”]

2023 mm

[47.24”]

1200 mm

Linear Set up

[79.67”]

Align the tabs with eachother.

Page 7

1200 mm 1200 mm 1200 mm

[47.24”] [47.24”]

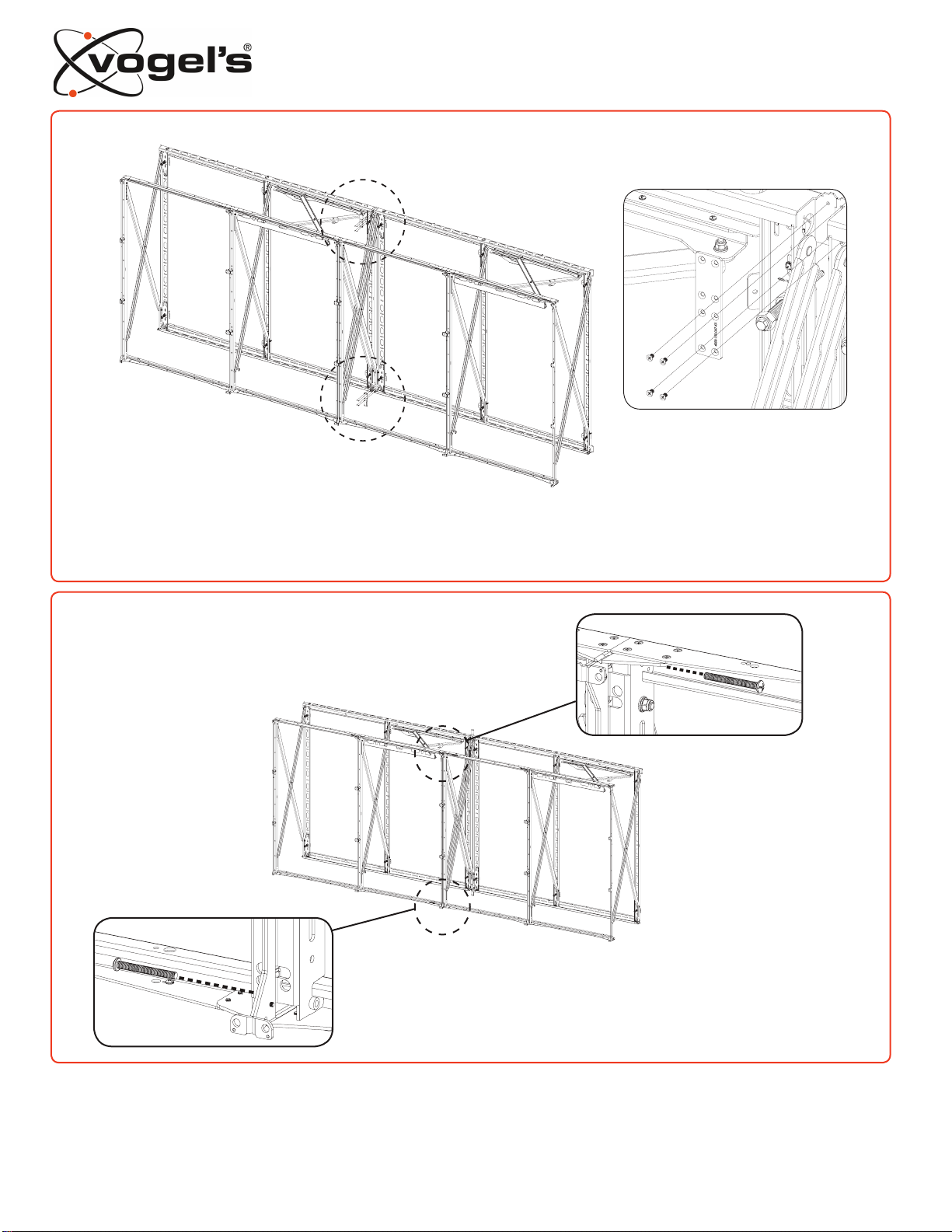

Install the mounts together using two (2) M8 x 70 mm screws (O).

Page 8

Install the spacer brackets (M) to the mount using (8) M5 x 6 mm flat head screws (J).

Four (4) screws per bracket.

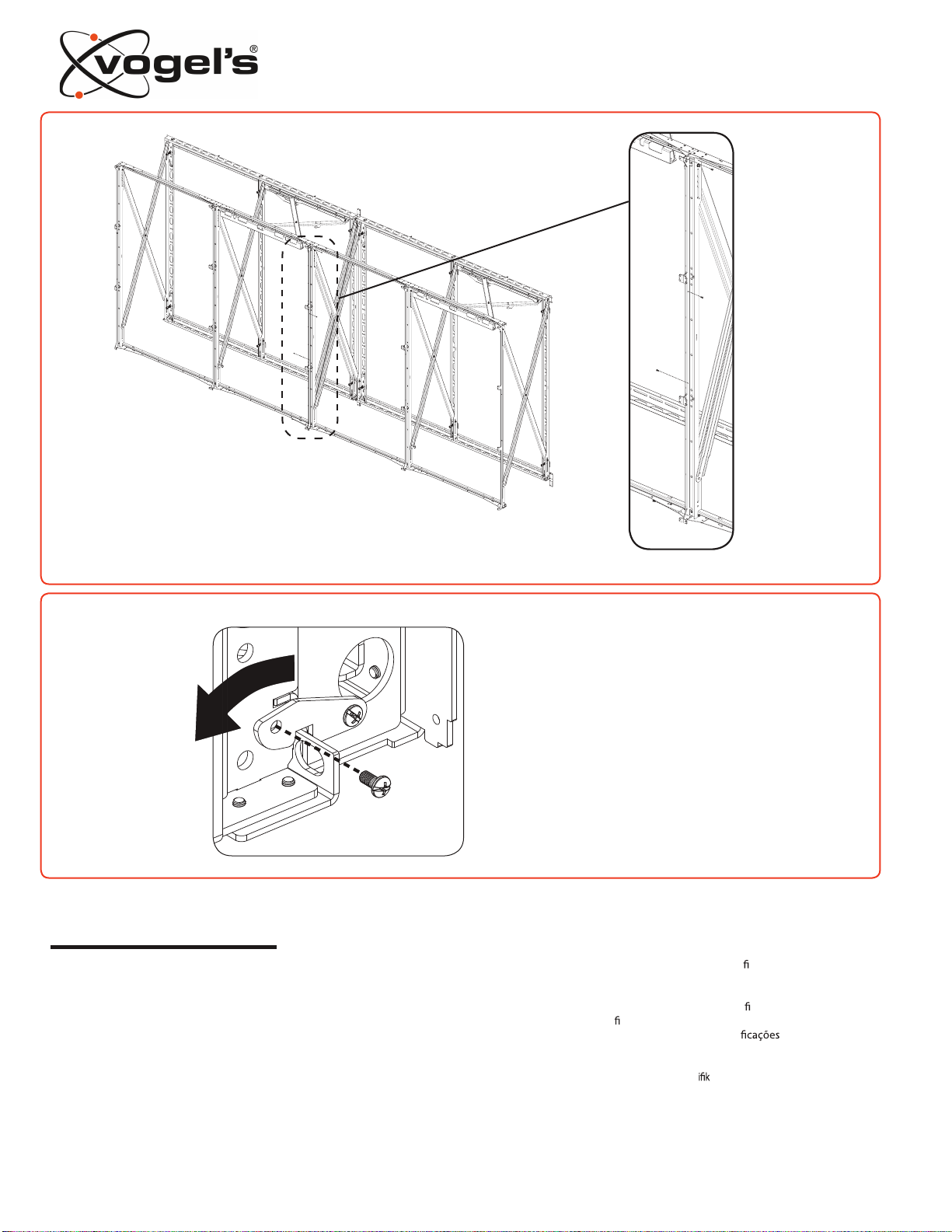

15 To collapse the mount and secure, remove

the push pin than install two (2) M5 x 10 mm

screws (K). One screw per latch.

Adjustments

See steps 6 and 9.

Install the mounts together using four (4) M5 x 10 mm screws (K).

Page 9

(GB) Subject to printing errors and technical amendments.

(NL) Drukfouten en technische wijzigingen voorbehouden.

(F) Sous réserve de fautes d’impression et de modi cations techniques.

(D) Für Druckfehler übernehmen wir keineVerantwortung.Technische

Änderungen vorbehalten.

(E) Reservados errores de imprenta y sujete a modi cationes.

(I) Con riserva di modi che techniche e di eventueli errori di stampa.

(P) Reserva-se a ocorrência de gralhas e de modi técnicas.

(H) Nyomdahibák és technikai változtatások joga fenntartva.

(PL) Zastrzega się możliwość występowania błędów drukarskich i zmian technicznych.

(RUS) Vozmoøny oπibki pri pehati i texniheskie mod acii.

Designed and engineered in the Netherlands

More information on: www.vogels.com

VOGEL’S PRODUCTS BV, HONDSRUGLAAN 93,5628 DB EINDHOVEN,THE NETHERLANDS
