VOGELS PFF7810 Manuel utilisateur

PFF7810

Video Wall Floor Stand 3x3 for 46 Inch Displays

www.vogels.com

INSTALLATION INSTRUCTIONS

9589-007-Z00-01

1/2-13 x 4” Bolt

1/2”-13 Nut

1/2”-13 Washer

1/4”-20 x 3.75” Bolt

1/4” -20 Washer

1/4”-20 Nut

1/2”-13 x 4” Bolt 1/2”-13 Nut

1/2” -13 Washer

Level

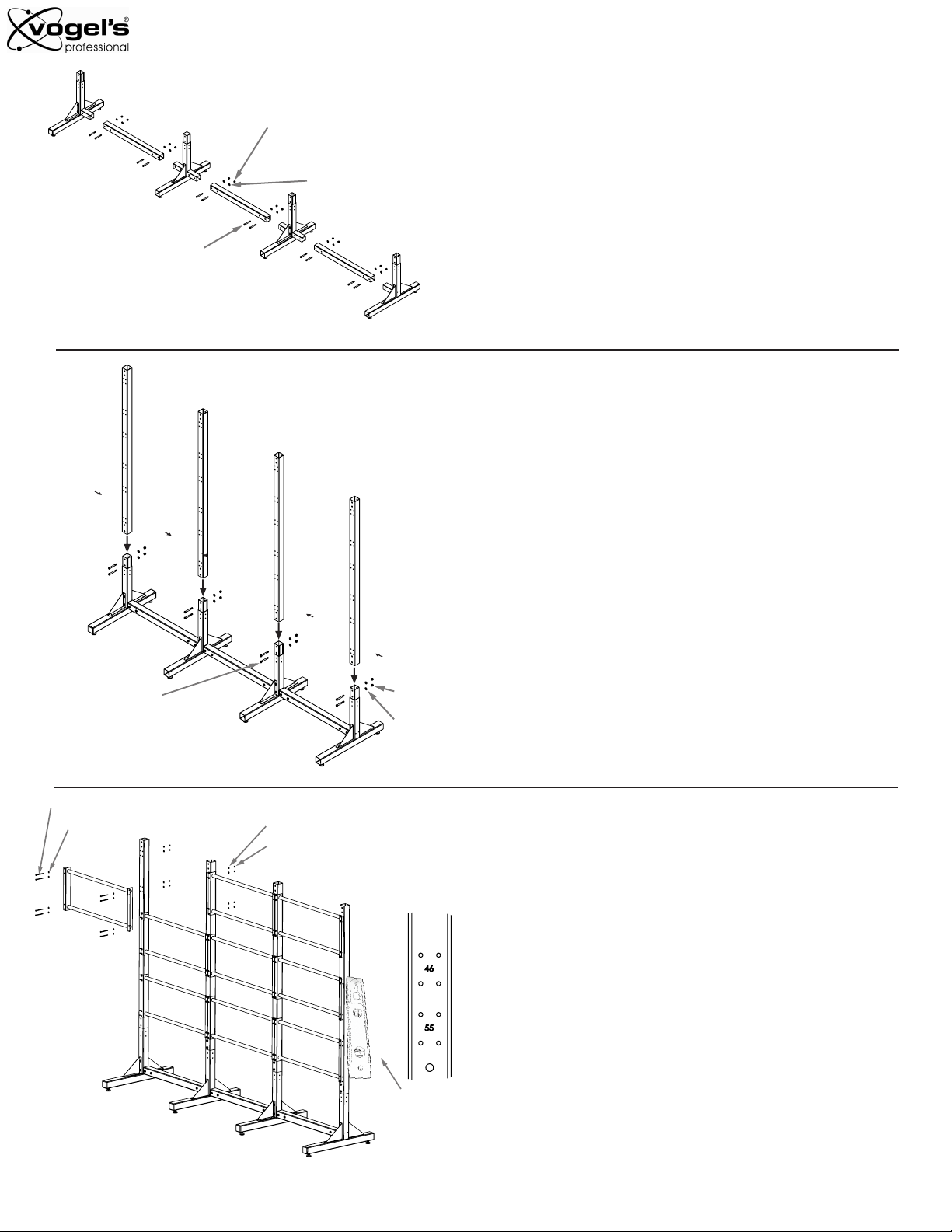

Step 1

Step 2

Step 3

www.vogels.com

Display mounting hardware

Display

Center Marker

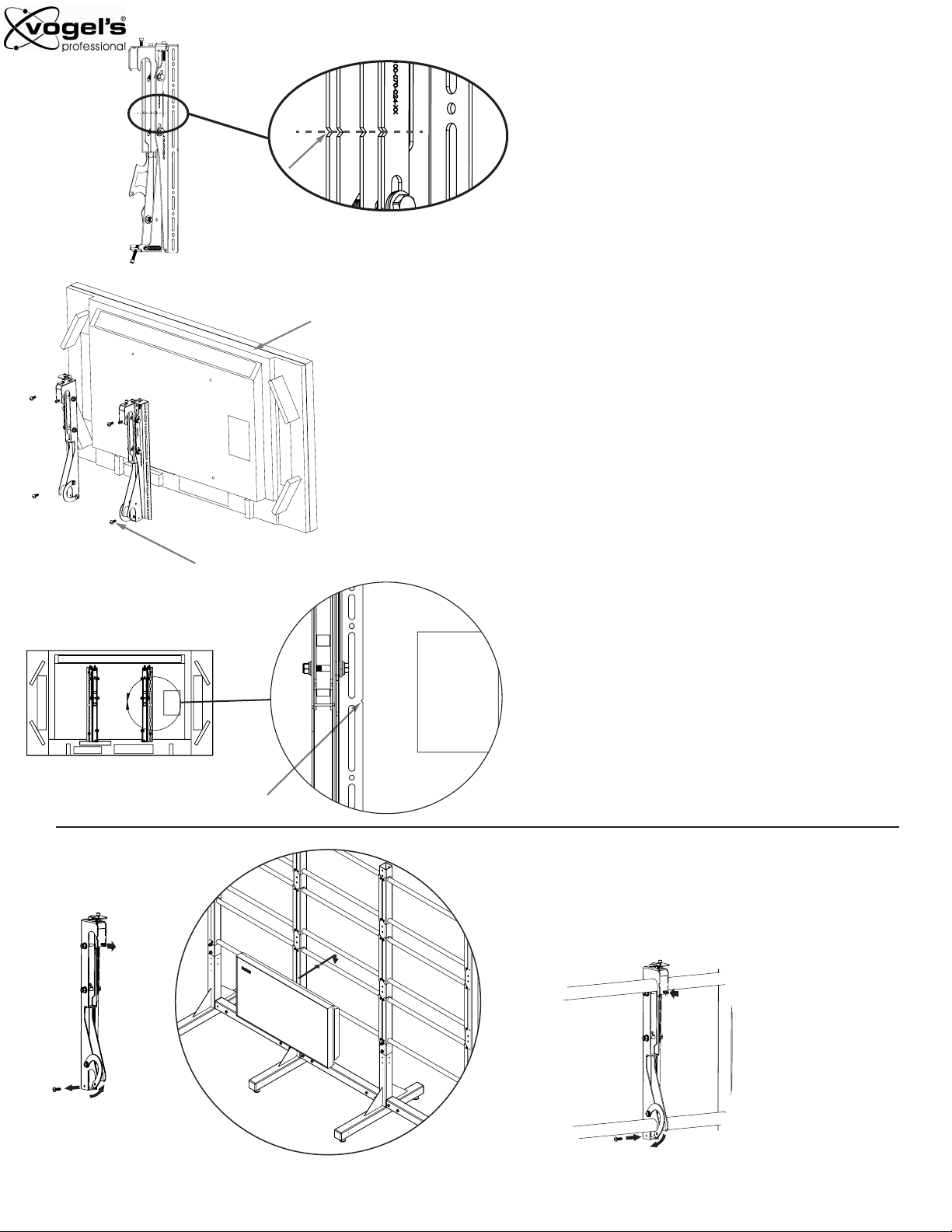

Start by installing the lower center monitor

rst to the video wall frame and loosely

secure as shown.

Preparing brackets

for installation

Securing brackets

when installed

Install the left and right adjustable mounting

brackets to the displays aligning the "V" notch

on the display mounting plate to the rear center

height of the display. See arrow to center notch.

Note: lower round security rings on the mounting

bracket need to face to the center of the display.

See arrow.

Once center of display alignment is conrmed,

securely tighten all mounting bracket to display

mounting screws with correct pitch hardware

supplied.

Insure the three "V" alignment notches on each

mounting bracket are at their factory preset

center with all notches together to indicate you

are in the center of your alignment adjustment

eld. If not in center alignment, adjust the top

Allen head screw(s) to adjust the center to the

correct starting position on each mounting

bracket.

See arrow.

Step 4

Step 5

www.vogels.com

LevelLevel In/OutIn/Out

TiltTilt

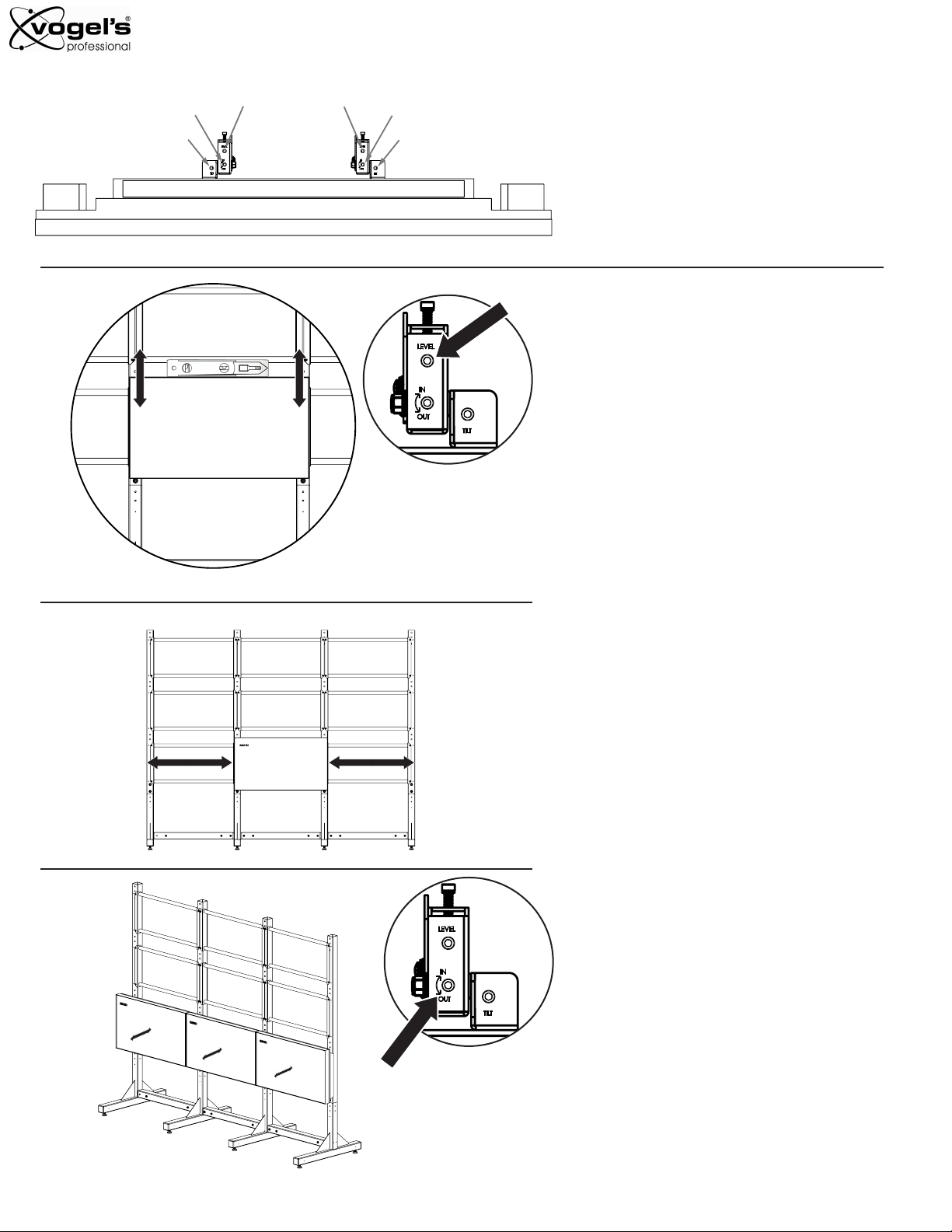

Now that you have your rst lower center

display attached to the frame, the beauty of

the three part alignment features of the

mounting bracket come into play. The fact that

all the adjustments are on top will make the

nal adjusting eortless.

With your Vogel's spirit level in hand, rst place

the level on top of the display bezel to set side to

side level. Next, place the level on the face of the

display to adjust top to bottom level of the

display parallel to the frame. Once you have these

steps conrmed, make sure the mounted display

is center on the video wall frame left to right and

tighten the security screws to secure the display

to the round wall frames to further prevent side

to side movement.

Next, follow the same steps for the lower left and

right displays.

Once all three display are aligned and secured,

the nal ne adjustment of tilt and in/out can be

used to insure all bezel edges are closely aligned.

This will take a few adjustments back and forth to

determine nal screen adjustment.

With the lower two or three display properly

aligned you can move up to the second row,

following the same procedure as the rst row.

It is important that the time be taken to maximize

the rst row alignment before moving up as you

do not want to have to go back and forth

between rows. If done correctly your bezel edges

should match very closely top and bottom.

Step 6

www.vogels.com

As you are installing the second and possible third

level of monitors to the frame, you want to insure

there is proper minimal bezel edge clearance

between the upper and lower display. Some

models have sensitive materials incorporated in

the top and bottom edges of their display that do

not allow for resting the weights of the display on

top of each other. Side to side clearance of bezel

edges is equally as important for natural chassis

expansion that occurs as the display come up to

full operating temperatures. Without the minimal

clearance allowance, the display would push

against each other causing some potential distor-

tion of the chassis alignment.

Use a standard business card fold in half to double

its thickness and use this to set your minimum

clearance between display; not only top to

bottom, but also side to side for better over all

symmetry for the nished video wall. The business

card should slide with ease the total length of the

bezel edge. If not, adjust the clearance to allow for

smooth movement of the card. This should be

done at each level of monitors being installed

before moving up to the next row of monitors.

Use the bracket upper level screws to set the

upper and lower bezel edge clearance, and the

side to side security screw to adjust the side

clearance.

Note: A .05” gap between bezels is

recommended for heat expansions.

Step 7

www.vogels.com 5
