Vivotek SF8172 Manuel utilisateur

EN - 1

English

Warning Before Installation

Package Contents

Power off the Network Camera as

soon as smoke or unusual odors

are detected.

Refer to your user’s manual for the

operating temperature.

Do not place the Network Camera

on unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not insert sharp or tiny objects

into the Network Camera.

Do not drop the Network Camera.

SF8172

Alignment Stickers Software CD

Quick Installation Guide /

Warranty Card

Power & I/O Cables

Screws / Anchors / Cable tie

EN - 2

Physical Description

083236

Outer View

Built-in Microphone

Dome cover

IMPORTANT:

Record the MAC address under the camera base

before installing the camera.

Inner View

Header (J7)

Spring Contacts (A)

Lens

Contacts for Internal Microphone (B)

Header (J6)

Ethernet 10/100 RJ45 Socket

MicroSD/SDHC/SDXC Card Slot

Reset Button

Status LEDs

Cabling Cutout

EN - 3

English

Hardware Installation

Release button

First, open the dome cover by pressing the release button. You may squeeze the opposite edge of

the dome cover if the dome cover does not come off easily. Then, follow the steps below to install the

camera to either a ceiling or a wall.

If you plan to route cables from the side of camera,

remove the rubber slide cover from the dome cover.

Slide cover

Connect the supplied power & IO cables if your switch

does not support PoE. Connect the white header

connectors to J6 and J7 on the camera.

Connecting Ethernet Cable

& the Power and IO Cable

Power & IO Cable

EN - 4

Power and IO

cables

Connecting Cables

If you need to route cables through the side opening, proceed with the following:

1. Connect the Ethernet and the Power & IO cables. The Ethernet cable

is user-supplied.

2. Use an included cable tie to secure the Ethernet and IO cable to the base plate. Insert the cable

tie through the vertical mounting tab located on the edge of the cabling cutout.

3. Make a clearance between cables and the vertical mounting tab. Arrange the cables neatly to

avoid getting in the way when the dome cover is attached.

4. Cut the extra length from the cable tie.

It is recommended to remove the strain relief boot if your Ethernet cable

comes with one.

Ethernet

Make a clearance

between cables and

the vertical tab

Strain relief boot

If you route cables through a drill hole on

a wall/ceiling, simply route cables through

the cabling cutout.

EN - 5

English

Ceiling Mount Installation

456 mm

178 mm

47mm

AM-116

AM-51A

AM-114

Install the Pendant Pipe

Below is a sample procedure using a

pendant pipe:

1. Determine a hard surface ceiling

location, and use the four mounting

holes on the pendant head to mark

the positions where holes will be

drilled to secure the pendant head.

Note that screws are user-supplied

and they should be at least 11mm

long.

2. Route cables through the pendant

pipe and the pendant head.

IMPORTANT:

Refer to the "Panoramic PTZ Installation Guide" in your product CD for design considerations before

you proceed with physical installation.

”

A -

Cable out

”

/16”

”

Attach Camera to Mounting Adaptor

An adapter bracket, AM-517, is required.

1. Align the bracket's screw slots with mounting holes on the AM-51A.

2. Secure the bracket to AM-51A using 2 pan head M2.6 screws.

4”

A -

Cable out

”

4”

3. Align the camera's screw slots with

the C holes.

4. Use the included M2.6 screws to

secure camera to bracket.

EN - 6

30~100cm

AM1010

NOTE:

Header (J7)

Header (J6)

Install to the Ceiling

1. Drill pilot holes into the ceiling. Then hammer four anchors into the holes.

2. Secure the pendant head to the ceiling using four screws.

3. Connect the two white header connectors to the J6 and J7 connectors.

4. Connect the Ethernet cable to the RJ-45 socket.

5. You will find a desiccant bag attached to the camera. Replace the desiccant bag included in the

camera with the one shipped within the accessory bag.

6. Attach the dome cover to the camera.

7. Route cables through a 3/4” conduit from the pendant head.

Arrange the cables neatly to avoid getting in the way when the dome cover is attached.

EN - 7

English

AM-51A

AM-116

AM-212

Wall Mount Bracket Installation

Below is a sample procedure using a wall mount bracket and a pendant pipe:

1. Determine a hard surface ceiling location. Use the four mounting holes on the wall mount bracket

to mark the positions where holes will be drilled to secure the bracket and routing cables. Note that

screws are user-supplied and they should be at least 11mm long.

2. Feed cables through the bracket.

3. Install the pendant pipe.

4. Install the camera to the mounting adapter. See Attach Camera to Mounting Adapter on the previous

page.

5. Install the mounting adapter to pendant pipe.

6. Tighten the connection using the included hex wrench.

EN - 8

Network Deployment

30~100cm

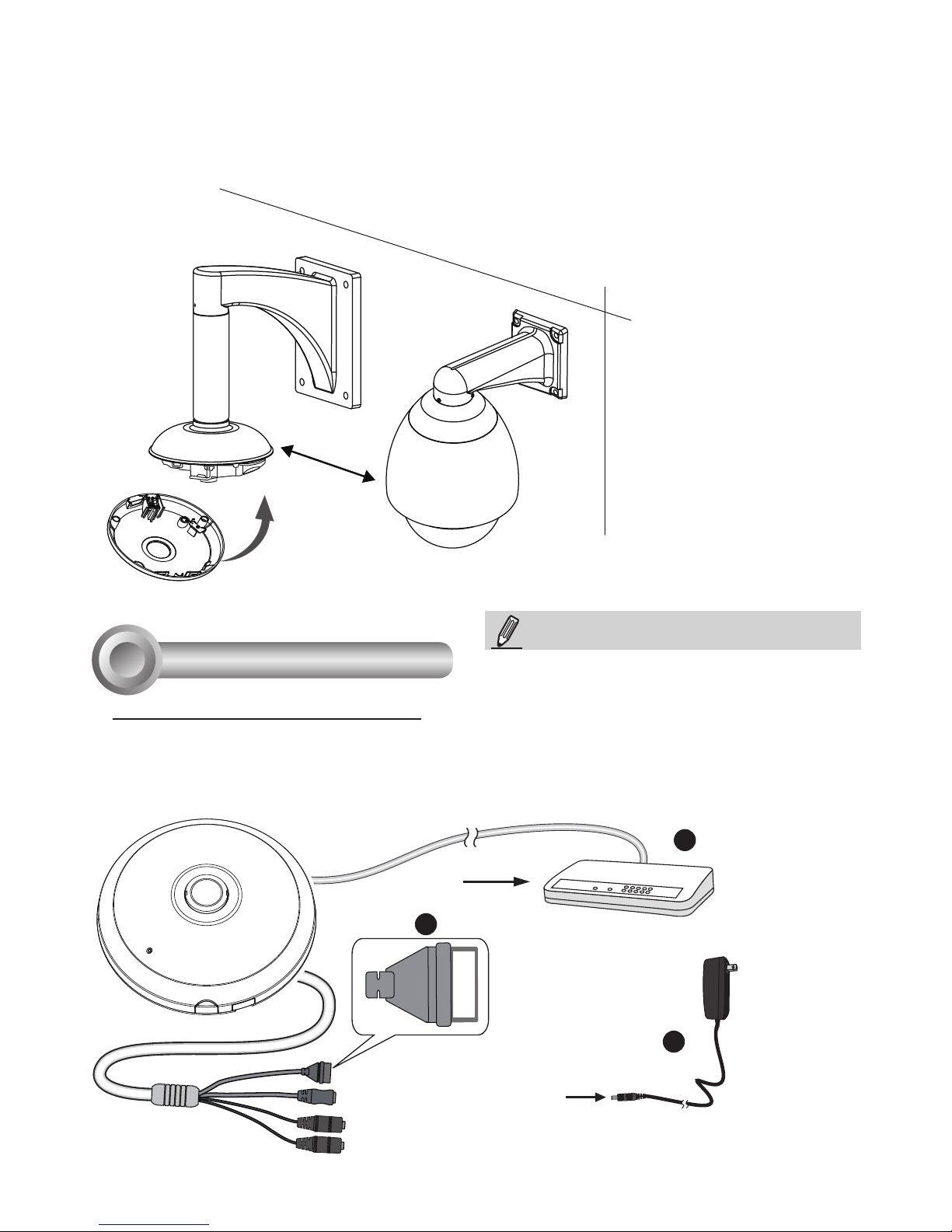

7. Install the speed dome camera next to the fisheye, with their lens positioned at approximately the

same height. For details about speed dome installation, please refer to its documentation.

8. Connect all cabling, including the IO cables to J6 and J7, and the Ethernet cable to RJ-45 connector.

9. Install the dome cover.

General Connection (without PoE)

1. Connect RJ45 Ethernet cable to a switch.

2. Connect the power cable from the Network Camera to a power outlet.

3. If you have external devices such as sensors and alarms, make the connection from the general

I/O terminal block.

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

+3V3

GND

General I/O Terminal Block

Power Cord Socket (Black)

Microphone In (Pink)

Audio Out (Green)

+3V3: Power, 3.3V DC

DO: Digital Output

D I: Digital Input

GND: Ground

NOTE:

If DC power is preferred, it should comply with: O/P:

12VDC, 1.5Amin., L.P.S. per IEC 60950-1.

EN - 9

English

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE

switch.

Power over Ethernet (PoE)

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single

Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch

via Ethernet cable.

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

PoE Switch

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

PoE Power Injector

(optional)

Non-PoE Switch

NOTE:

1. This equipment is only to be connected to PoE

networks without routing to outside plants.

2. For PoE input connection, use only UL listed I.T.E.

with PoE output.

EN - 10

Ready to Use

Assigning an IP Address

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras

on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC address

that matches the one printed on the camera label or the serial number on the package box label

to open a browser management session with the Network Camera.

1. A browser session with the Network Camera should prompt as shown below.

NOTE:

If you encounter problems with displaying live view or the onscreen plug-in control, you may try to

manually remove the plug-ins that might have been installed on your computer. Remove the following

folder: C:\Program Files (x86)\Camera Stream Controller.

2. Refer to the “Panoramic PTZ Installation Guide” in your product CD for the rest of the

configuration details.
