Warning Before Install

Contact your distributor when

such cases happen.

Refer to your user's manual for the

operating temperature.

Power off the Network Camera

as soon as it is found smoking or

smelt unusual.

Do not touch the Network Camera

when it's lightening.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert any object into the

Network Camera, such as needles.

Do not manually pan and tilt the

Network Camera when the power is

on.

EN-2

Package Contents

Power adapter

Software CD

SD7151

O-ring and screws

Warranty card

Black cover / Dome cover

Wall mount bracket

RJ45 female/female coupler Quick installation guide

Alignment sticker

EN-3

English

Inner view

Reset button

Lens

Outer view

Physical Description

Status LED

Ethernet 10/100

RJ45 plug

Audio out (green)

Microphone in (pink)

Power cord socket (black)

General I/O

terminal block

Earth

EN-4

Hardware Installation

Mounting the Network Camera

1. Attach the alignment sticker to the wall.

2. Drill four pilot holes into the wall.

3. Attach the black cover to the Network Camera using the supplied four black screws.

4. Fix the dome cover to the Network Camera and secure it by rotating it clockwise.

5. Loosen the three screws on the front opening of the wall mount bracket.

6. Place the O-ring on the front opening of the wall mount bracket.

7. Feed the cables through the front opening of the wall mount bracket and pull them

from wall outlet.

8. Attach the Network Camera to the wall mount bracket by tightening the three

screws on the front opening of the wall mount bracket.

9. Fasten the wall mount bracket to the wall.

678

EN-5

English

Network Deployment

OWE

OLLIS

ION

LINK

ECEIVE

ARTITION

12345

1. If you have external devices such

as sensors and alarms, make

connection from general I/O terminal

block.

2. Use the supplied RJ45 female/female

coupler to connect the Network Camera

to a switch.

Use Catagory 5 Cross Cable when

Network Camera is directly connected

to PC.

3. Connect the power cable from the

Network Camera to a power outlet.

G N D : Ground

DI4: Digital Input

DI3: Digital Input

DI2: Digital Input

DI1: Digital Input

G N D : Ground

N.O. : RELAY_NO

COM. : RELAY_COM

+12V : Power, 12V DC

(AC 24V 2A)

EN-6

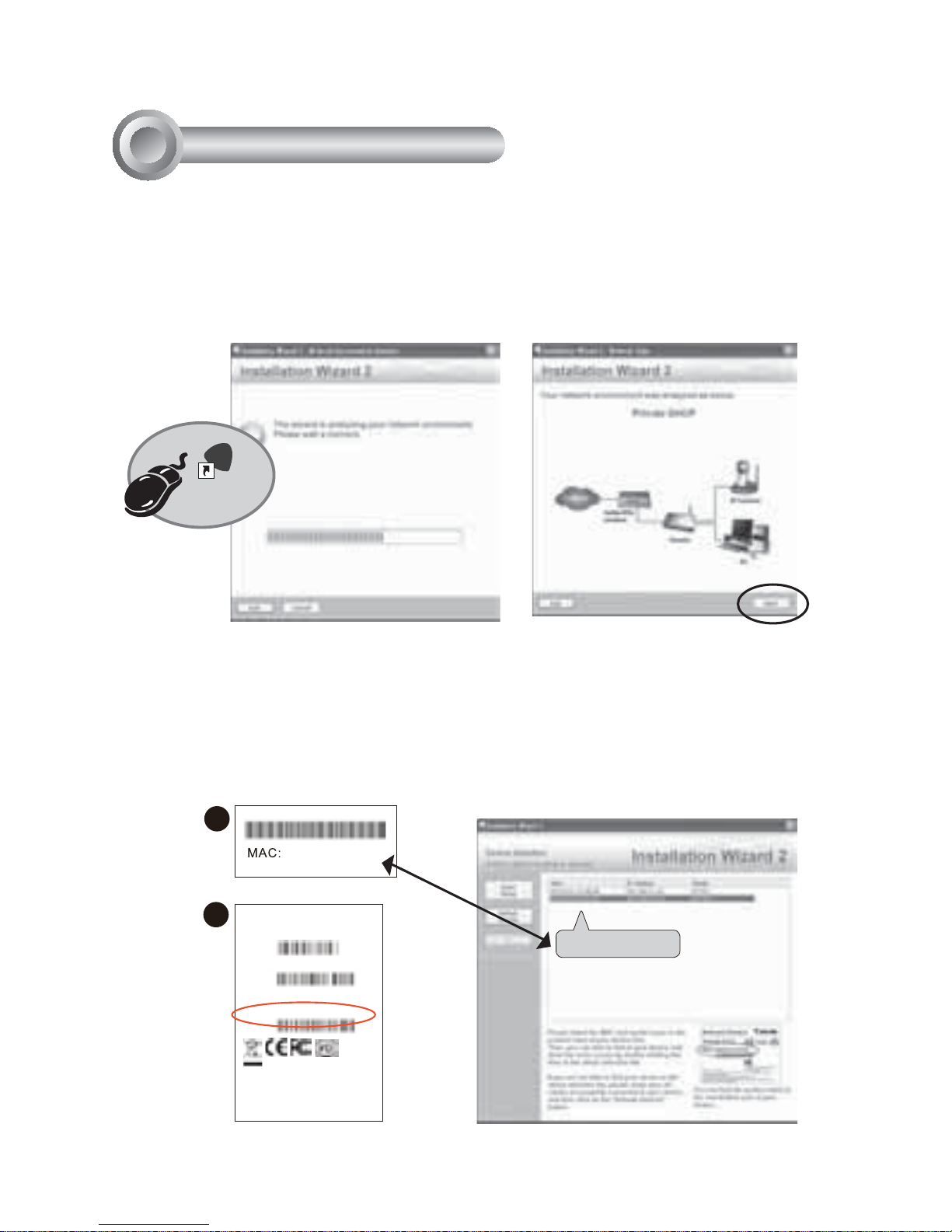

1. Install the "Installation Wizard 2" under the Software Utility directory from software CD.

2. The program will conduct analyses on your network environment. After your network is

analyzed, please click on the "Next" button to continue the program.

3. The program will search the VIVOTEK Video Receivers, Video Servers or Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that

matches the one labeled on the side of the camera lens or S/N number on the

label of carton to connect the Internet Explorer to the Network Camera.

0002D17151CD

Model No.:SD7151

P/N: 100043690G

F/W Ver.: 0100G

CARTON OF NO. 01

MAD E I N TAIWAN

!!0!!

Q 't y: 1 PC S

EAN: 4712123671550

S/N: 0002D17151CD

RoHS

0002D17151CD

Installation

Wizard 2

Assigning IP Address

EN-7

English

For further setup, please refer to user's manual on the software CD.

Ready to Use

1. Access to the Network Camera from the Internet.

2. Retrieve live video through web browsers or recording software.
