Vivotek IP8335H Manuel utilisateur

This guide describes the basic functions of IP8335H. More

details can be found in the User Manual.

IP Surveillance

P/N: 625015800G Ver.1.0

New Taipei City

Quick Installation Guide

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

720p HD WDR Pro IP67

IP8335H

EN-1

English

Warning Before Installation

Contact your distributor in the

event of occurrence.

Refer to your user's manual for the

operating temperature.

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Do not touch the Network Camera

during a lightning storm.

Do not place the Network Camera on

unsteady surfaces.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

EN-2

Package Contents

Software CD

IP8335H

Quick Installation Guide /

Warranty Card

Waterproof Connector (for backup

use)

Alignment Sticker

Wall Mount Bracket

Sun Shield

Wrench / RJ45 Female/Female Coupler / Double-sided Tape / Screws

Power Adapter

Moisture Absorber

EN-3

English

Physical Description

IR LED

Lens

Light Sensor

General I/O

Terminal Block

Zoom Controller

Focus Controller

Reset Button

Alternate AC Power Source

Ethernet 10/100

RJ45 Plug

Power Cord Socket

+ AC 24V +

- AC 24V -

Micrso SD/SDHC

Card Slot

EN-4

1. Attach the alignment sticker to the wall. Drill three holes into the wall. Then hammer the supplied

plastic anchors into the holes and secure the plate with supplied screws.

2. Feed the cables through the front opening of the wall mount bracket. (If you want to use external

devices such as sensors and alarms, please refer to the assembling steps on the next page.)

3. Hang the wall mount bracket on the plate.

4. Fix the Network Camera on the wall mount bracket with two screws on both sides.

5. Secure the wall mount bracket with the supplied screws.

6. Adjust the angle of the wall mount bracket to aim at the shooting area.

Hardware Installation

The supplied L-type hex key wrenches are exclusively

designed to match each screw. In case you will need to adjust

the lens later, do not discard the wrenches.

IMPORTANT!

EN-5

English

Waterproof Connector

1 N/C

2 N/C

3 DO- *

4 DO+ **

5 Digital Input: - (Ground)

6 Digital Input 3: DI3

7 Digital Input: - (Ground)

8 Digital Input 2: DI2

87654321

Components of the Waterproof Connector

Seals (D)

Housing (E)

Sealing Nut (F)

Seal (C)

Screw Nut (B)

Pin Denitions

Rubber (A)

1 Digital Input 1: DI1

2 Digital Input: - (Ground)

3 RS485 +

4 RS485 -

5 AUDIO_GND

6 AUDIO_IN: Ext_MIC_IN

7 AUDIO_GND

8 AUDIO_OUT

* Vmax.: 40V DC, Imax.: 400mA.

** Power output, 12V DC: max. load is 50mA.

The terminal block is accessible when the rear cover is opened.

Power

PCB

Micro SD Socket

Ethernet

EN-6

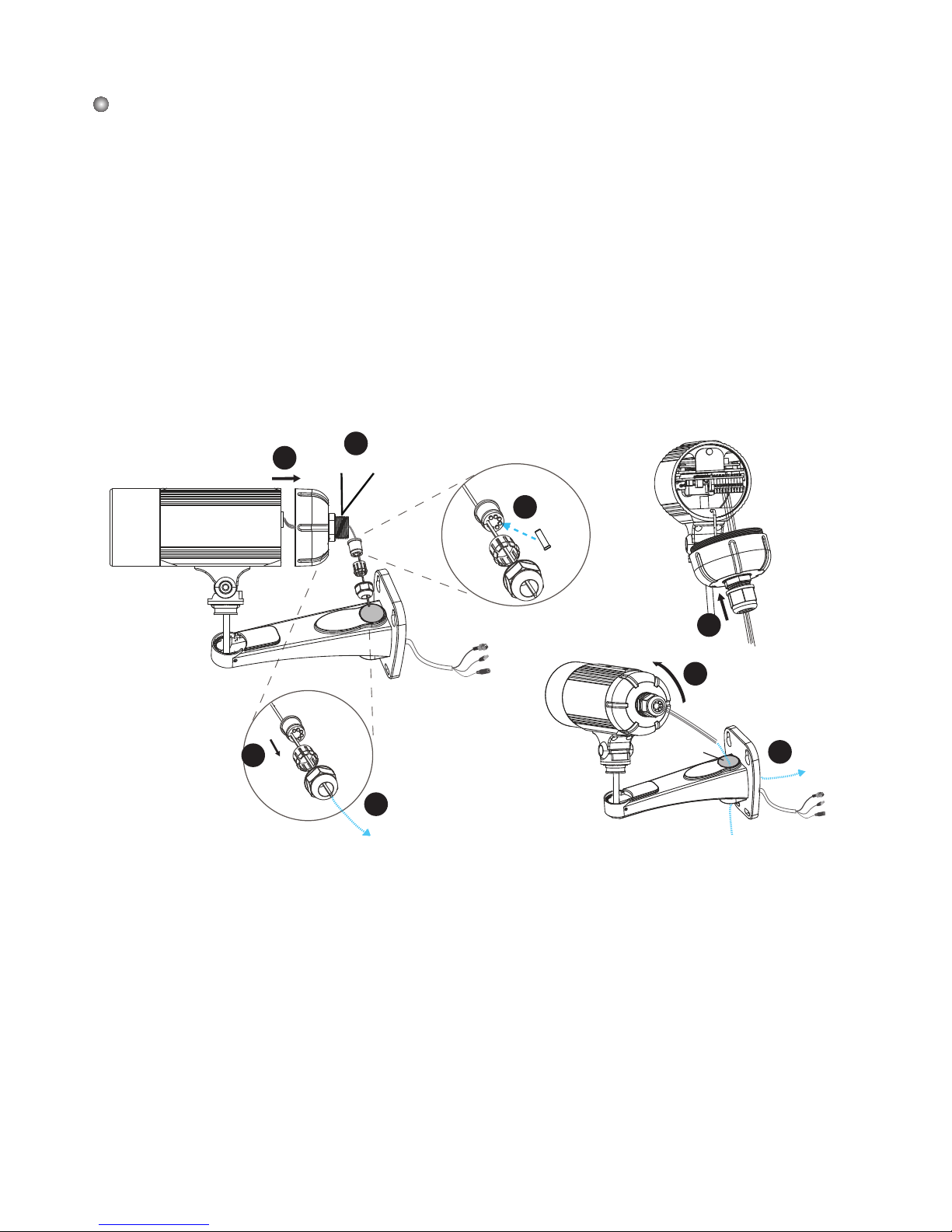

1. Disassemble the components of the waterproof connector into part (A) ~ (F) as shown above.

2. Remove the rubber stopper from the bottom of the Network Camera and secure the rubber (A)

and screw nut (B) tightly.

3. Open the back cover of the Network Camera.

4. If you have external devices such as sensors and alarms, feed the cables through the waterproof

connector (F --> E --> C --> A+B) as the illustration shown below. Then refer to the pin denition

to connect them to the general I/O terminal block. Note: The recommended cable gauge is 2.0 ~ 2.8

mm.

5. Push the seal (C) into the housing (E).

6. Insert the seals (D) into the empty holes on the seal (C) to avoid moisture.

7. Secure the sealing nut (F) tightly.

8. Tighten the back cover.

9. Remove rubber (G) and feed the cables through the wall mount bracket.

Assembling Steps

(A)+(B)

(E)

(C)

(F)

(D)

(C)

(E)

(F)

(C)

(F)

(G)

EN-7

English

Network Deployment

Power over Ethernet (PoE)

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE

switch.

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single

Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled

switch via Ethernet cable.

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

Non-PoE Switch

PoE Power Injector

(optional)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE Switch

RJ45 Female/

Female Coupler

EN-8

1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network

is analyzed, please click on the "Next" button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that matches

the one on the product label to connect to the Network Camera via Internet Explorer.

Network Camera

Model No: IP8335H

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

MAC:0002D1730202

R o H S

0002D1730202

00-02-D1-73-02-02 192.168.5.151 IP8335H

Installation

Wizard 2

Assigning an IP Address

EN-9

English

For further setup, please refer to the user's manual on the software CD.

Ready to Use

1. Access the Network Camera from the LAN.

2. Retrieve live video through a web browser or recording software.

3. Unscrew the zoom controller to adjust the

zoom factor. Upon completion, tighten the

zoom controller.

4. Unscrew the focus controller to adjust the

focus range. Upon completion, tighten the

focus controller.

∞
