Vivotek PZ8111 Manuel utilisateur
P/N: 625015200G Ver.1.0
Copyright 2011 VIVOTEK INC. All rights reserved.
c
10x Zoom‧Multiple Streams‧PoE
PZ8111/21/11W/21W
This guide describes the basic functions of PZ8111/21/11W/21W.
All detailed information is described in the user’s manual.
EN - 1
English
Contact your distributor in the event of
occurrence.
Keep the Network Camera
away from water. If the Network
Camera becomes wet, power off
immediately.
Refer to your user’s manual for the
operating temperature.
Power off the Network Camera
assoon as smoke or unusual odors
are detected.
Do not place the Network Camera
around heat sources, such as a
television or oven.
Keep the Network Camera away
from direct sunlight.
Do not place the Network Camera
in high humidity environments.
Activity
Power/MIC
Activity
Power/MIC
Activity
Power/MIC
Activity
Power/MIC
Contact your distributor in the event of
occurrence.

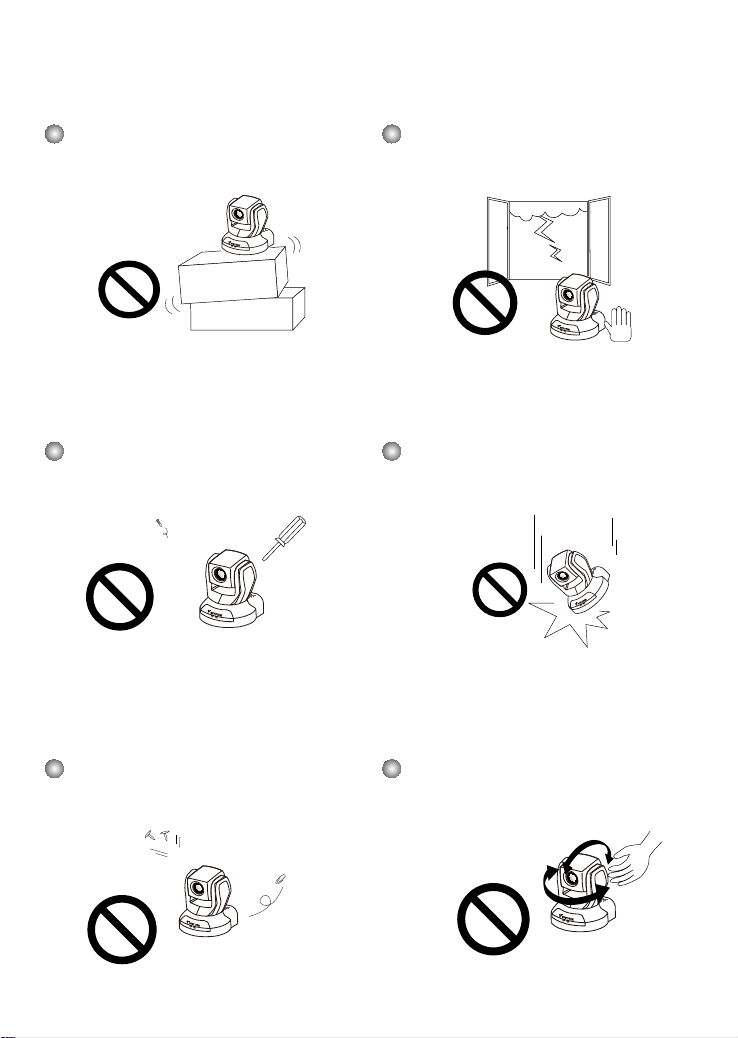

Warning Before Installation
EN - 2
Do not place the Network Camera
on unsteady surfaces.
Do not touch the Network Camera
during a lightning storm.
Do not disassemble the Network
Camera.
Do not drop the Network Camera.
Do not insert sharp or tiny objects
into the Network Camera.
Activity
Power/MIC
Activity
Power/MIC
Activity
Power/MIC
Activity
Power/MIC
Activity
Power/MIC
Do not manually pan and tilt the
Network Camera when the power is
on.
Activity
Power/MIC
EN - 3
English
5
1
0
0
0
0
2
0
2
G
Antenna
(PZ8111W/21W Only)
Screws
PZ8111/21/11W/21W
A/V Cable
Power Adapter
Quick Installation Guide /
Warranty Card
Software CD
Activity
Power/MIC
Ceiling Mount Brackets

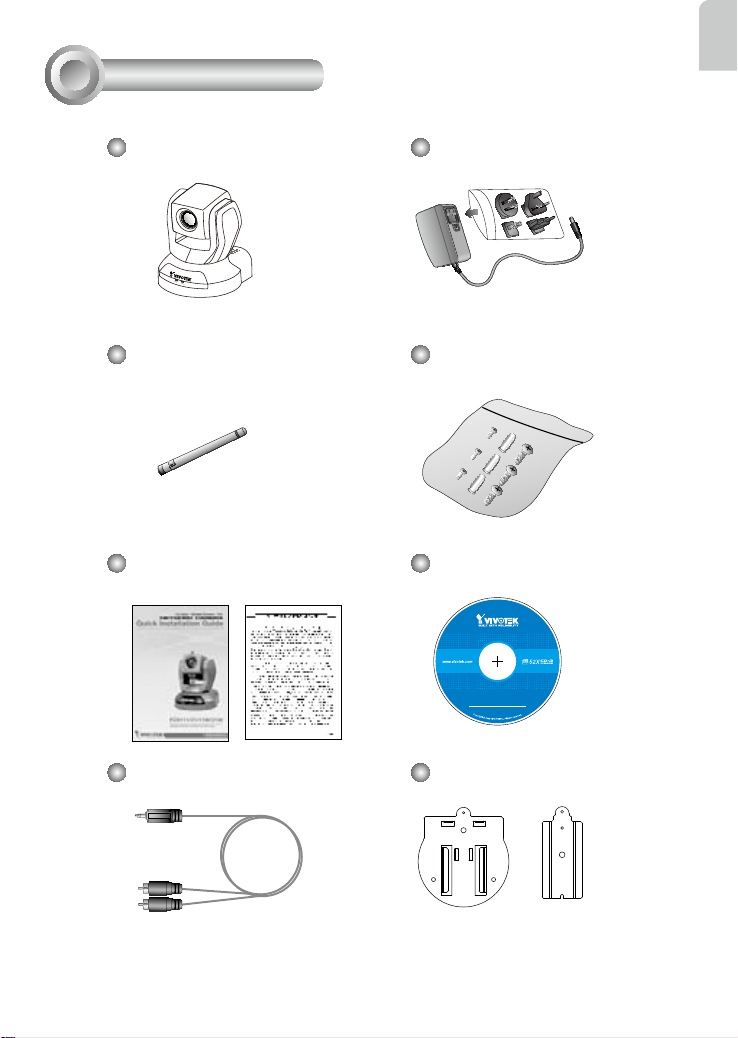

Package Contents
1
EN - 4
Front Panel
Back Panel
Activity
Power/MIC Built-in Microphone
Status LED
Lens
Recessed Reset Button
Ethernet 10/100
RJ45 Socket
External/Internal
Microphone Switch
General I/O
Terminal Block
AV Out
Microphone In
Power cord socket
Antenna
(PZ8111W / PZ8121W Only)
Physical Description
2
e e
AV
EN - 5
English
2
Mounting the Network Camera
1. Attach ceiling mount bracket A to the Network Camera and secure it with two small
screws.
2. Drill three pilot holes into the ceiling; hammer the plastic anchors into the holes.
3. Fasten ceiling mount bracket B to the ceiling with three screws.
4. Slide the Network Camera into ceiling mount bracket B.
5. Secure ceiling mount bracket A and B with a small screw.
2
3
4
1
A B
5
Hardware Installation
3
EN - 6
General Connection (without PoE)
1. If you have external devices such as sensors and alarms, connect them to the general
I/O terminal block.
2. Connect the camera to a switch via Ethernet cable.
3. Connect the supplied power cable from the camera to a power outlet.
e e
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
AV
2
3
Ethernet Switch
Network Deployment
4
1: Power
2: Digital output
3: Digital input
4: Ground
1
EN - 7
English
Power over Ethernet (PoE)
e e
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
AV
PoE switch
e e
POWER COLLISION
LINK
RECEIVE
PARTITION
12345
AV
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a
non-PoE switch.
PoE Power Injector
(optional)
When using a PoE-enabled switch
This Network Camera is PoE-compliant, allowing transmission of power and data via
a single Ethernet cable. Follow the below illustration to connect the camera to a PoE e
abled switch via Ethernet cable.
Non-PoE Switch
EN - 8
0002D10766AD
RoHS
Network Camera
PZ8111W
1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.
2. The program will conduct an analysis of your network environment. After your network is
analyzed, please click on the “Next” button to continue the program.
3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network
Cameras on the same LAN.
4. After searching, the main installer window will pop up. Click on the MAC that matches the
one labeled on the bottom of your device to connect to the Network Camera via Internet
Explorer.
0002D10766AD
172.16.7.13 PZ71X2
PZ81X1
Installation
Wizard 2
IW
2
Assigning an IP Address
5
EN - 9
English
For further setup, please refer to the user's manual on the software CD.
Ready to Use
6
1. Access the Network Camera on the LAN.
2. Retrieve live video through a web browser or recording software.
